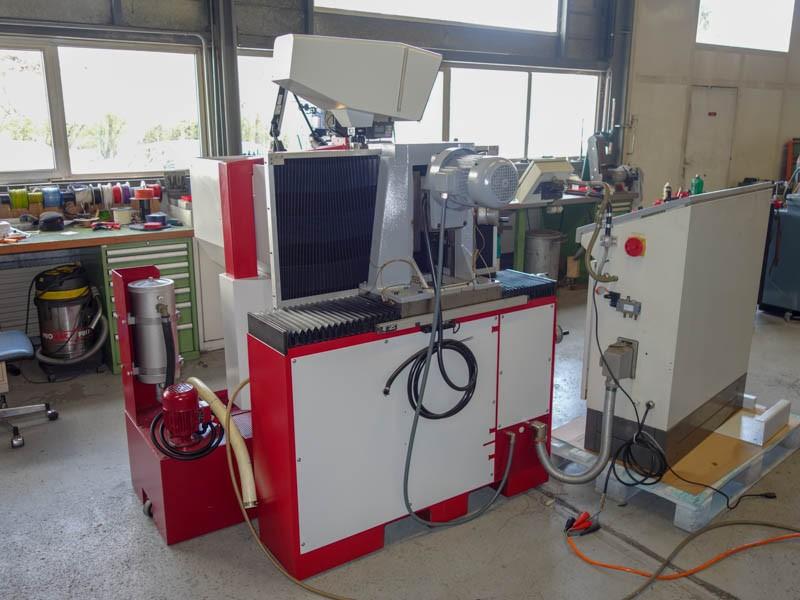

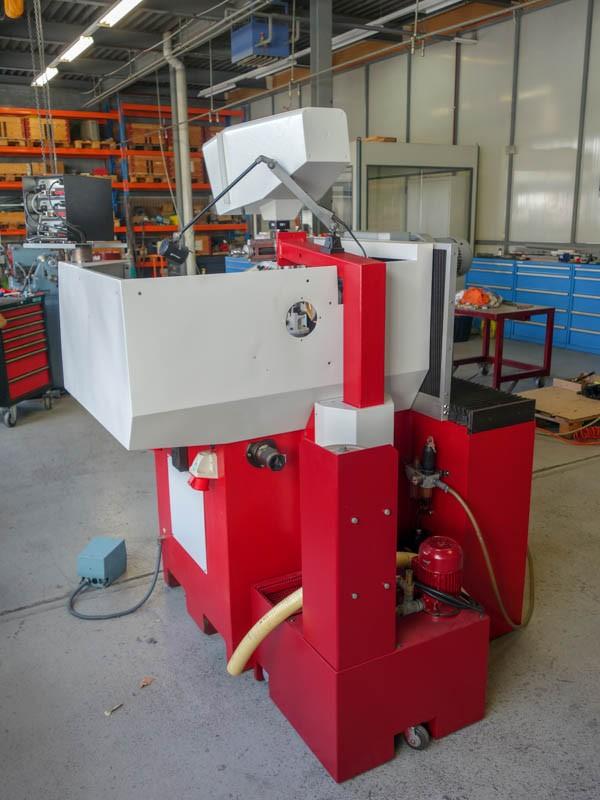

EWAG RS15 Tool grinder

Grinding wheel head:

Motor power: 2.2kW

Spindle speed (stepless speed) : 1000-8000 rpm

Spindle angle (A axis) : -10°/+27°

Spindle angle accuracy setting: 1  min

Y axis: 130 mm

X axis: 490 mm

Oscillation tavel (working) : 0-68 mm

Oscillation frequency: 0-68 min-1

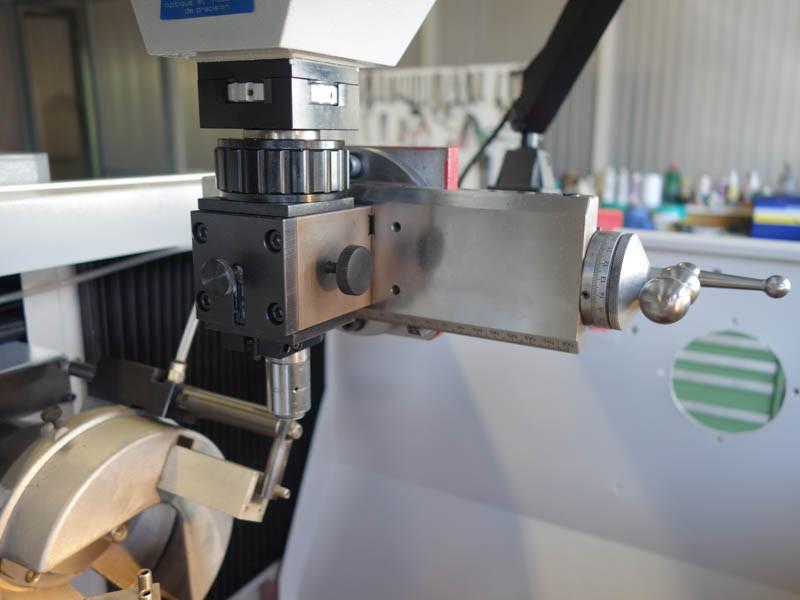

Workhead:

Radius setting (Z axis) : 0.01-120 mm

Z-axis accuracy setting: 0.01mm

Slider retraction from grinding position to measuring position: maximum 120 mm

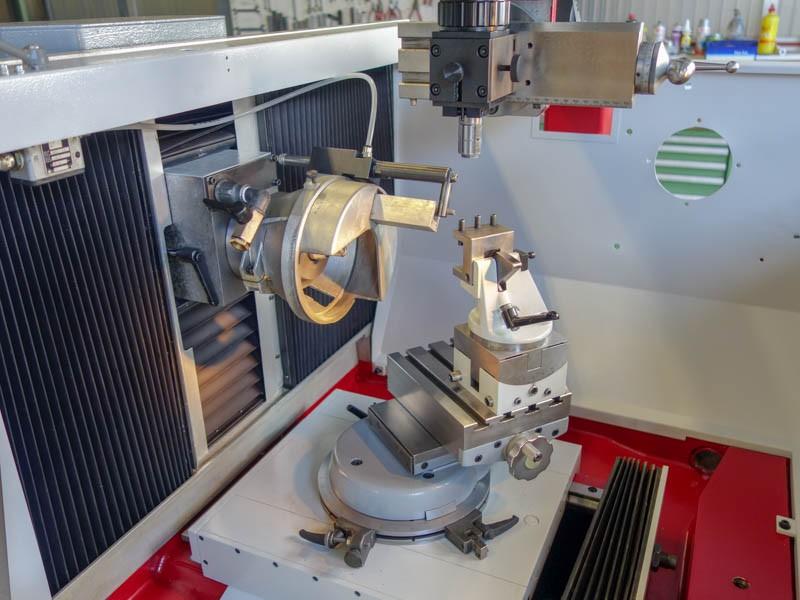

Horizontal Worktable, clamping surface: 155 x 205 mm

tavels: All 60 mm (2.36 in)

Maximum rotation Angle (B axis) : 260°

Power supply: 3x380V

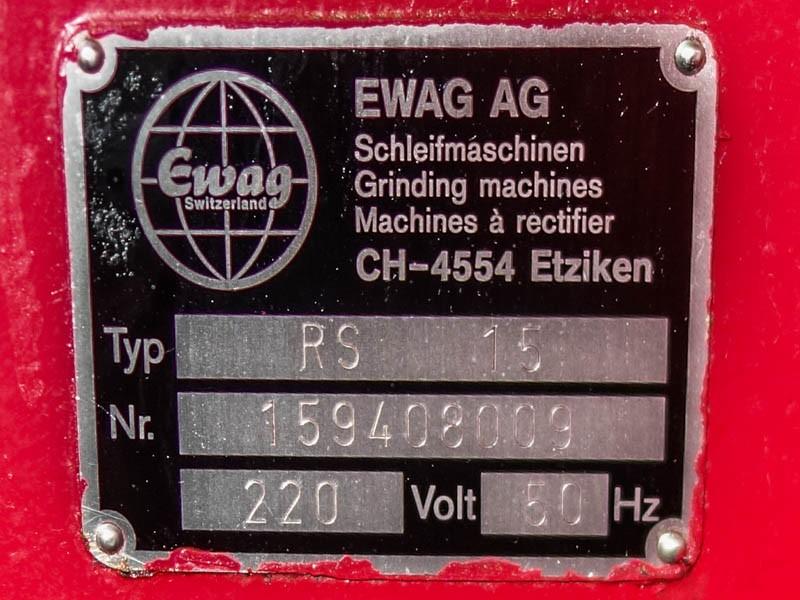

Serial number 159408009

Spindle drive with variable speed FR 15

Variable grinding pressure AV15

Electromagnetic locking device SB15-EM

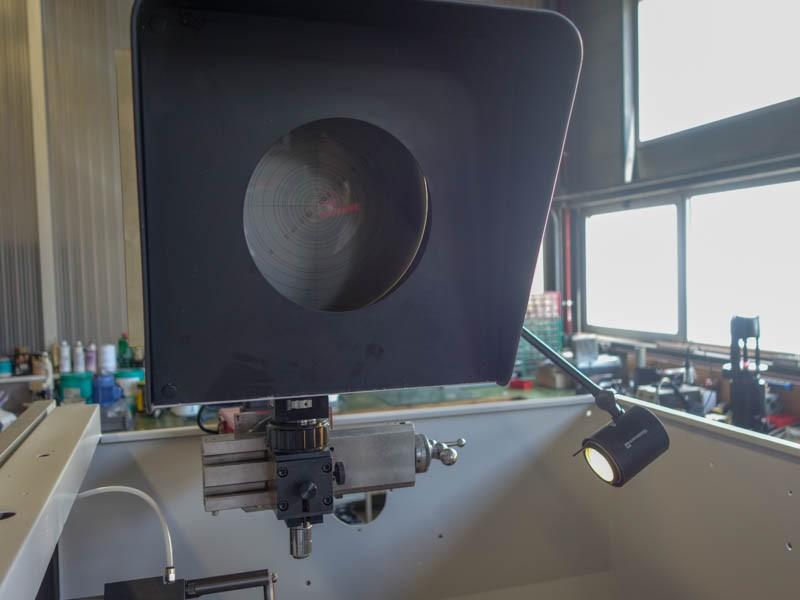

Projector accessory Metric PRO 15M

Projector with 250 mm diameter screen , ref 70-0015

Interchangeable objective Lens 20 x

graticule (glass)

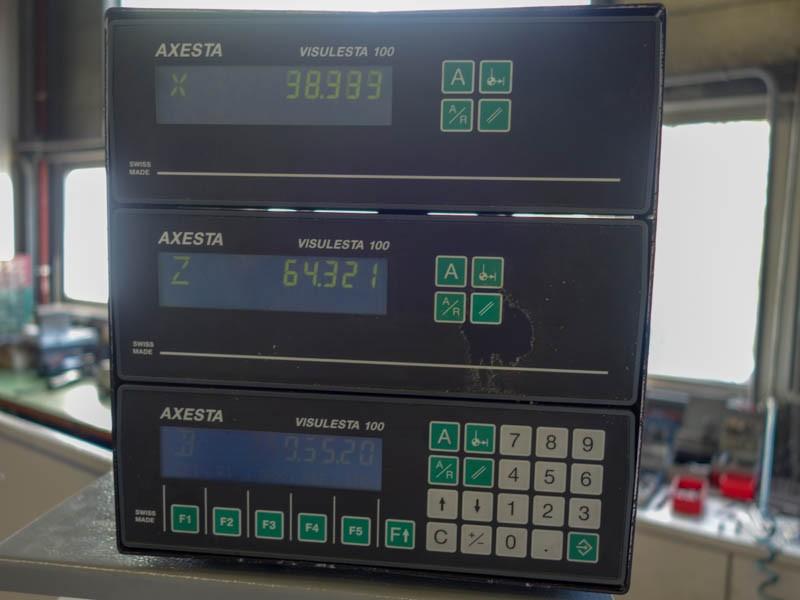

3 axes digital readout DIG 15-3 (X, B, Z axis)

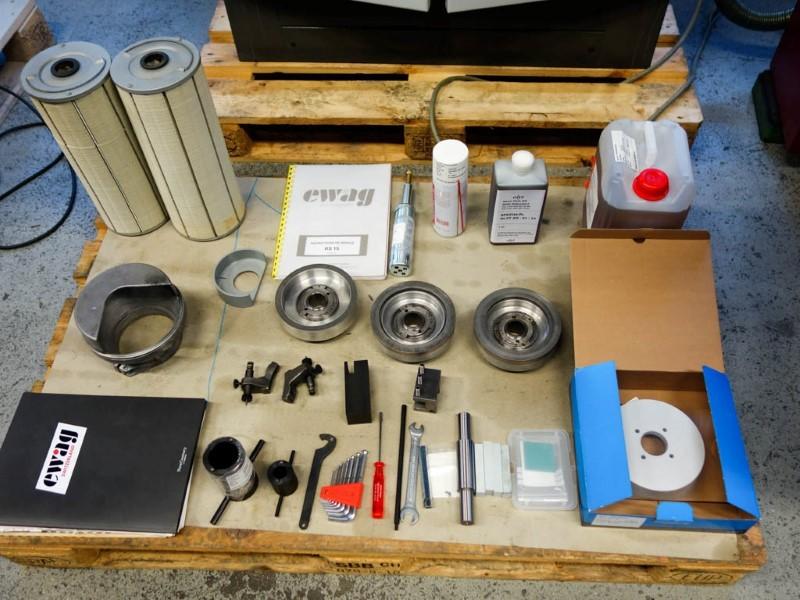

Accessories:

New balanced mandrel AQ40

4 Grinding wheel adapters Q40-fix-19-OCB

New standard diamond grinding wheel

Four kinds of grinding wheels

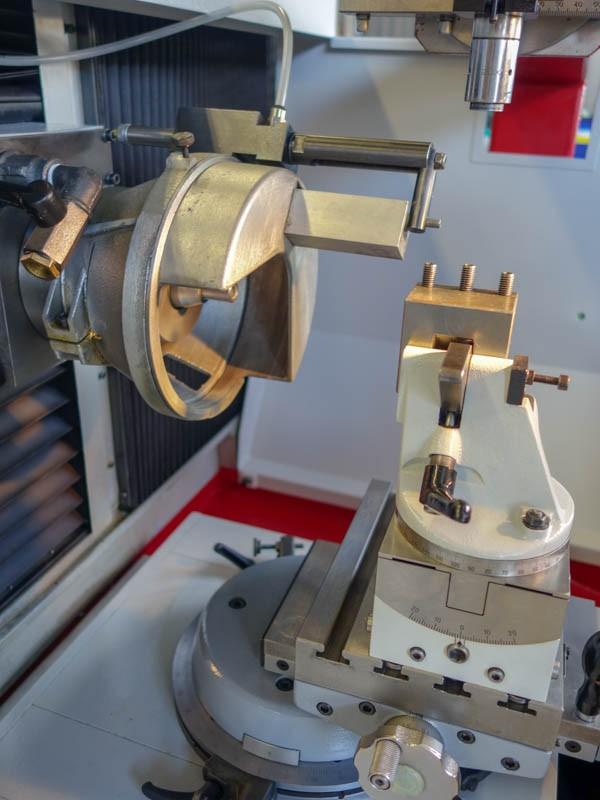

Universal Worktable 3 CV

Quick Clamping device 8AU-L (Left)

2 workpiece chucks 8C

Middle block AZ 12

New type recycled stone grinding wheel cover

New 4 recycled stones

Recycled accessory AD15

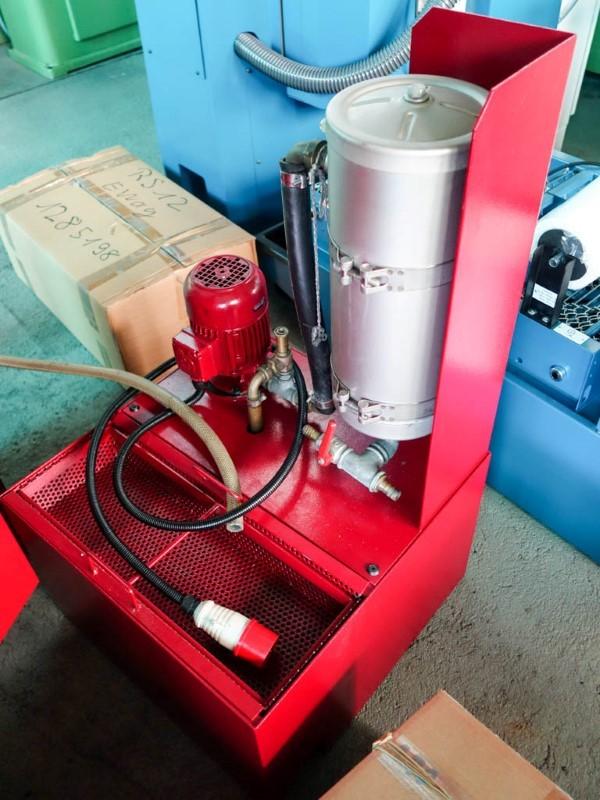

Cooling system complete K3P

Halogen lamp

A new set of standard accessories

Anti-vibration element group

Manual in English
