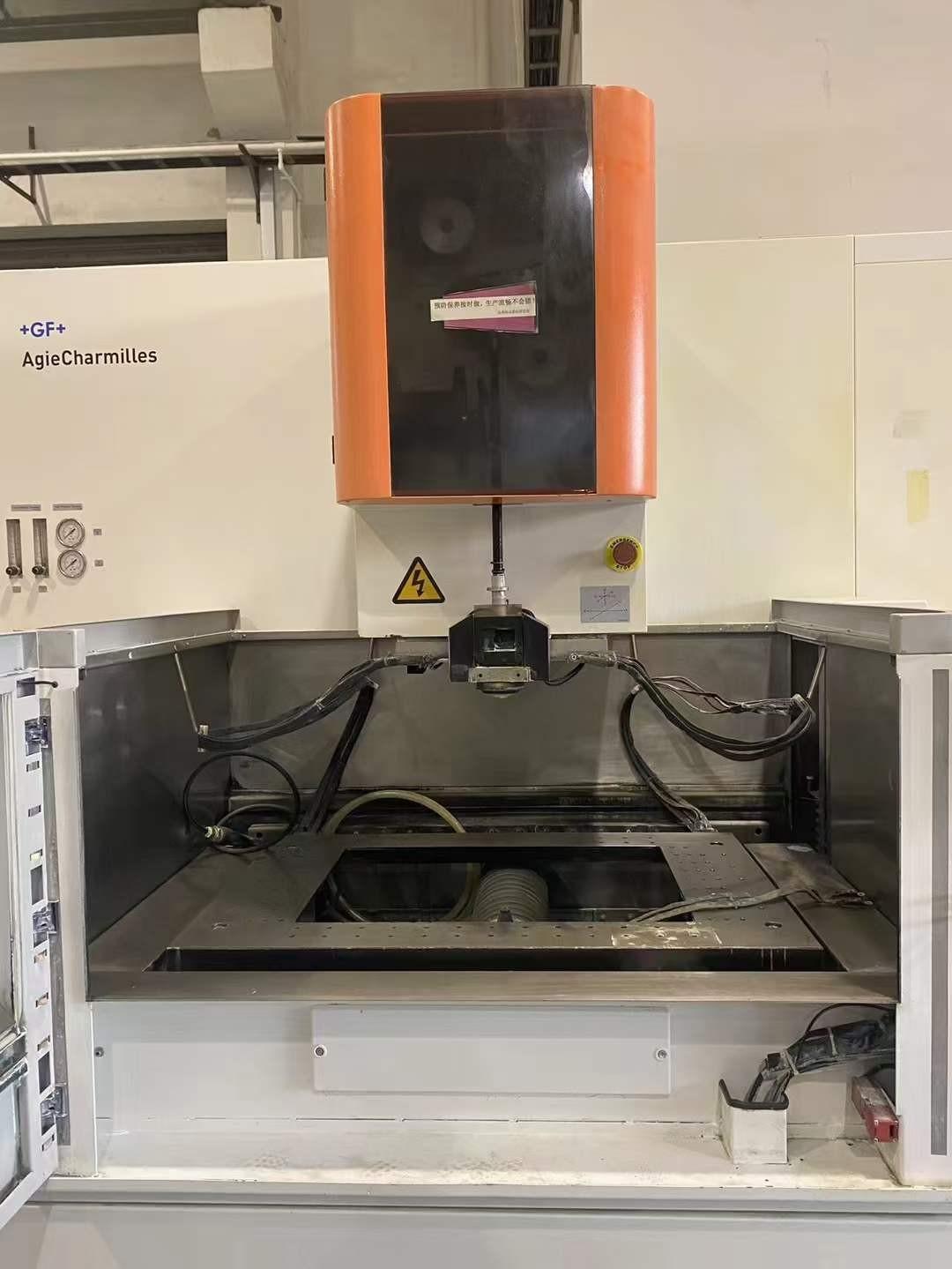

Charmilles CUT 30P Wire cutting machine

[Product Information]:

X, Y, Z axis travels: 600x400x350mm

U, V axis travels: 100x100mm

Workpiece size: 1050x800x350mm

Machining taper: ± 25 °/80mm

Wire electrode diameter: 0.15-0.30mm

Water tank volume: 1200L

Surface roughness:0.25μm

Standard power supply/power: 3x380v/400v ± 10% 50/60Hz, 11KVA

Machine overall dimensions: 3100x2800x2325mm
