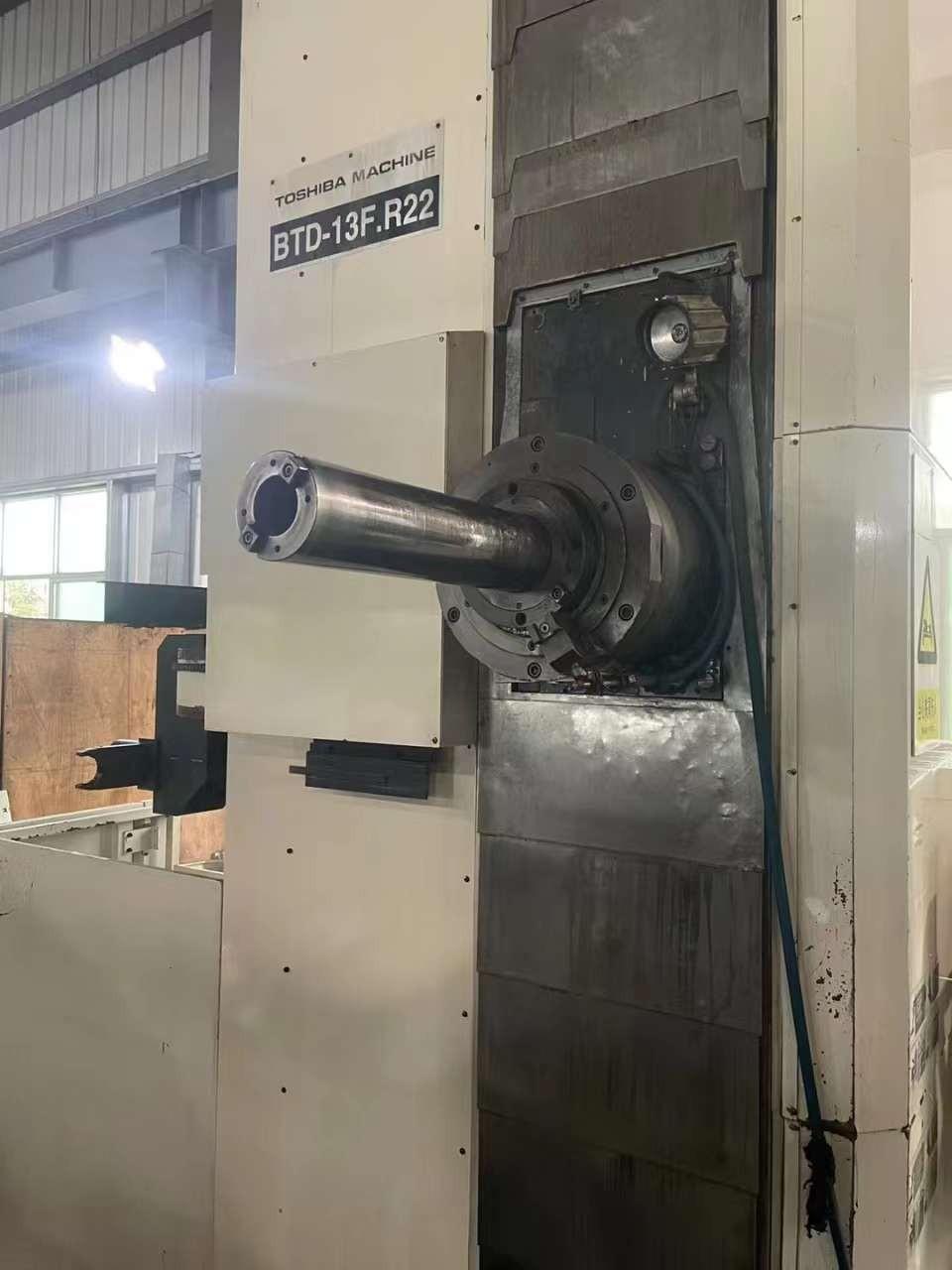

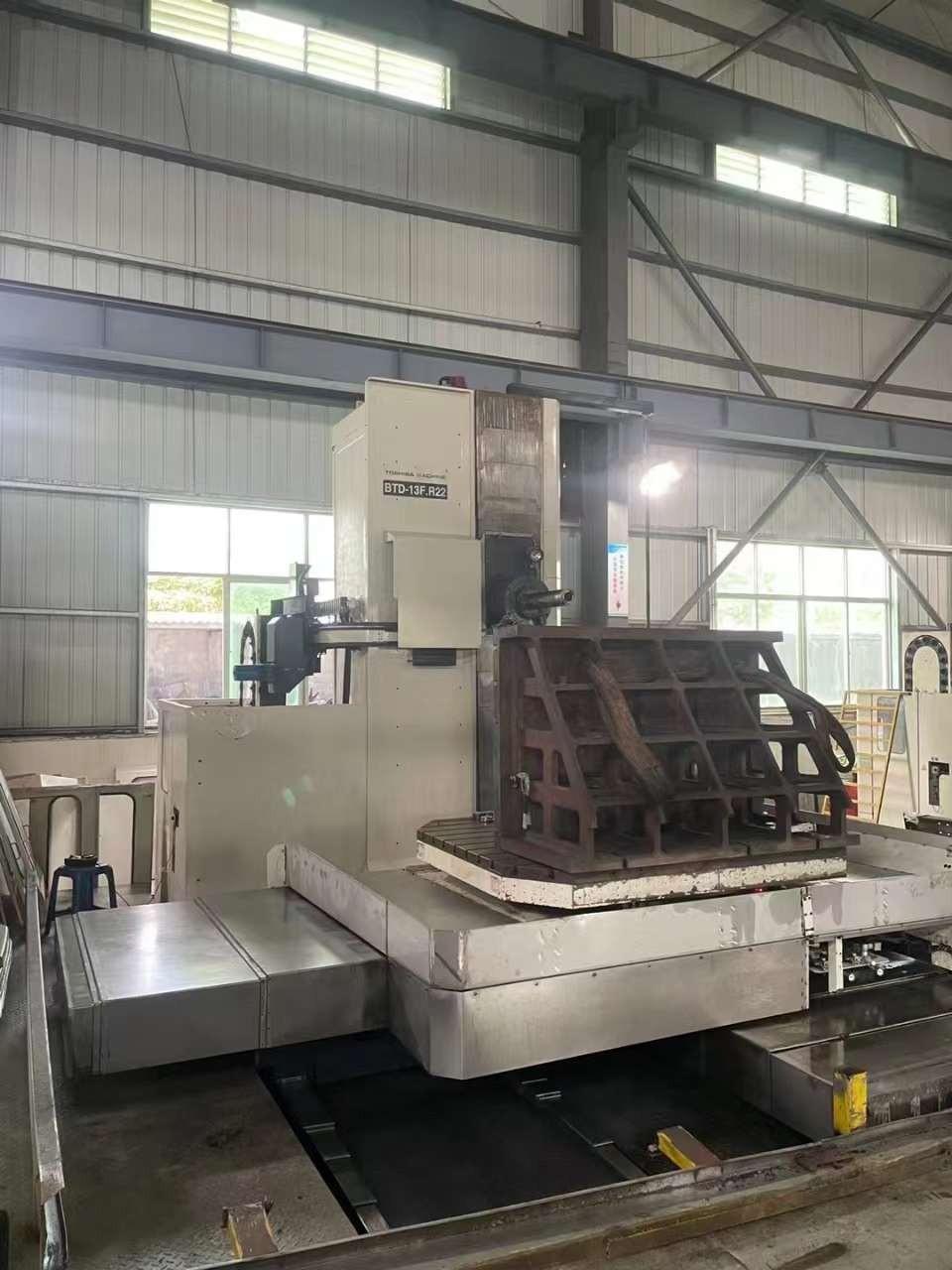

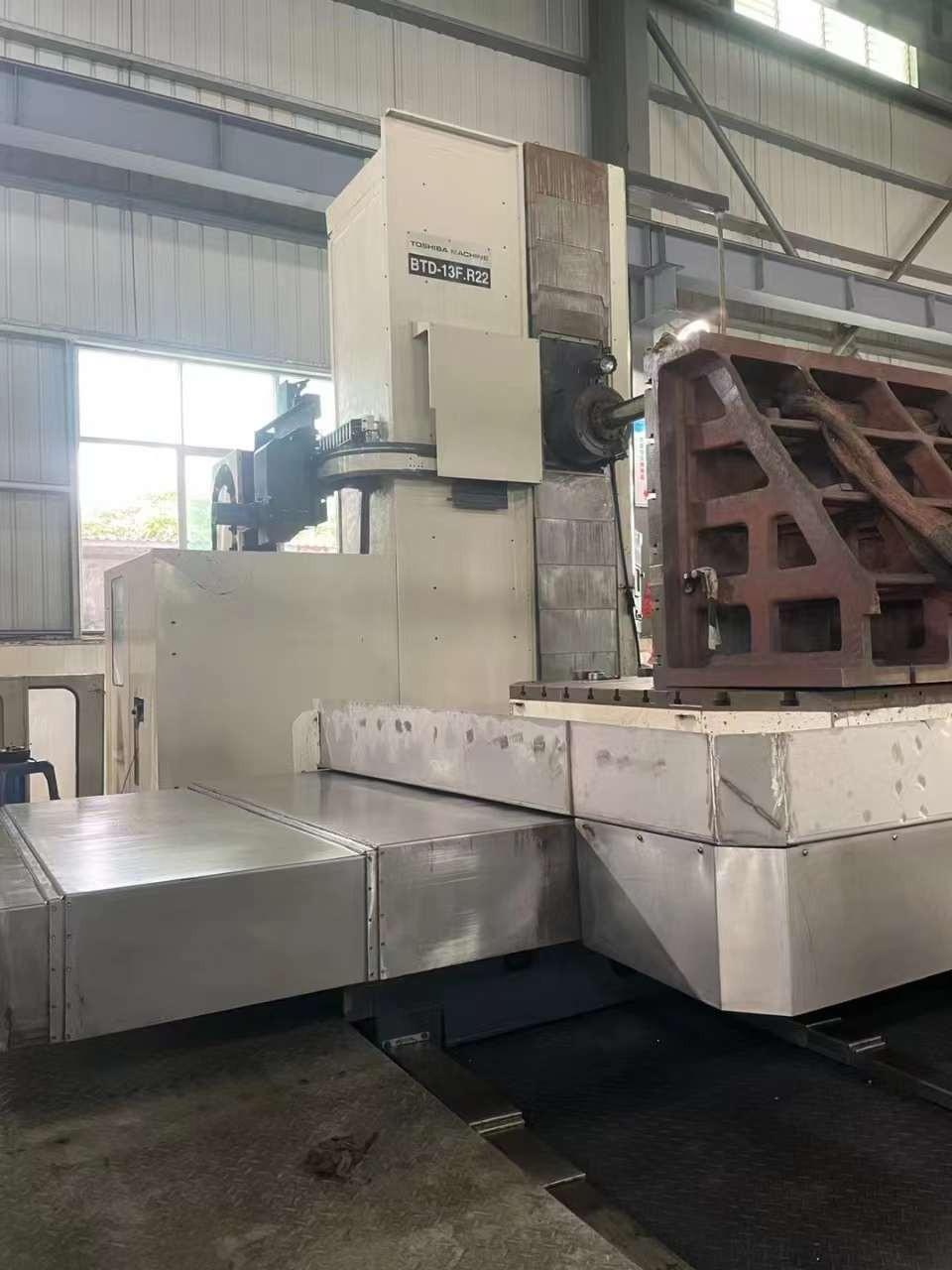

Toshiba BTD-13F.R22 Horizontal boring machine
[Product Information]:
- Inventory number：80233
- Brand：Toshiba
- Model：BTD-13F.R22
- Origin：Japan
- Location：China
- Year：
- Create Time：2022-12-15
Specifications:
Travels（X axis * Y axis * Z axis）3000*2300*1600mm
W axis travel 700mm
Spindle diameter 130 mm
Spindle speed range 5-2500 rpm
Milling cutter spindle diameter 225mm
Spindle taper type 7/24 Taper No. 50
Spindle drive motor 30 kW AC (30 minutes)/22kW AC (continued)

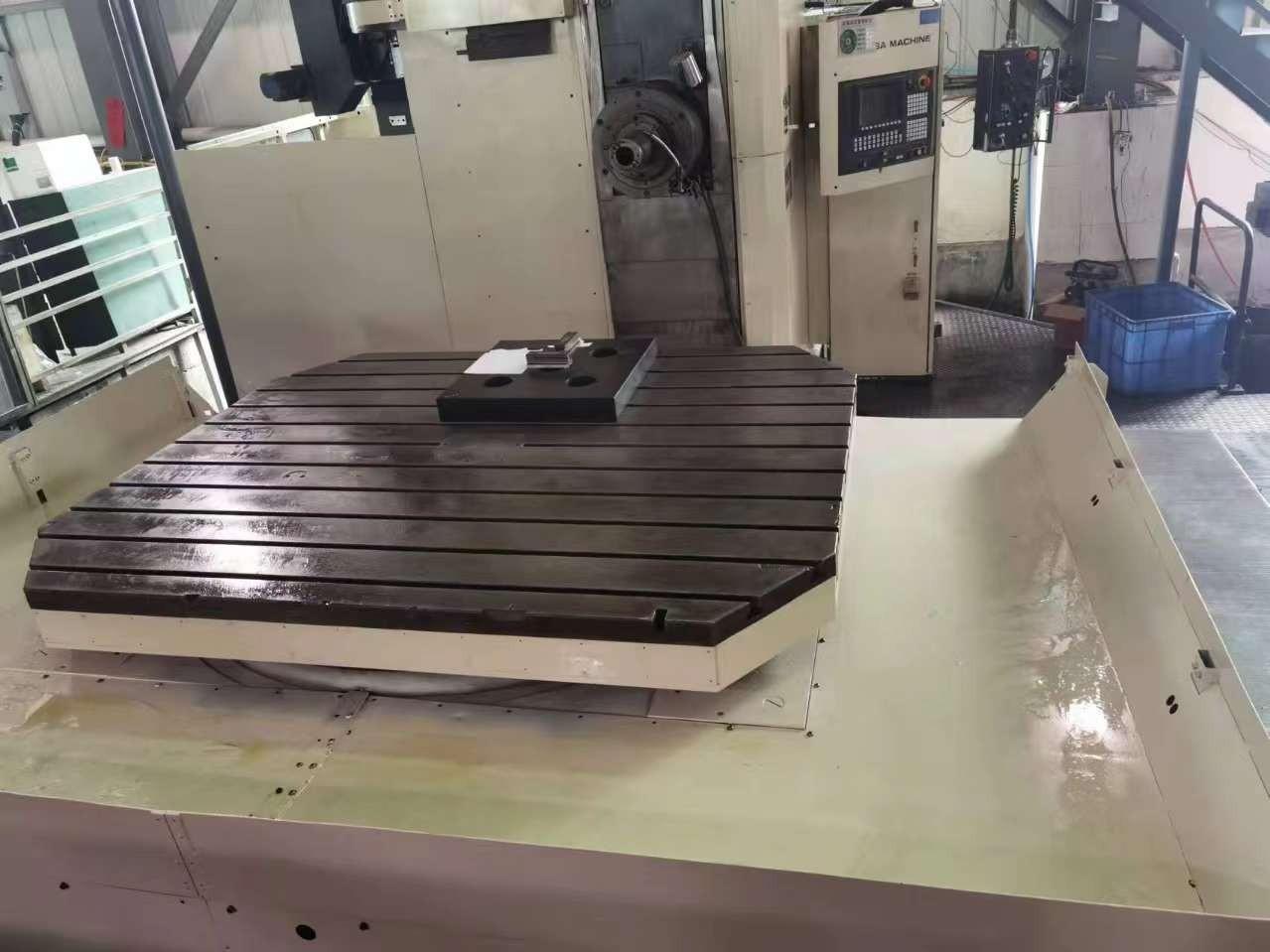

Worktable size 1800x2200 mm
Worktable load 20,000 Kg
Minimum Worktable indexing revolution 0.001 degrees
Feed speed:
10. Z: 1-3000 mm/min.
Y: 1-4000 mm/min.
38 tools magazine
equipment:
Center flushing 140 PSI

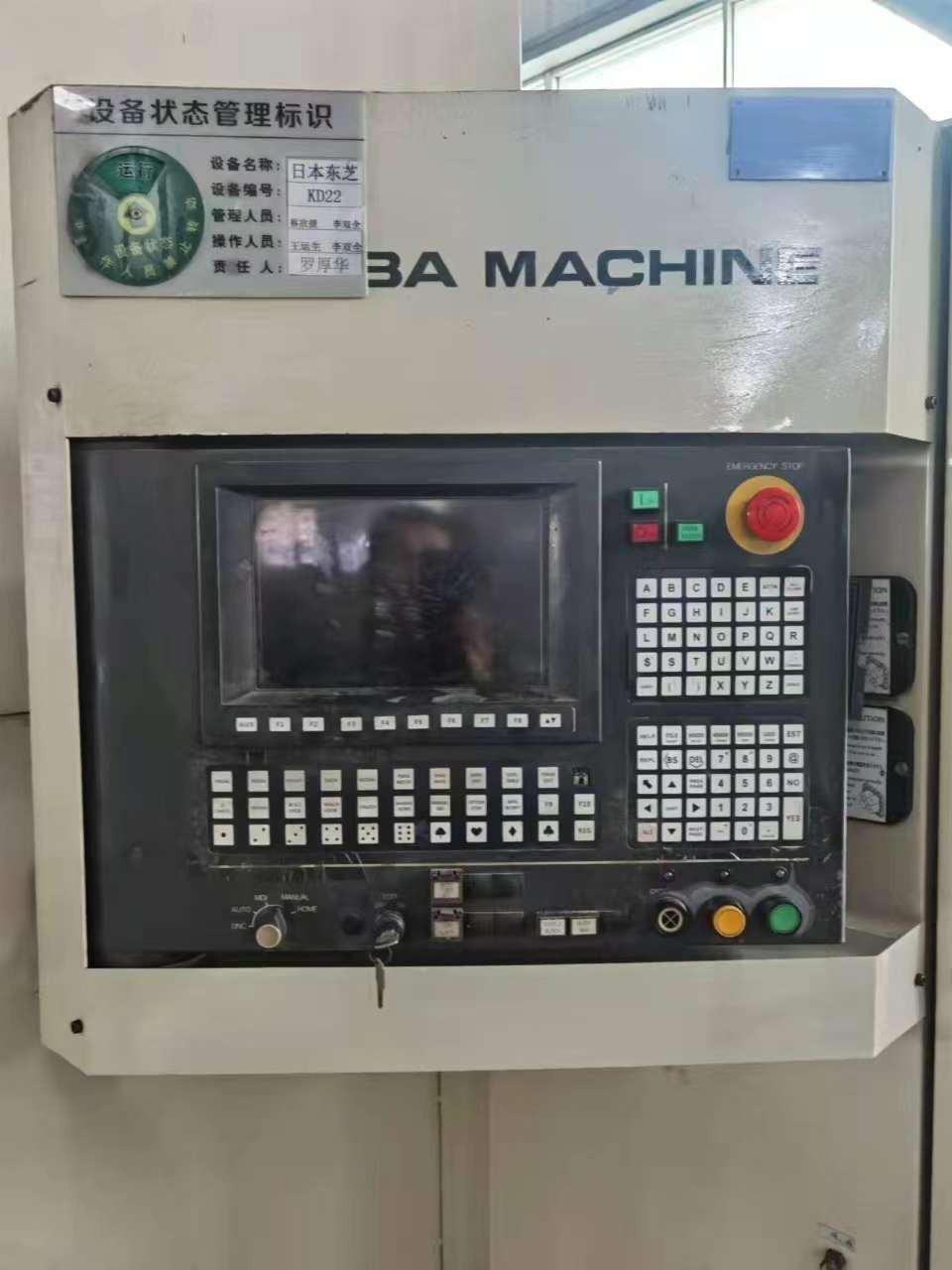

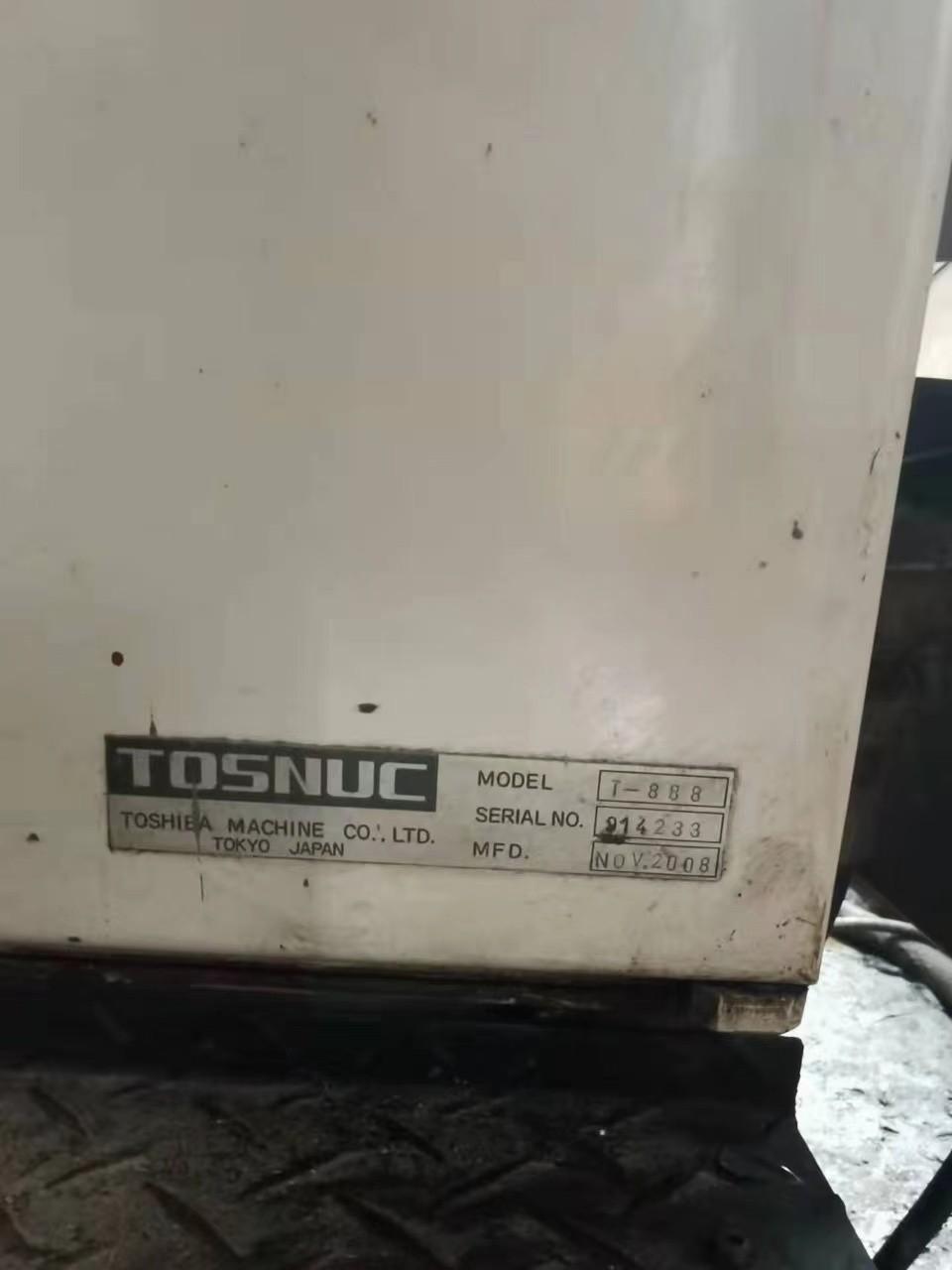

System: TOSNUC888
