LITZ DV 800 Vertical Machining centre

Three axes travel:

X-axis travel 800mm

Y-axis travel 500mm

Z-axis travel 540mm

Distance from spindle nose to worktable surface 150-690mm

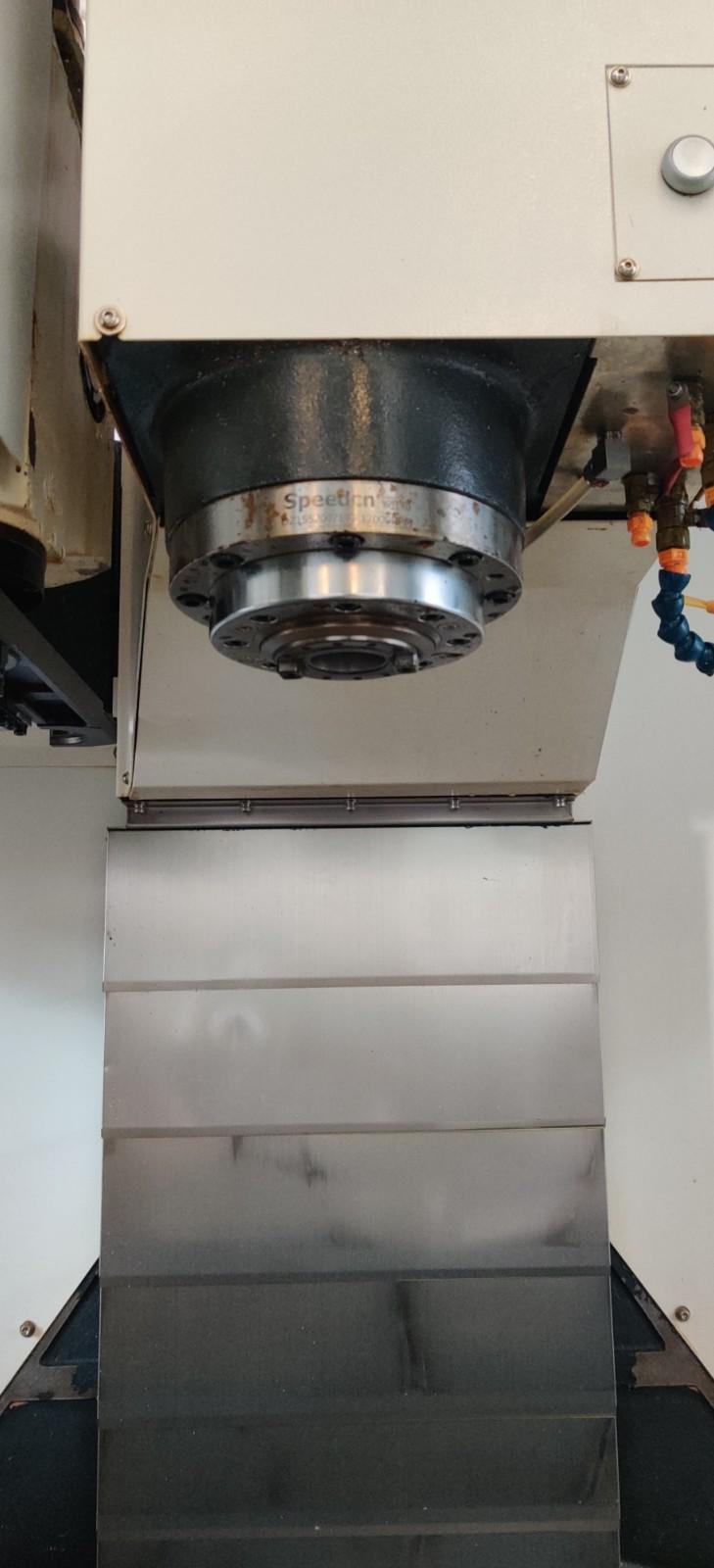

Spindle BT40

Spindle speed 12000 rpm

Motor:

Spindle motor (continuous/30 minute freeze) 7.5/11 (10/15) kw (HP)

X/Y/Z axes motor 2.0/2.0/3.5 kw

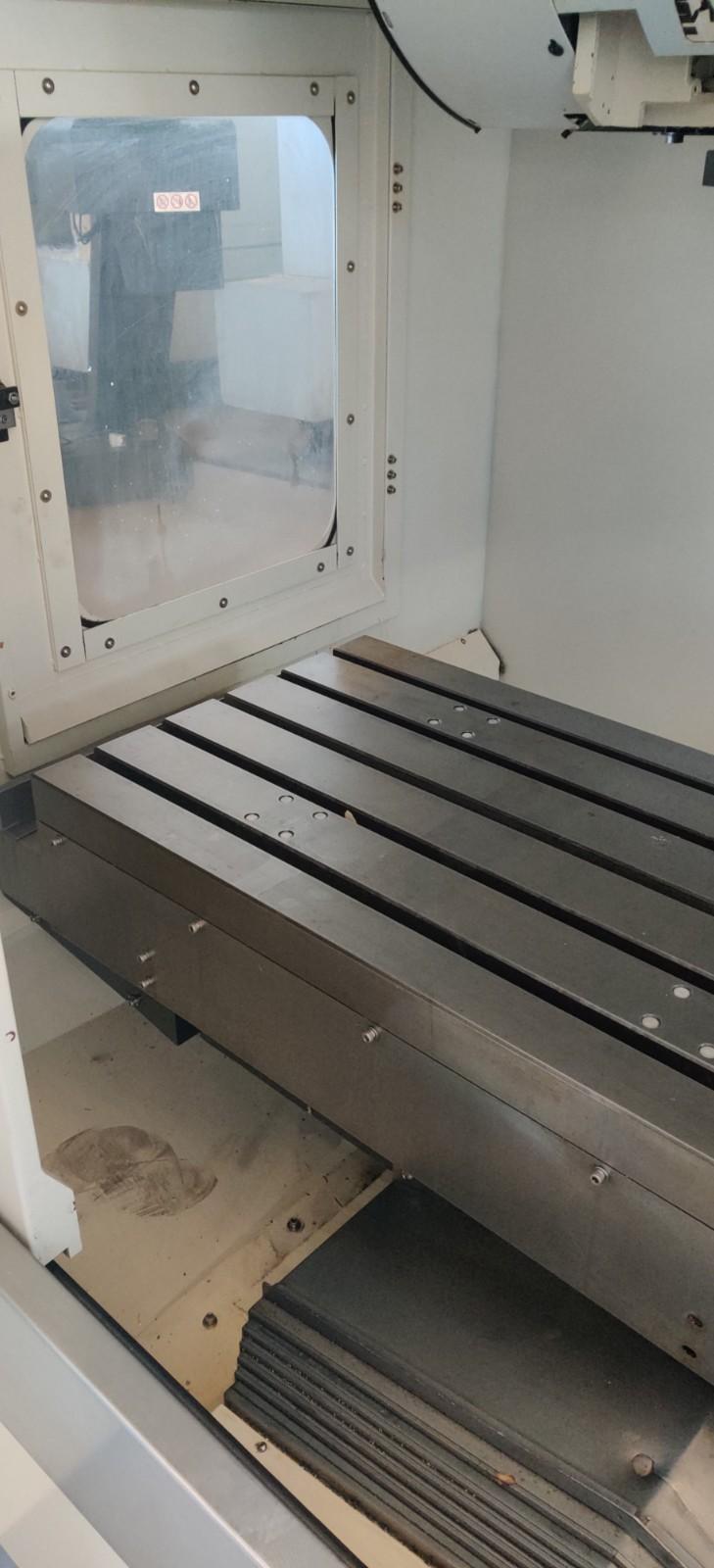

Worktable:

Worktable area 910 * 500mm

Worktable load: 500kg

T-slot (number of slots * width * center distance) 5 * 18 * 100mm

Rapid movement:

X-axis rapid movement 36 M/min

Y-axis rapid movement 36 M/min

Z-axis rapid movement 24 M/min

Cutting feed rate 1-10000 mm/min

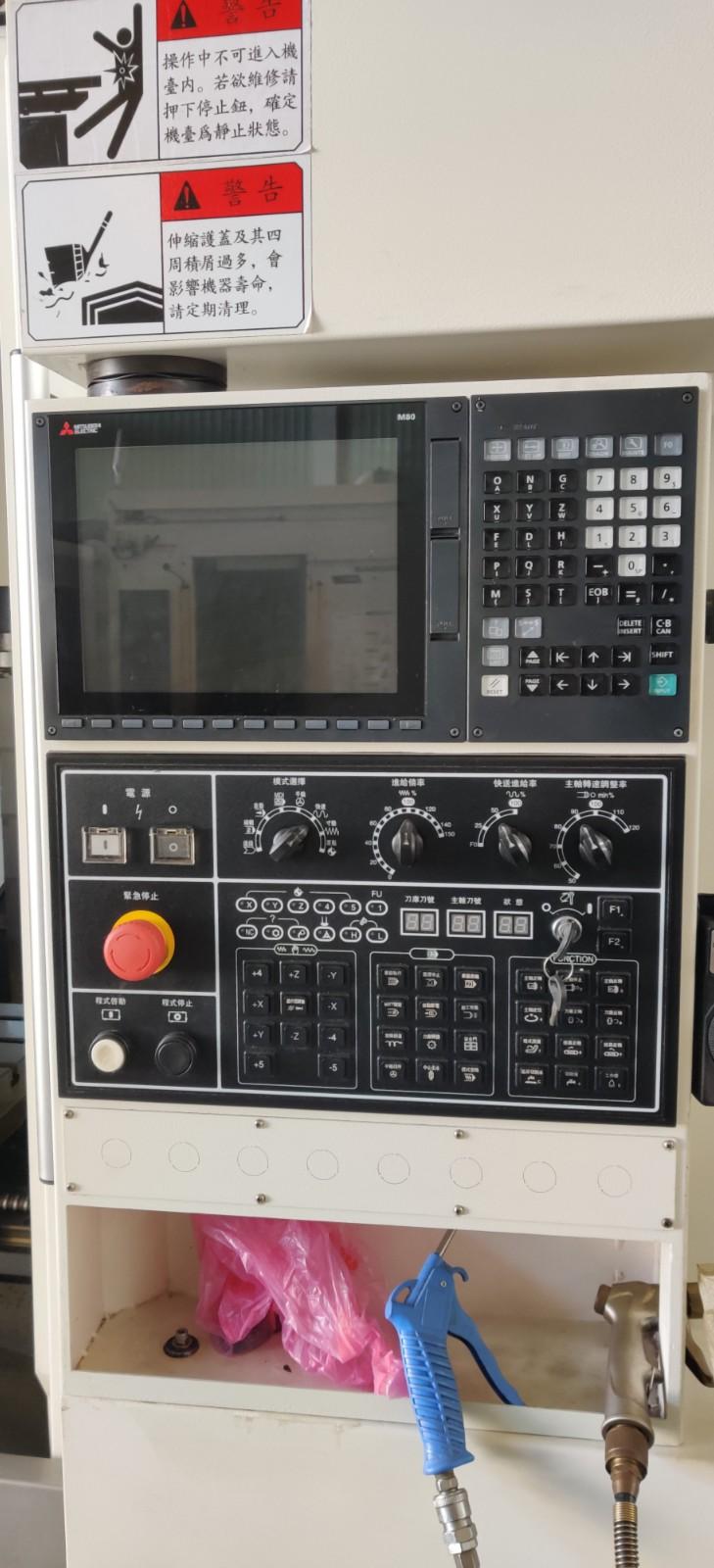

Controller Mitsubishi M80 system

Others:

Machine weight 5300kg

Power supply 20KVA

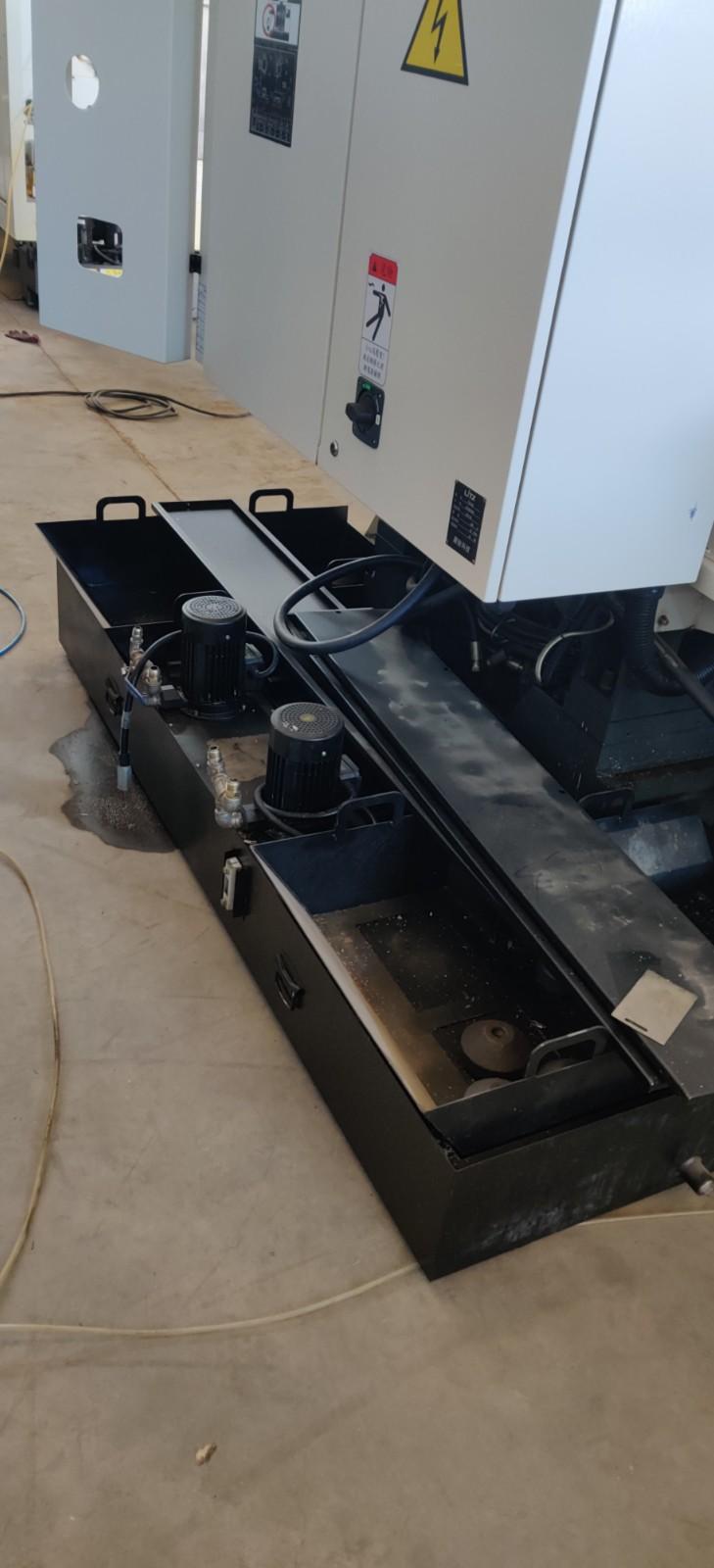

Water tank capacity 290 L

Air pressure source 6kg/cm ²

Just been installed only but never used
