kitamura Mycenter3XG Machining centre

X * Y * Z travels: 760 * 455 * 460mm

Worktable size: 410 * 900nm

Maximum worktable load: 500kg

Spindle speed: 40-15000rpm

Spindle taper: NST.NO.40

Spindle motor: 15kw

Spindle torque: 95.5N. m

Distance from worktable surface to spindle nose: 110 * 570mm

Rapid feed rate: 50000mm/min

Cutting feed rate: 0-36,000mm/min

Tool magazine capacity: 30

Tool changing time (T-T): 1.6 sec

Tool changing time(C-C): 3.3 sec

Machine weight: 5740kg

Overall dimensions: 2235 * 2370 * 2882.4mm

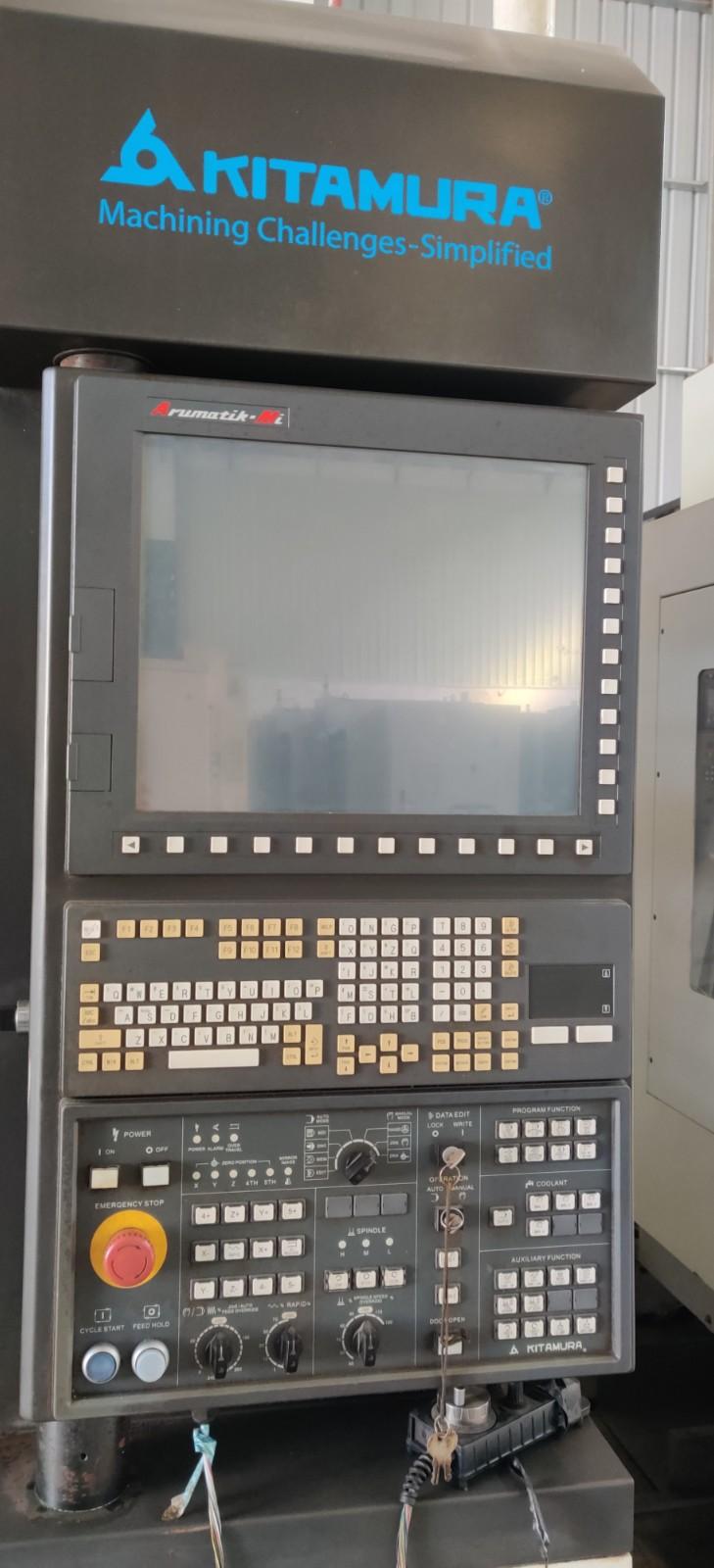

CNC system: Mitsubishi M-750V
