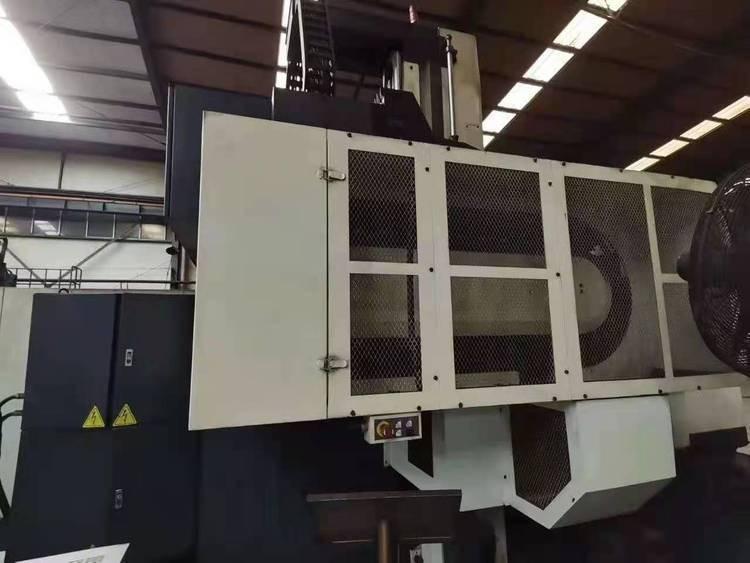

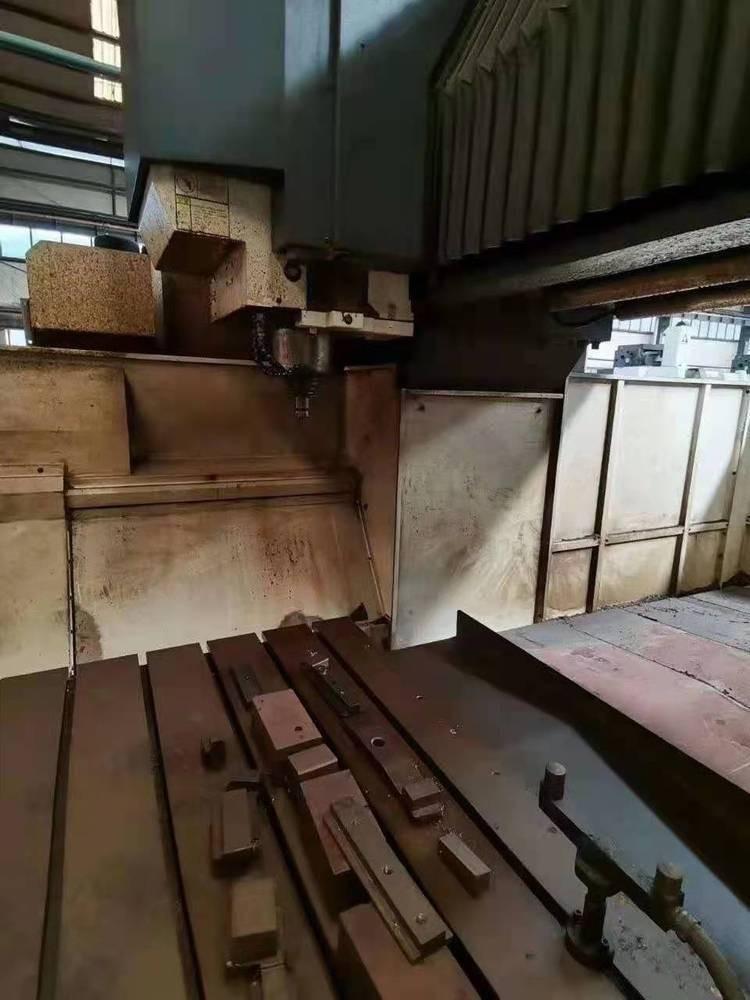

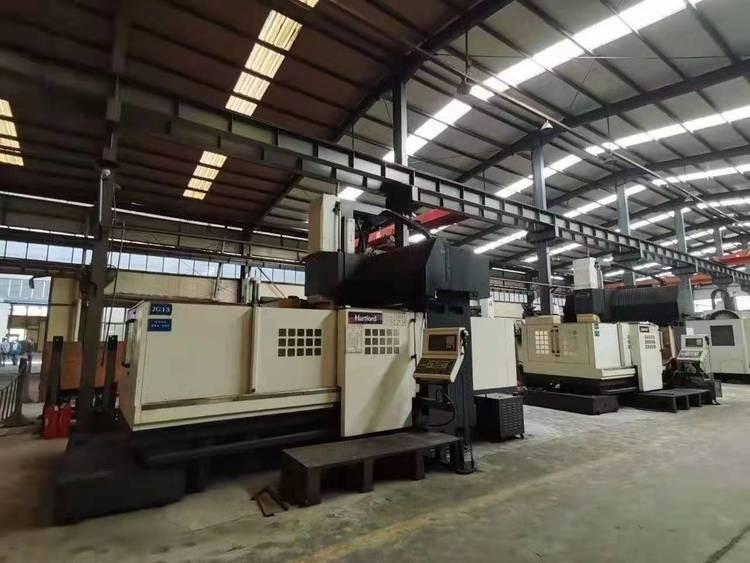

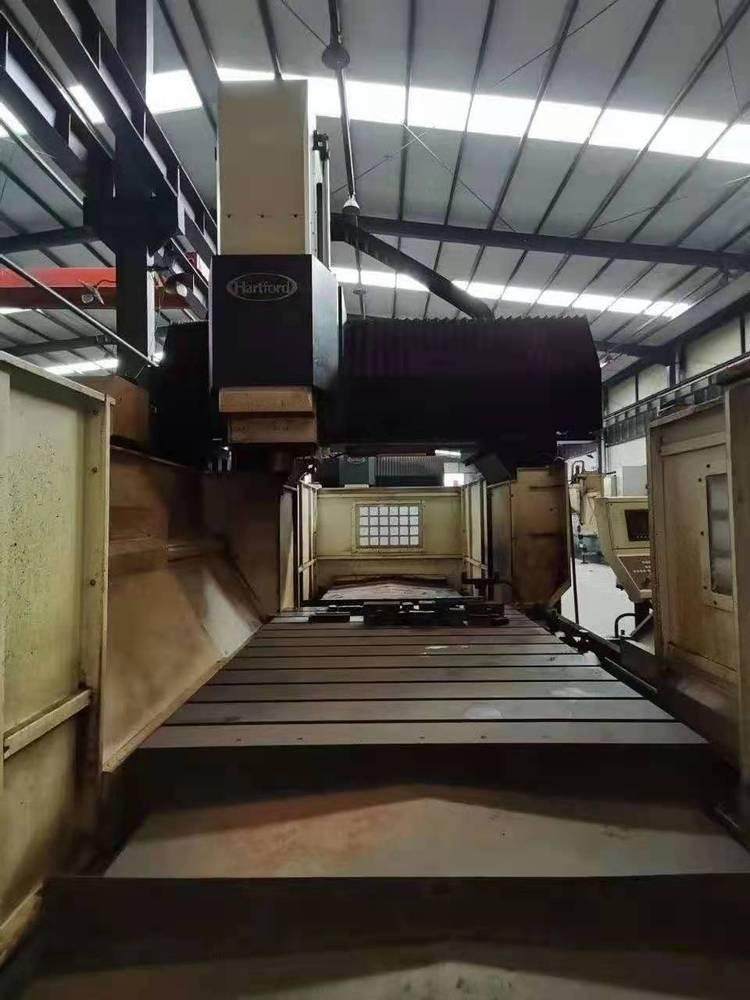

Hartford PRO-2150 Gantry machining centre
[Product Information]:
- Inventory number：80199
- Brand：Hartford
- Model：PRO-2150
- Origin：Taiwan
- Location：China
- Year：
- Create Time：2022-12-01
Specifications:
Three axes travel: 2060x1560x780mm
Worktable size: 2100x1450mm
Gantry width: 1600mm
T-slot: 22x11x180mm
Spindle speed: 6000rpm
Distance from spindle nose to worktable: 160-940mm
Distance from spindle center to column: 430mm
Worktable load: 5000kg
Main motor power: 18.5x25kw
Cutting speed: 7000x7000x7000mm-min
Fast moving speed: 12000x12000x12000mm-min
Positioning accuracy: 0.015-0.005mm
Floor area: 7620x5640mm
Weight: 23000kg
Ex-factory date: 2014
Rigid guideways, BT50, umbrella type tool magazine, gear spindle Fanuc 21i-MB
