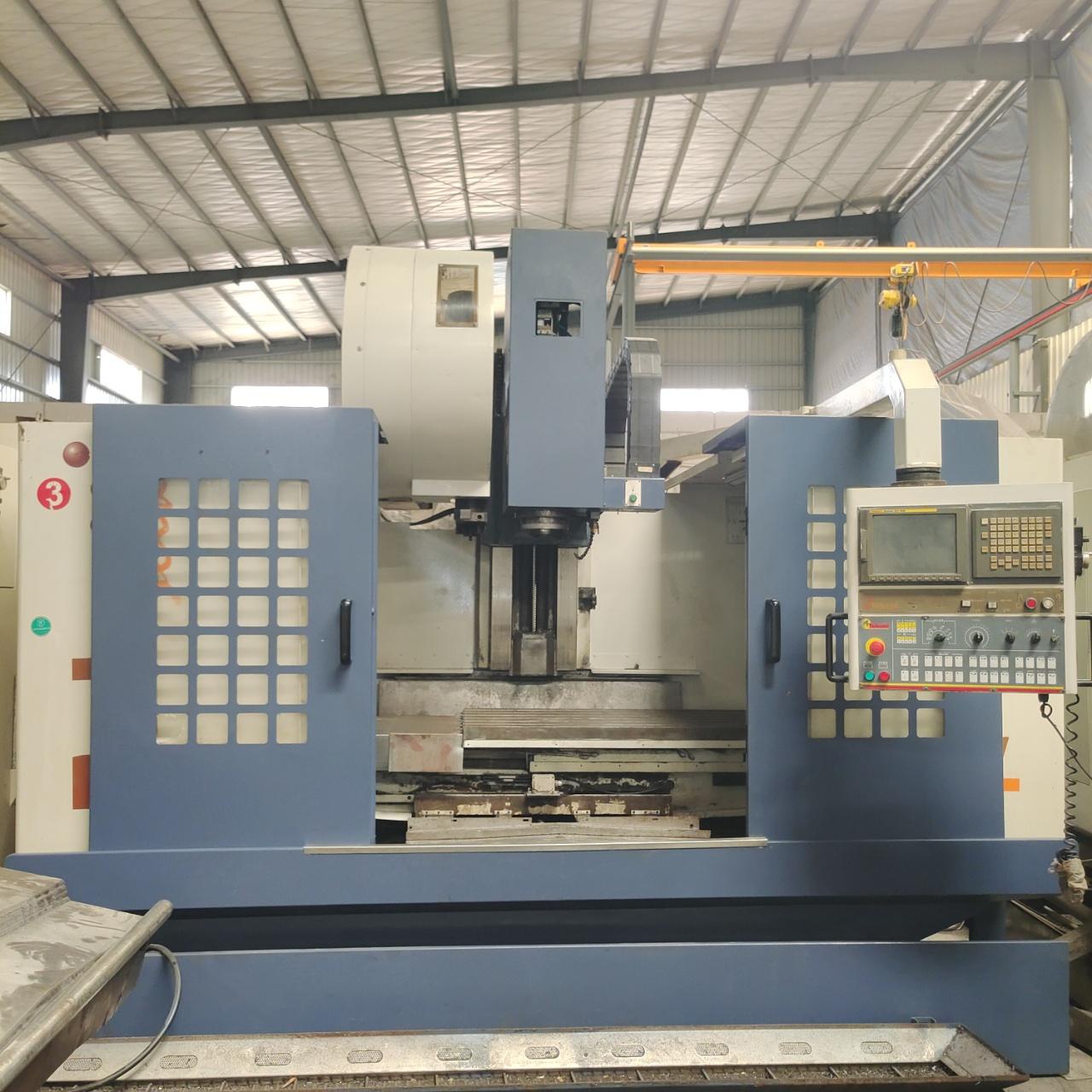

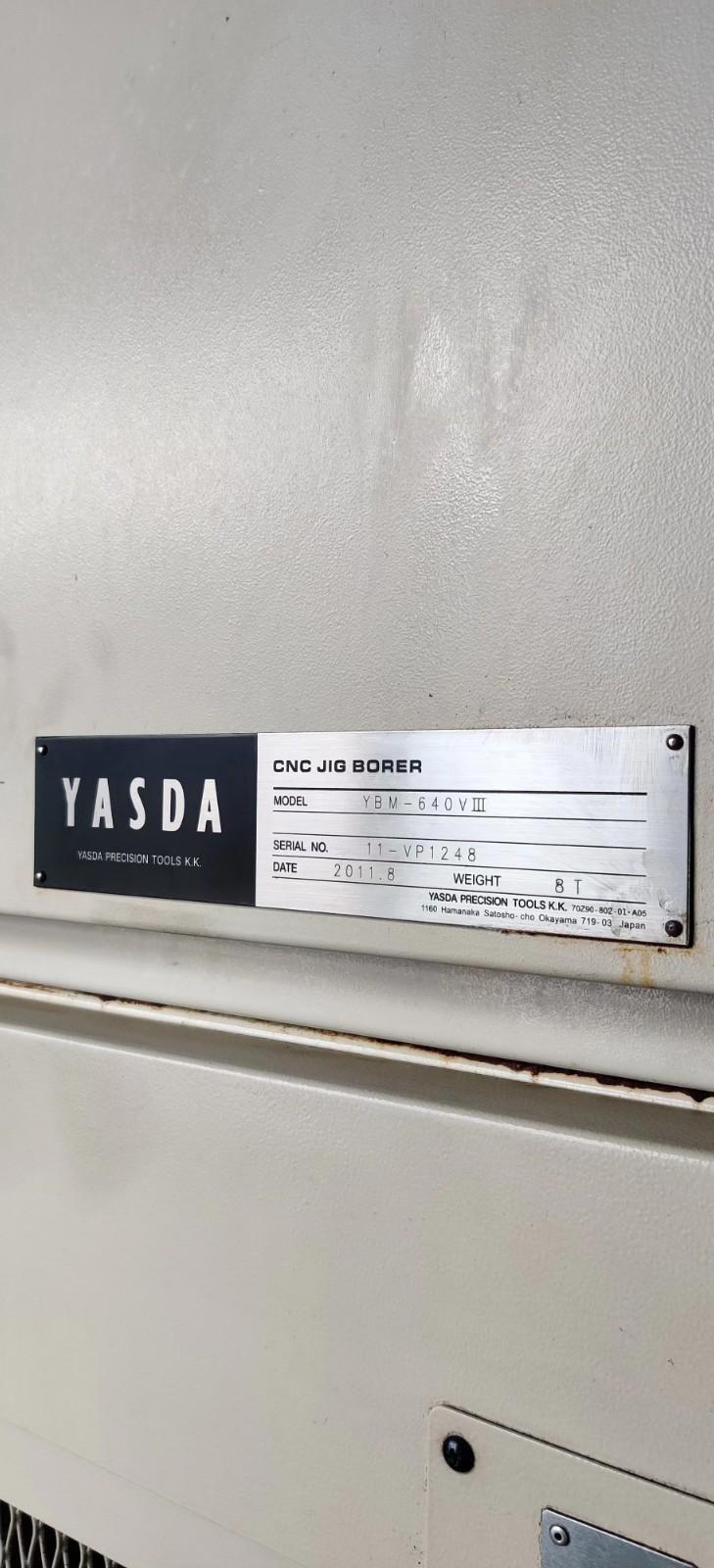

YASDA YBM640V Machining centre

[Product Information]:

Origin: Japan

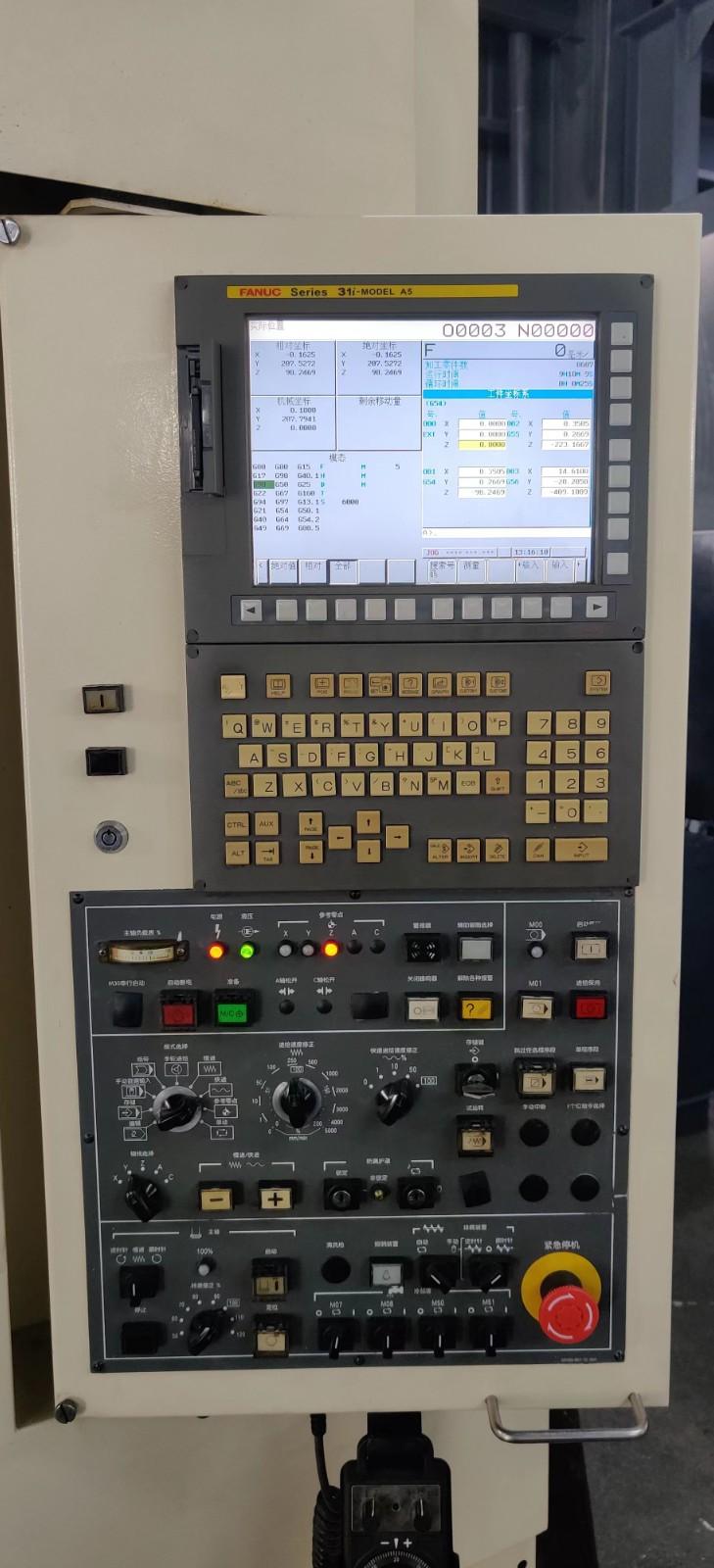

System: FANUC 16i

X axis travel: 600mm

Y axis travel: 400mm

Z axis travel: 350mm

Distance from spindle nose to worktable surface: 150~500 mm

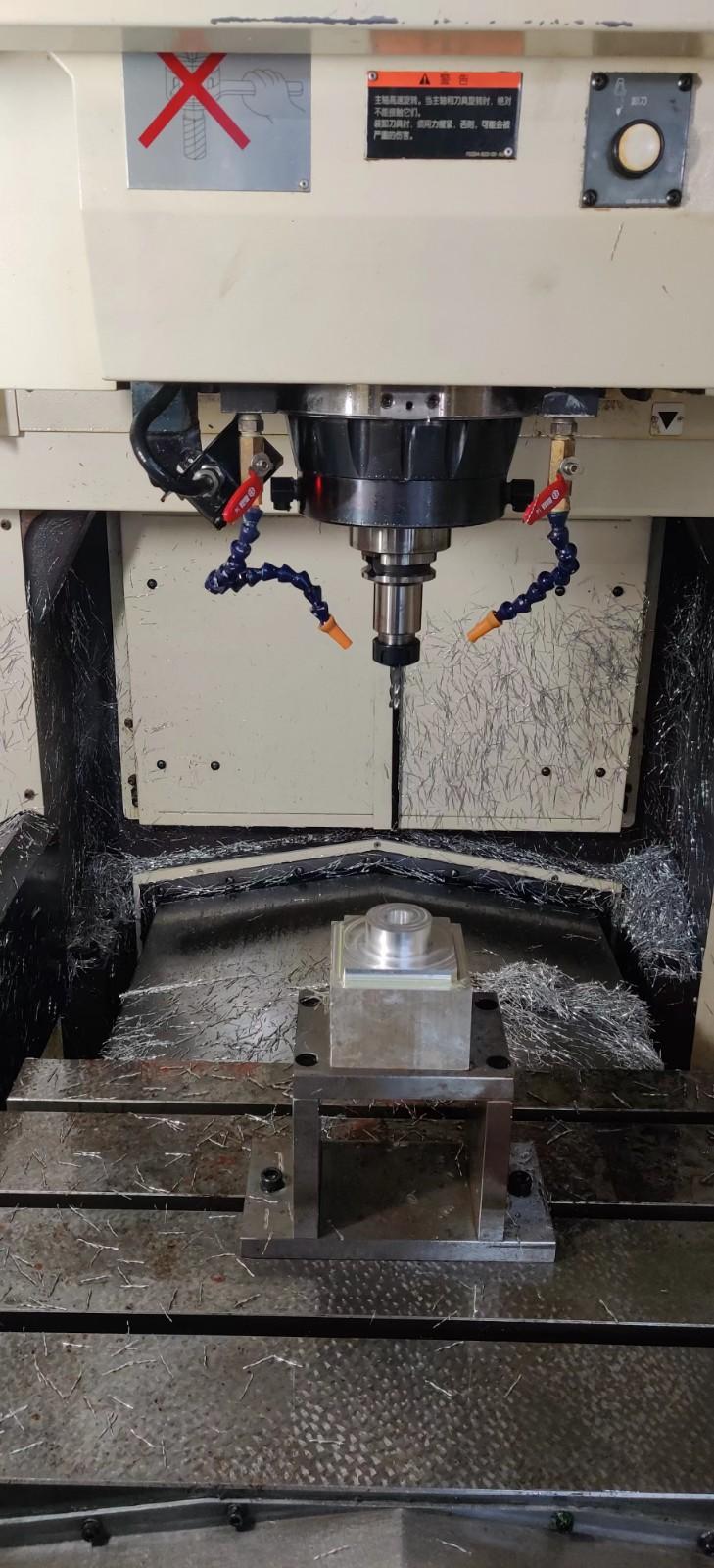

Spindle speed: 20000rpm

Tool magazine: 30

Worktable size: 700 * 450mm

Tool holder type: BT40

Worktable load: 300kg

Spindle power: AC18.5/22kw

Fast moving speed X-axis: 14000mm/min

Fast moving speed Y-axis: 20000mm/min

Fast moving speed Z-axis: 20000mm/min

Cutting feed rate: 5000mm/min

Pullnail specification: JIS B6339-40P (45 degrees)

Maximum tool diameter: 100mm

Maximum tool length: 250mm

Maximum tool weight: 7kg

Machine weight: 8000kg

Power : 39KVA

Accessories: three axes with glass scale
