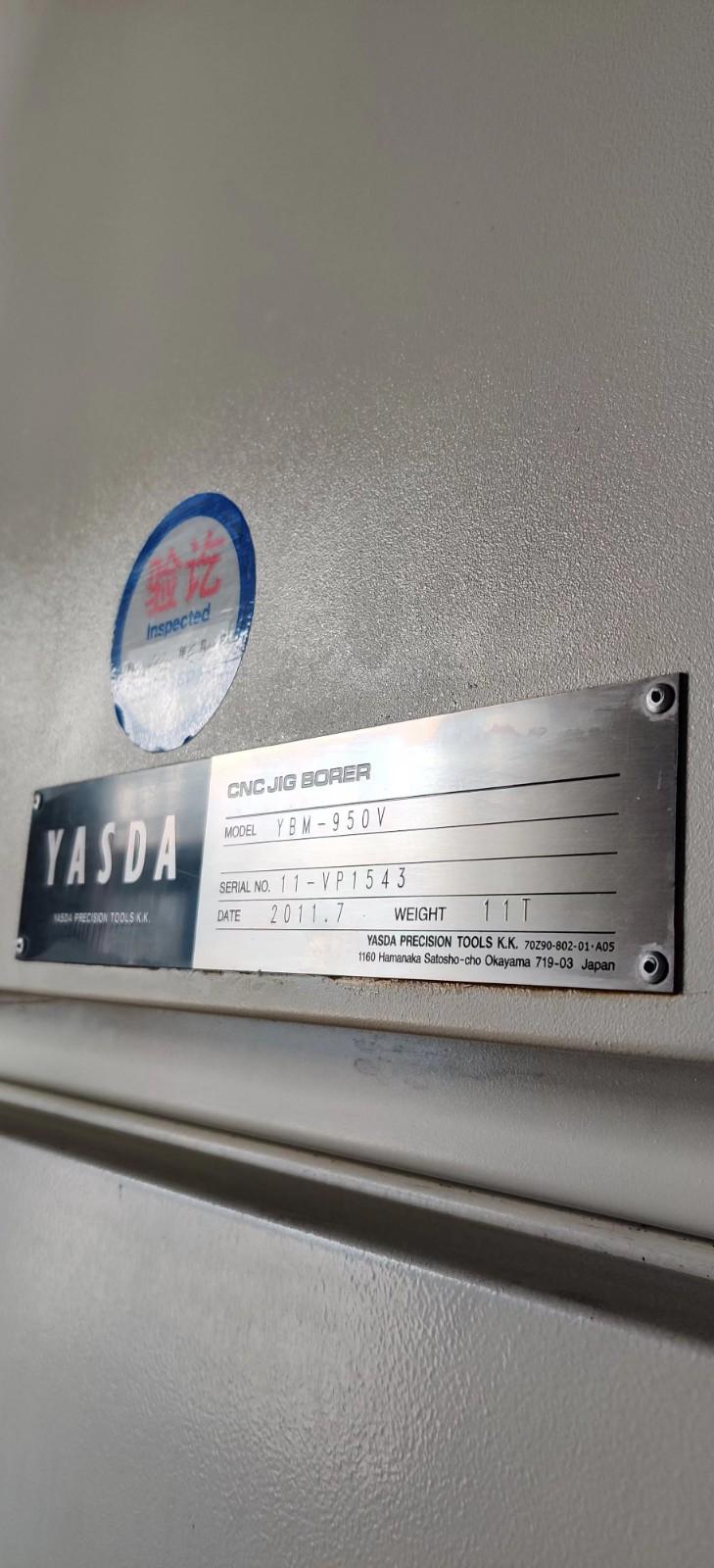

YASDA YBM950V Machining centre

Origin: Japan

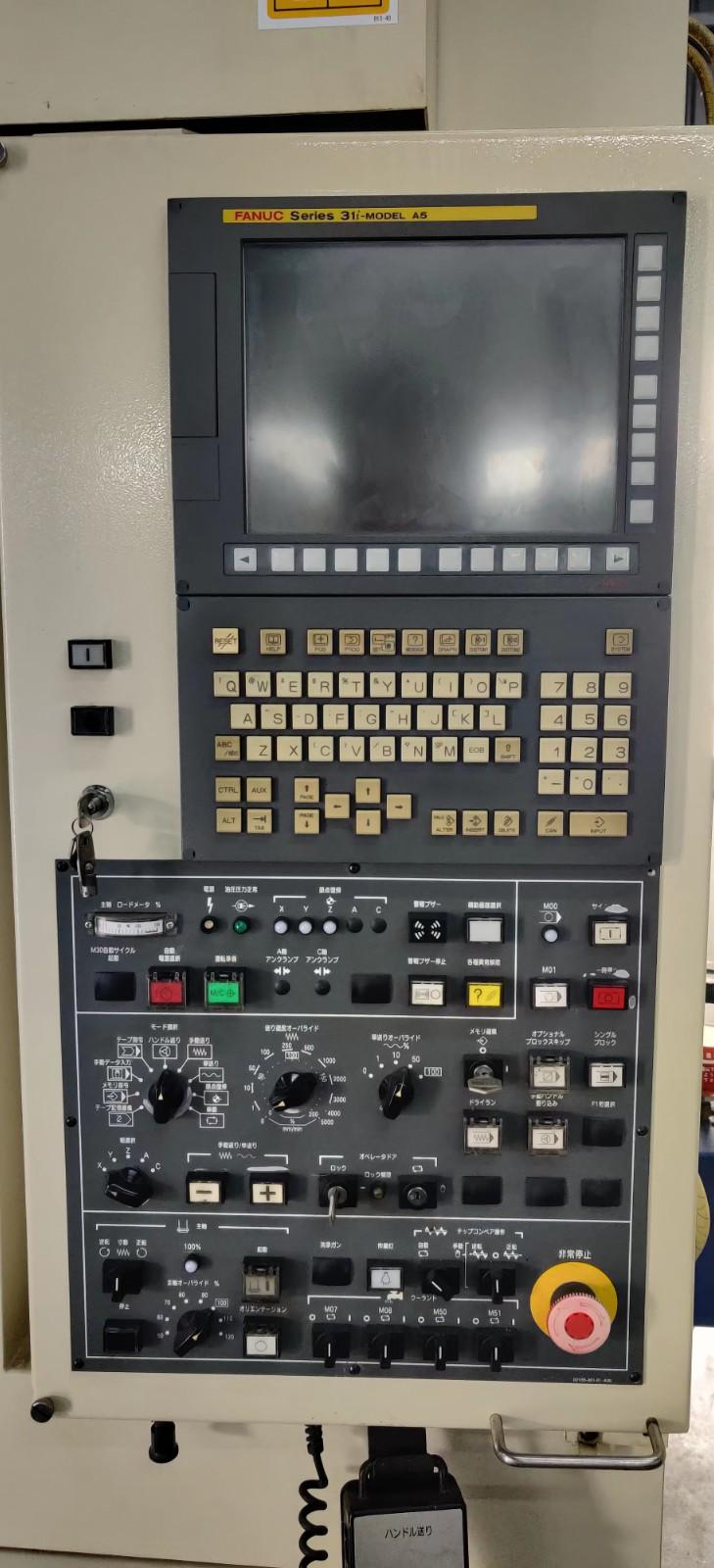

System: FANUC 31i

X axis travel: 900mm

Y axis travel: 500mm

Z axis travel: 350mm

Distance between spindle nose and worktable surface: 200~550 mm

Spindle speed: 20000rpm

Tool magazine: 30

Worktable size: 1000 * 500mm

Tool holder type: BT40

Worktable load: 800kg

Spindle power: AC18.5/22kw

Rapid moving speed X axis: 20000mm/min

Rapid moving speed Y-axis: 20000mm/min

Rapid moving speed Z-axis: 20000mm/min

Cutting feed rate: 5000mm/min

Pullnail specification: JIS B6339-40P (45 degrees)

Maximum tool diameter: 100mm

Maximum tool length: 250mm

Tool weight: 7kg

Machine weight: 11000kg

Power: 39KVA

Accessories: three axes with glass scale,water tank, chip conveyor
