Friends jia FMH-630 Horizontal Machining centre
[Product Information]:
- Inventory number：70287
- Brand：Friends jia
- Model：FMH-630
- Origin：Taiwan
- Location：China
- Year：
- Create Time：2022-12-01
Specifications:
Worktable size: 630x630mm
Three axes travel: 1000x850x850mm
Spindle speed: 6000rpm
Spindle diameter: 100mm
Worktable load: 1200kg
Spindle motor: 15-18.5kw
Distance between spindle nose and worktable: 200-1050mm
Distance between spindle center and worktable: 50-900mm
Distance between worktable surface and ground: 1300mm
Machine tool weight: 19000kg
Overall dimension of machine tool: 4138x5576x3550mm
System: Fanuc 32I-MODEL B advanced system
40 tools magazine

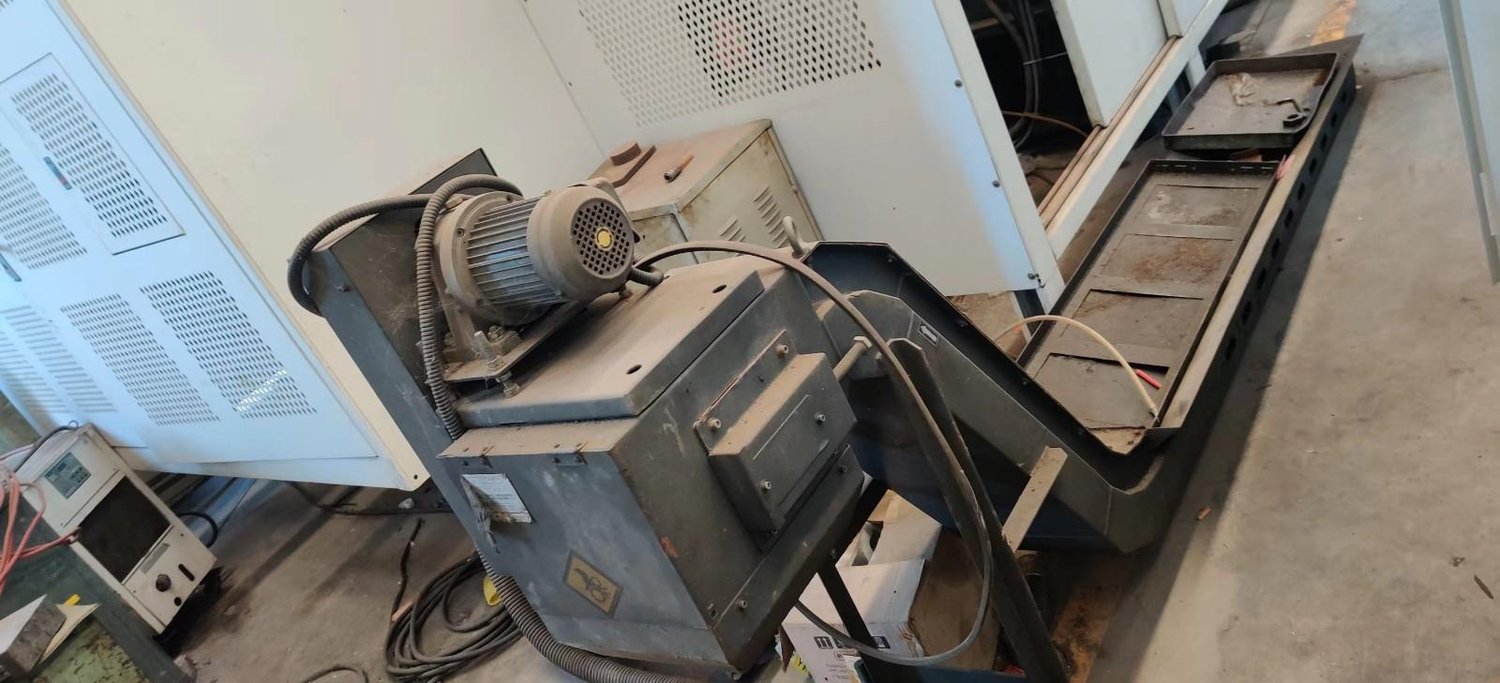

Chip conveyor

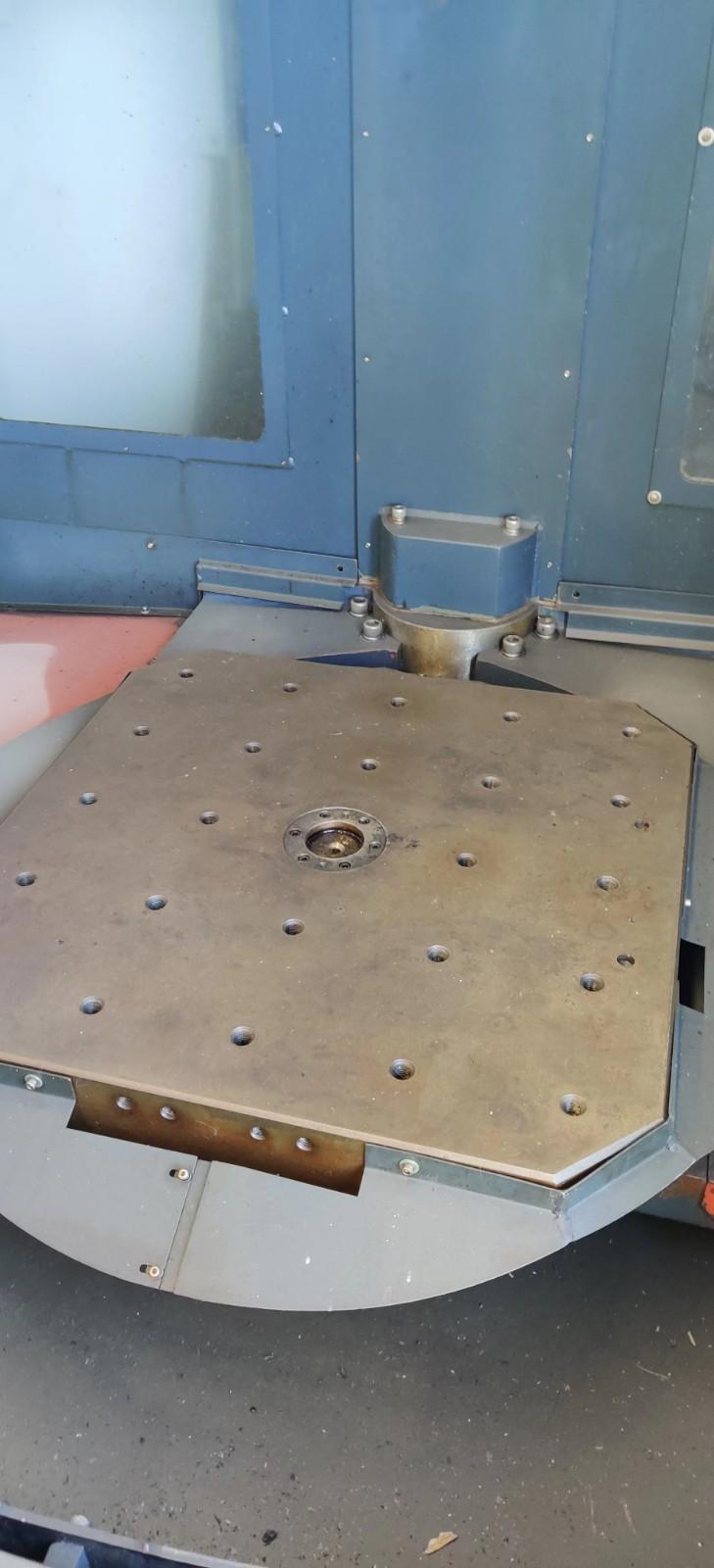

Twin worktables
3 axes linear guideway

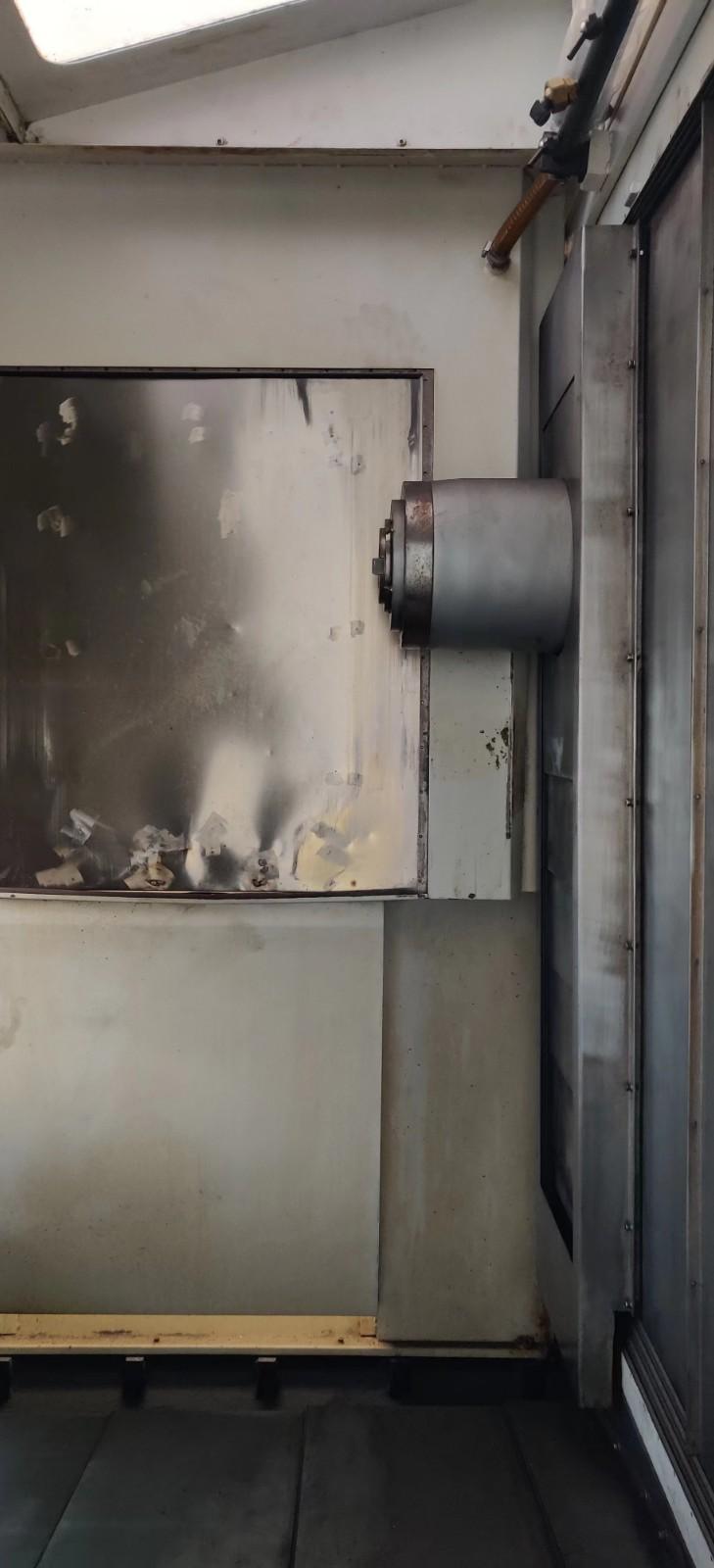

BT50 main spindle
