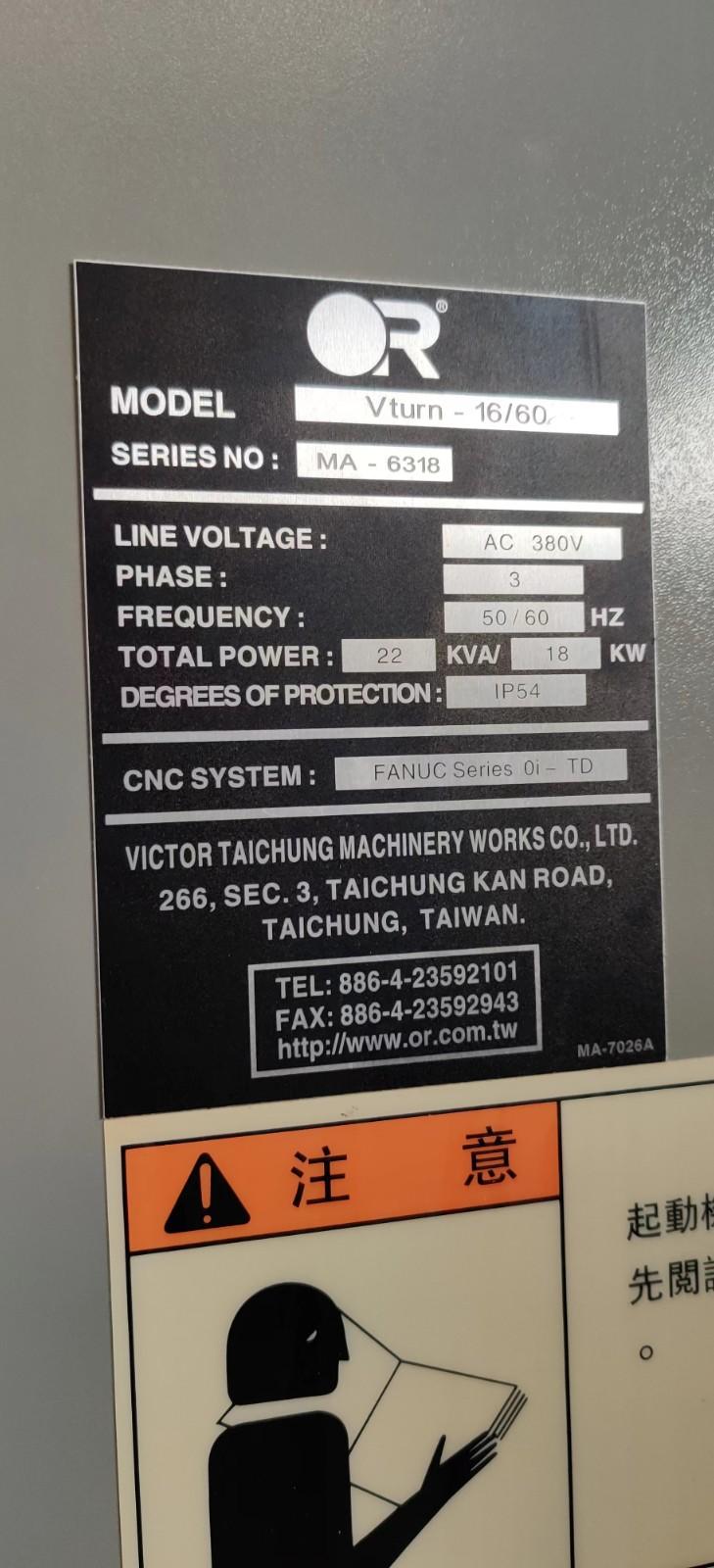

Taichung Seiki Vturn-16/60 CNC turning lathe

System Fanuc 0i TD

Rotation diameter over bed  450mm

Standard turning diameter  160mm

Maximum turning diameter  230mm

Saddle turning diameter  300mm

Distance between two centers  635mm

Through bar diameter (pull rod through-hole diameter)  40mm

X-axis travel: 115+20

Standard tool holder

VDI tool holder

C-axis BMT tool holder

Z-axis travel  600mm

Rapid feed - X/Z axis  20/24m/min

Feed motor - X/Z axis  3/3kW

Cutting feed rate  0~1260mm/min

Ball screw diameter X lead  28 x P6 (X)mm

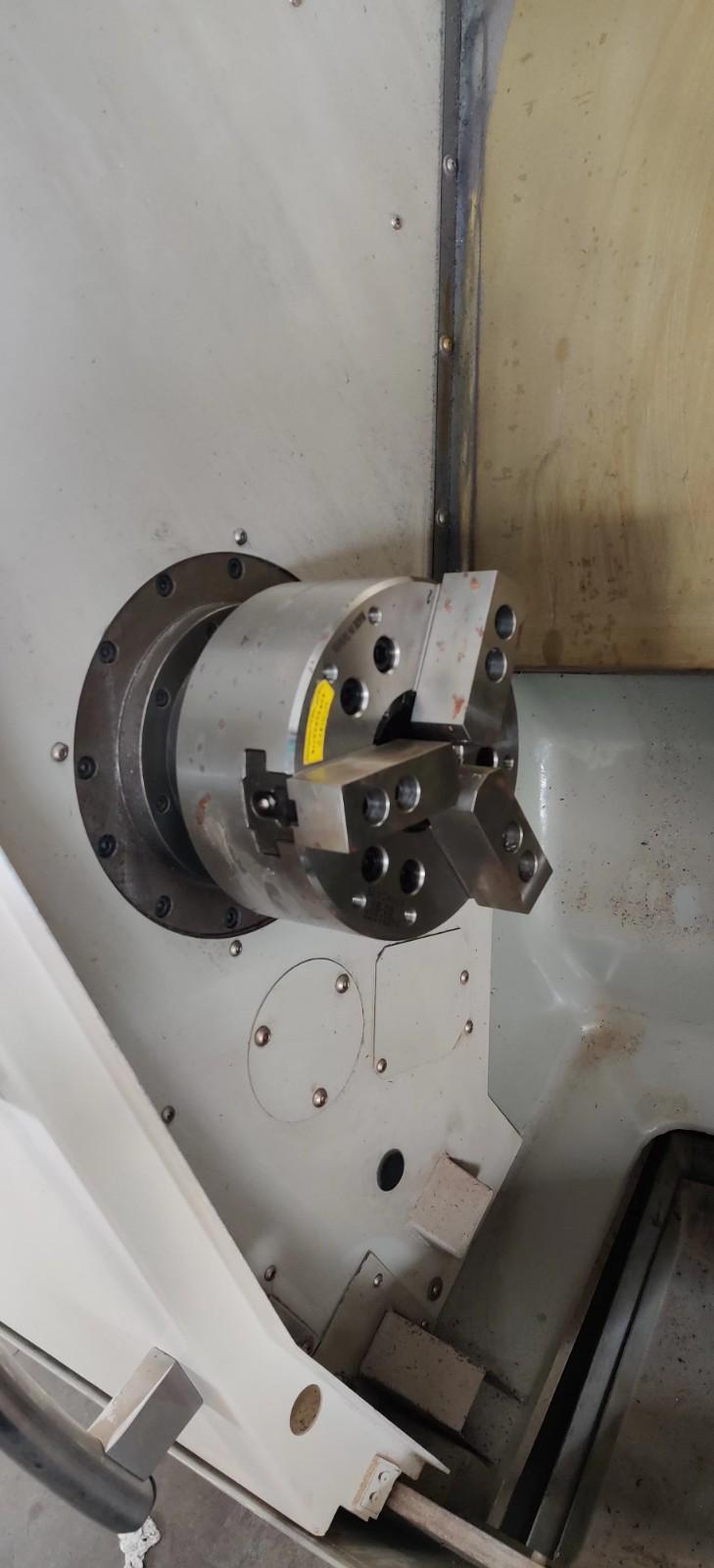

Spindle nose (chuck)  A2-5 (6 ")inch

Maximum spindle speed  6000rpm

Spindle motor power  7.5/9.0kW

Bearing inner diameter  90mm

Spindle inner diameter  52mm

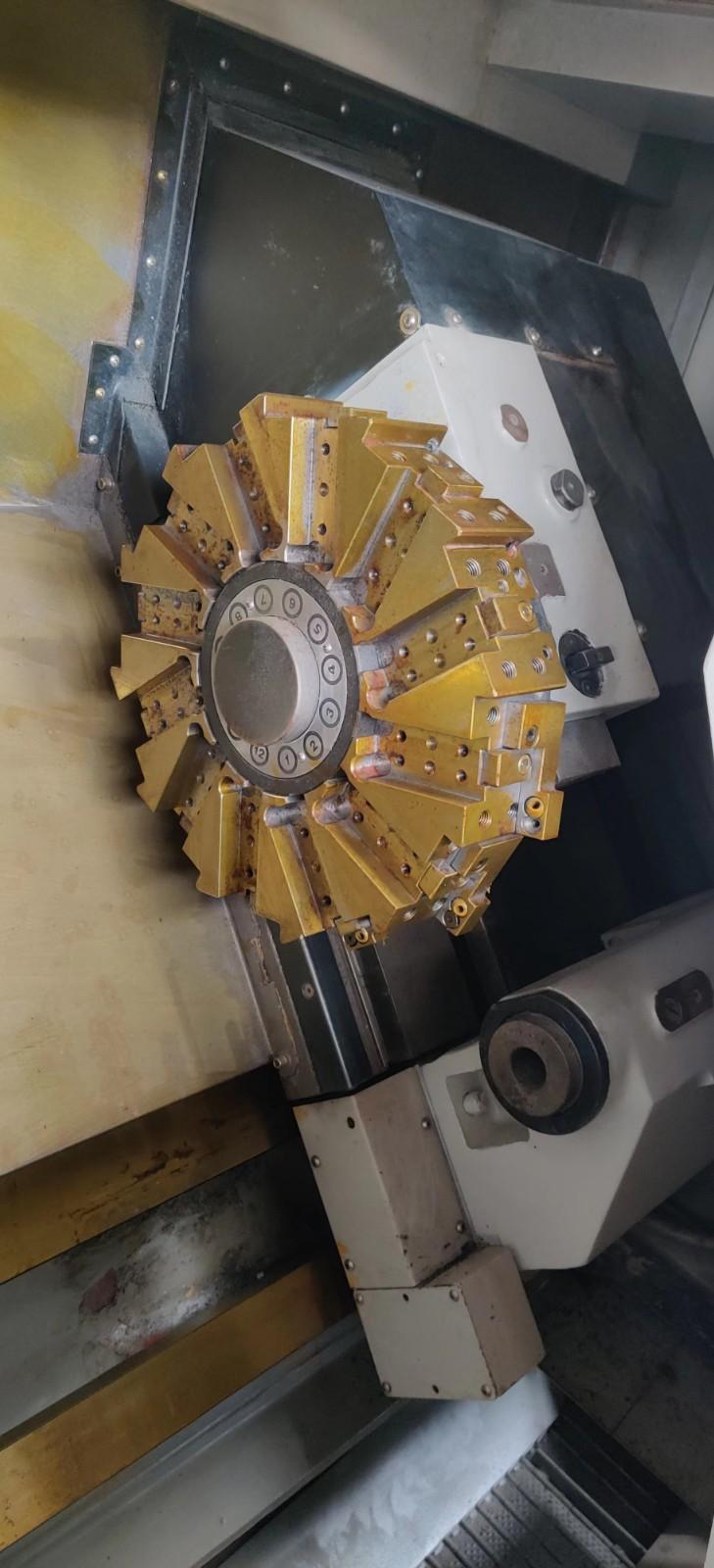

Number of tool holders No. 12

Outer diameter tool handle  20mm

Crank coupling diameter  180mm

Maximum tool apron inner hole  32 (VDI-30)mm

Tool changing time (T-T)  1sec

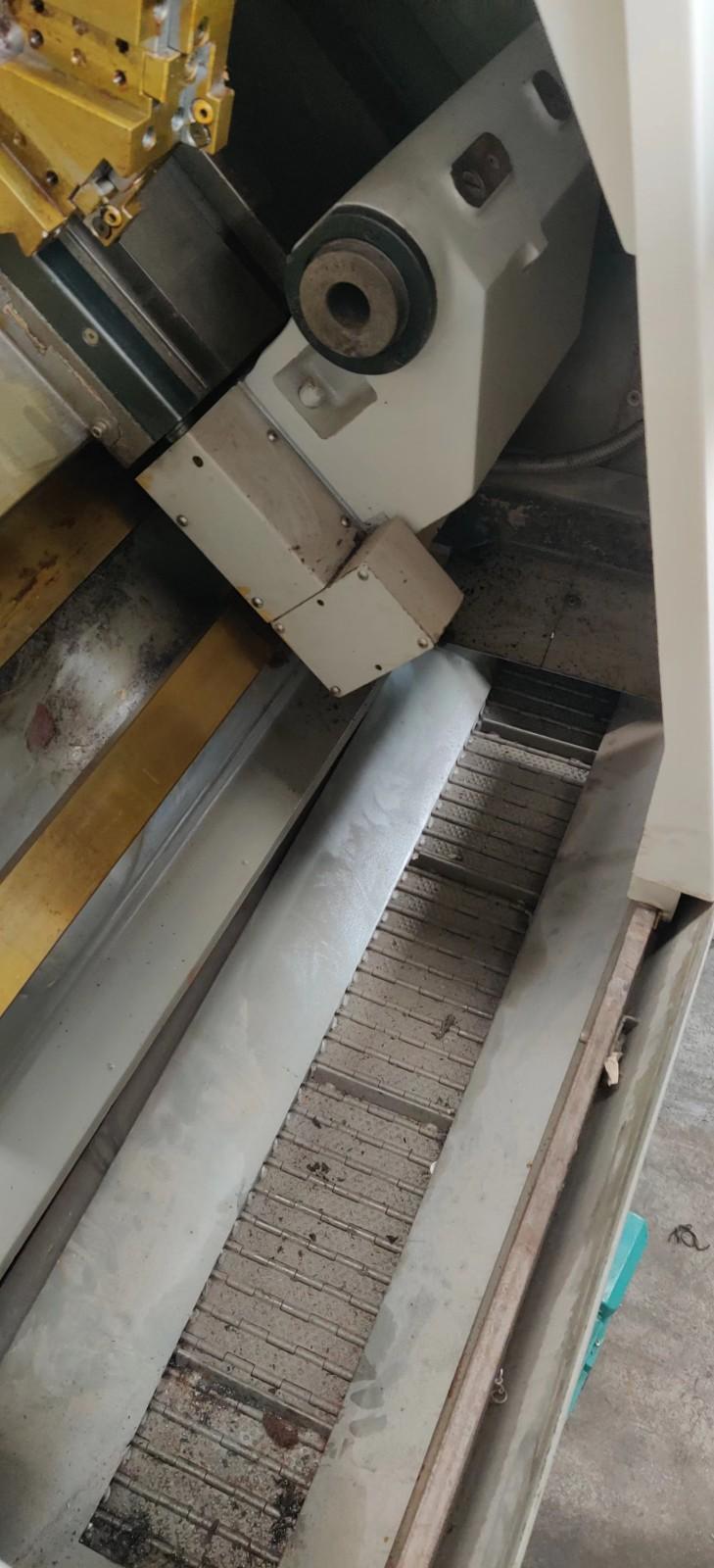

Tailstock spindle diameter  75mm

Spindle travel  80mm

Spindle bore taper MT # 4

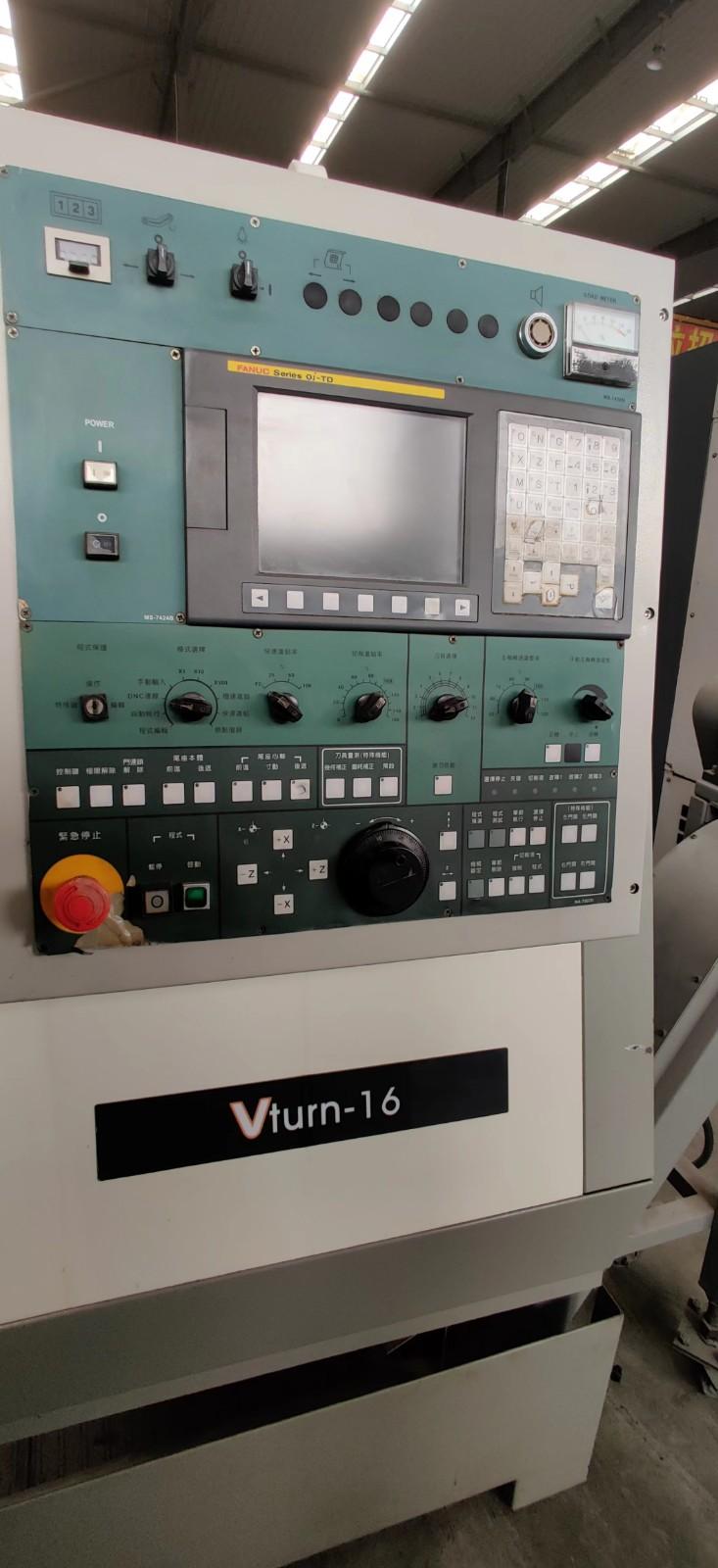

Controller (FANUC) 0i-TD

Tank capacity  87L

Machine dimensions  3.3 x 1.95 x 1.65m

Weight  4000kg
