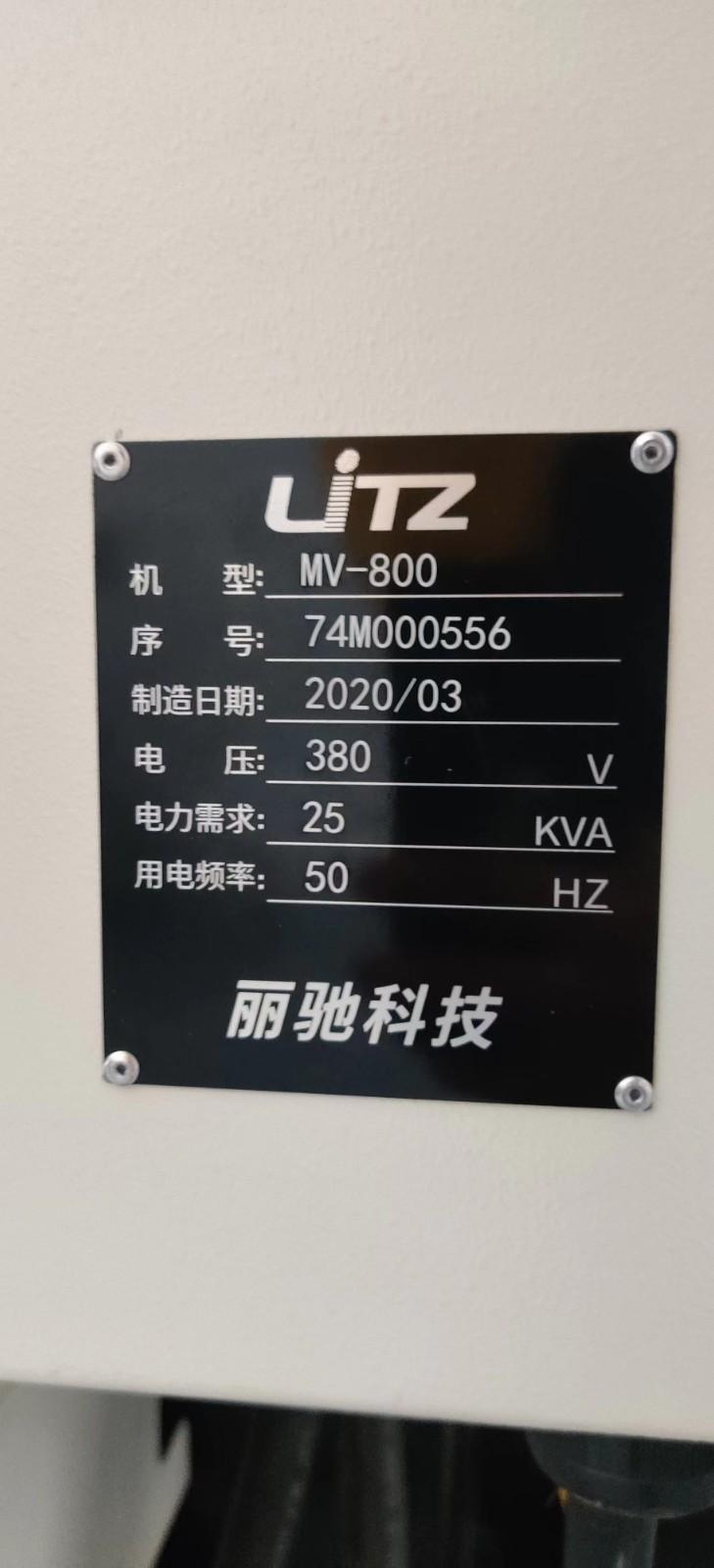

LITZ MV-800 Vertical Machining centre

Three axes travel X, Y, Z mm: 800 * 450 * 540

Distance between spindle and worktable surface : 80-620mm

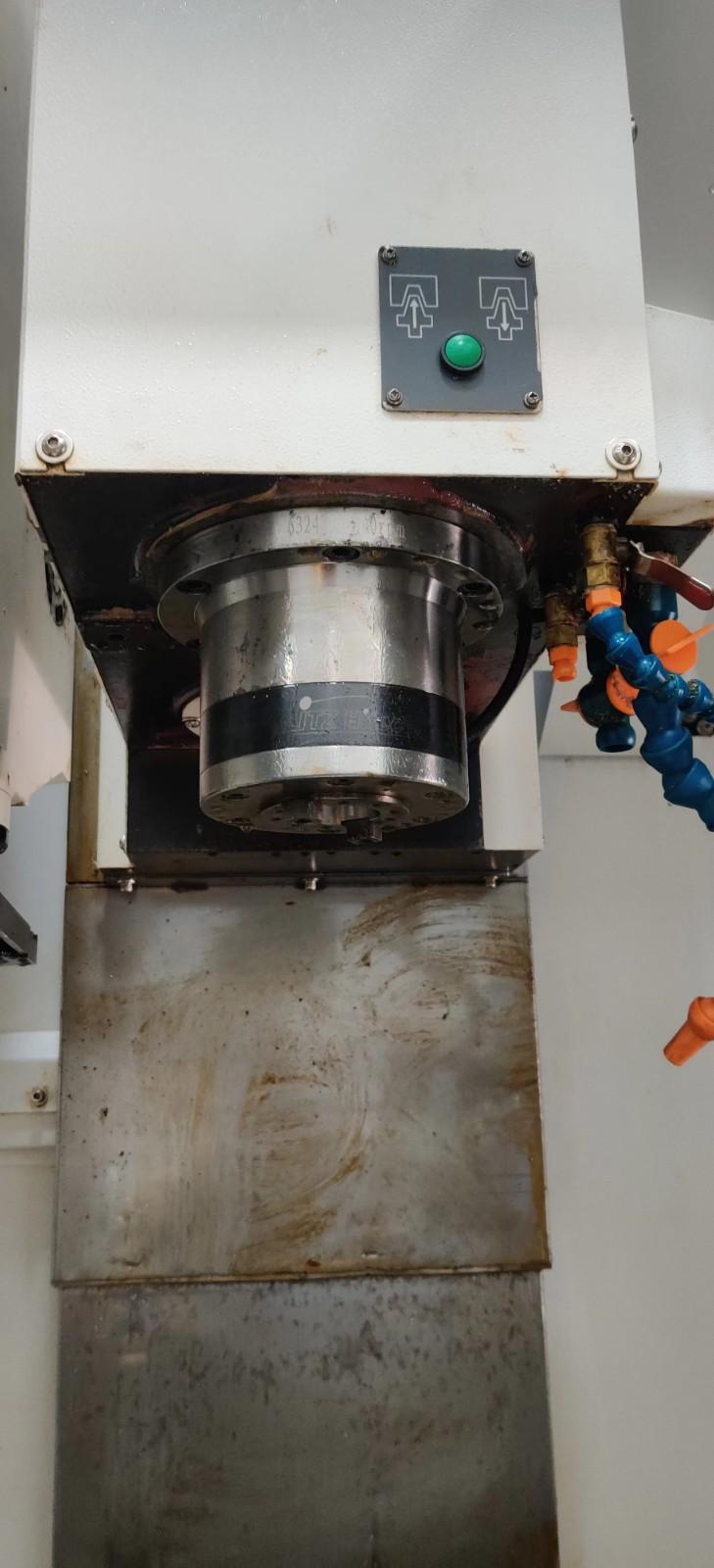

Spindle speed: 10000rpm

Tool magazine: 24

Maximum tool diameter available : 80/125mm

Maximum tool length : 270mm

Maximum tool weight : 8kg

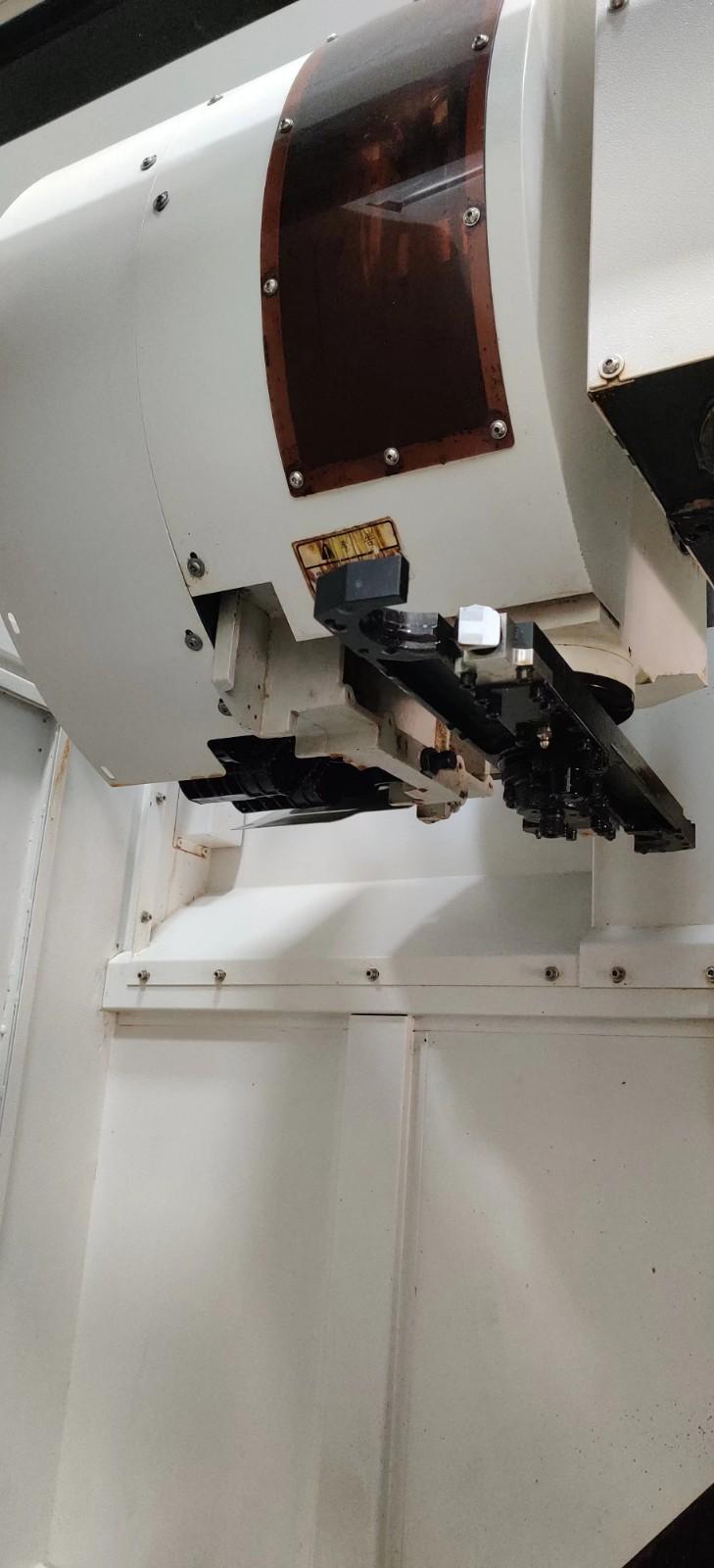

Tool magazine type: arm type

Tool specification: BT-40

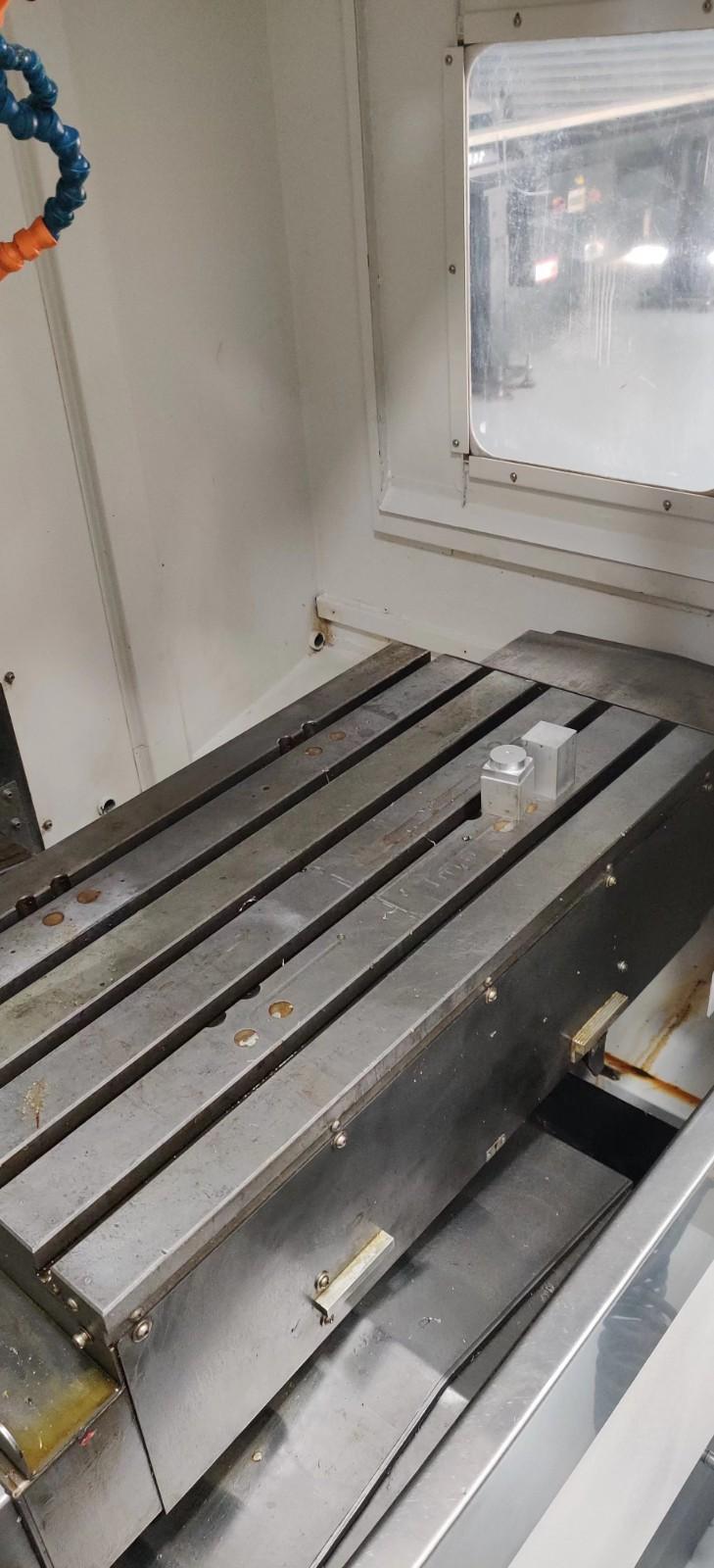

Worktable size : 850 * 450mm

Worktable load : 350kg

Rapid movement X, Y, Z : 36 * 36 * 24M/min

Cutting feed rate : 1-20,000mm/min

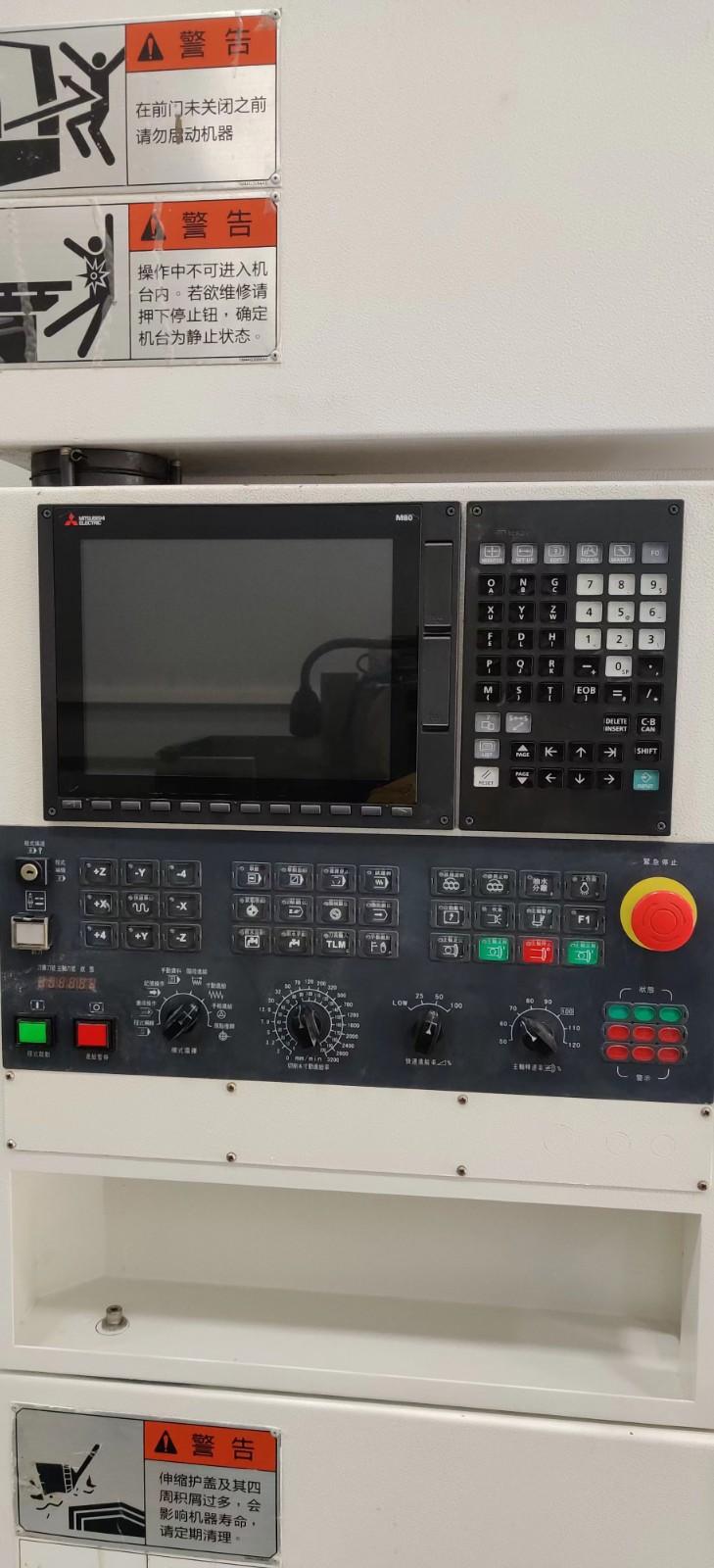

Controller: Mitsubishi

Machine weight : 4500kg

Power : 15kva

Water tank : 200L

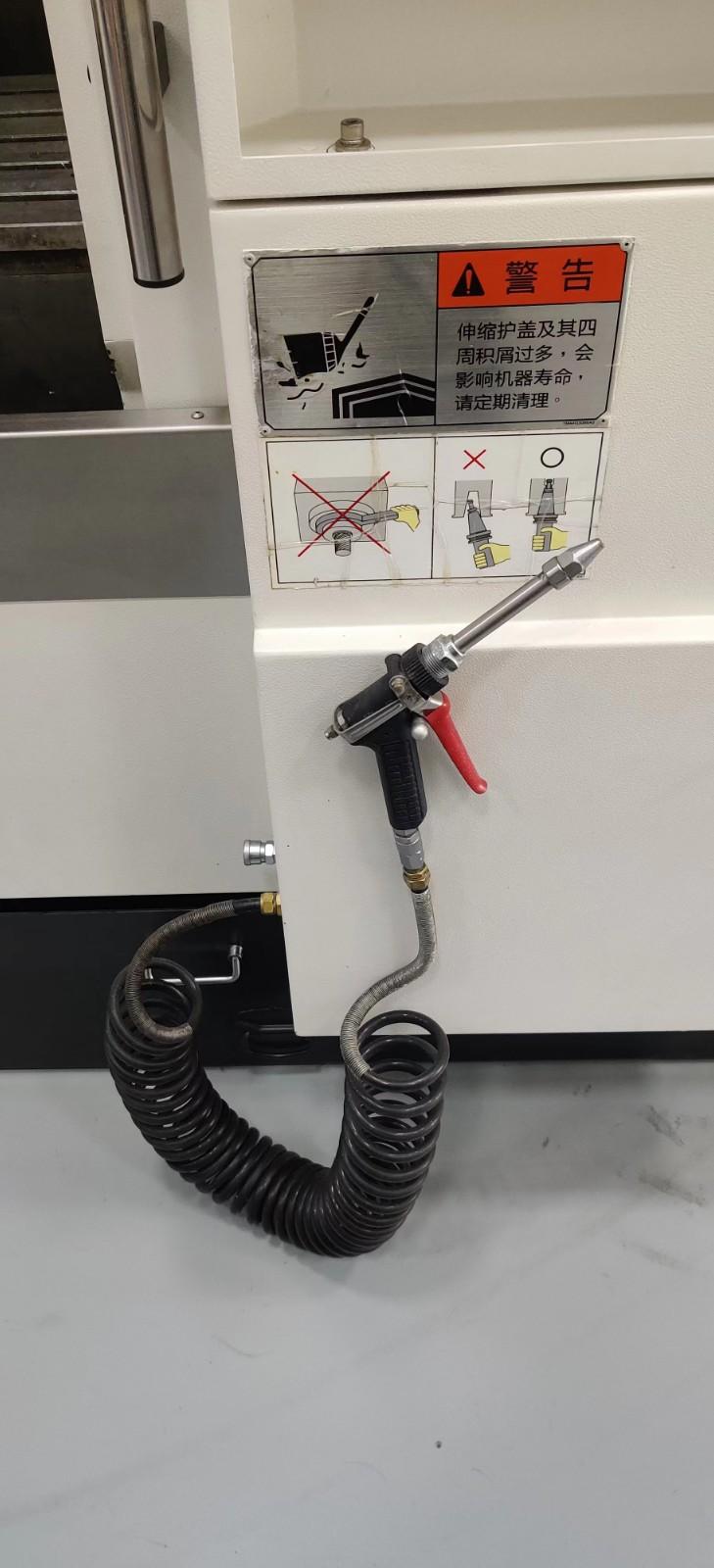

Air pressure：6kg/cm ³
