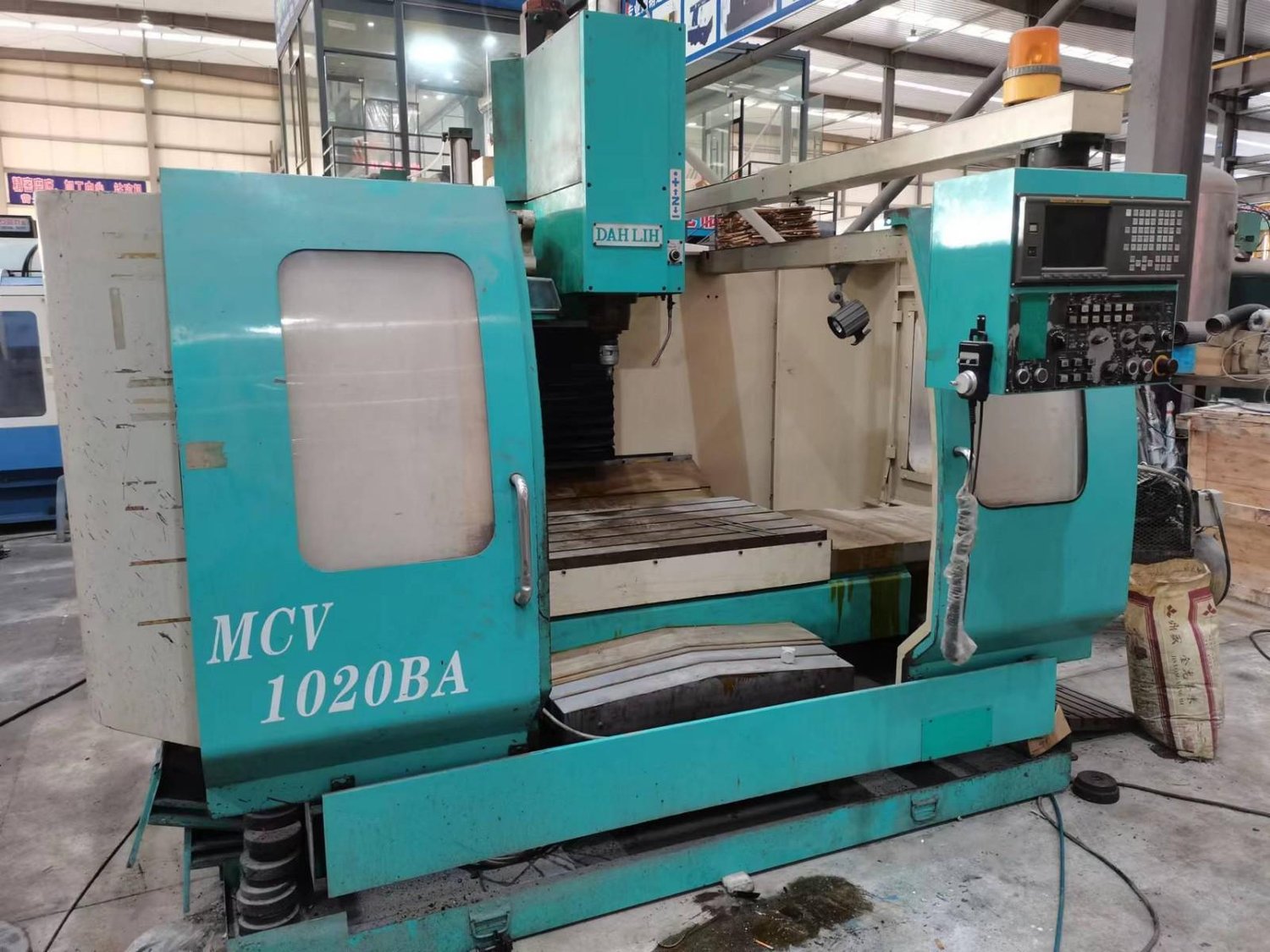

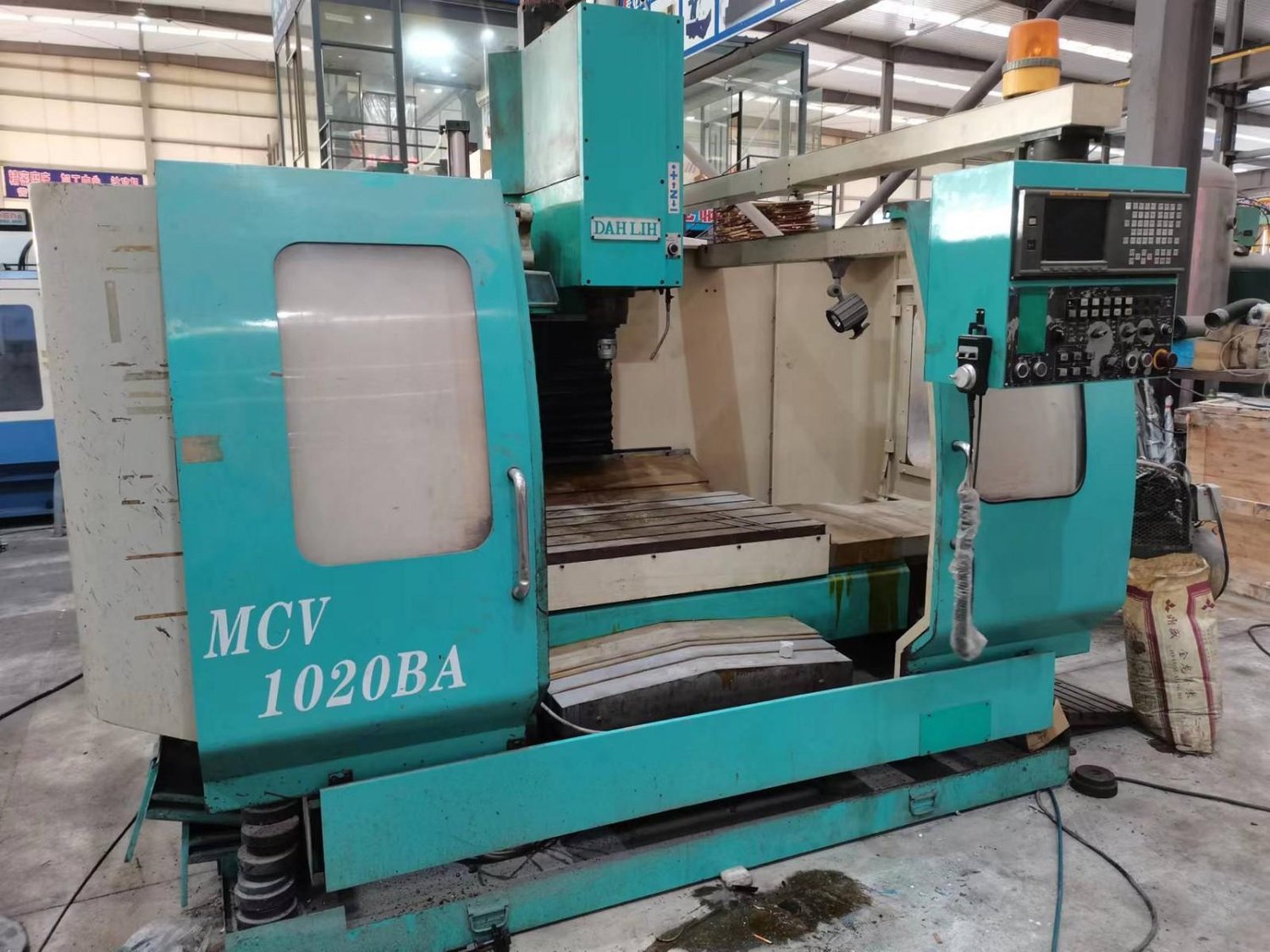

DAHLIH DL-MCV1020B Machining centre

Worktable size 1250X660mm

T-slot (width x number of slots) 18x5mm

Worktable load 1000kg

travel:

X axis 1020mm

Y-axis 550mm

Z axis 560mm

Distance between spindle nose and worktable  150~710mm

Distance between spindle center and column surface 600mm

Spindle speed 8000rpm

Feed:

Cutting feed rate 10000mm/min

Fast moving speed 30/30/20m/min

Minimum input increment 0.001mm

Automatic tool changer

Tool holder BT40

Magazine capacity 16

Max. tool diameter X length 90X300mm

Maximum tool weight 6kg

Drive motor (X, Y, Z axis) 3,3,3Kw

Floor area 3575X4000mm

Machine weight 6000kg
