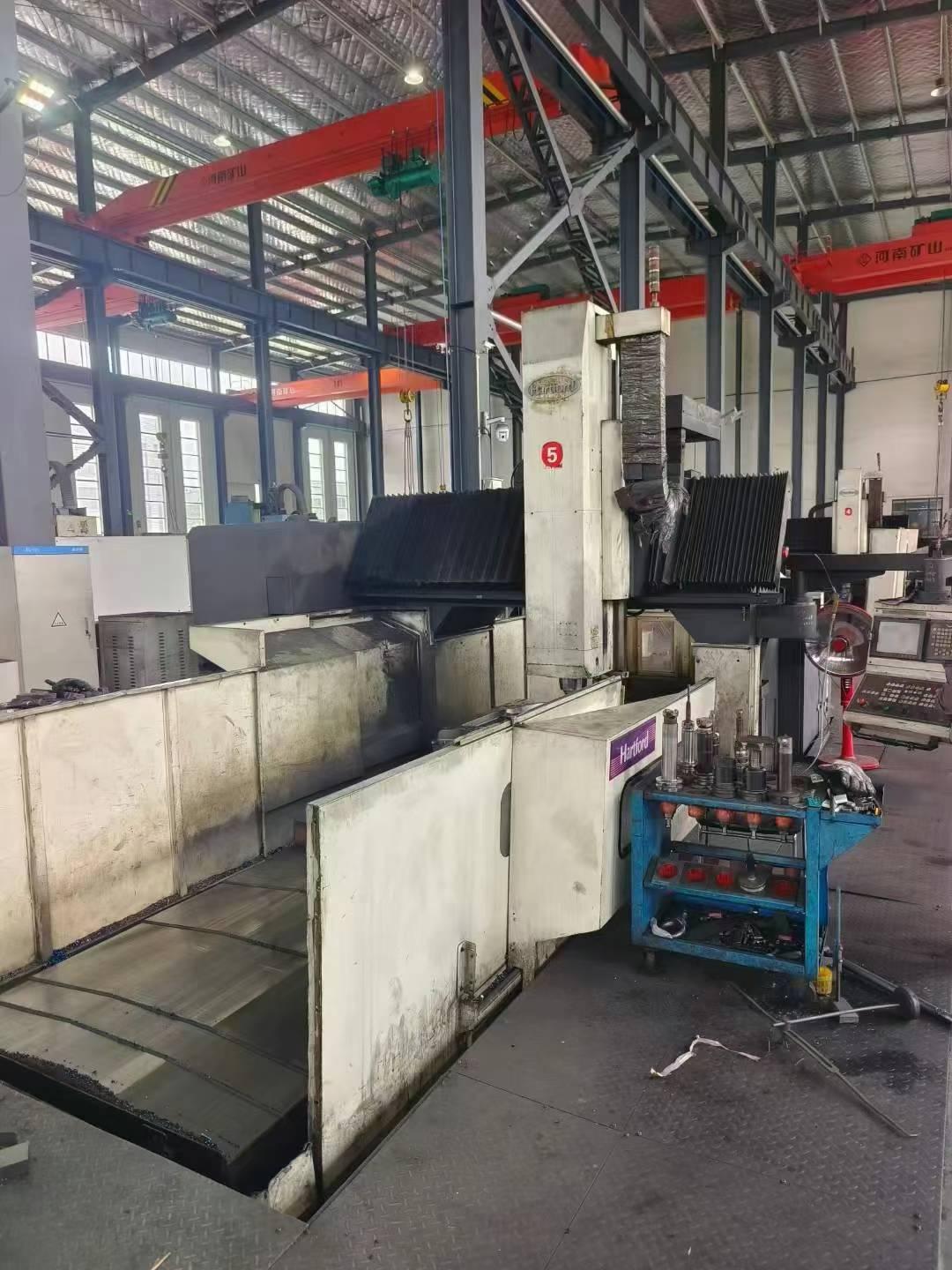

DAHLIH D-2213 Gantry machining centre

Worktable size: 2500 * 1350mm

T-slot size: 22 * 9 * 150mm

Worktable load: 4000kg

Distance from worktable surface to ground: 905mm

Three axes travel: 2200 * 1300 * 760mm

Distance from spindle nose to worktable surface: 200-960mm

Gantry width: 1400mm

Cutting feed rate: 12/15/15m/min

Fast moving speed: 10000mm/min

Spindle speed: 6000rpm

Spindle bearing specification: 100mm

Spindle motor: 18.5/15kw

Machine weight: 23000kg

Floor space: 4235 * 8500mm

X axis heavy roller linear guideway.

YZ axis heavy rigid guideway

Gearbox spindle

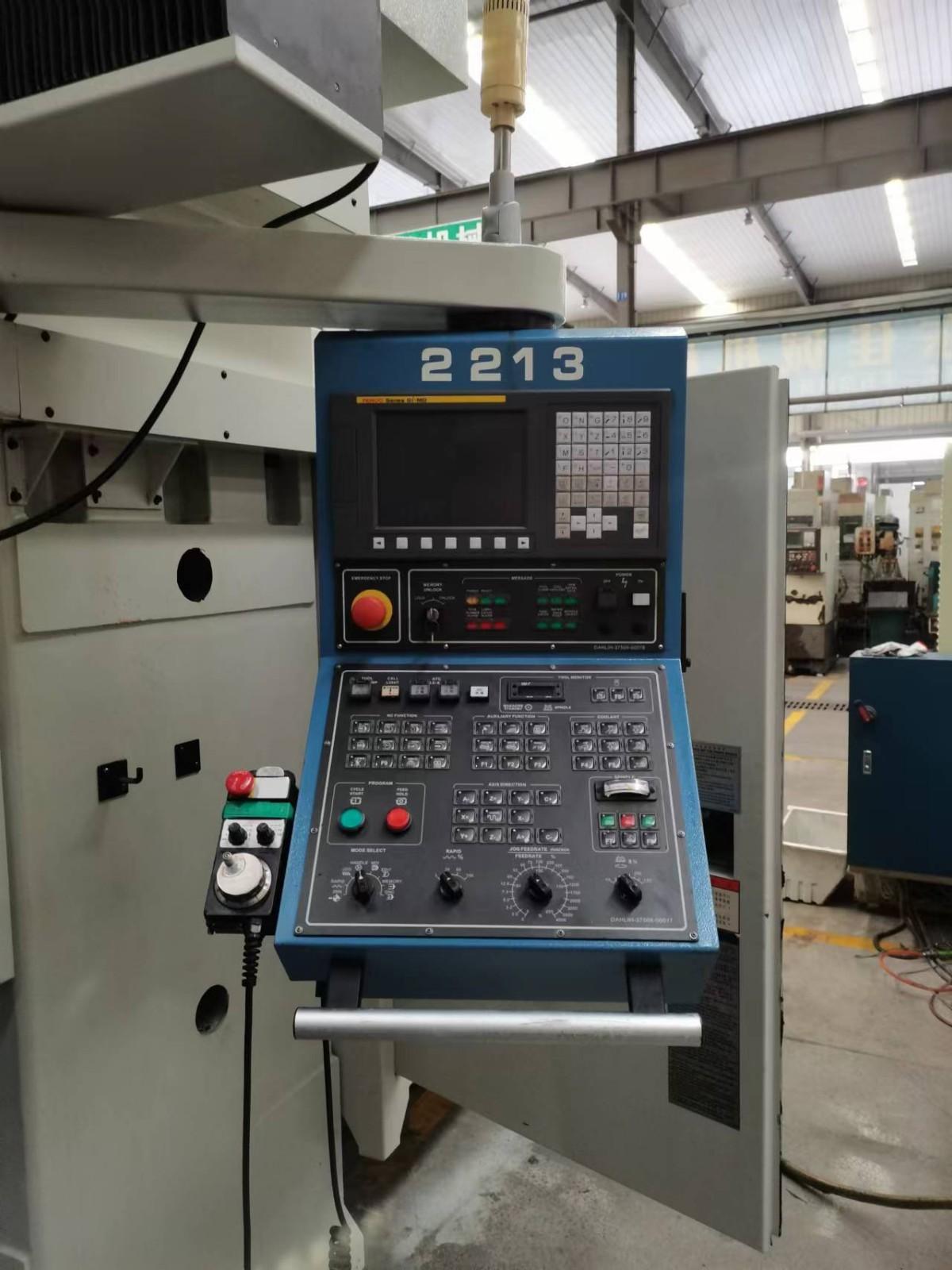

Fanuc 0iMD system

BT50 gear spindle
