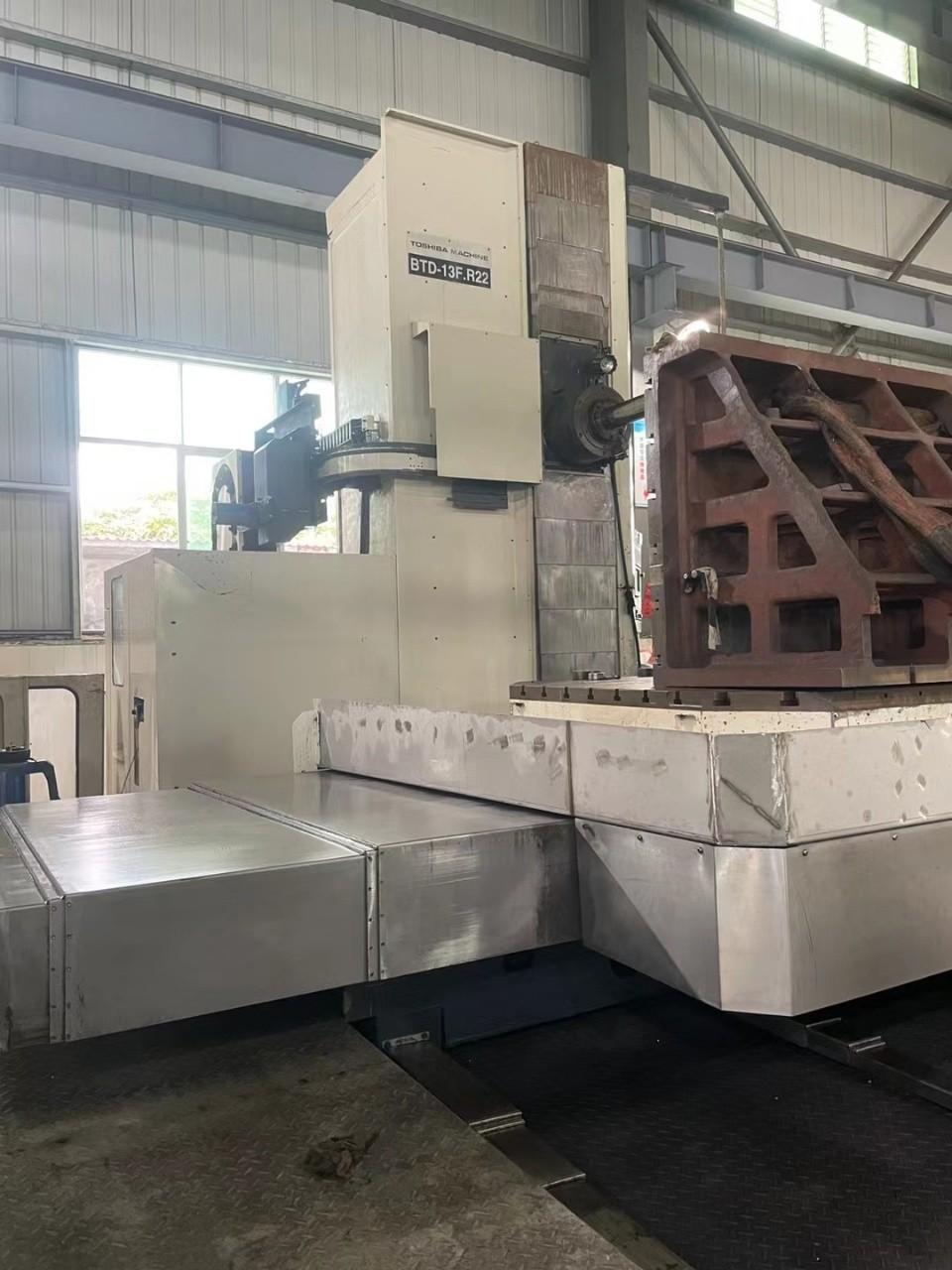

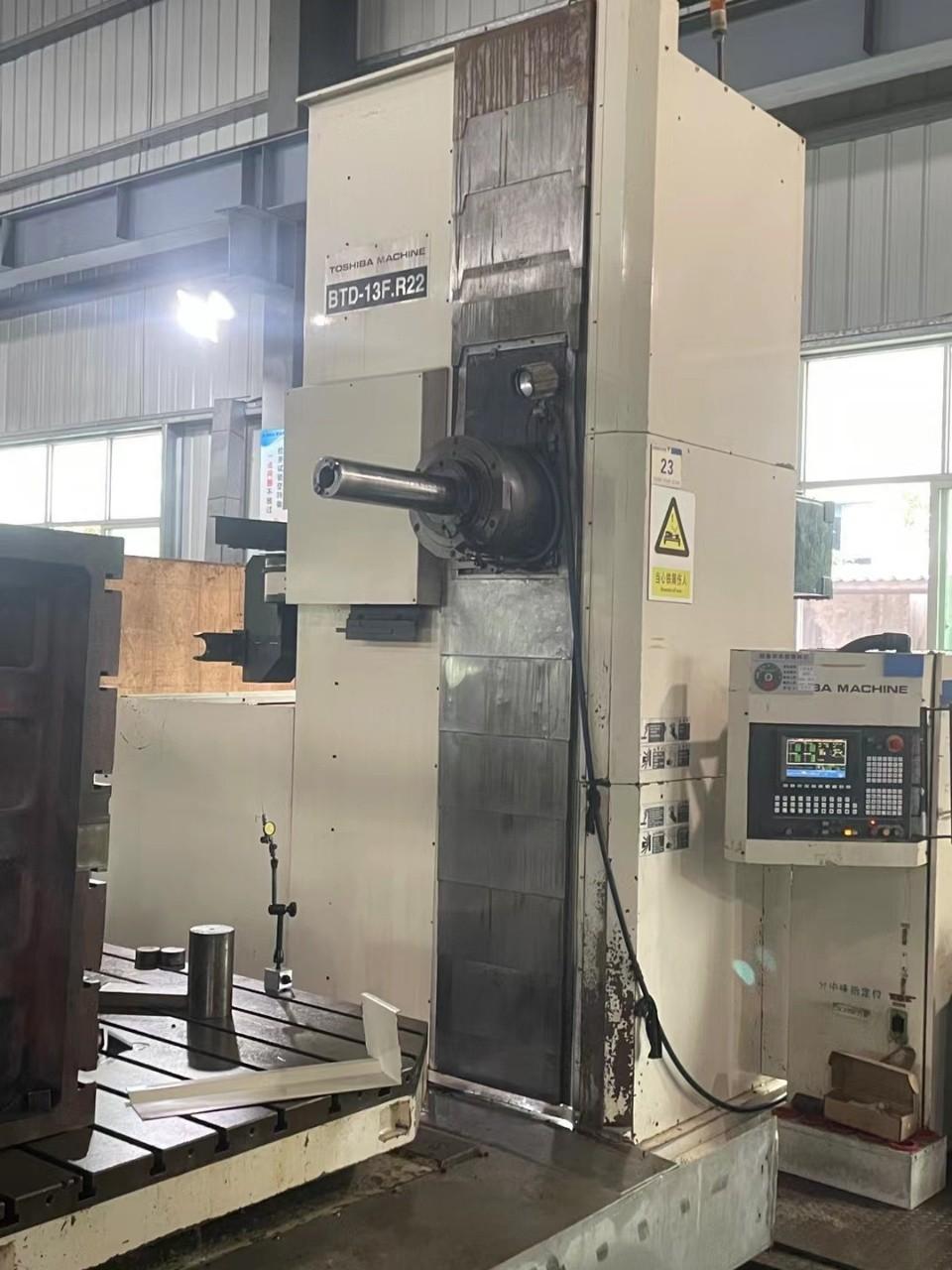

TOSHIBA BTD-13FR22 Horizontal boring machine
[Product Information]:
- Inventory number：70238
- Brand：TOSHIBA
- Model：BTD-13FR22
- Origin：Japan
- Location：China
- Year：
- Create Time：2022-12-01
Specifications:
Brand: Toshiba horizontal boring machine
Origin: Japan
Model: BTD-13F.R22
Travel: X axis * Y axis * Z axis 3000*2300*1600
W axis 700mm

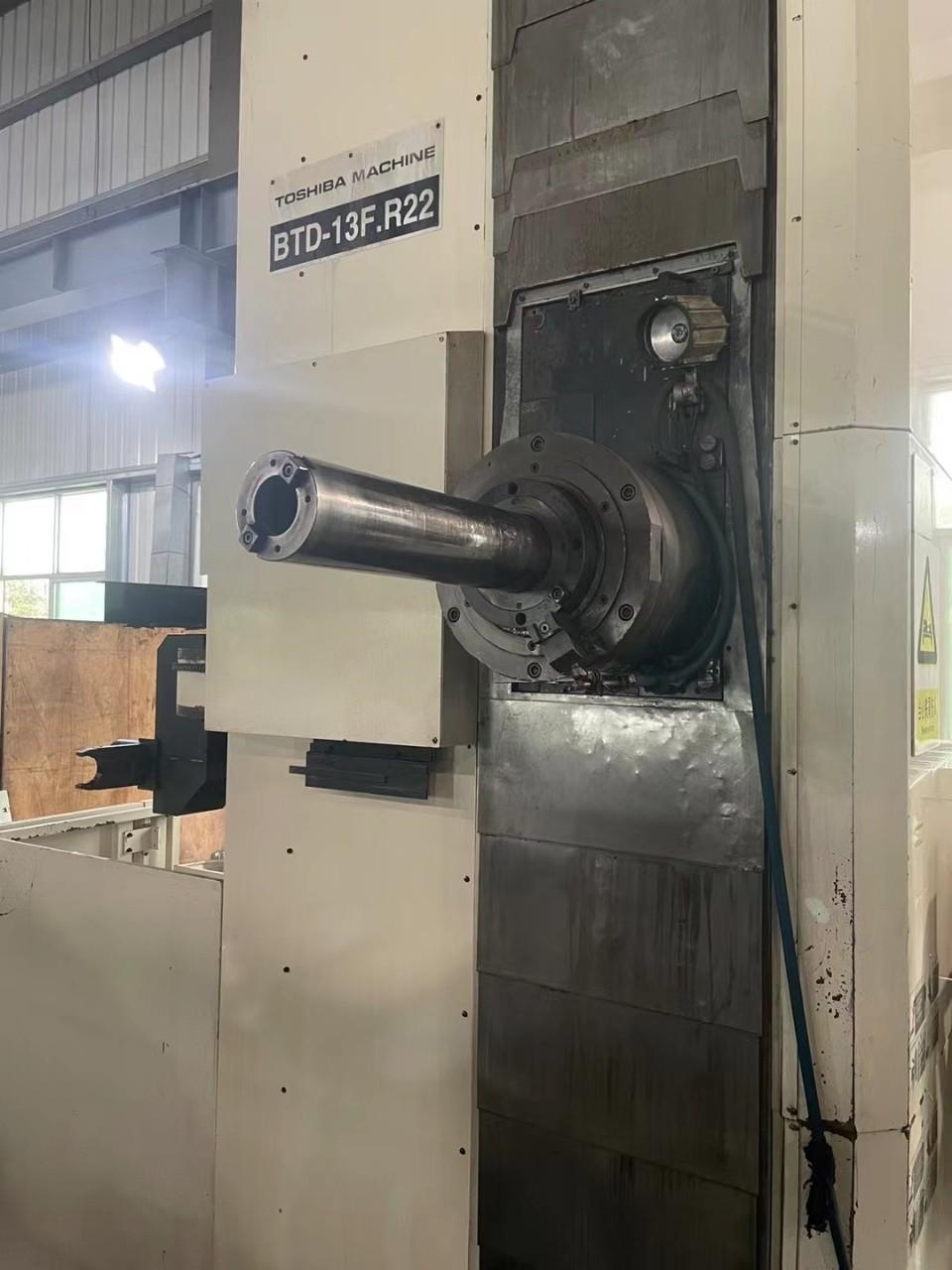

Spindle diameter 130 mm
Spindle speed range 5-2500 rpm
Milling cutter spindle diameter 225mm
Spindle Taper Type 7/24, Taper No. 50
Spindle drive motor 30 kW AC (30 minutes)
22kW AC (continued)

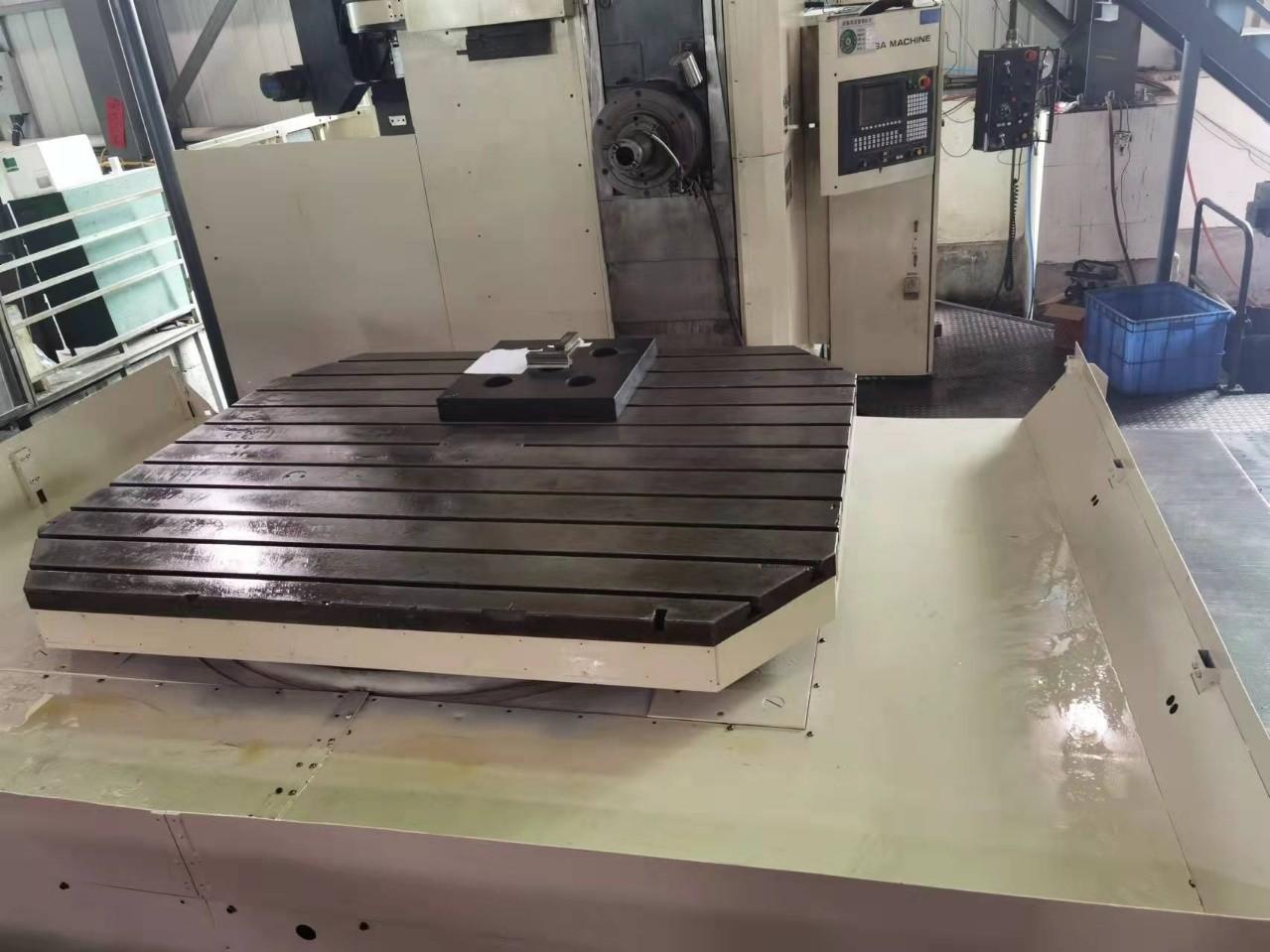

Worktable surface 1800x2200 mm
Worktable load 20000 Kg
Minimum table indexing 0.001 degrees
Feed speed:
10. Z: 1-3000 mm/min.
Y: 1-4000 mm/min.
38 tools magazine
Accessories:
Center flushing 140 PSI

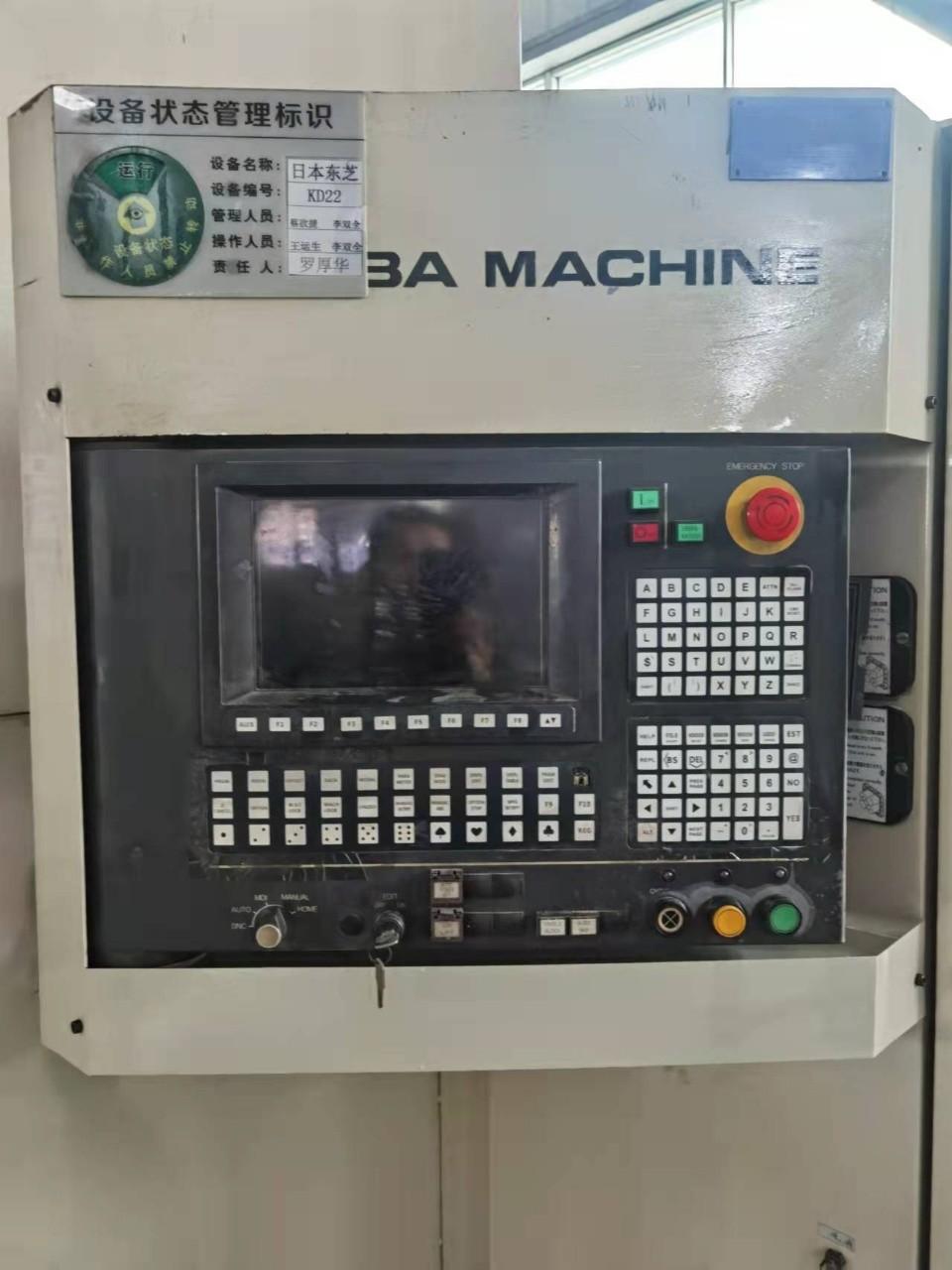

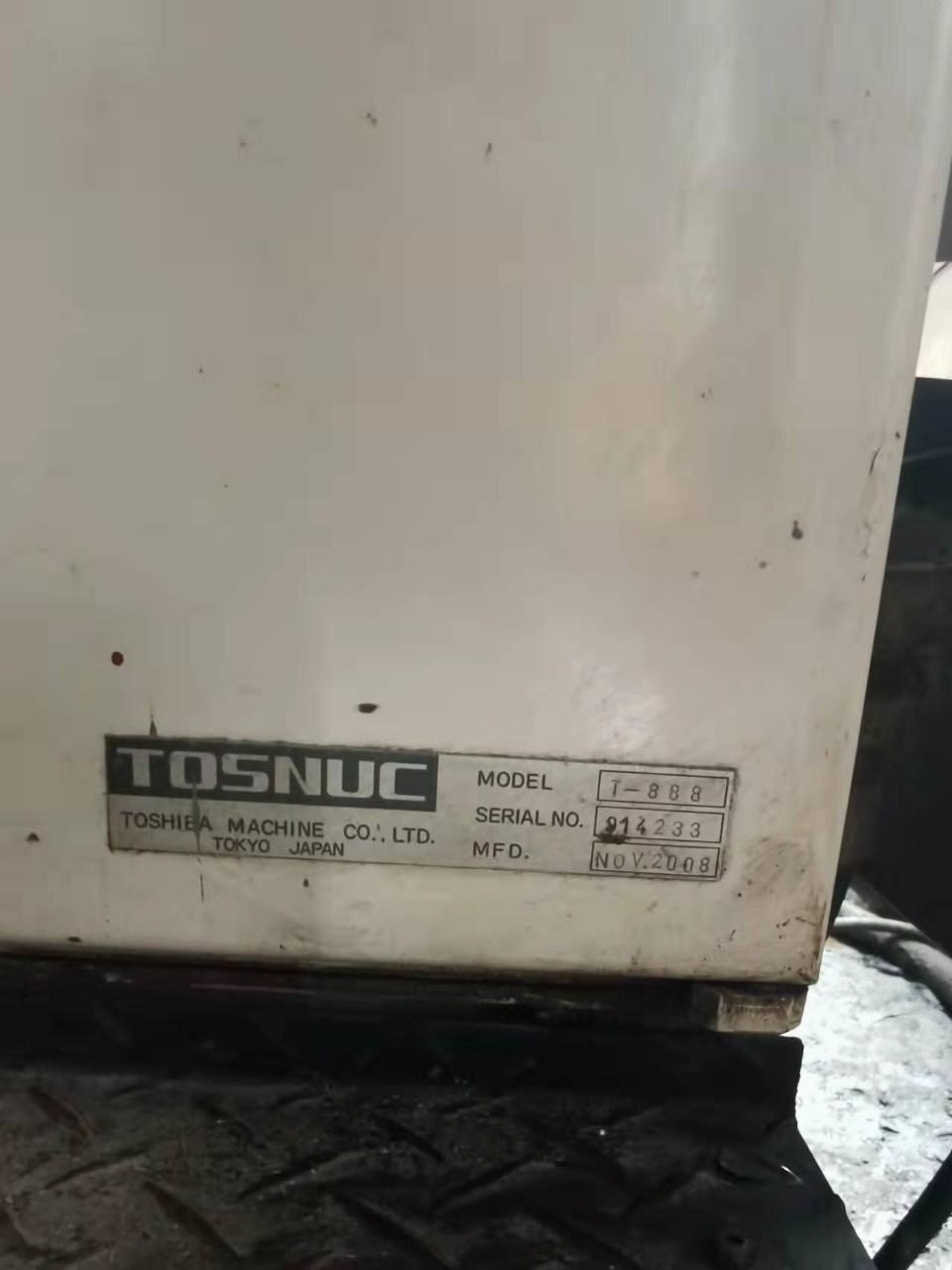

System: TOSNUC888
