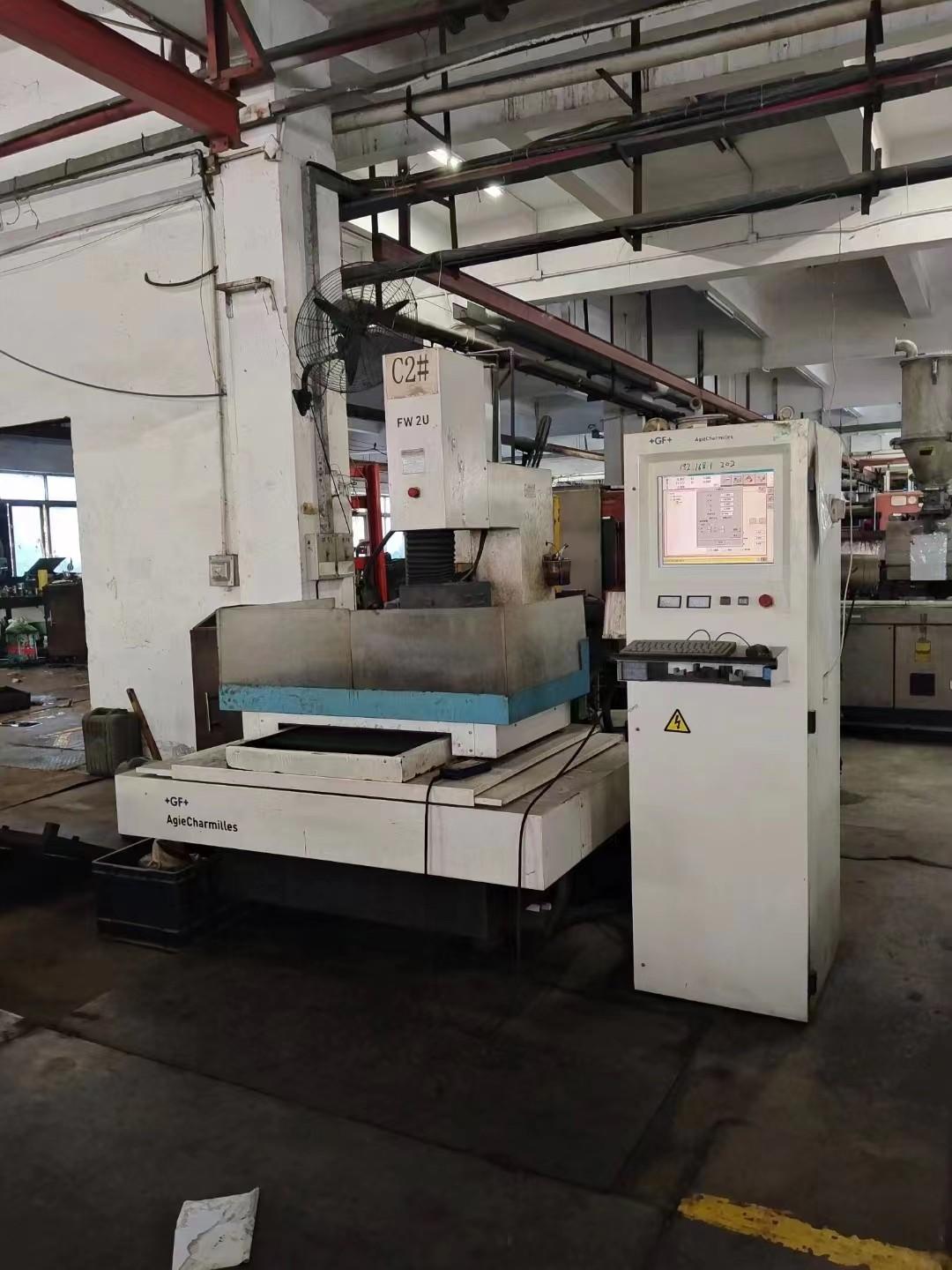

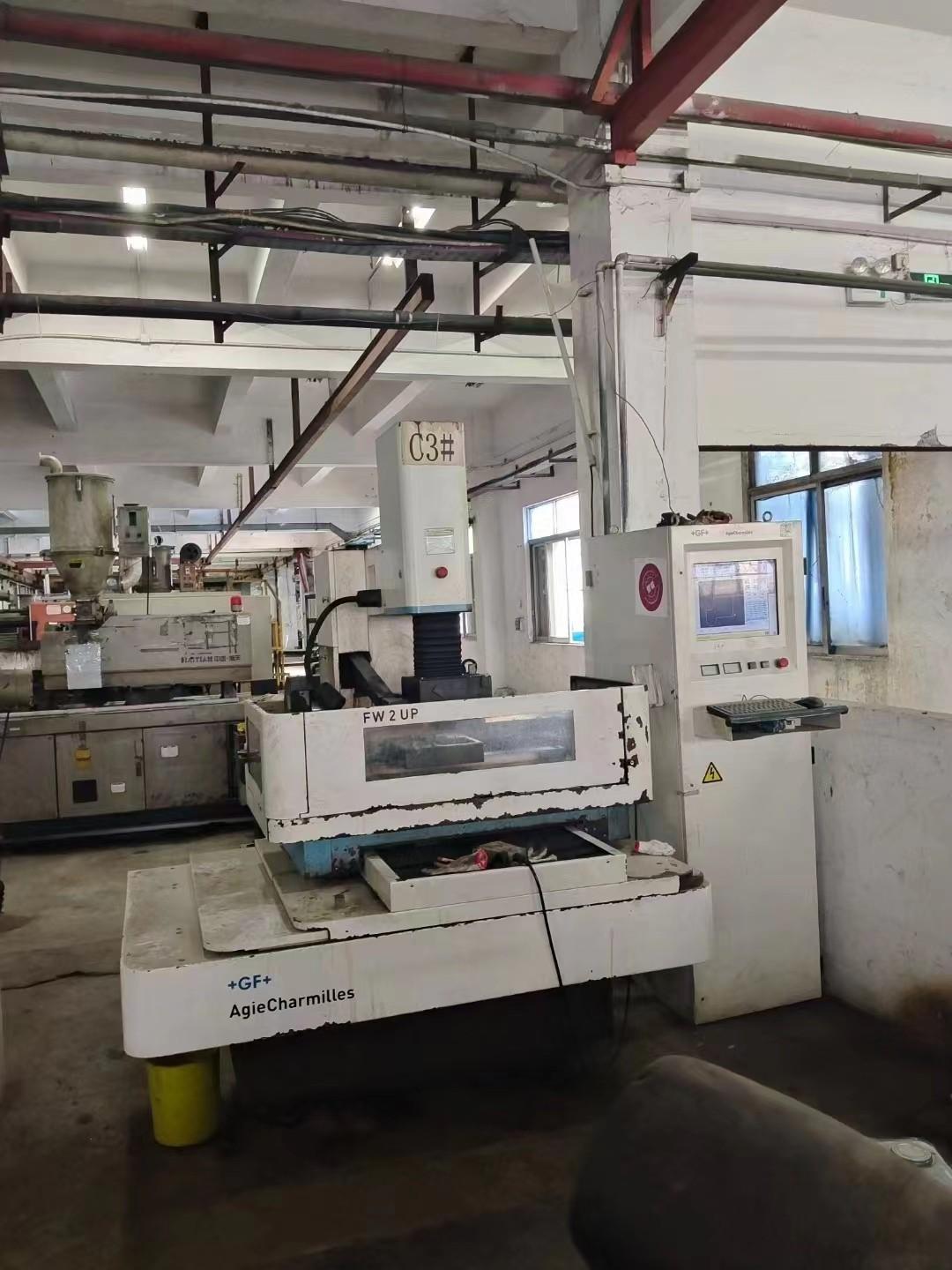

GF FW2UP Medium-speed Wire cutting machine

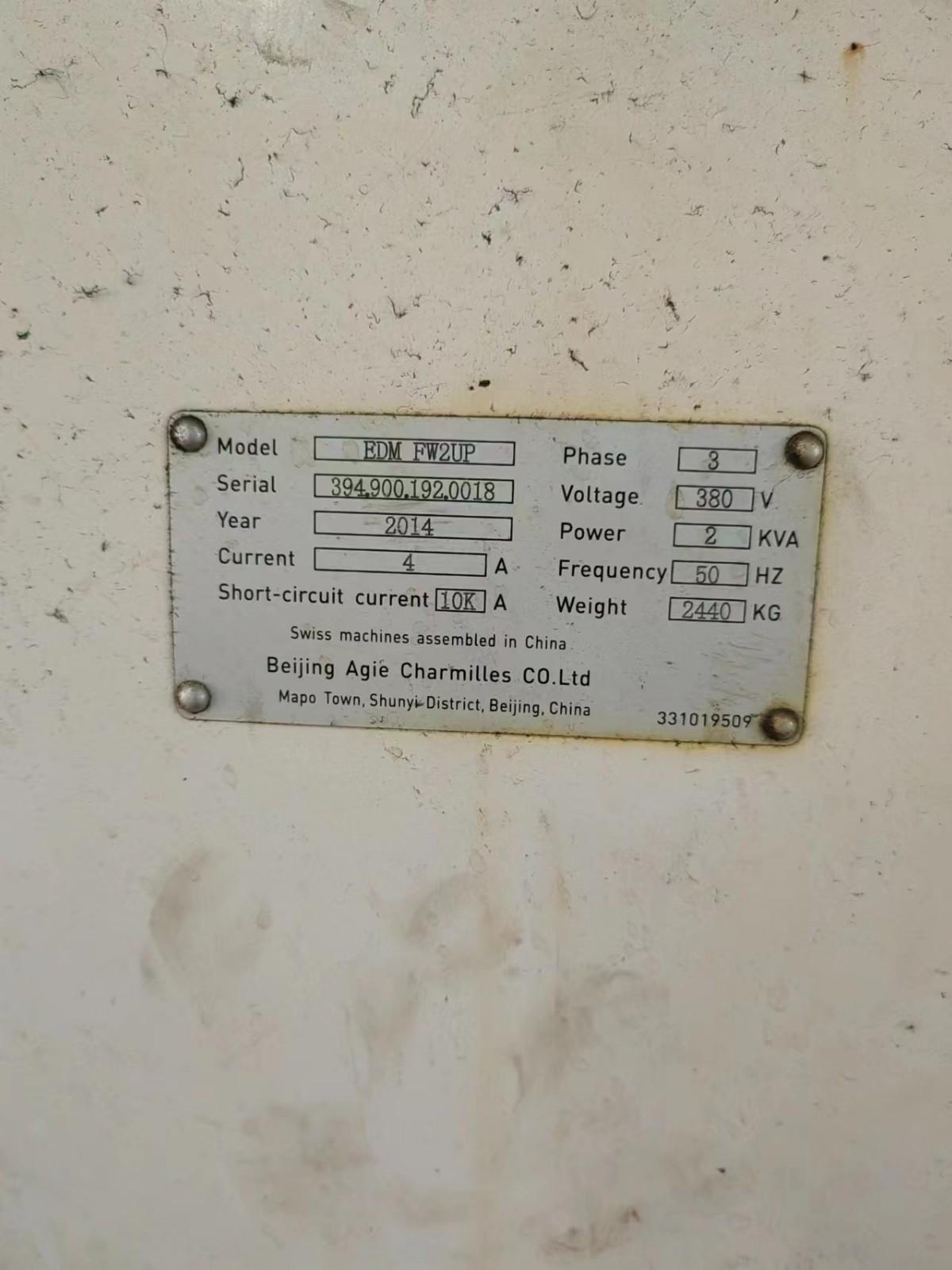

Model: FW 2UP

Type: wire-cut EDM machine

Routing mode: reciprocating routing

Worktable width: 500mm

Maximum workpiece height: 300mm

Diameter range of electrode wire: 0.12-2.0mm

Maximum machining speed: 180 mm2/minmm/min

Work Tank Size: 1200 x 740 x 150 mm

Worktable travel: 500 x 400 mm

Z-axis travel: 250 mm

Maximum cutting thickness: 300mm

Taper: ± 3/150 °/mm

Surface roughness: Ra 1.0 um

Worktable load: 600kg

Machine tool guide: linear rolling guideway

Machine dimensions: 1790 x 1715 x 2050 mm
