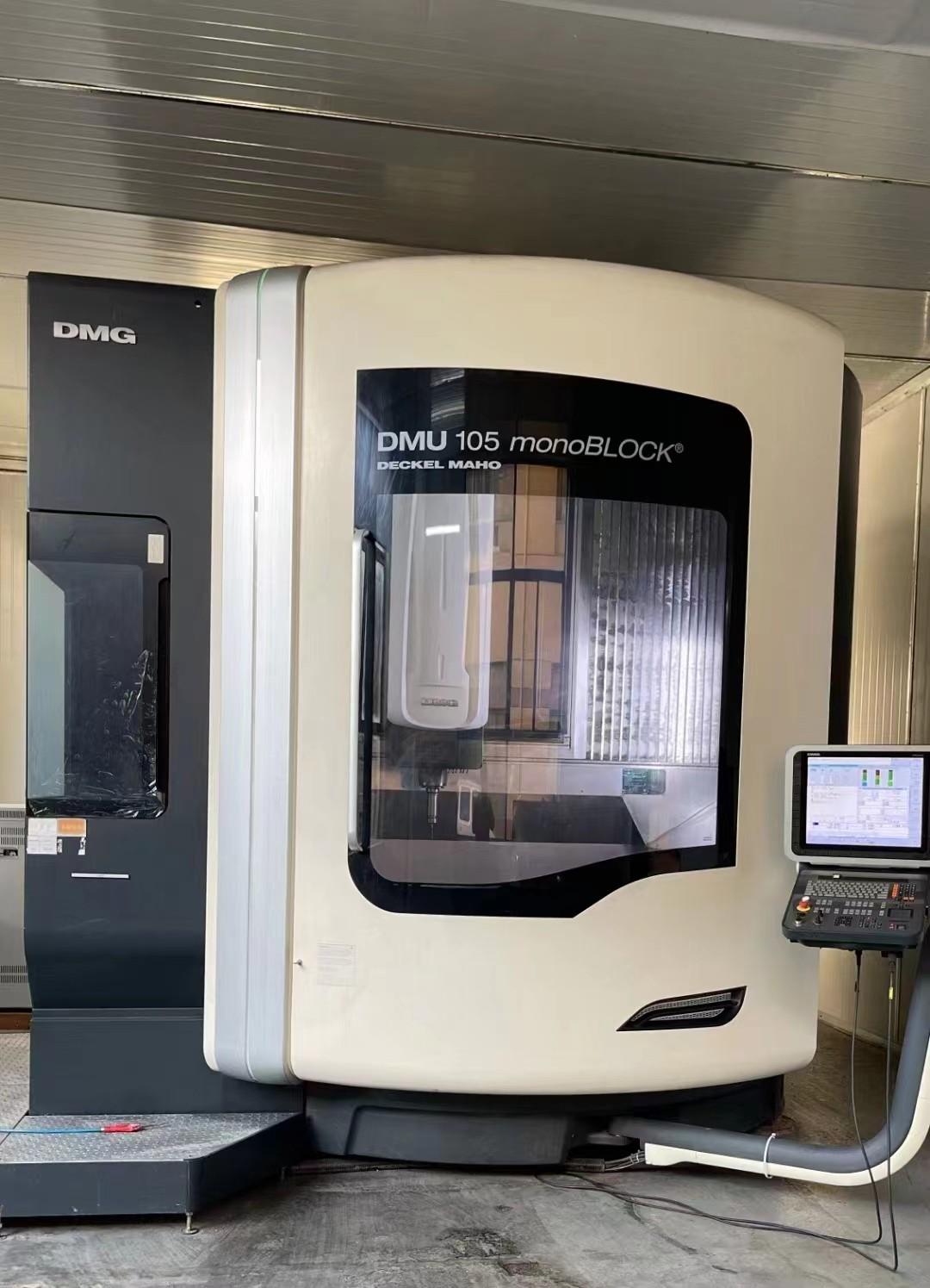

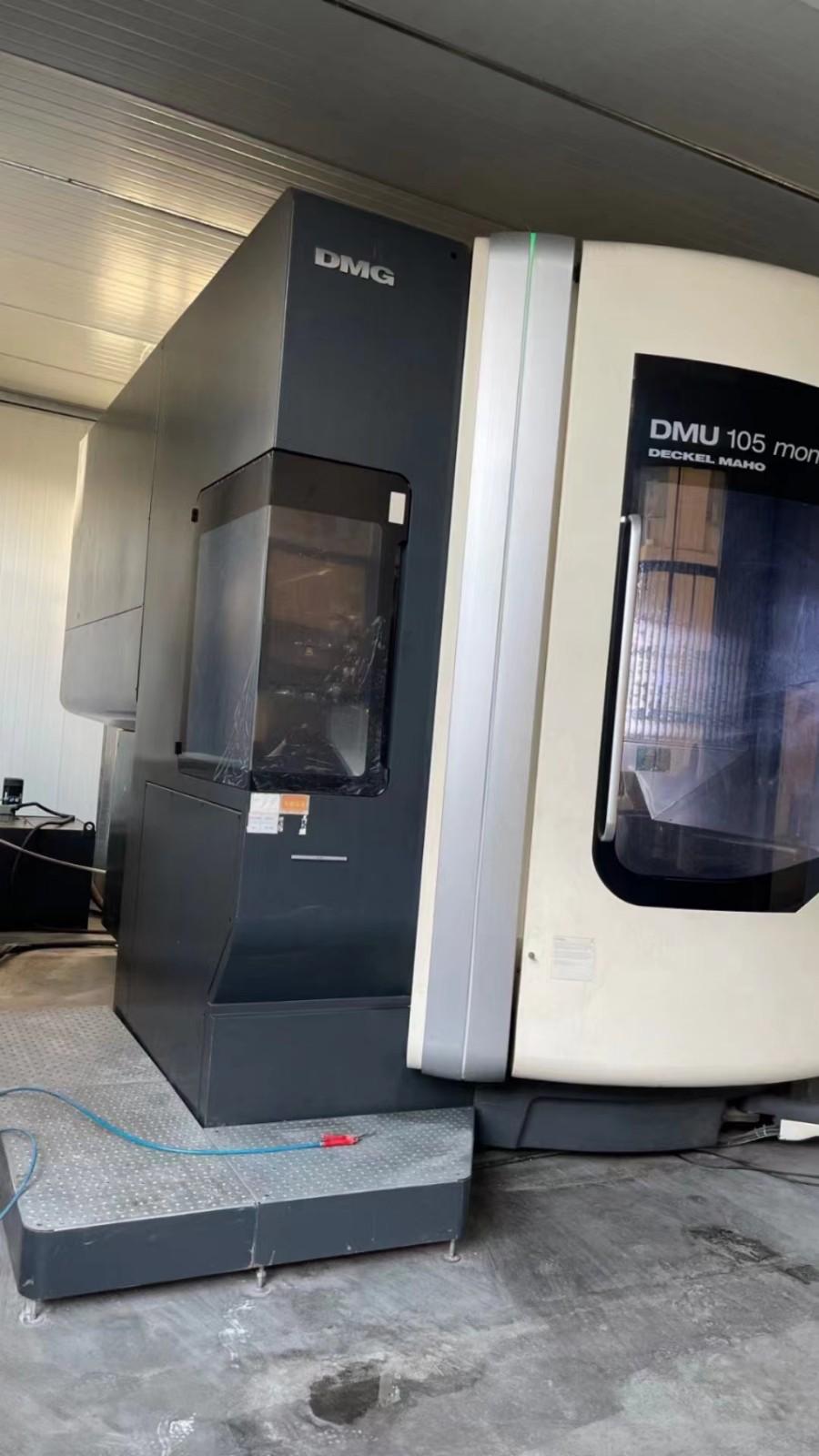

DMG DMU 105 MONOBLOCK Machining centre

Brand new five axis machine, only has been used for making a few samples, and the accuracy is same as new machine

DMG five-axis simultaneous movement machining center DMU 105 MONOBLOCK

---Parameters:

Model: DMU 105 MONOBLOCK

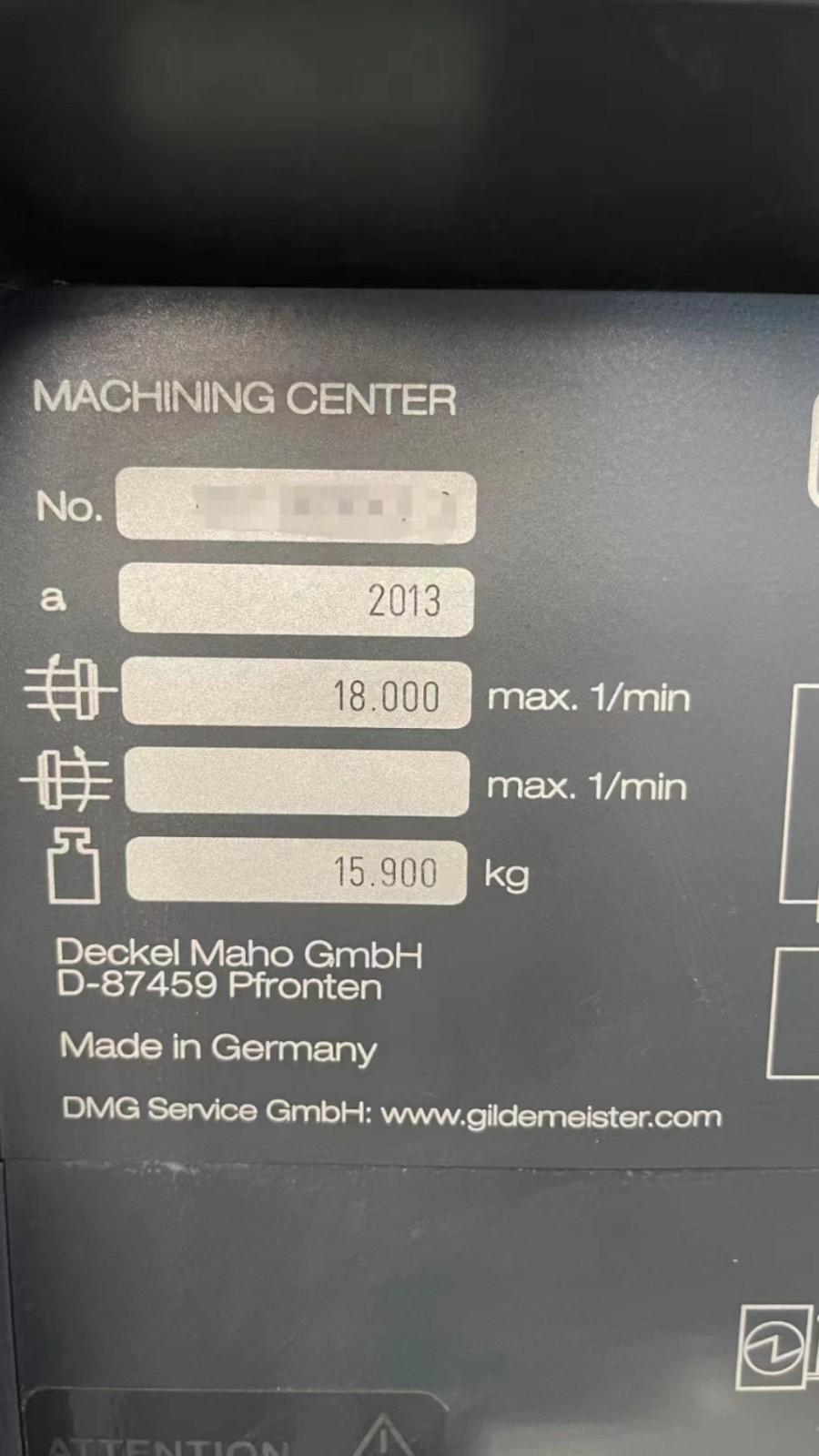

Ex-factory: 2013

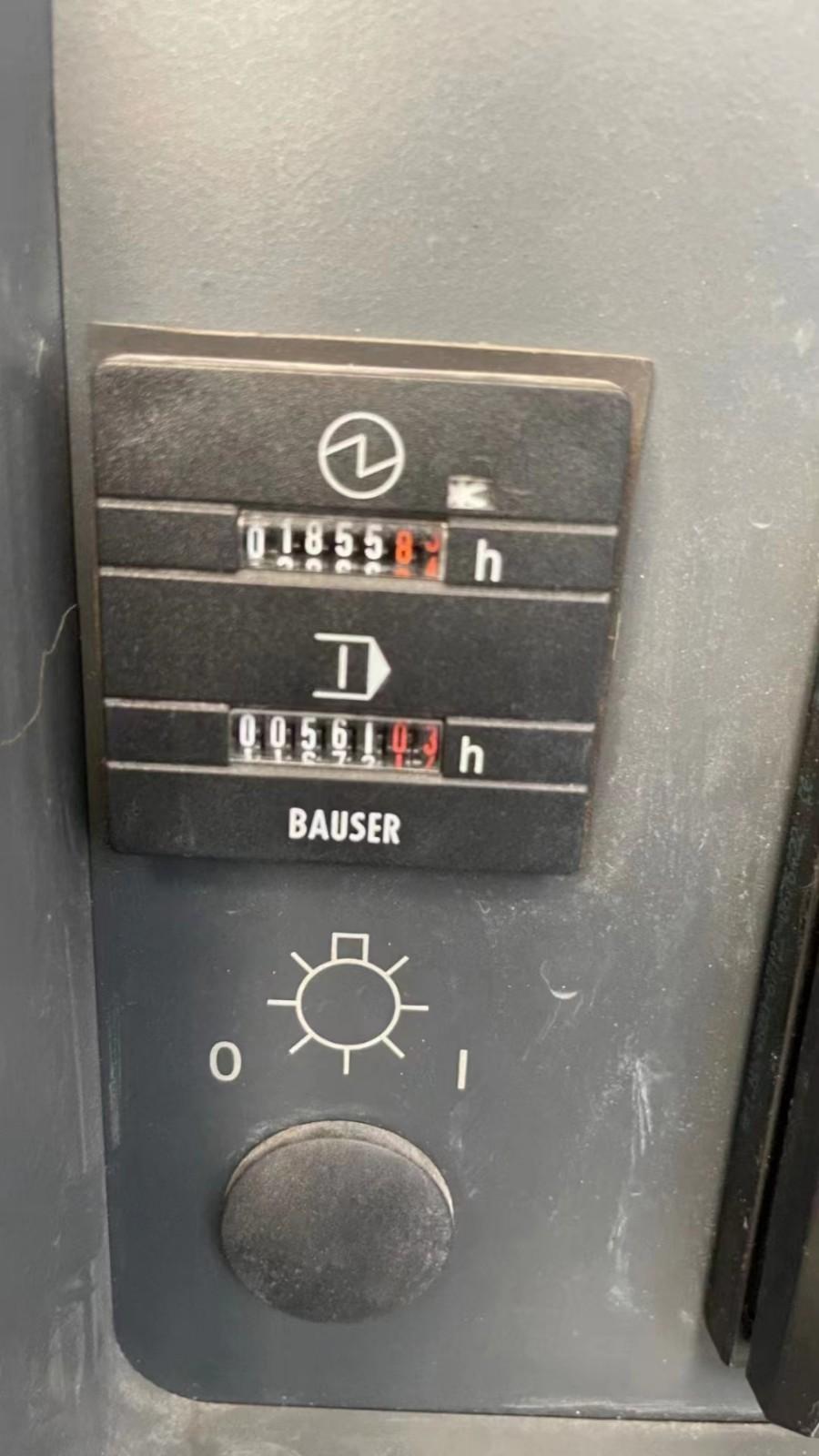

Worked time: only 561 hours

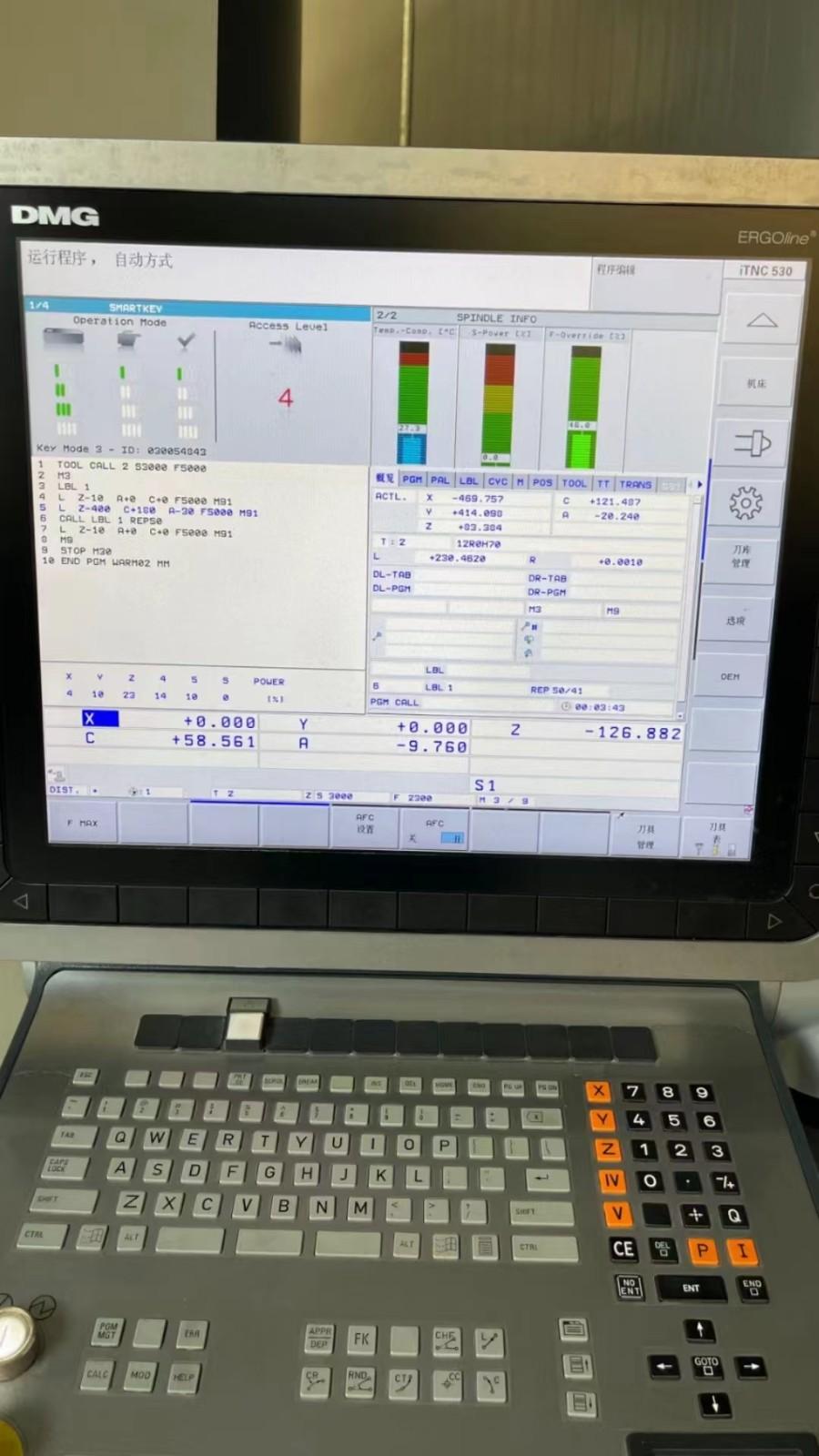

Control: Heidenhain TNC I530

X axis travel: 1135 mm

Y-axis travel: 1050mm

Z-axis travel: 750 mm

A-axis rotation range: 120 degrees/- 120degrees

C-axis rotation range: 360 degrees

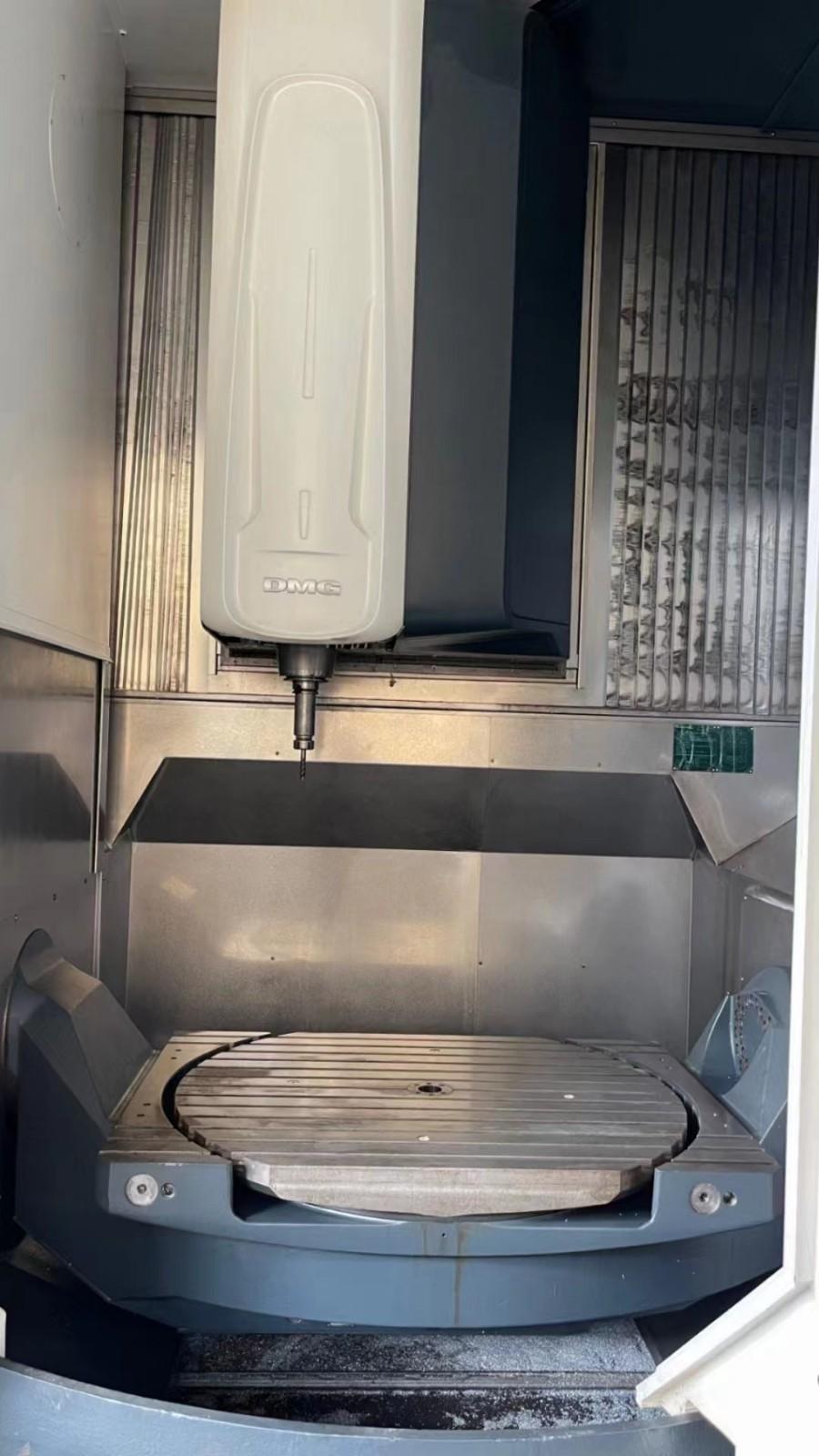

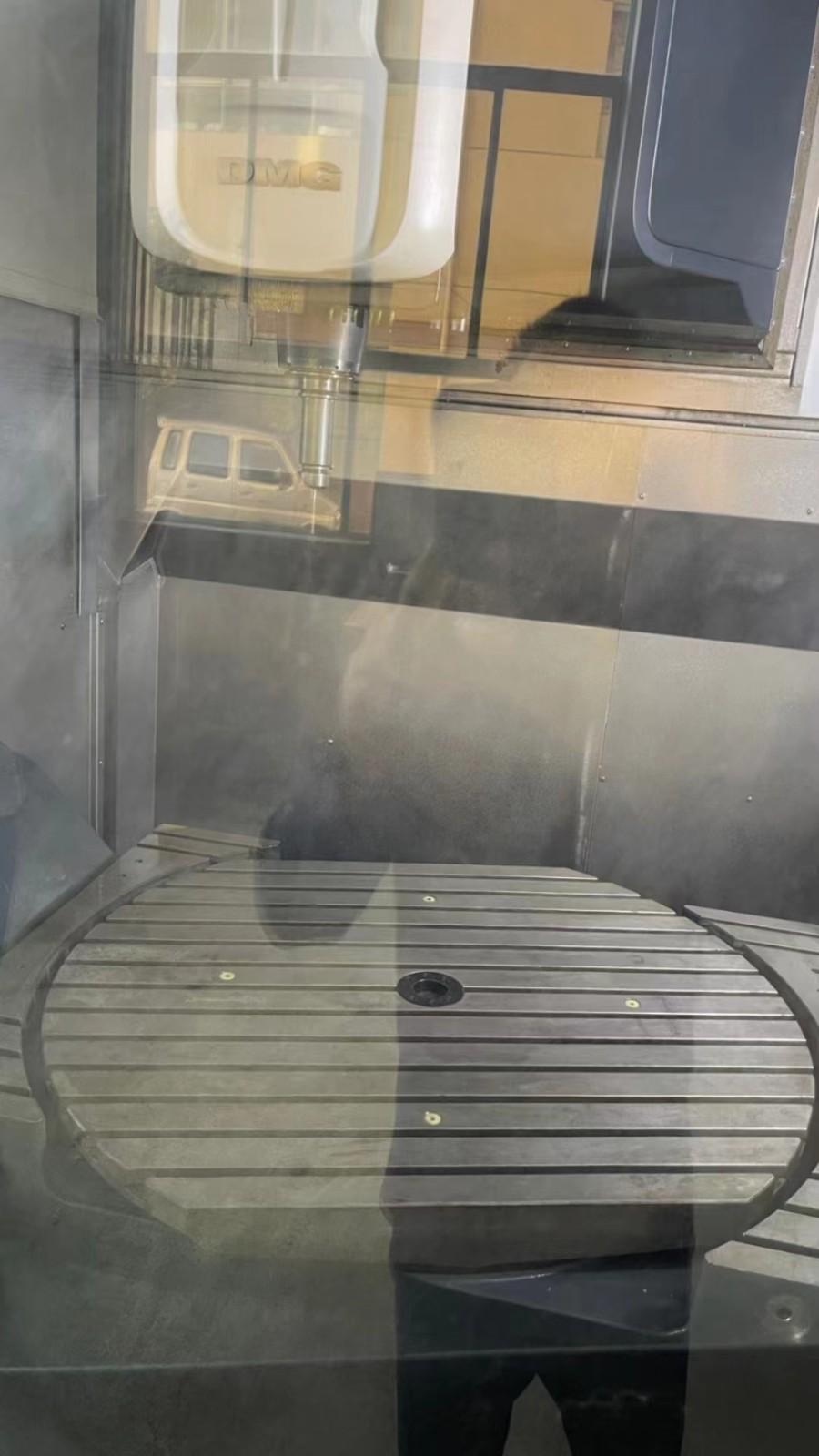

Worktable:

Worktable surface(left and right): 1045mm

Worktable surface(front and rear): 860mm

Clamping surface diameter: 1045 mm

Workpiece load (maximum): 1500 kg

Rotation axis: C

Operation mode: automatic

Positioning/indexing: 0.001degree

1 cradle spindle

Operation mode Automatic

Milling spindle/head

Spindle type: vertical

Spindle speed (maximum): 10000/min

Tool holder: HSK 63

Drive power S6 40%: 44 kW

Drive power S6 40%: 9 kW

Magazine tool position: 30

Size/weight

Space required - left/right: 4700 mm

Space required - front/rear: 3400mm

Overall height: 3300 mm

Total weight: 16000kg

---Accessories:

Tool damage detector

Workpiece sensor

Chip conveyor

Cooling system

Belt filter

Attachment of coolant through spindle

Closed door

European CE standards.
