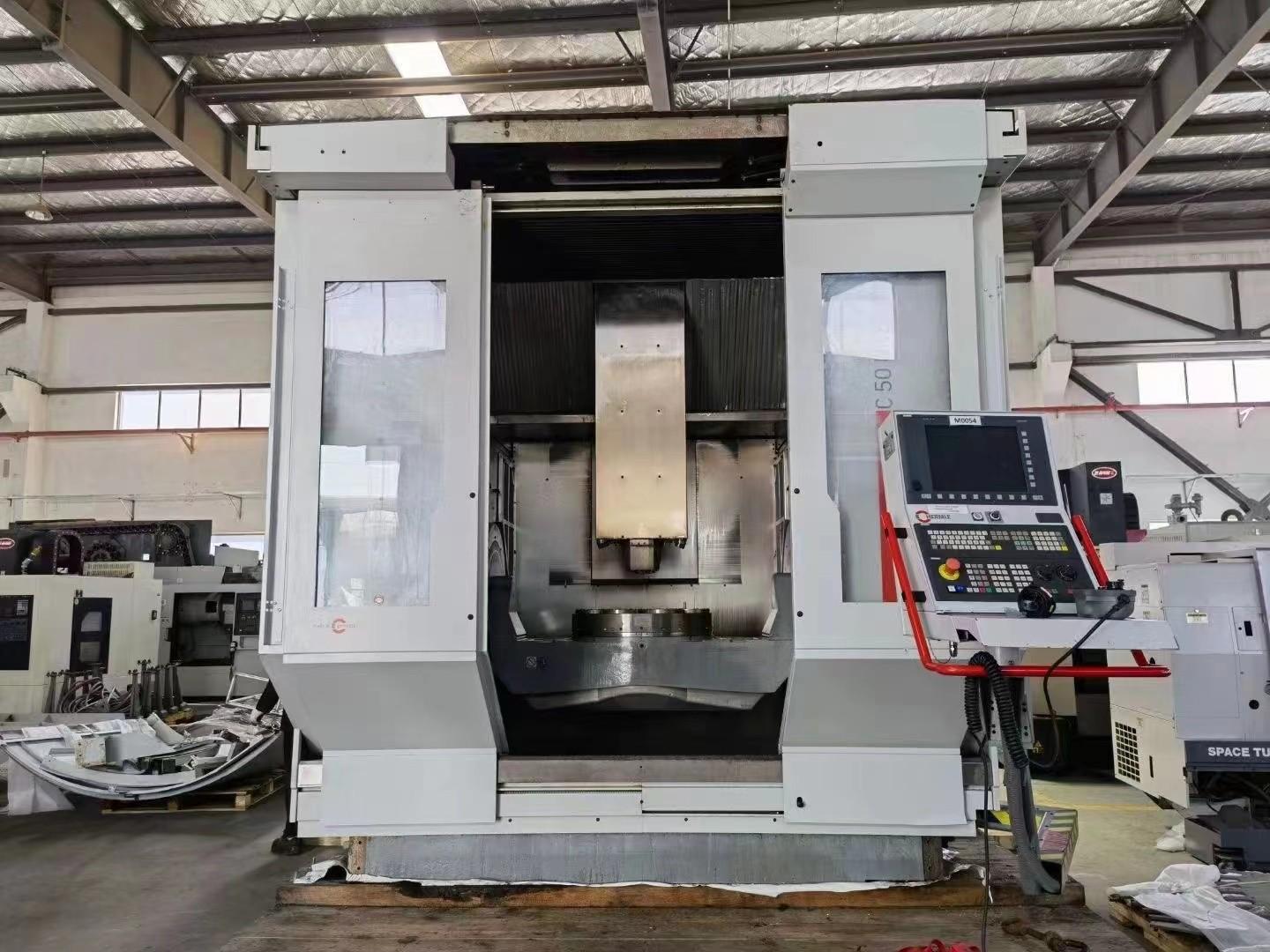

HERMLE C50U MT Lathe

German Hermle C50U MT five-axis simultaneous movement turn-milling machining center

The parameters are as follows:

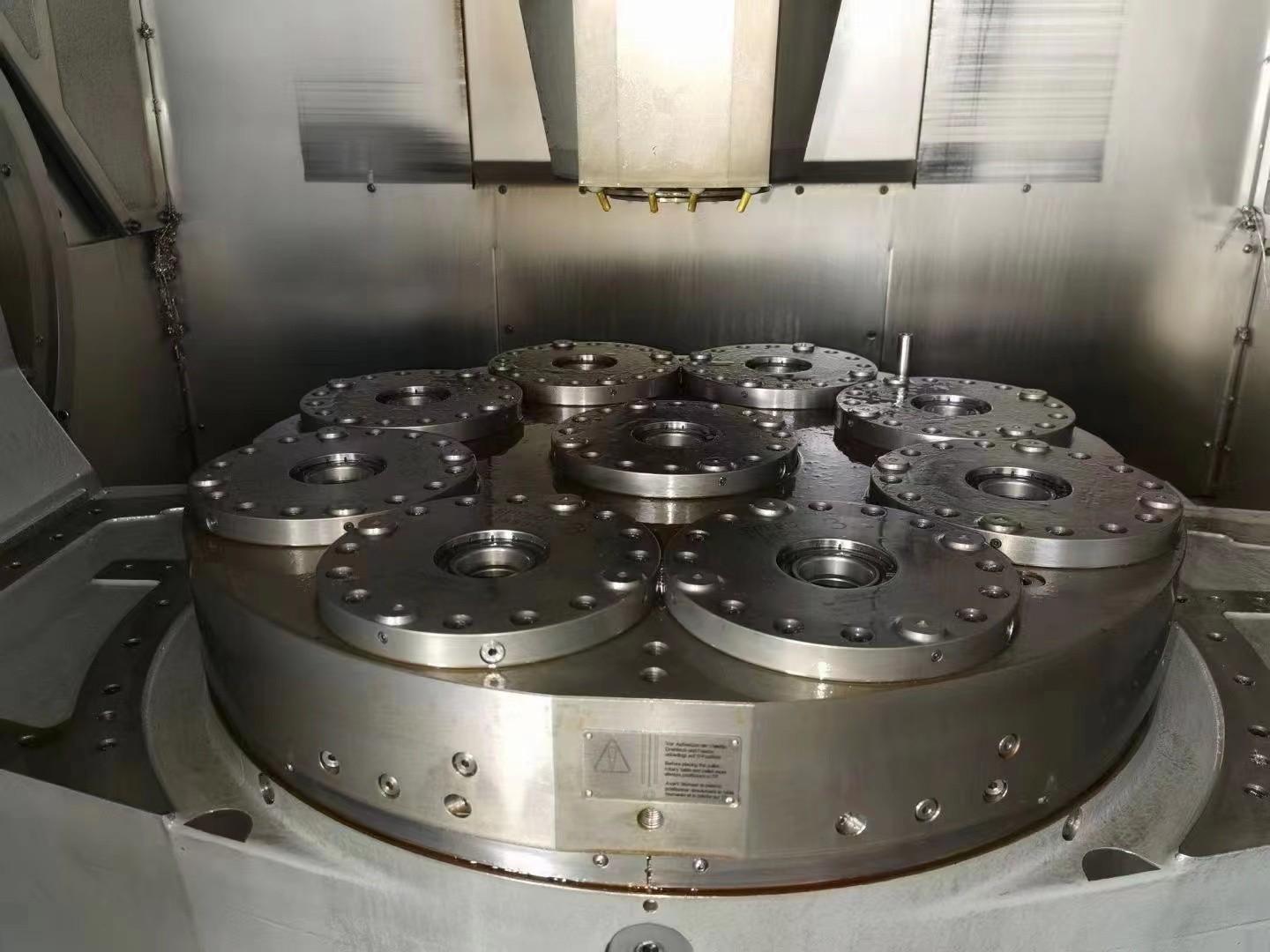

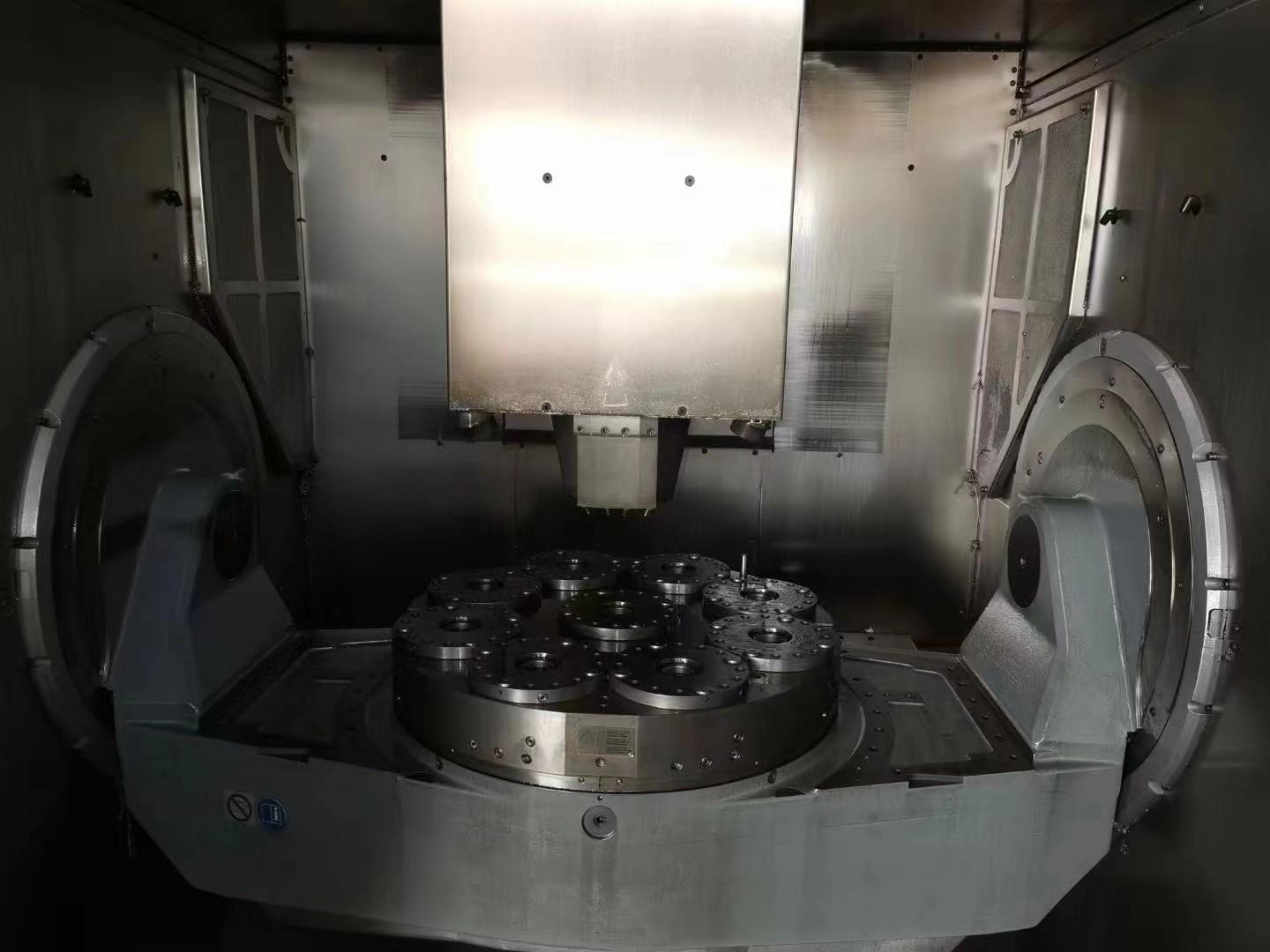

Worktable size: 1000 x 810 mm

Maximum worktable load: 1000 kg (turning)

Maximum worktable load: 2000 kg (milling)

Axis travel: X 1000 mm, Y 1100 mm, Z 750 mm

Rotation angle range:+100 degrees/-130 degrees

HSK-T100 tool holder

Fast moving speed: X=60m/min, Y=60m/min, Z=55m/min

Magazine capacity: 162

Tool-changing speed: 7 seconds each time

Total net weight of machine: 21500 kg/47399 lb

HYFRA Pedia chiller

Handte filtration system

Knoll IT Lubrication and Cooling System

Knoll IT Chip Conveyor
