YOUJI KV-250E CNC vertical lathe

Taiwan YOUJI KV-25E vertical CNC lathe, parameters are as follows:

Maximum rotating diameter: 500mm

Maximum cutting diameter: 350mm

Maximum cutting height: 250mm

Spindle speed: 50 ~ 2500rpm

Spindle bearing diameter: 100mm

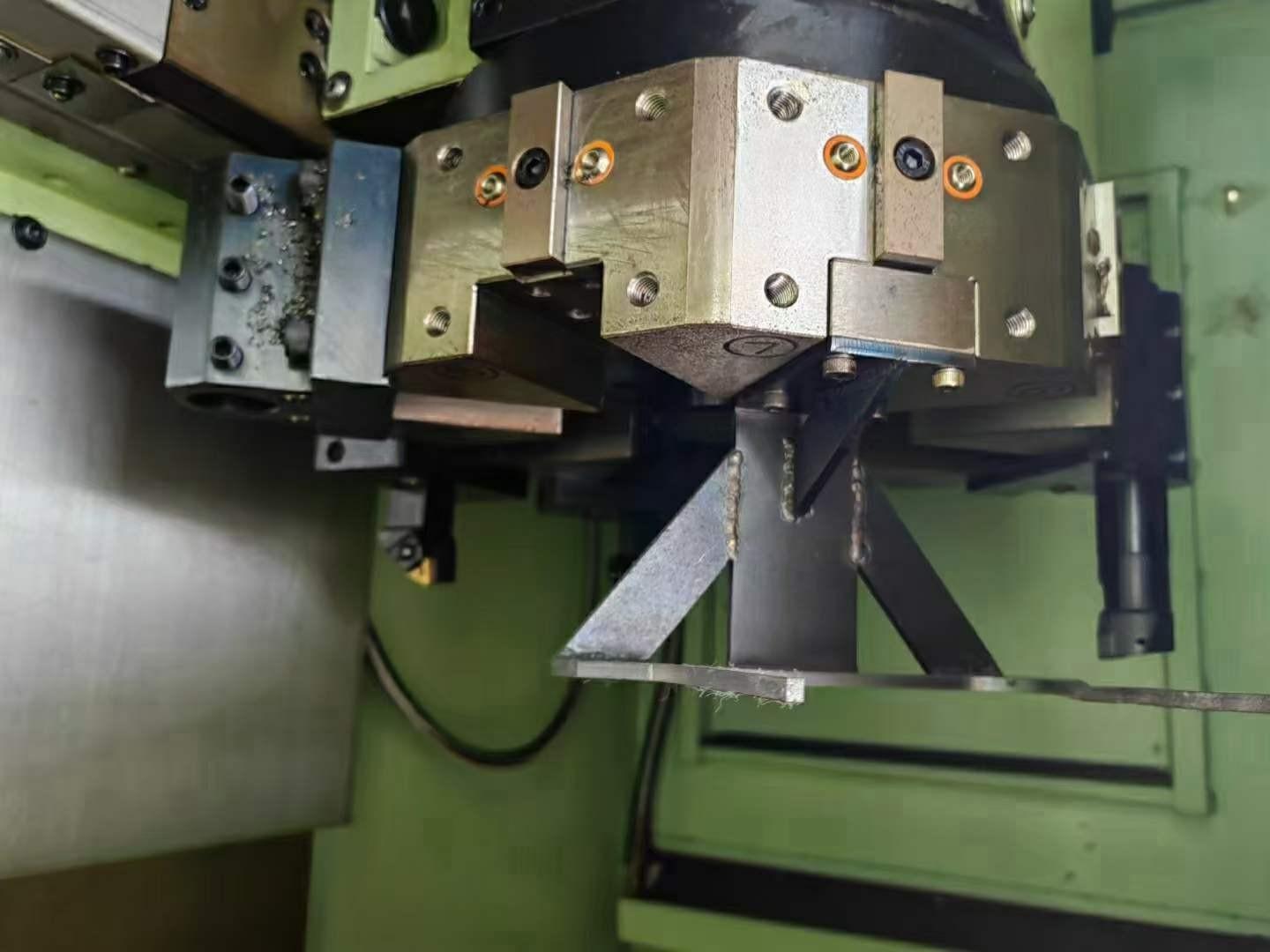

Turret form: horizontal

Cutter quantity: 8pcs

X-axis stroke: -40mm; +200mm

Y-axis stroke: 450mm

Spindle motor: FSNUC ap22

Spindle motor power: 11/15kw

Appearance Dimensions Length x width x height: 2950mm*1480mm*2480mm

Weight: 4500kg
