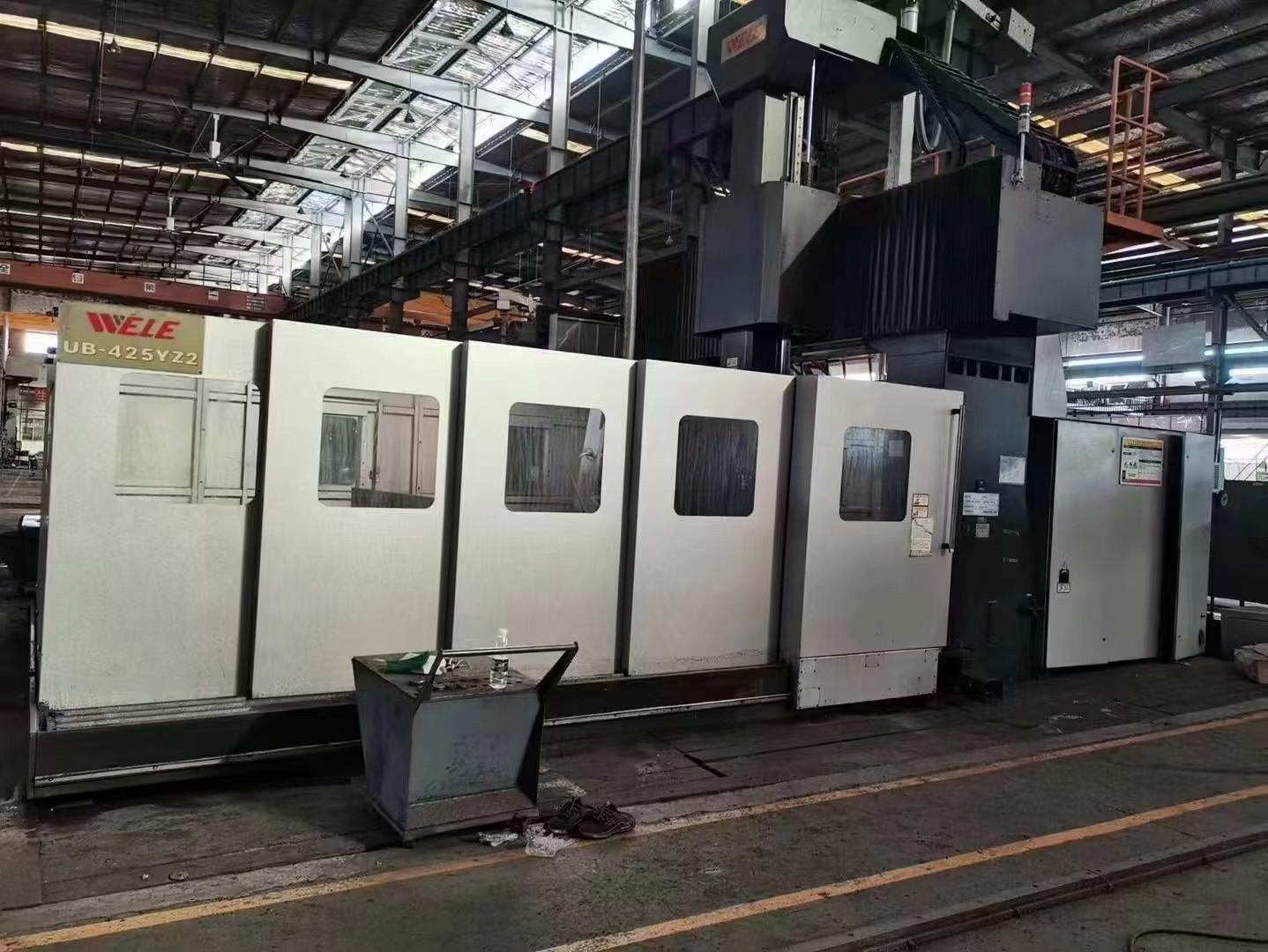

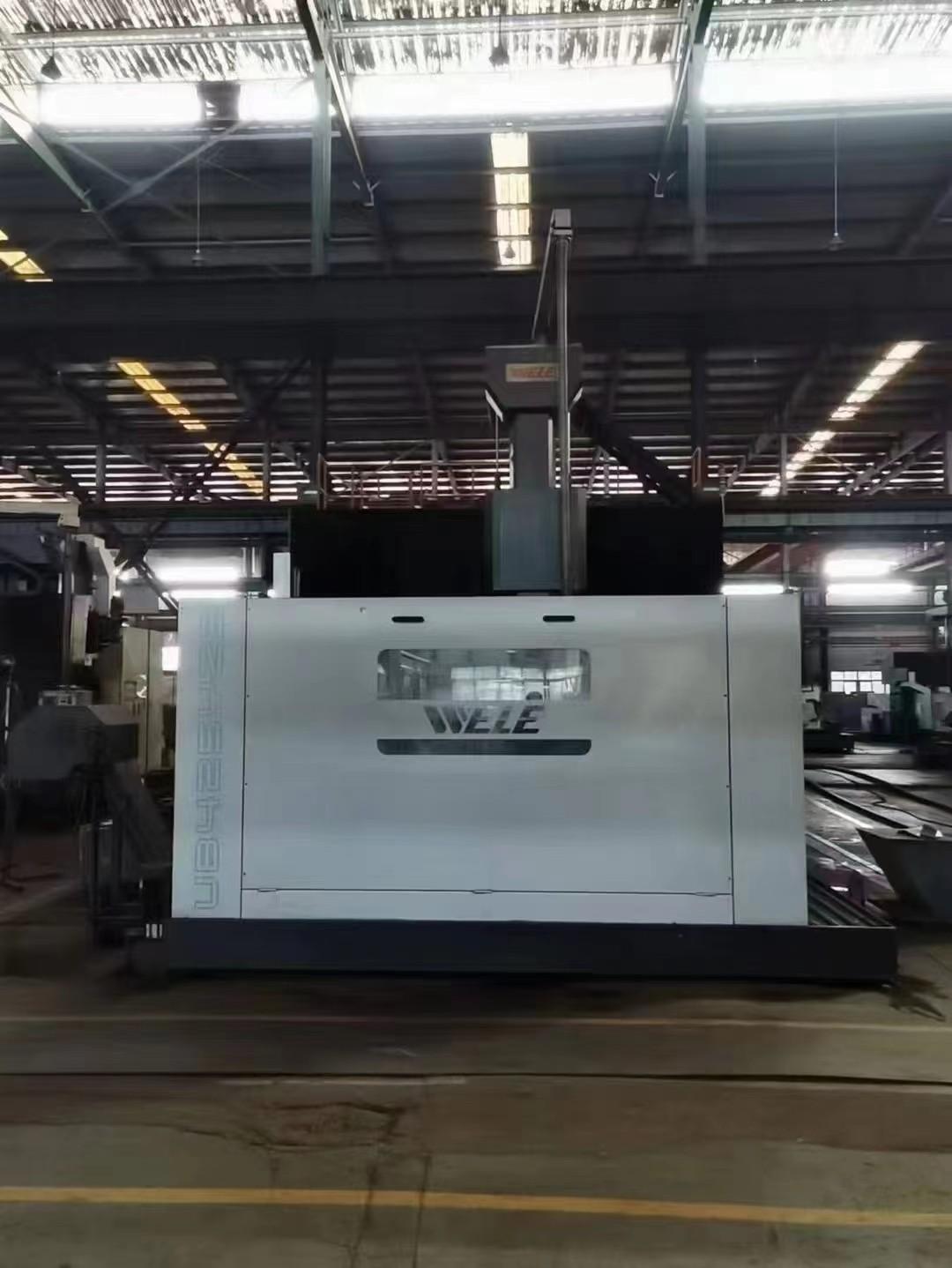

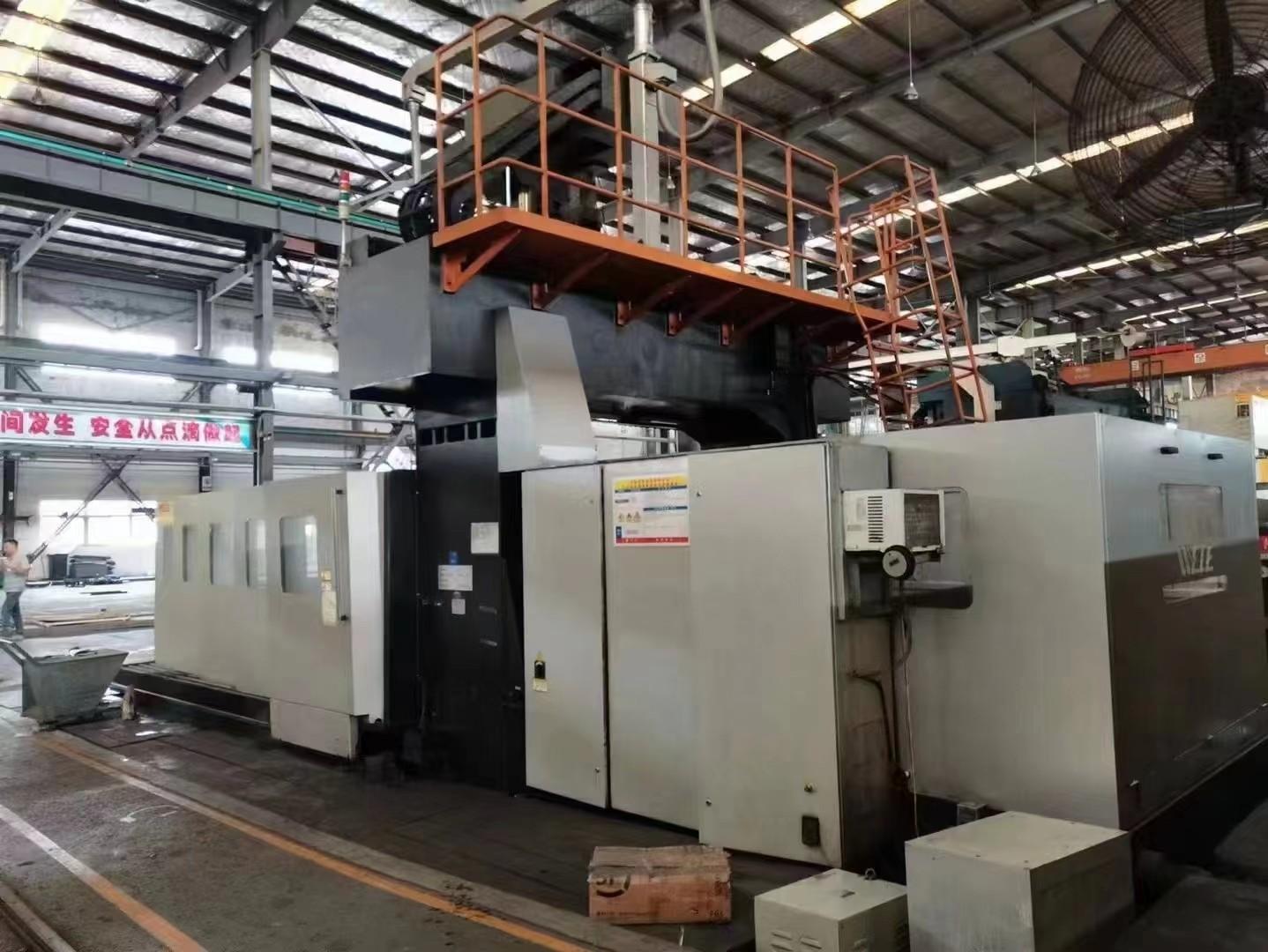

WELE UB-425Z Gantry machining centre

Worktable size(mm): 4000 * 2400

Axial stroke X/Y/Z: 4060/2550/1000
Rotation Angle (degree): B = ⱱ10/ C = ⱳ60

Worktable load(kg): 15,000
Fast feed (X/Y/Z): 18/20/10
Maximum speed of rotating shaft (rpm): B=5.6; C=4.5
Spindle speed( rpm): max. 12,000
Spindle taper hole HSK A100
Spindle power (kw)

Torque (N.m) : 34/200
Spindle drive hidden

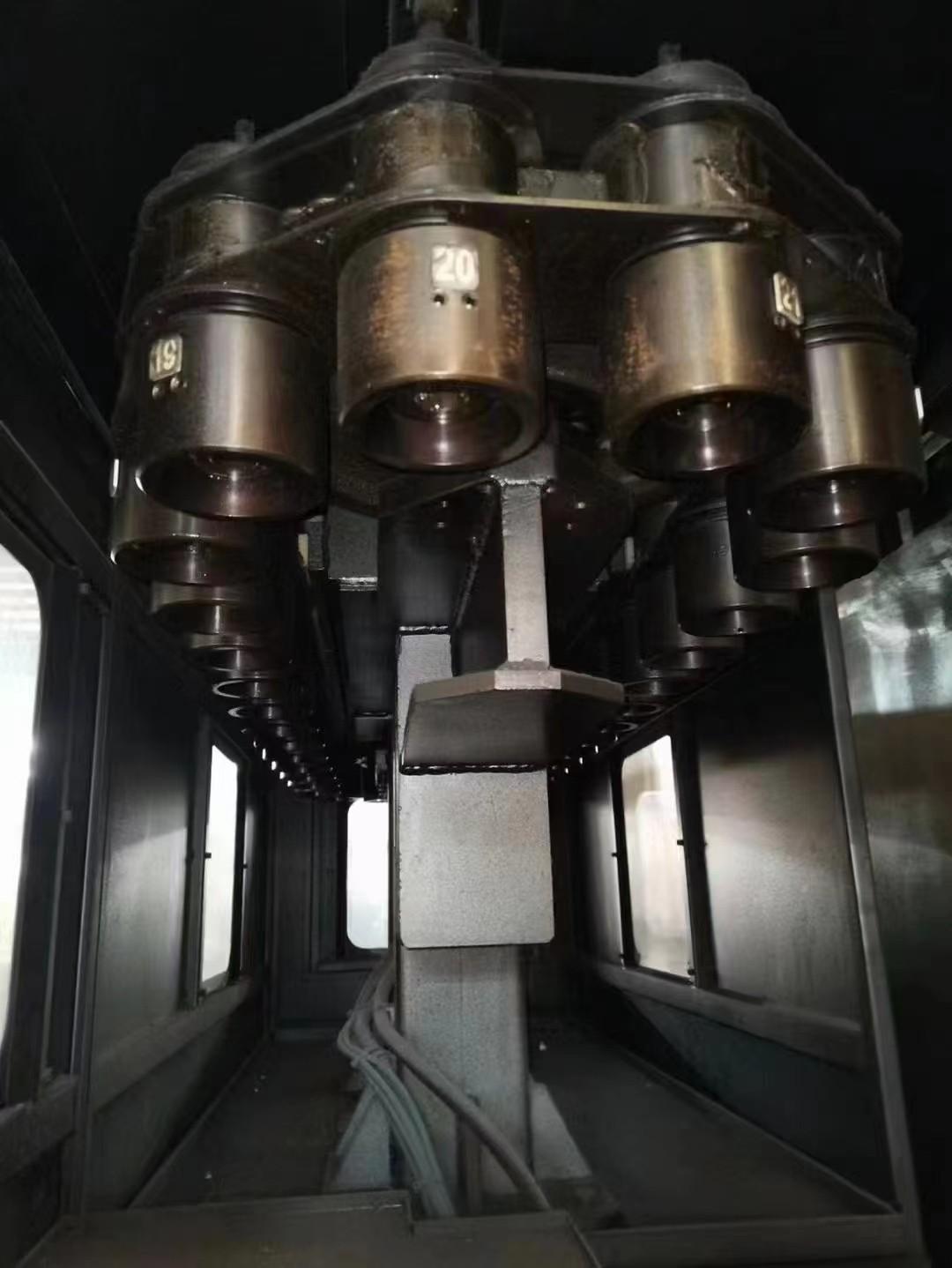

Magazine capacity

Tool position: 32
Mechanical height (H)(mm) : 5,650
Floor area (W*D)(mm): 10,590*5,85012,660*5,85014,750*5,850
Machine weight (kg): 42,600
