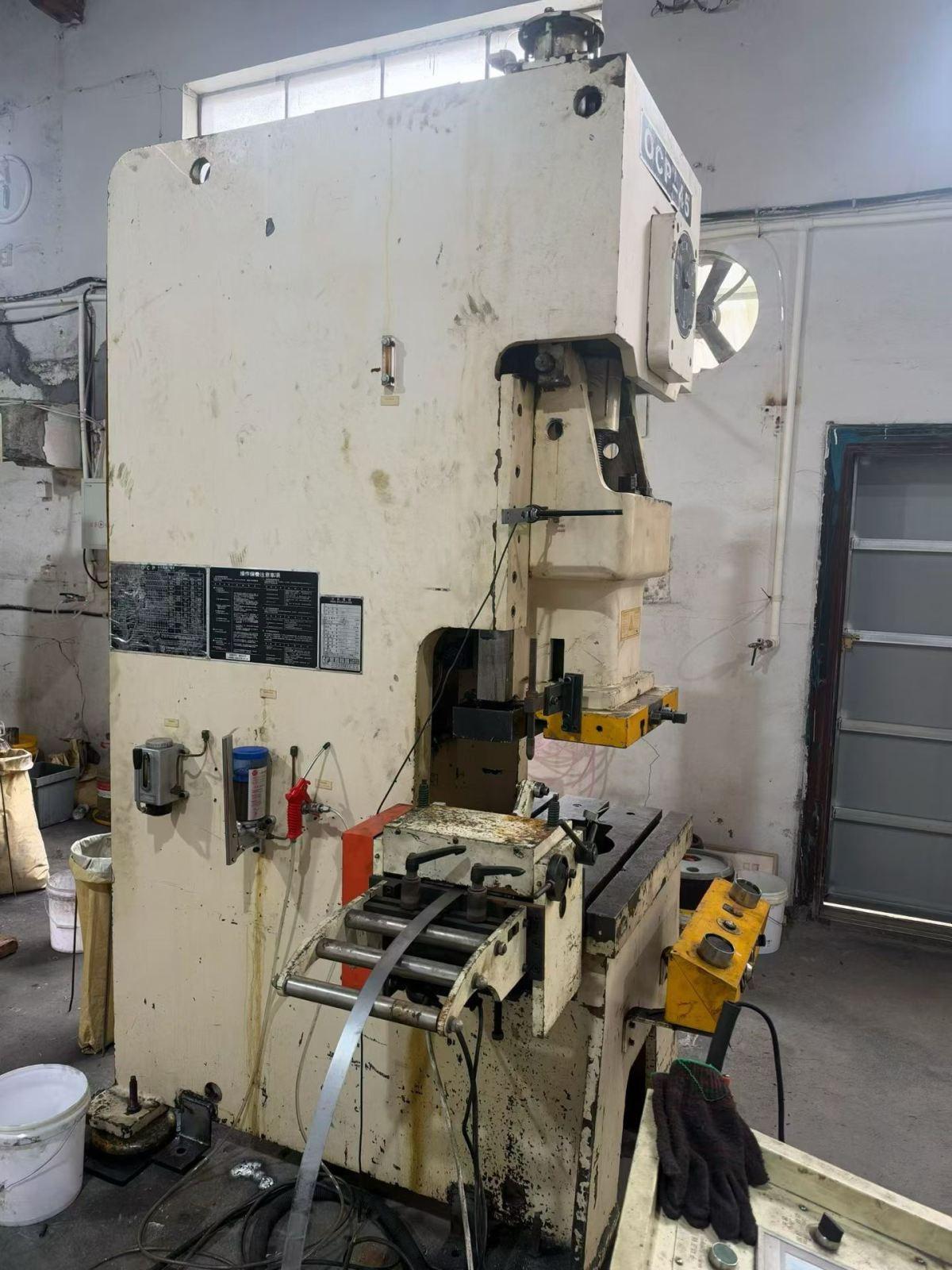

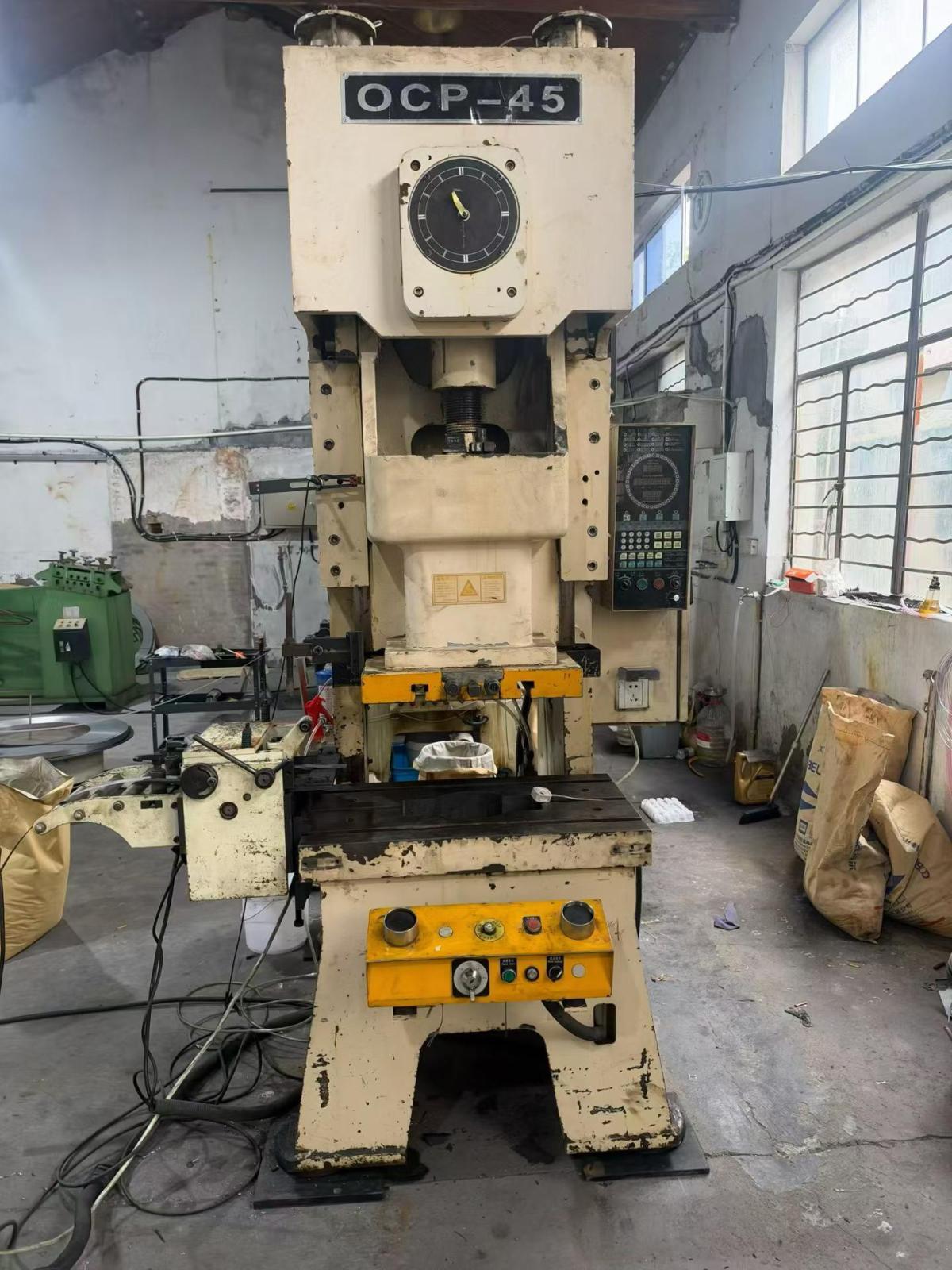

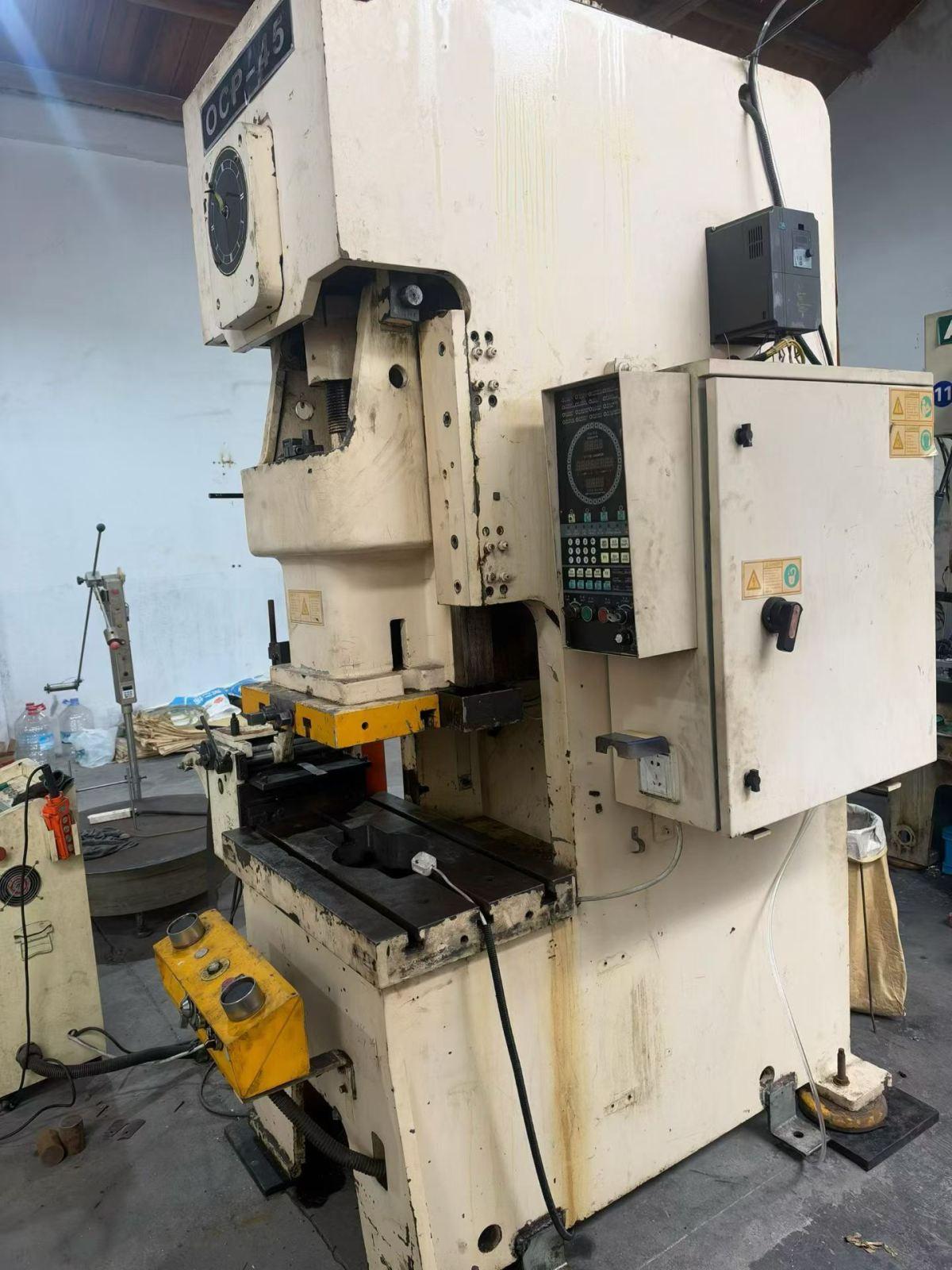

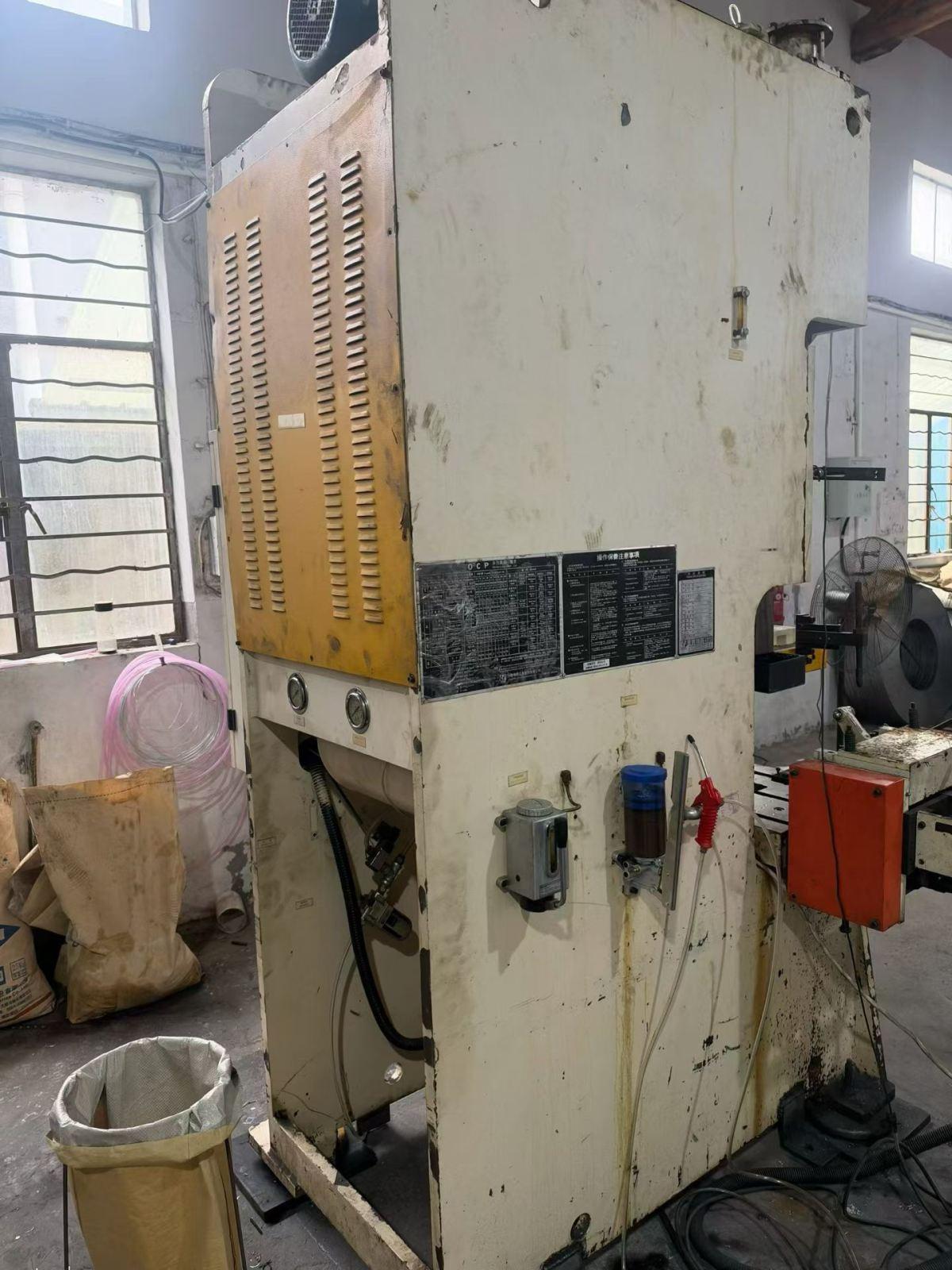

CHIN FONG QCP-45 Punch / press
[Product Information]:
- Inventory number：69410
- Brand：CHIN FONG
- Model：QCP-45
- Origin：Taiwan
- Location：China
- Year：2017
- Create Time：2026-10-30
Specifications:
Maximum pressurization capacity: 45 tons
Ability occurrence point: 1.8mm above the bottom dead center
travel frequency: 40 to 80 SPM
travel length: 50mm
Maximum mold height: 285mm
Slider adjustment amount: 55mm
Slider area: 460×300mm
Worktable size: 450×800mm
Main motor: 5.5KW, 4P
Machine weight: 3.8 tons
The normal stop position of the crank shaft is the top dead center
