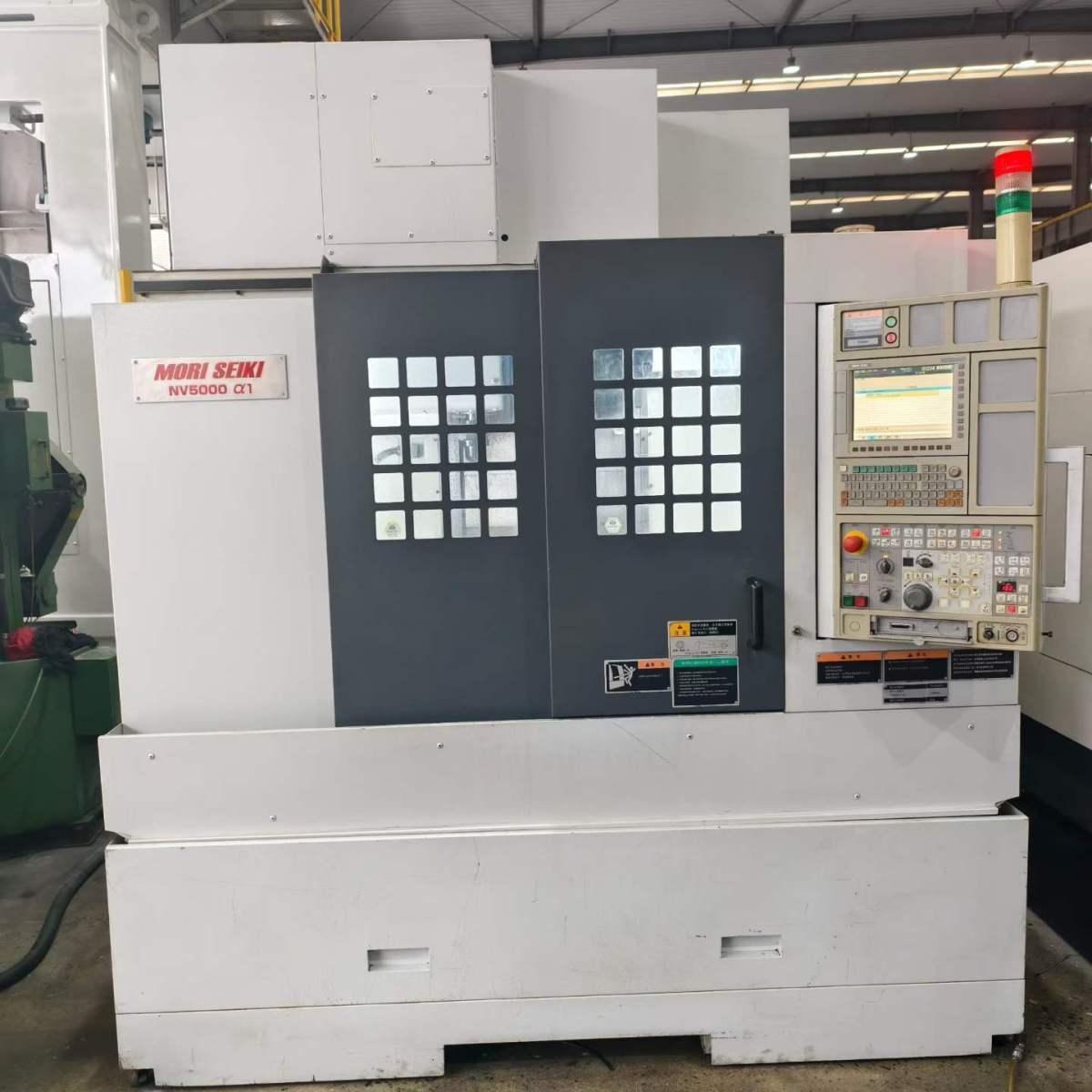

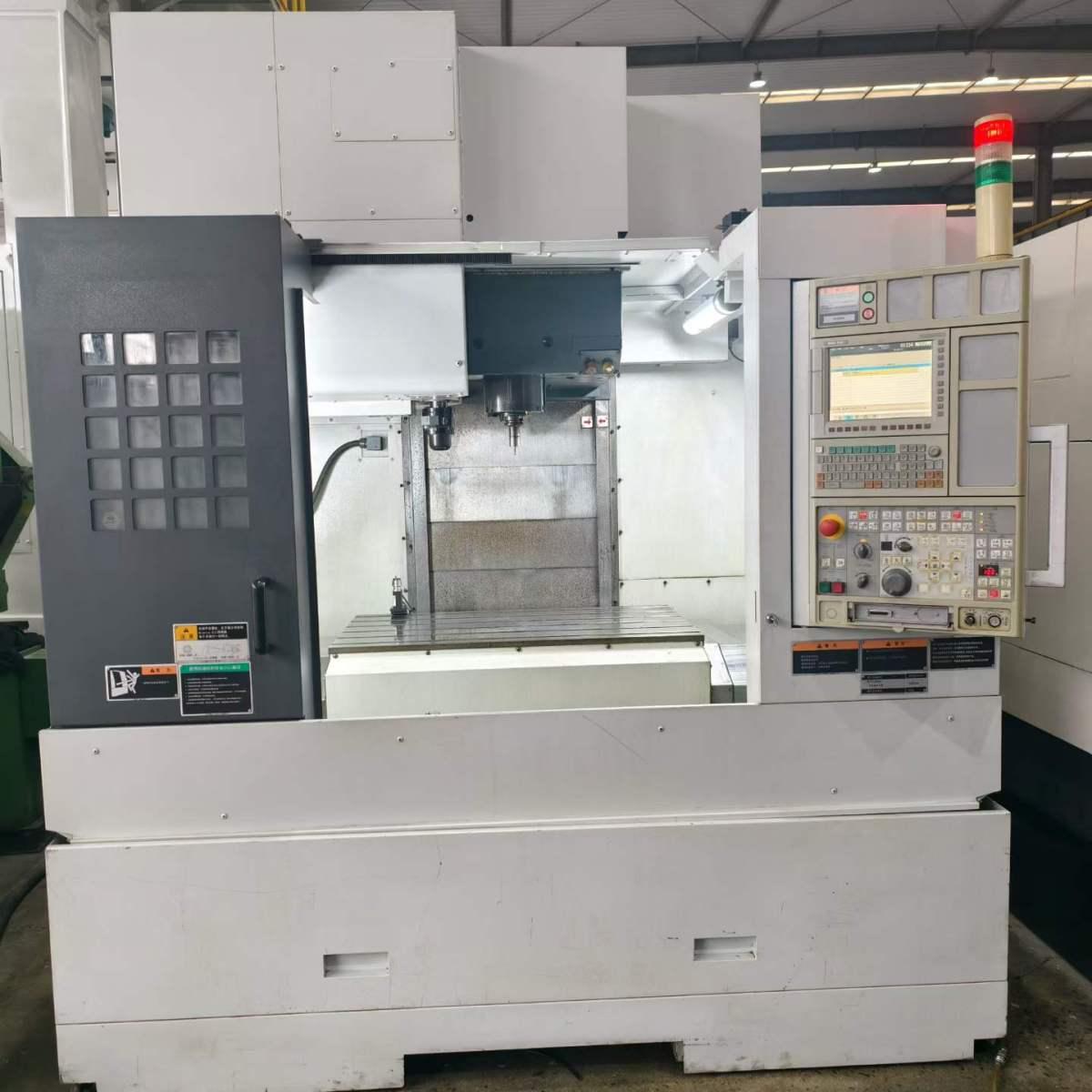

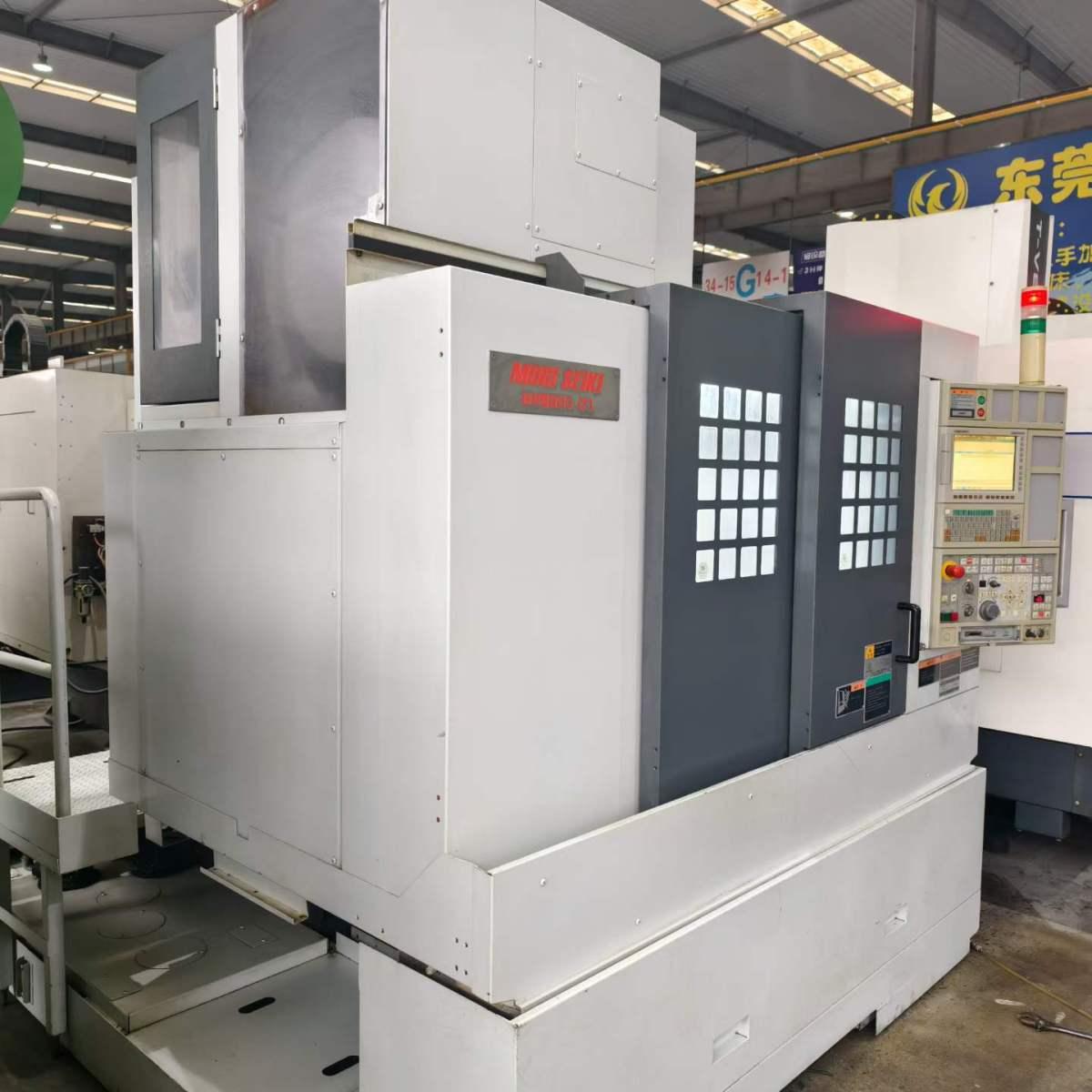

Mori Seiki NV5000-α1A/40 Vertical Machining centre
[Product Information]:
- Inventory number：69380
- Brand：Mori Seiki
- Model：NV5000-α1A/40
- Origin："Japan
- Location：China
- Year：2016
- Create Time：2026-10-27
Specifications:
three-axis travel (X/Y/Z) 800 × 510 × 510 mm
Worktable size is 1100 × 600 mm
The maximum Worktable load is 1000 kg
Spindle type BT-40
Spindle speed 12,000 to 20,000 RPM (high-speed electric spindle)
The magazine capacity has a capacity of 30/32 pieces
The power of spindle motor is 18.6 KW
Positioning precision ± 0.003mm (3 axes glass scale full close loop)

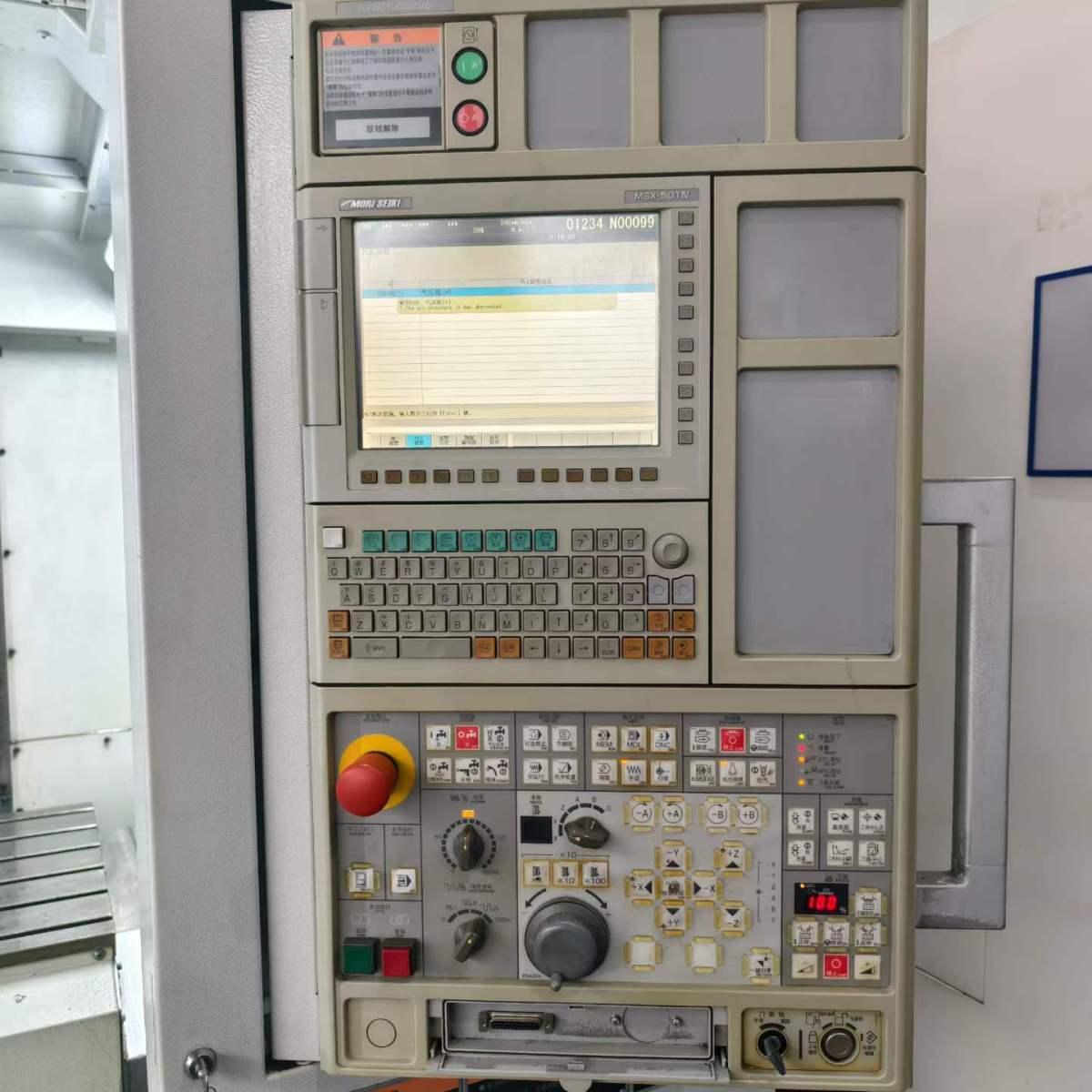

Control CNC System MSX-501N (Customized FANUC CNC System)
The overall weight of machine is 6,350 kilograms
