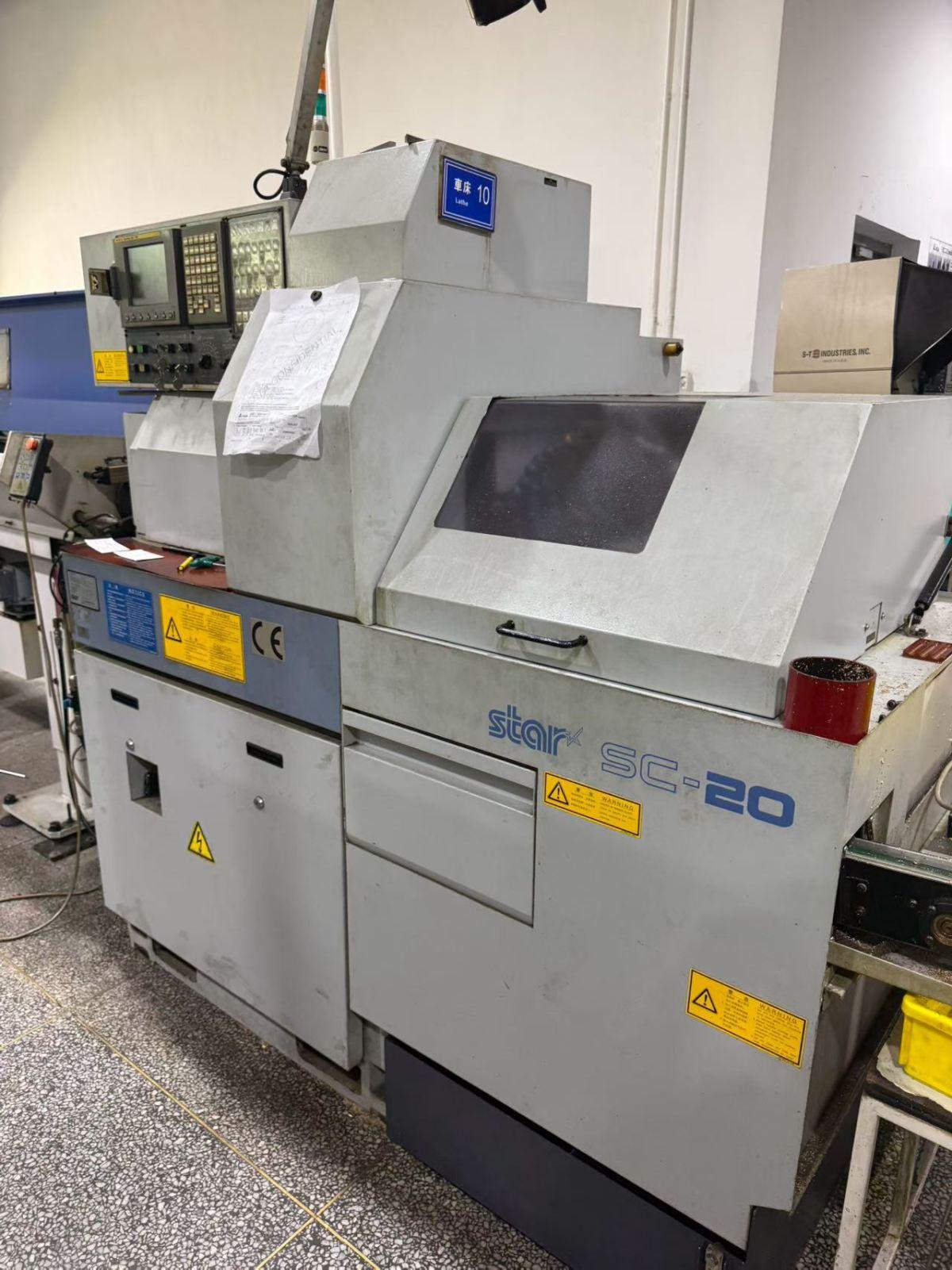

STAR SC-20 Automatic lathe

CNC System: FANUC
Maximum machining diameter: Ø20 mm
Maximum headstock travel: 55 mm
Four-spindle sleeve tool holder:
Number of tools: 4
Maximum drilling capacity: Ø10 mm
Maximum tapping capacity: M8 × P1.25
Power-driven tool:
Maximum drilling capacity: Ø6 mm
Maximum tapping capacity: M5 × P0.8
Main spindle speed: 10,000 rpm
Main spindle motor power: 2.2/3.7 kW
Power-driven tool spindle speed: 5,000 rpm
Power-driven tool drive motor power: 0.4 kW
Coolant tank capacity: 152 L
Overall dimensions (L × W × H): 1,855 × 1,060 × 1,750 mm
Machine weight: 1,600 kg
Power consumption: 3.0 kVA
