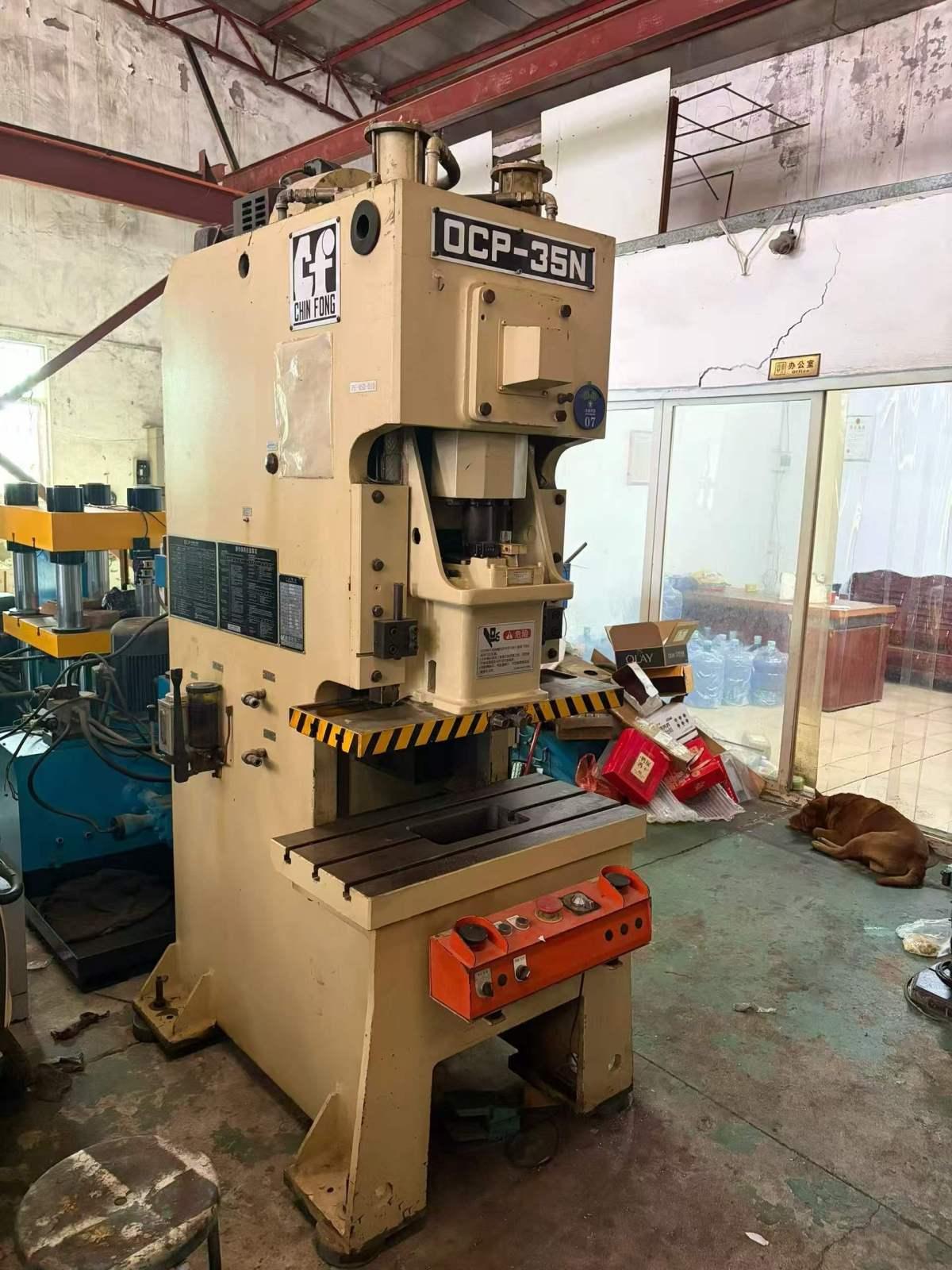

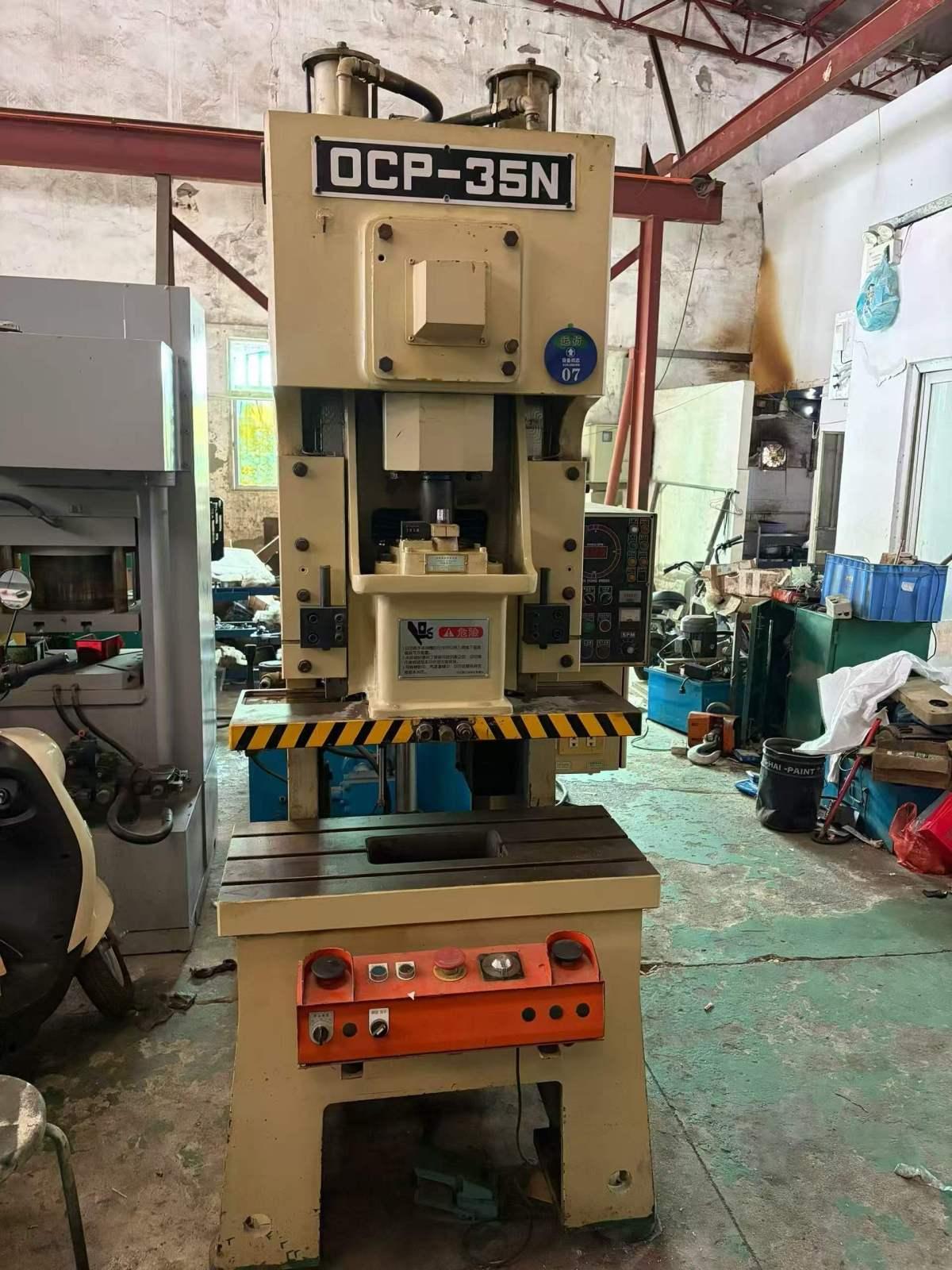

CHIN FONG OCP-35 Punch / press

The maximum pressurizing Capacity is 35 TONS
Rating Point (Bottom of travel)
travel number (travel No.) : 40 to 120 S.P.
The travel length (travel) is 70 mm
The maximum Die Height is 220 mm
The Slide Adjustment is 55 mm
The Slide Area is 800 mm × 250 mm
Worktable size (Bolster Area) 850 mm × 400 mm
Main electromotor VS 3.7KW 4P
The Top dead point (Slide Ejecting travel) at the normal stop position of the crank shaft
