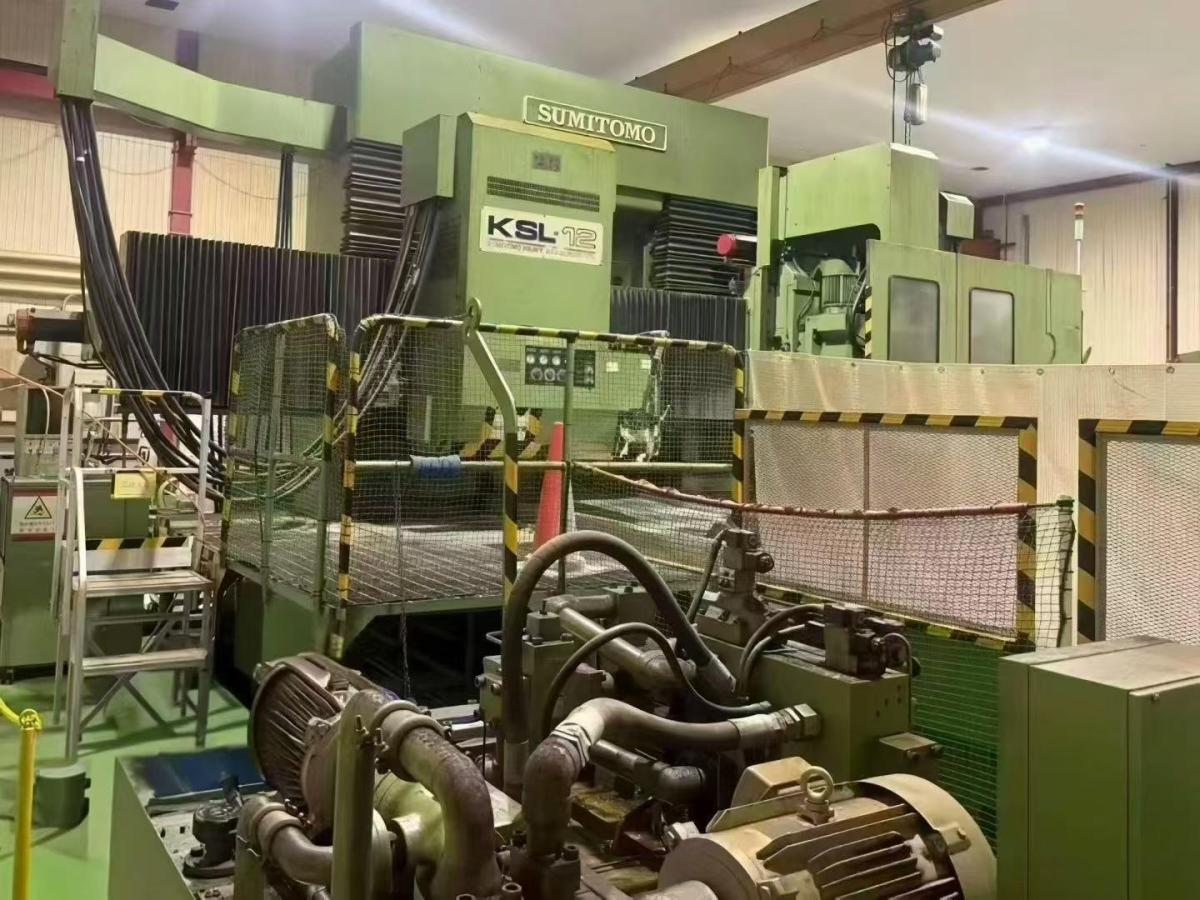

Sumitomo KSL-12 Grinding machines

Worktable Manager: 5060
Worktable width: 1500
Worktable travel: 4800
load: 5 tons
Gantry Width (including shield size) : 1630
Worktable machining Footage: 4000×1250
Grinding height: 1200
The left-right travel of the rotating grinding head: 1470/950
Up and down travel: 700
Rotation Angle: ±90°(5° automatic point)
grinding wheel size: 1# 405×50×177.8
Rotational speed: 1200 to 3000 rpm
The left-right travel of the vertical grinding head is 710/1840
The travel is 250
grinding wheel size: 710×150×304.8
Rotational speed: 820 rpm
