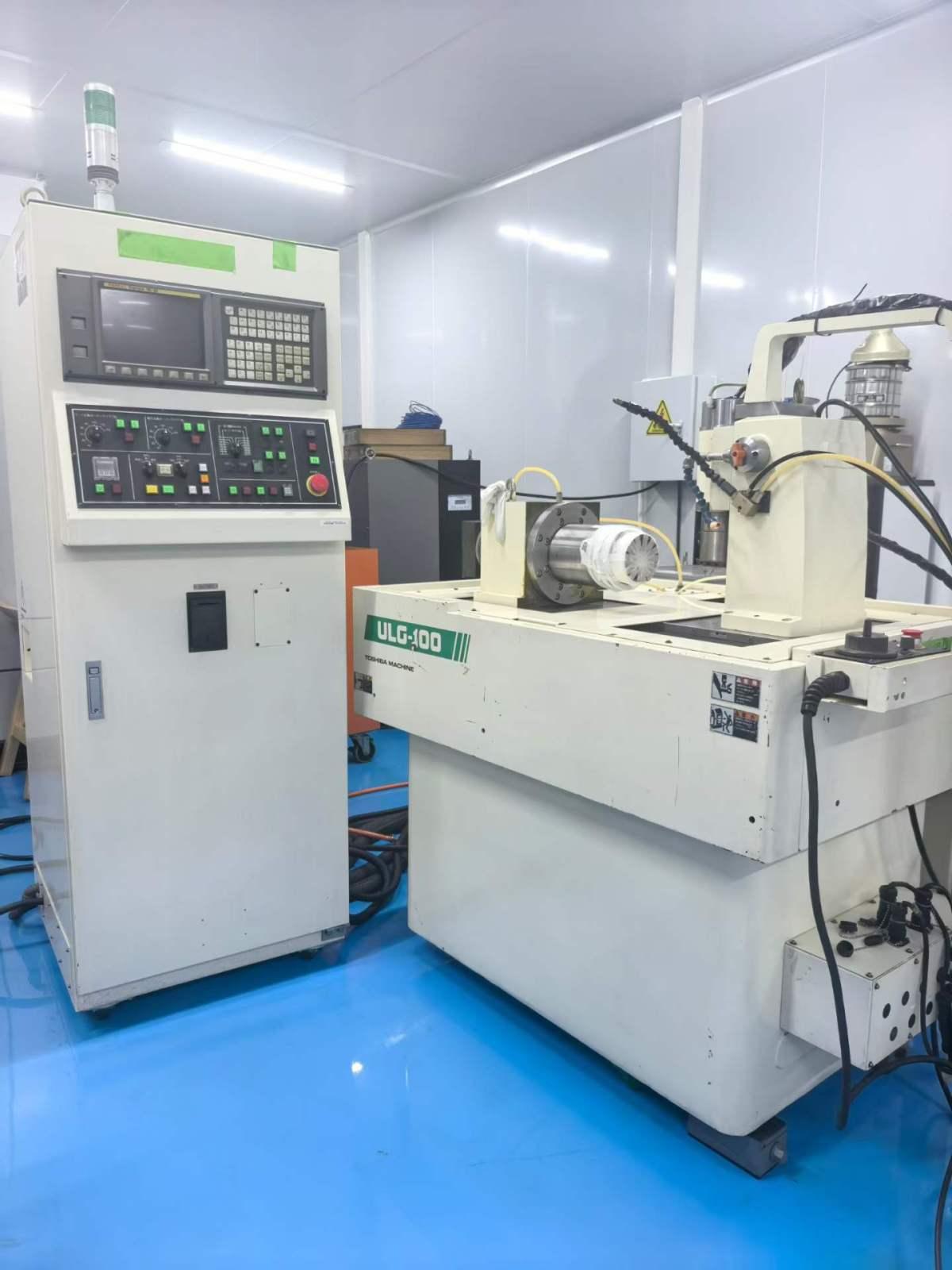

TOSHIBA ULG-100 other

X-Axis Travel: 220–450 mm (depending on model configuration)
Y-Axis Travel: 20–100 mm (depending on model configuration)
Z-Axis Travel: 150 mm
B-Axis: Optional rotary table; rotational speed: 0–1080°/min
C-Axis: Optional
Machining Configuration: Optional five-axis freeform surface machining capability
Grinding Spindle Speed: 5,000–80,000 rpm
Workpiece Spindle Speed: 0–1,500 rpm
Vacuum Chuck Diameter: Standard Ø100 mm
