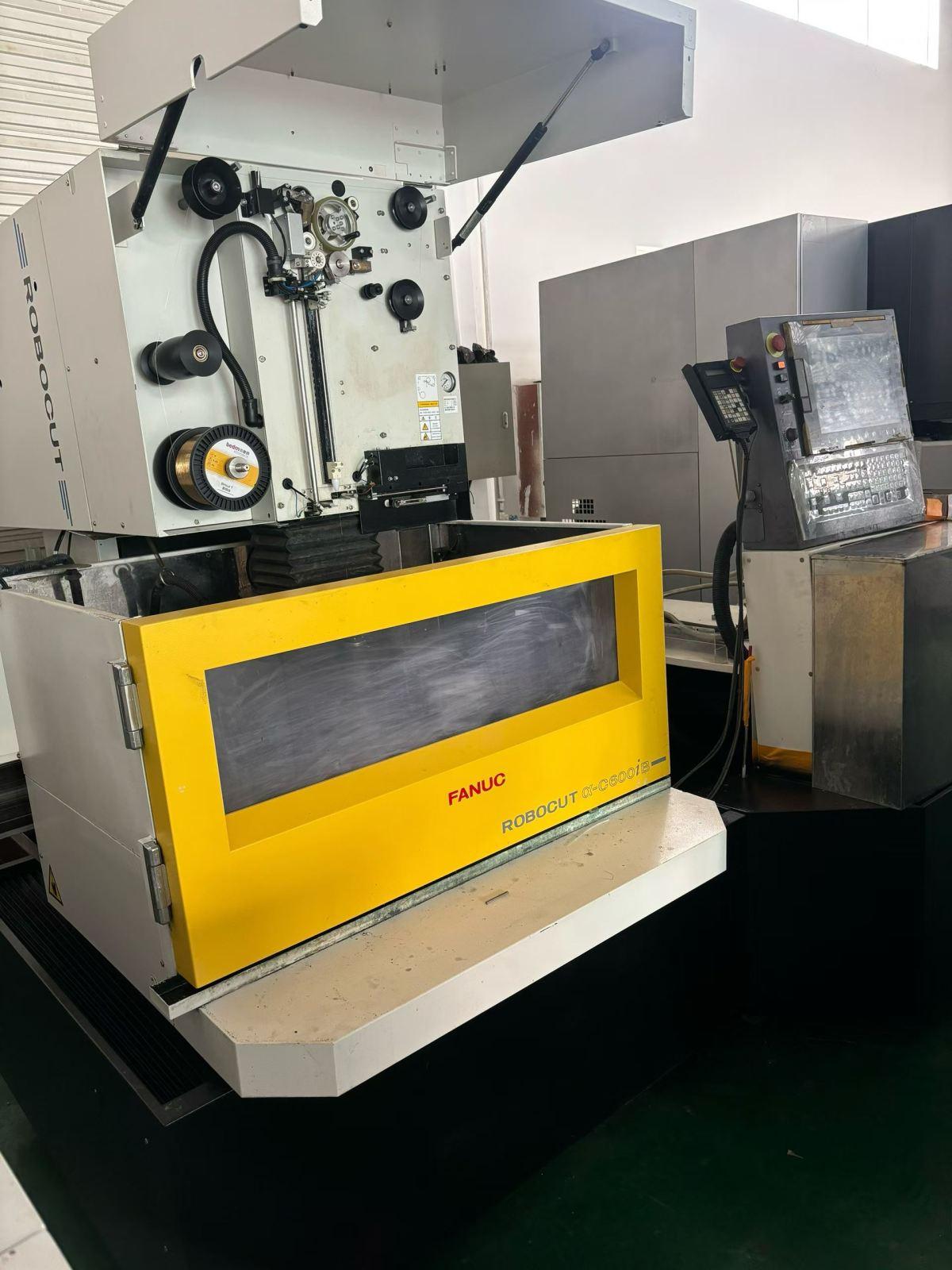

Fanuc ROBOCUT α-600iB Wire cutting machine

Three-Axis Travel: 600 × 400 × 310 mm
U/V-Axis Travel: 200 × 200 mm
Maximum Workpiece Dimensions: 1050 × 820 × 300 mm
Maximum Workpiece Weight: 1000 kg
Maximum Taper Angle: ±30° (at a workpiece thickness of 150 mm)
Electrode Wire Diameter: Ø0.1–0.3 mm
Machine Weight: Approx. 3000 kg
Machine Footprint (W × D): 2440 × 2680 mm
Power Supply Capacity: 13 kVA
