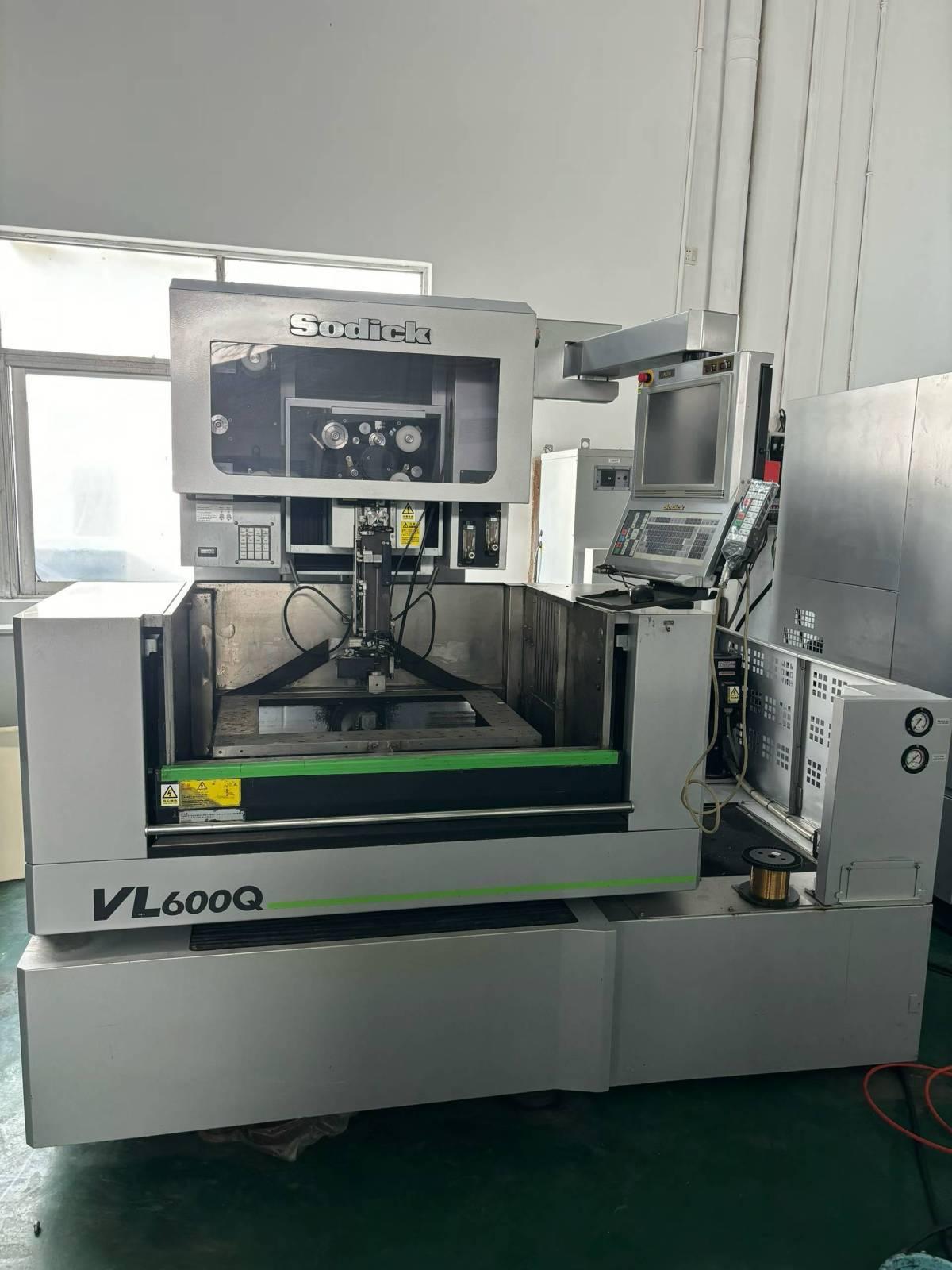

Sodick VL600Q Wire cutting machine

Three-Axis Travel: 600 × 400 × 270 mm
U/V-Axis Travel: 80 × 80 mm
Maximum Workpiece Dimensions (Flushing Mode): 990 × 670 × 265 mm
Maximum Workpiece Dimensions (Submerged Machining): 990 × 670 × 250 mm
Maximum Workpiece Weight: 850 kg (Flushing Mode); 700 kg (Submerged Machining)
Maximum Taper Angle: ±15° (at a workpiece thickness of 120 mm)
Electrode Wire Diameter: Ø0.1–0.3 mm
Maximum Wire Feed Speed: 420 mm/s
Distance from Worktable Surface to Floor: 930 mm
Machine Dimensions (W × D × H): 2620 × 2605 × 2080 mm
