DMG CTX310eco Turn Mill Machining Centre

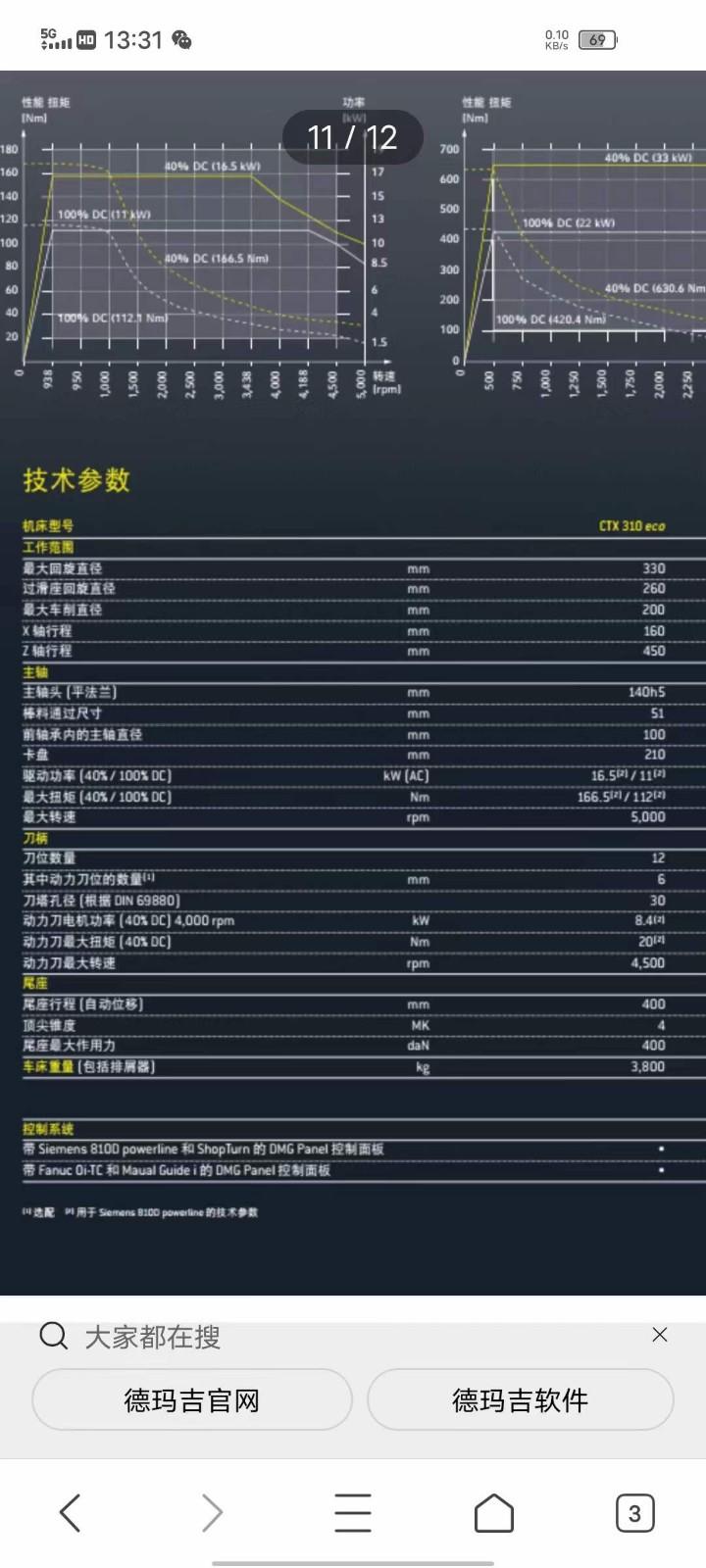

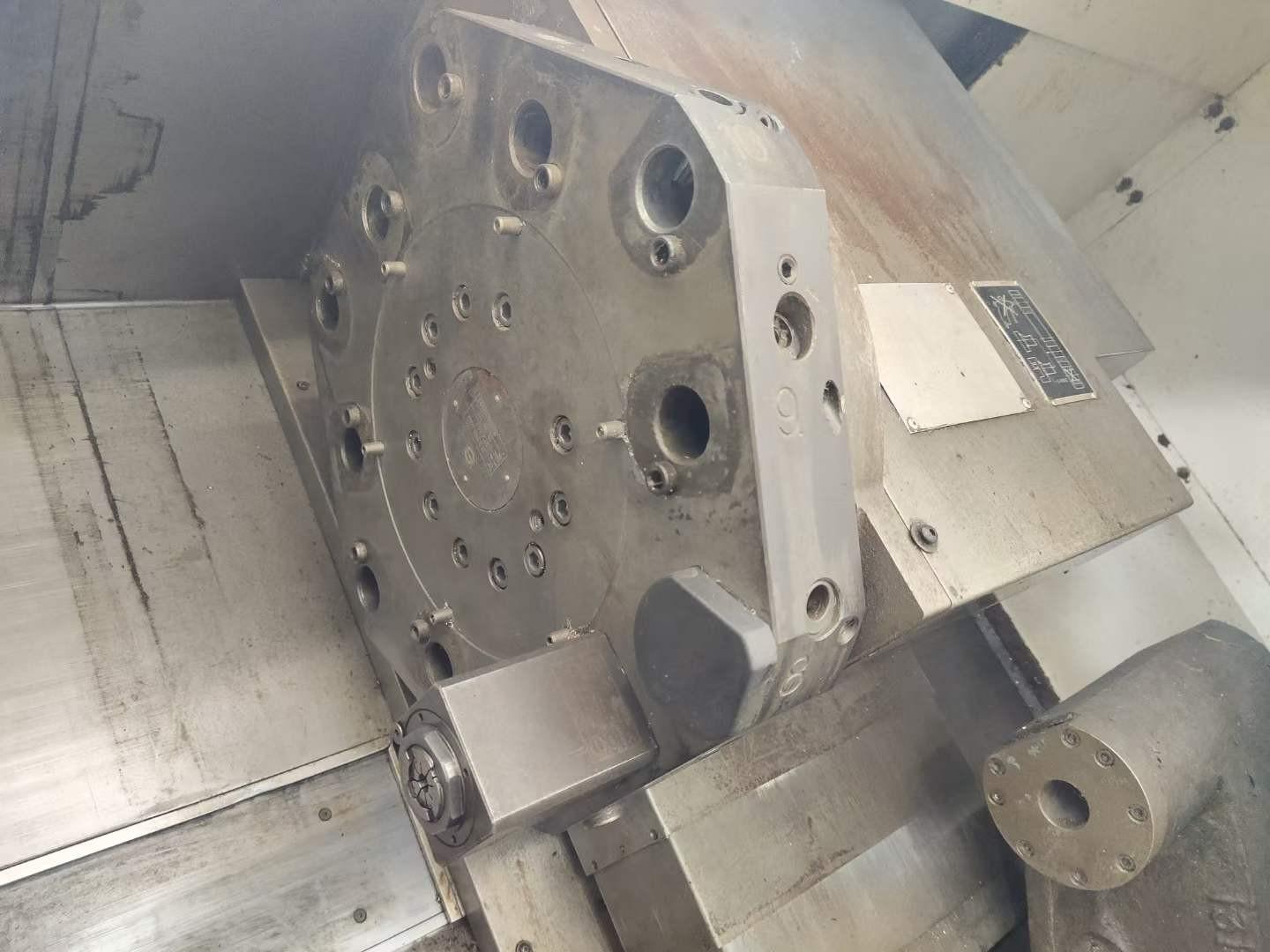

Cyclotron diameter 330 mm  Overslip seat rotary diameter 260 mm  Turning diameter 200 mm  X axis stroke 160 mm  Z-axis stroke 450 mm  The spindle & have spent Spindle head (flat flange)mm 140h5  Bar through size 51 mm  Spindle diameter in front bearing 100 mm  Chuck 210 mm & have spent Chuck (40% / DC)16.5(2) / 11(2) kW (AC)  Torque (40% / DC)166.5(2) / 112(2) Nm  5000 rpm  speed; The handle & have spent Number of knife positions 12  The number of dynamic knife positions (1)6  Turret aperture (according to DIN 69880) 30 mm  Power knife motor power (40% DC) 4000 rpm 8.4(2)kW  Power knife torque (40% DC) 20(2) Nm  Speed of power knife 4500 rpm  The tailstock & have spent Tailseat stroke (automatic displacement) 400 mm  Taper MK  4; Tailseat force 400 daN  The lathe weight (including the chip remover) is 3,800 kg
