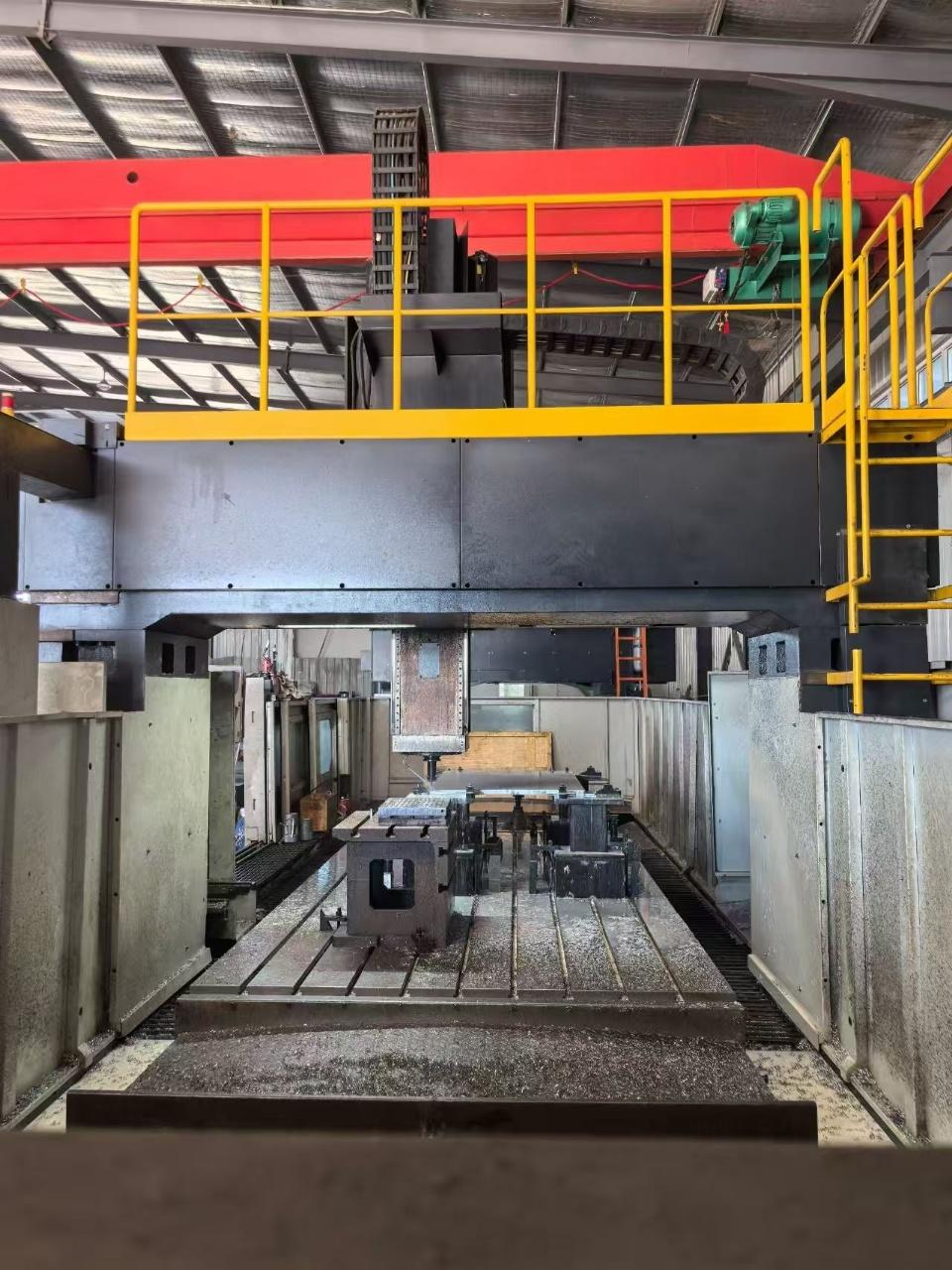

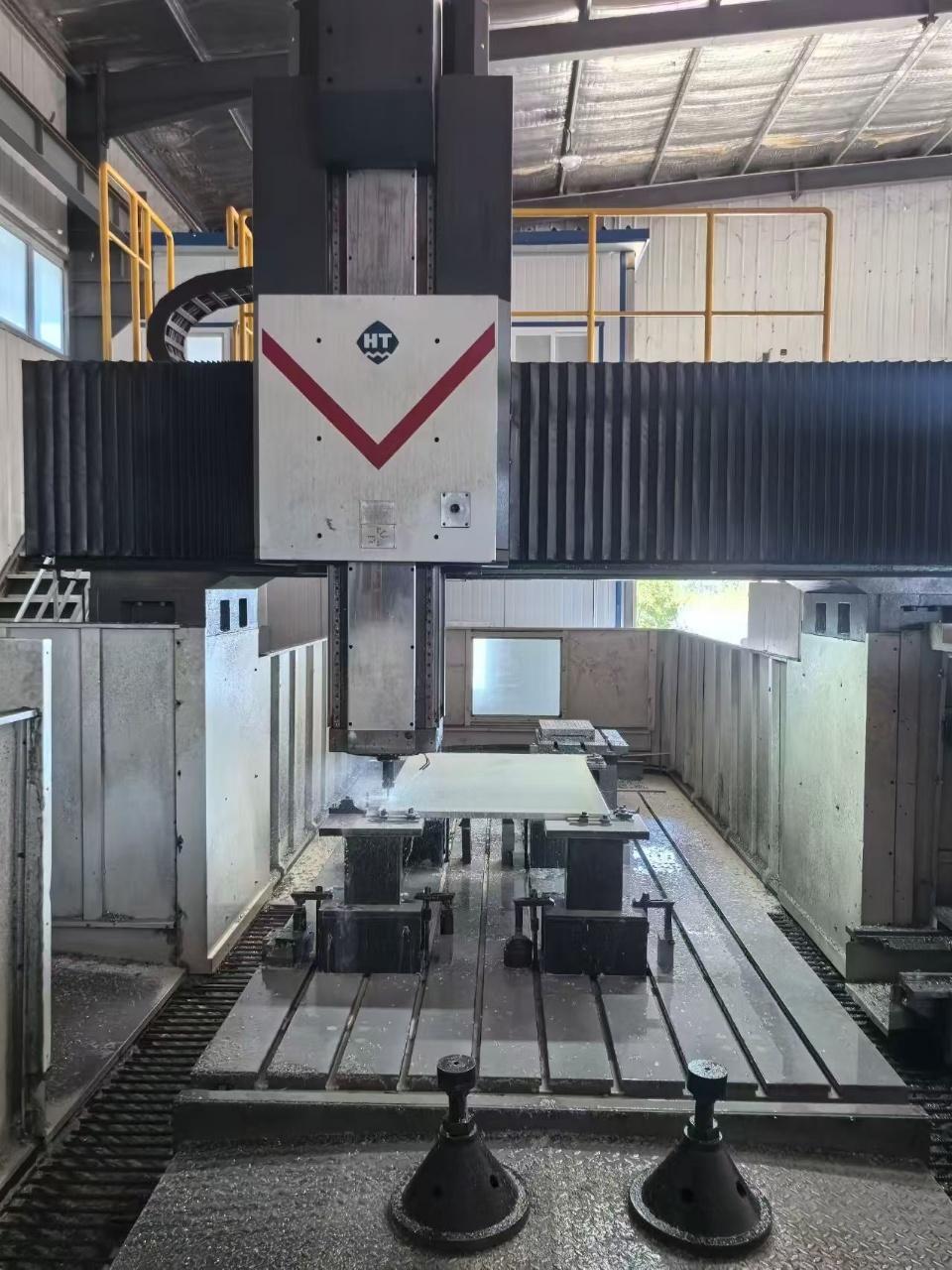

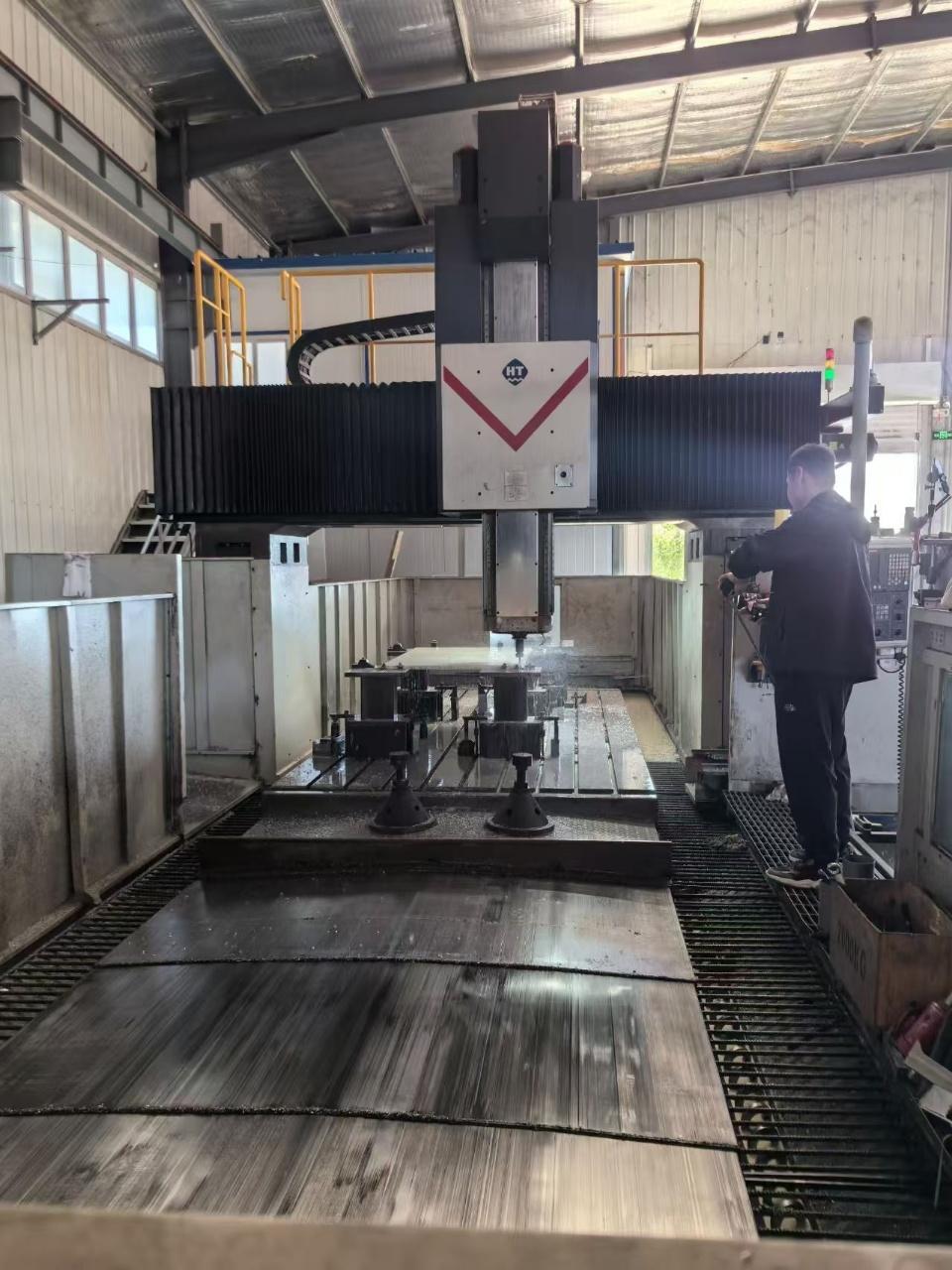

Haitian SUP28*40 Gantry machining centre

Square sliding pillow

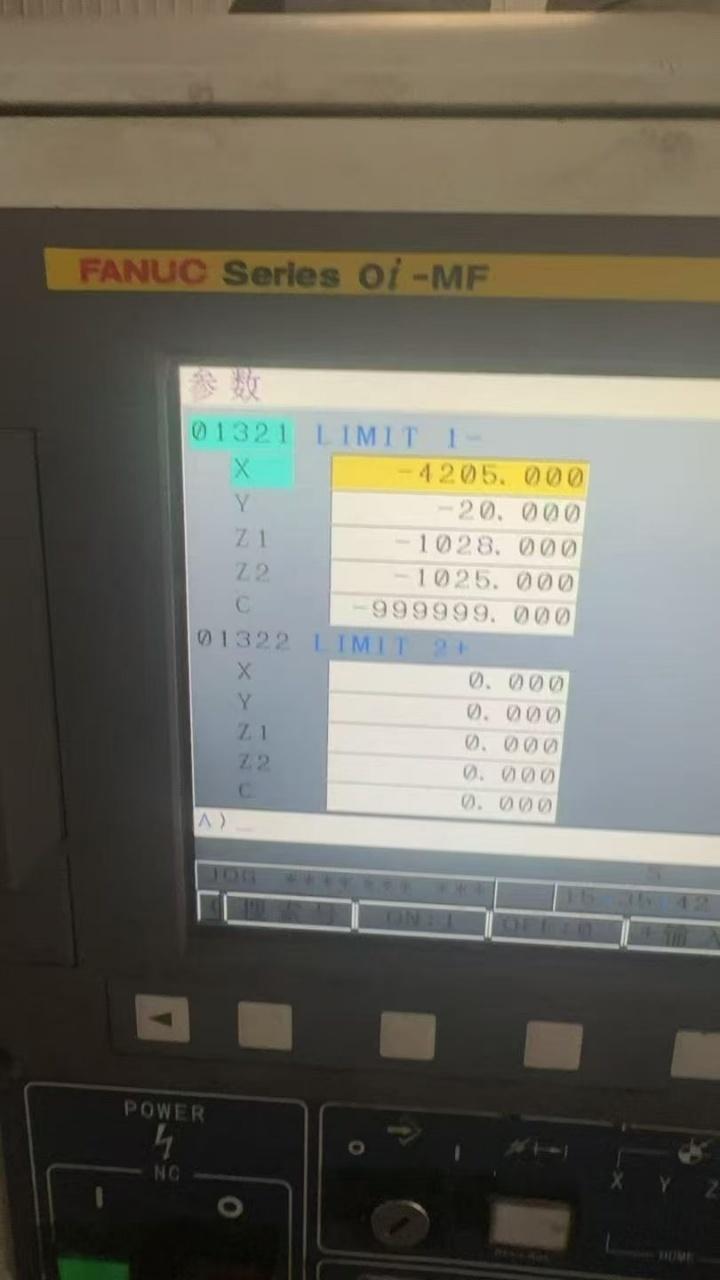

FANUC 1 package drive CNC System
Three-axis rail
Four Schneberg linear guides along the Z-axis
Worktable: 2×4
Gantry Width: 2.8 meters
Gantry Height: 1.45 meters
spindle: BT50
X-axis travel (left-right movement of Worktable) : 4200mm
Y-axis travel (forward and backward movement of the saddle) : 2750mm

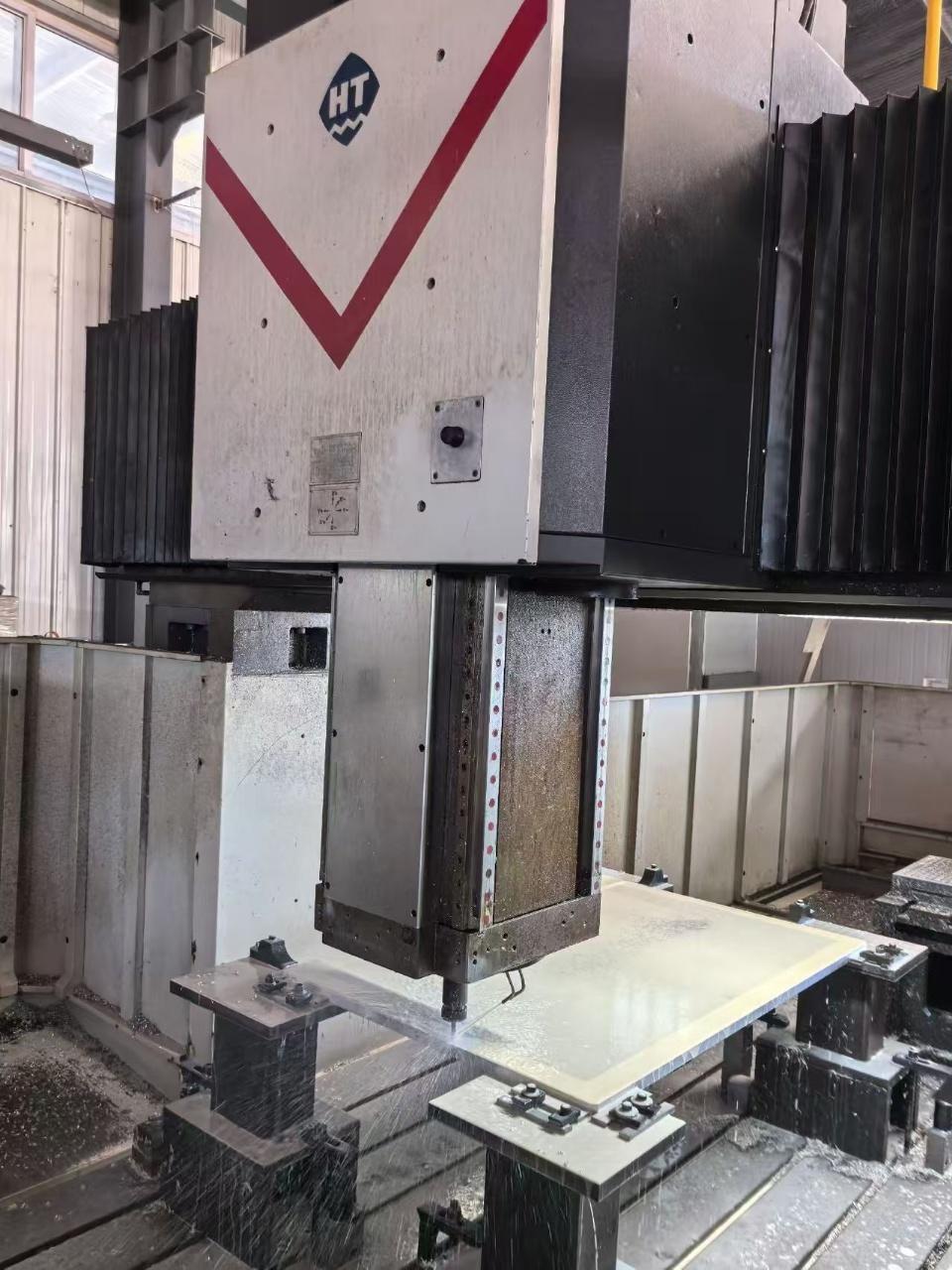

Z-axis travel (up and down movement of the ram) : 1000 mm
Distance from spindle nose to Worktable: 160-1160 mm
Electric spindle
3 axes hollow oil cooling
With a glass scale

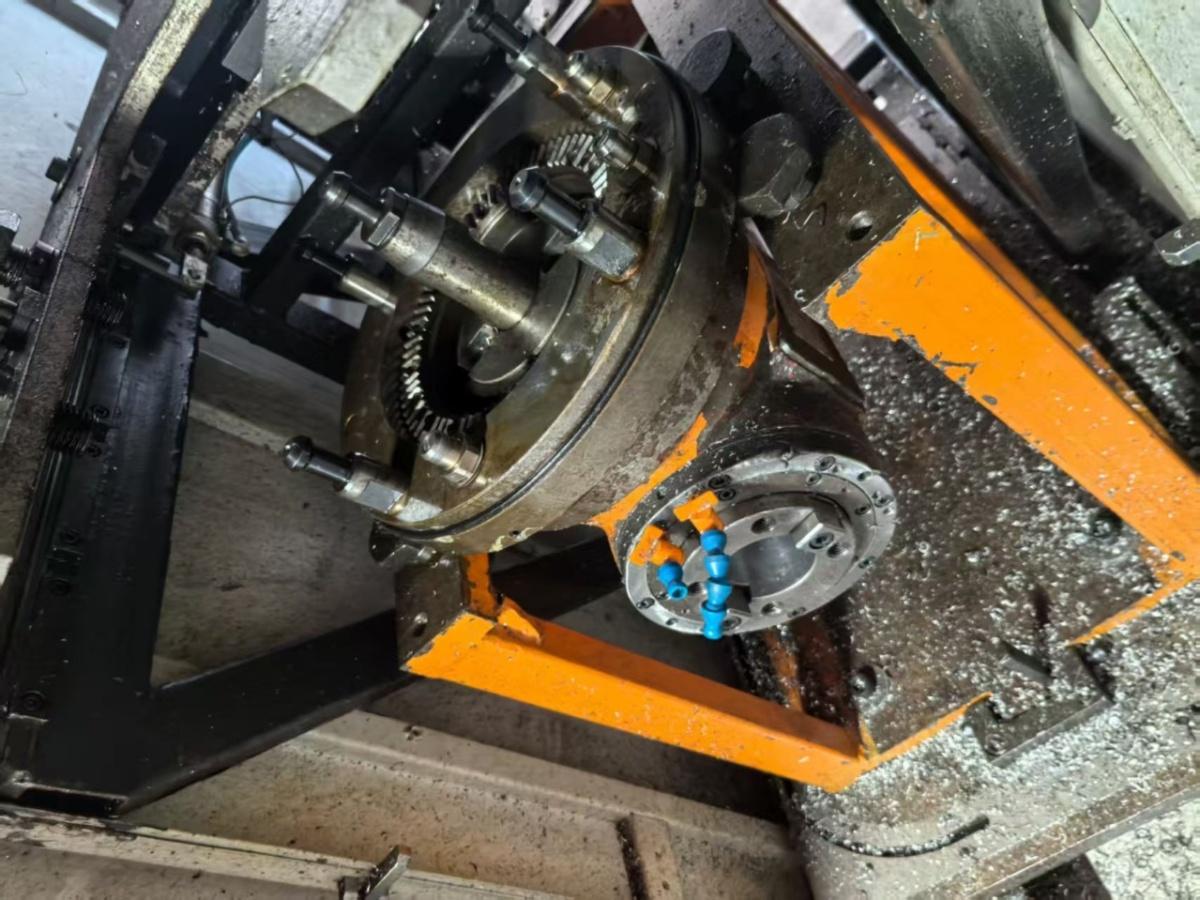

With fully automatic head
