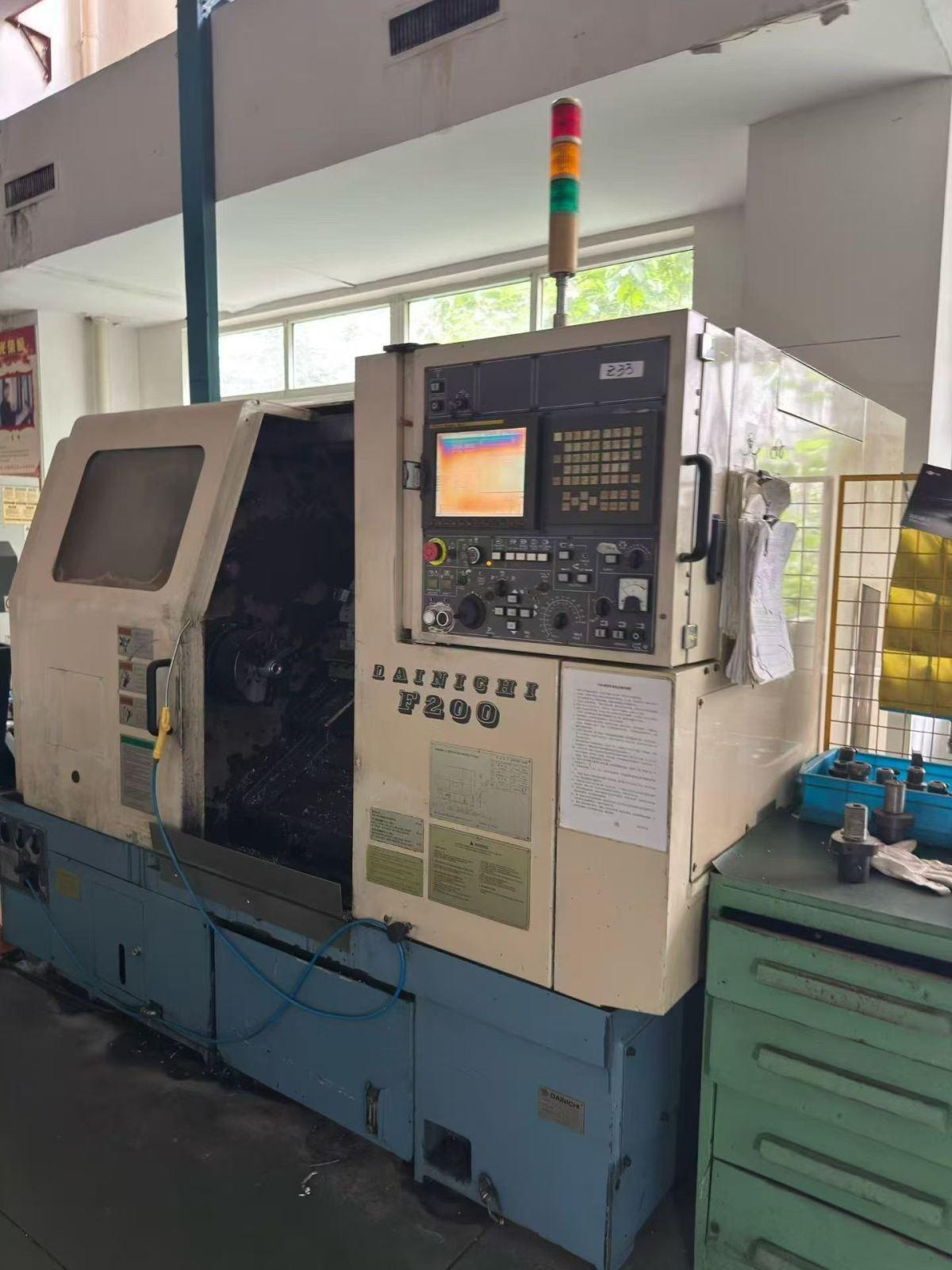

DAINICHI F200 CNC turning lathe

Maximum turning diameter: 360 mm
Maximum Machining length: 600 mm
The maximum machining diameter of bar stock: 45mm
Distance between the two centers: 650 mm
fast movement rate: 24,000 mm/min
spindle nose specification: A2-6
Maximum spindle speed: 4,000 rpm
spindle motor power: 7.5/11 kVA
Tool number of turret positions: 12-position servo hydraulic tool turret
Tool turret tool change indexing time: 1 second
tailstock tip taper: MT-3 (Mohs taper 3)
