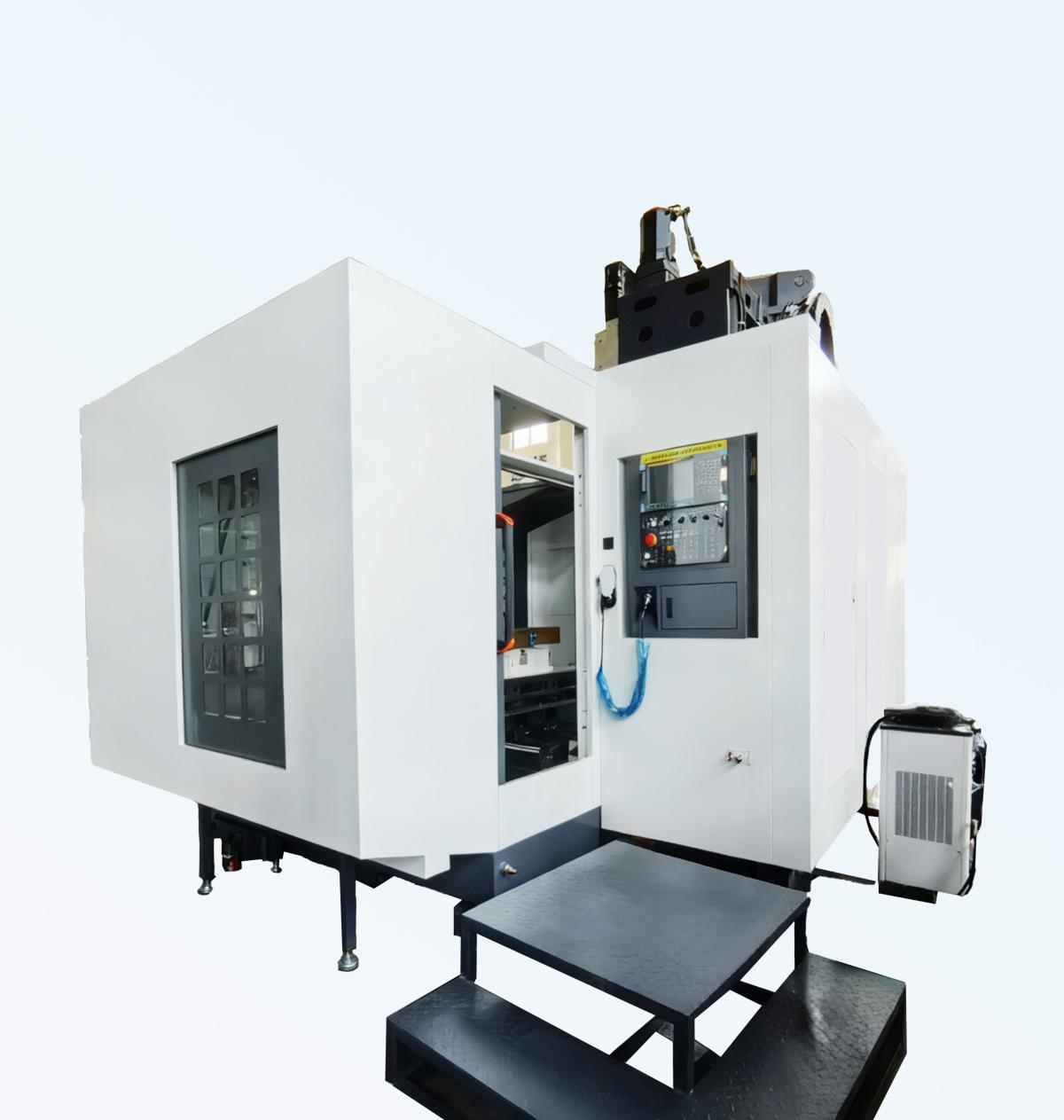

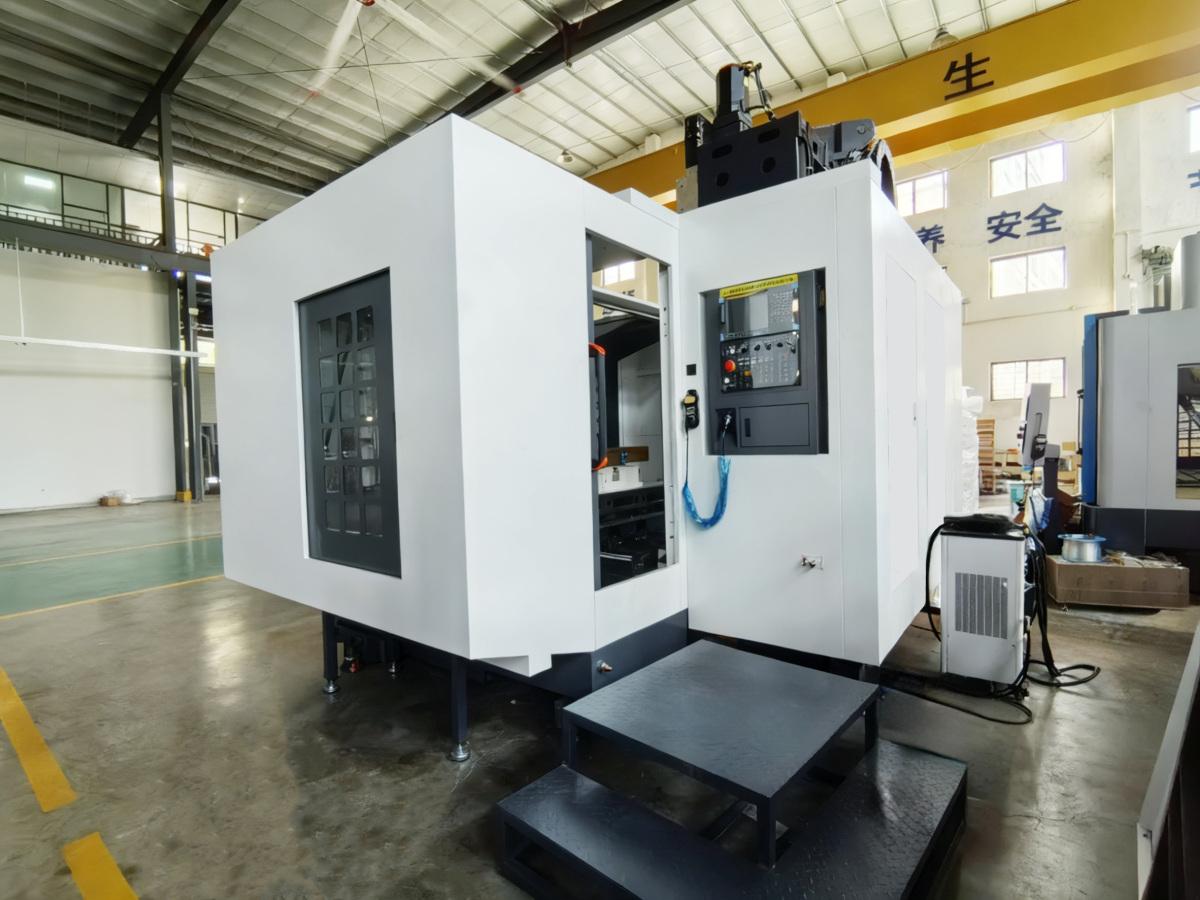

YongXi YX-W1580 Horizontal Machining centre

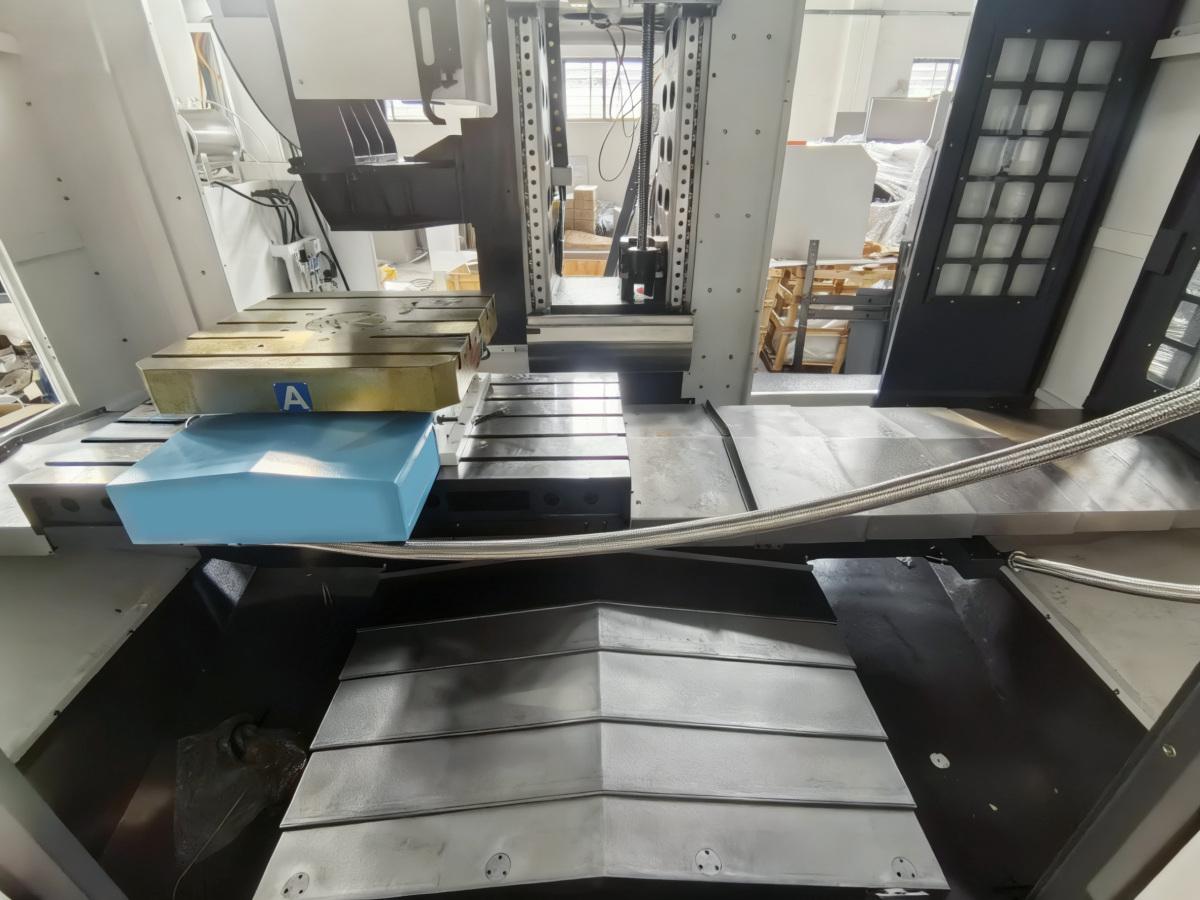

WorkWorktable size: 1400 × 800 mm
T-slot (size × width) : 5 × 22 × 145 mm
Maximum load of Worktable: 1000 kg
X-axis travel: 1500 mm
Y-axis travel: 800 mm
Z-axis travel: 800 mm

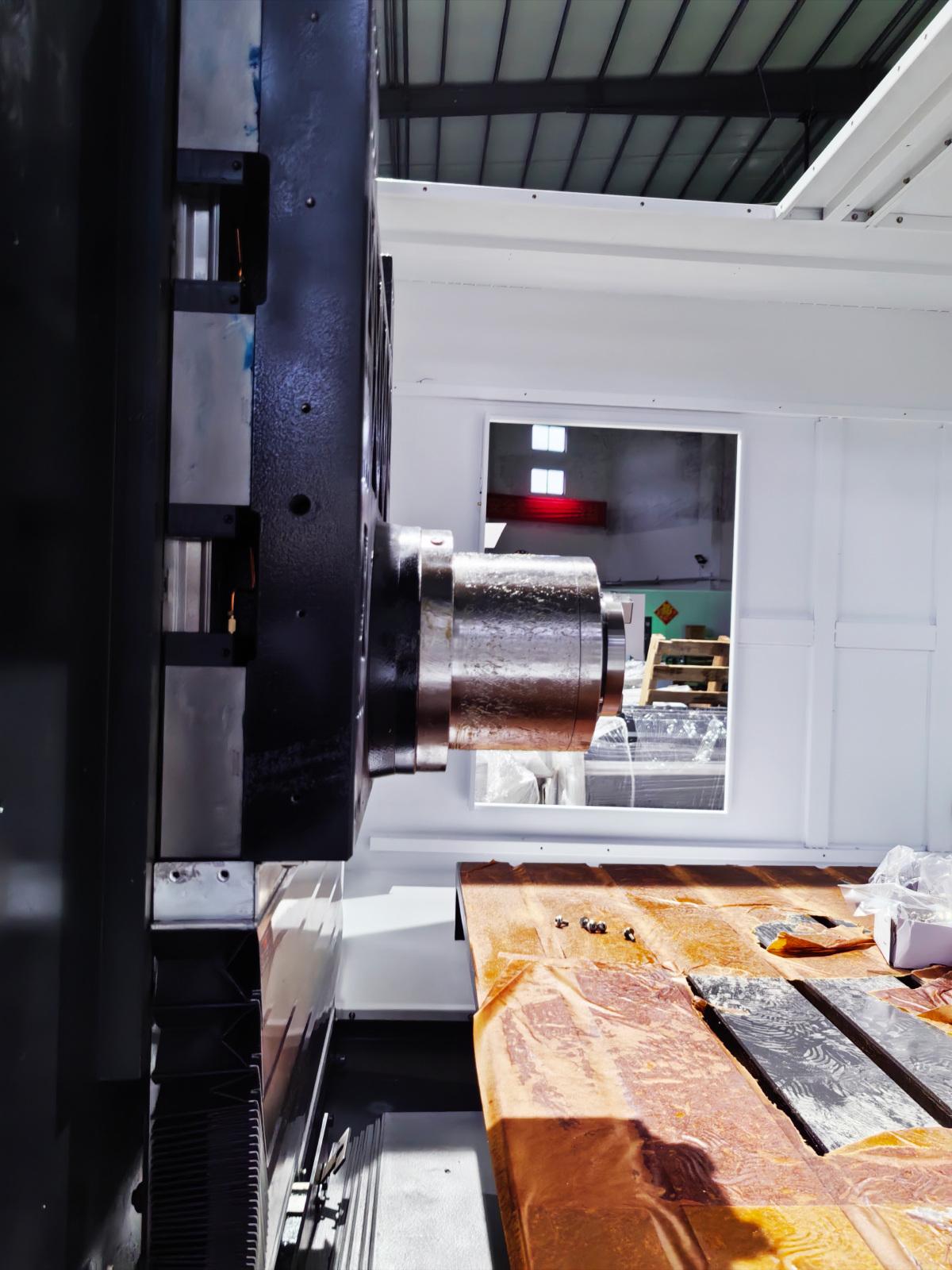

spindle taper: BT50
spindle drive structure: Direct connection (Direct)
Maximum Spindle speed: 6000 rpm
Fast moving rate: 24 m/min

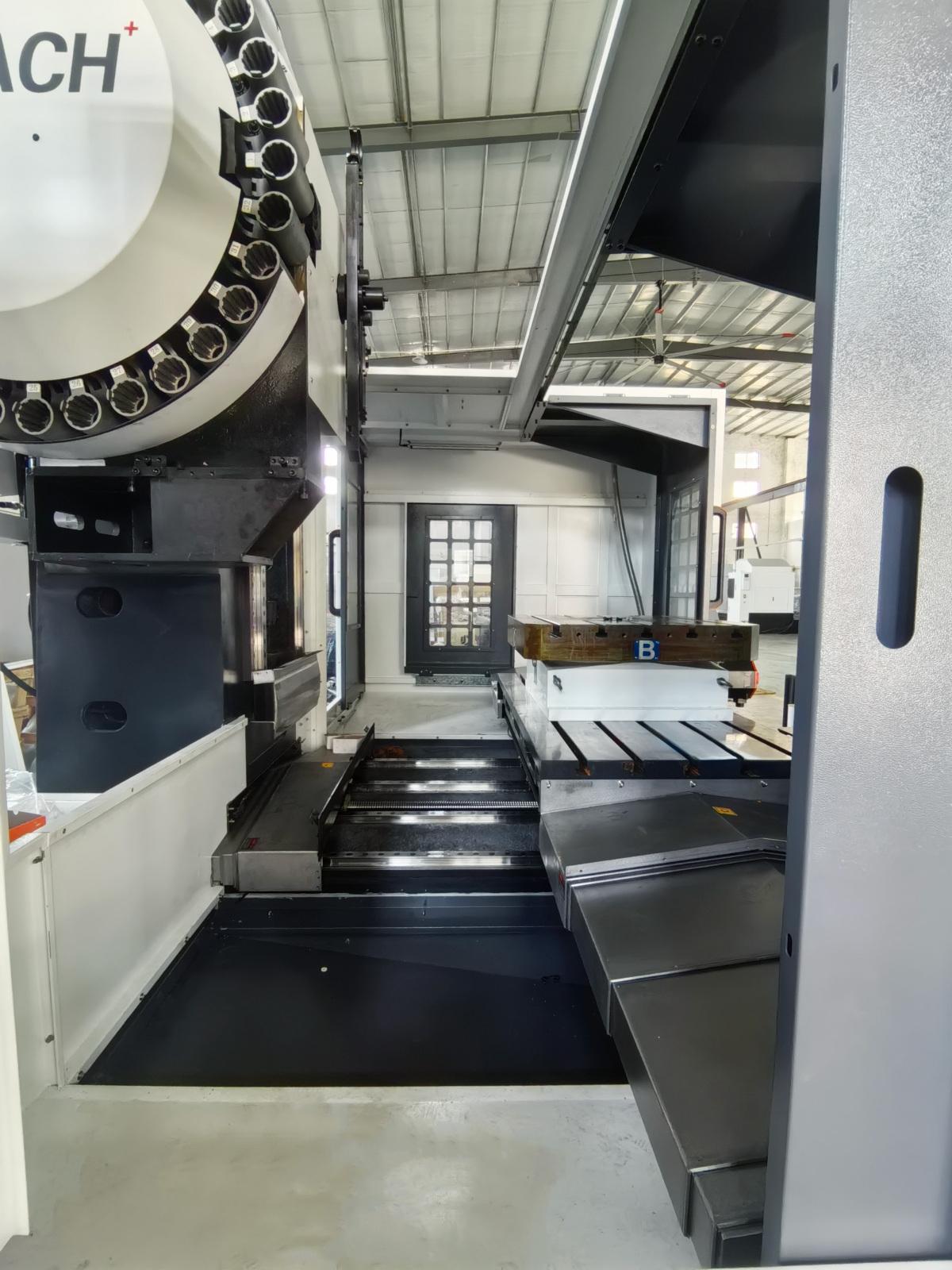

Tool storage capacity: 20 tools
Maximum Tool diameter: Φ 190mm
Main motor power: 18.5kW
guideway structure: All hardened box way
Positioning precision (X/Y/Z) : ± 0.005mm
Repeatability precision: ± 0.003mm
Power requirement: 45 KVA
Mechanical area (length × width × height) : 4100 × 3500 × 2700 mm
Machine weight: 14,000 kg
