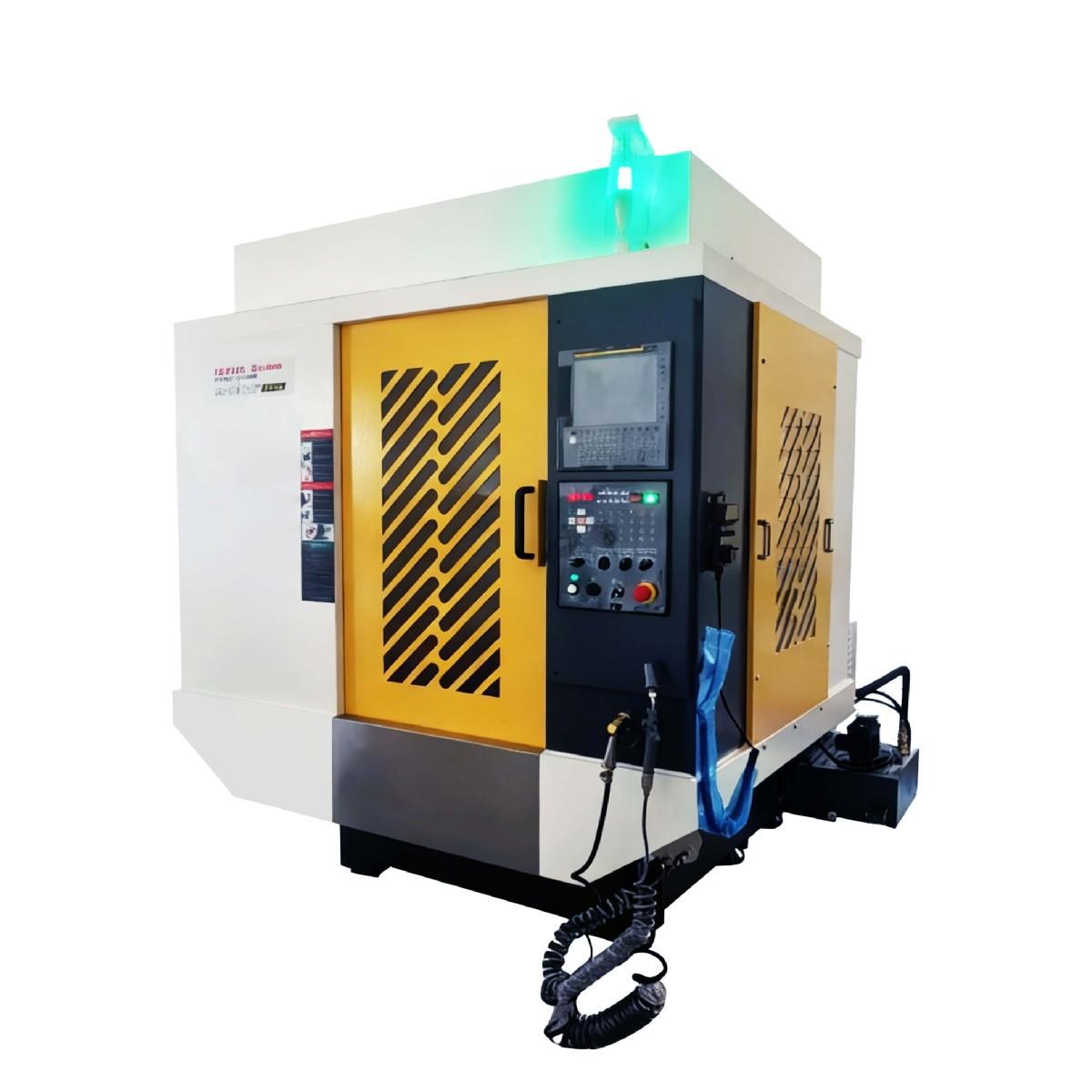

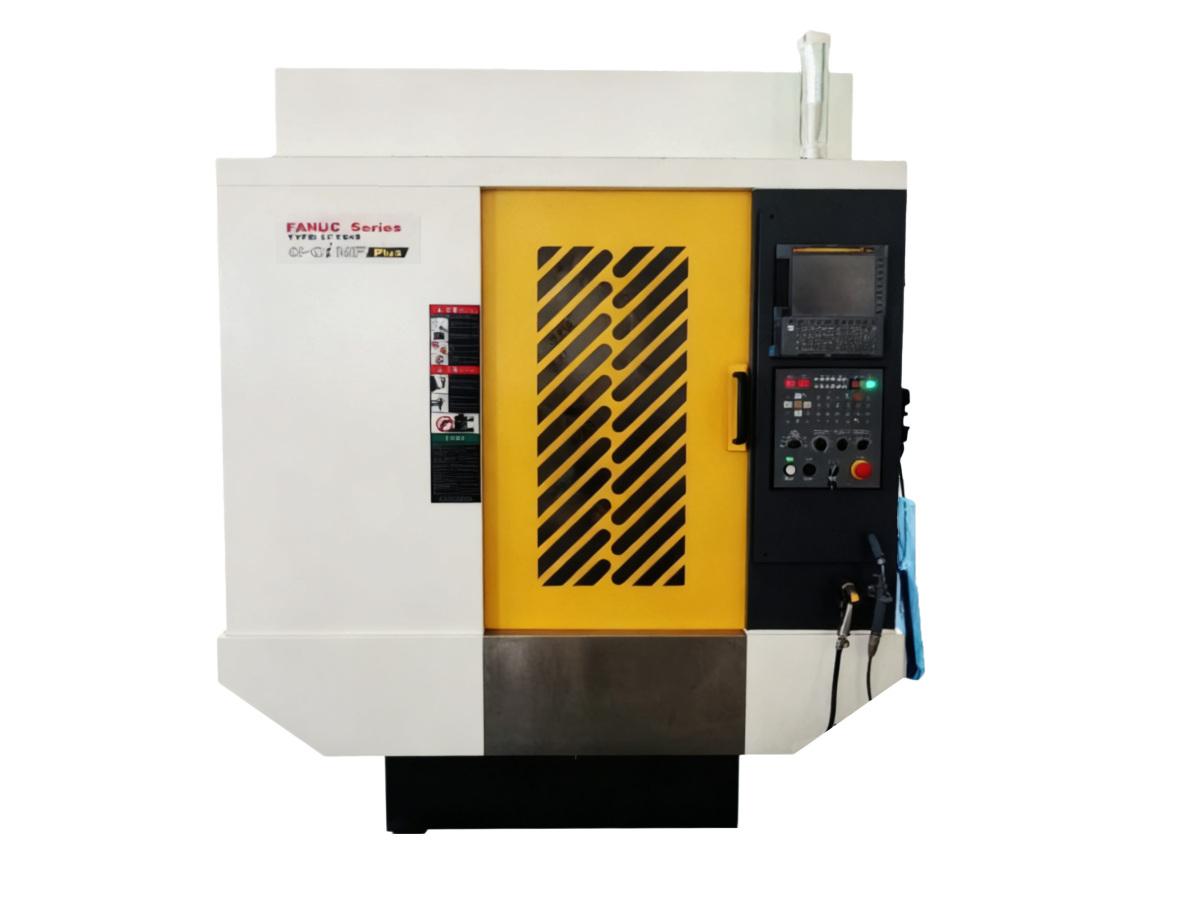

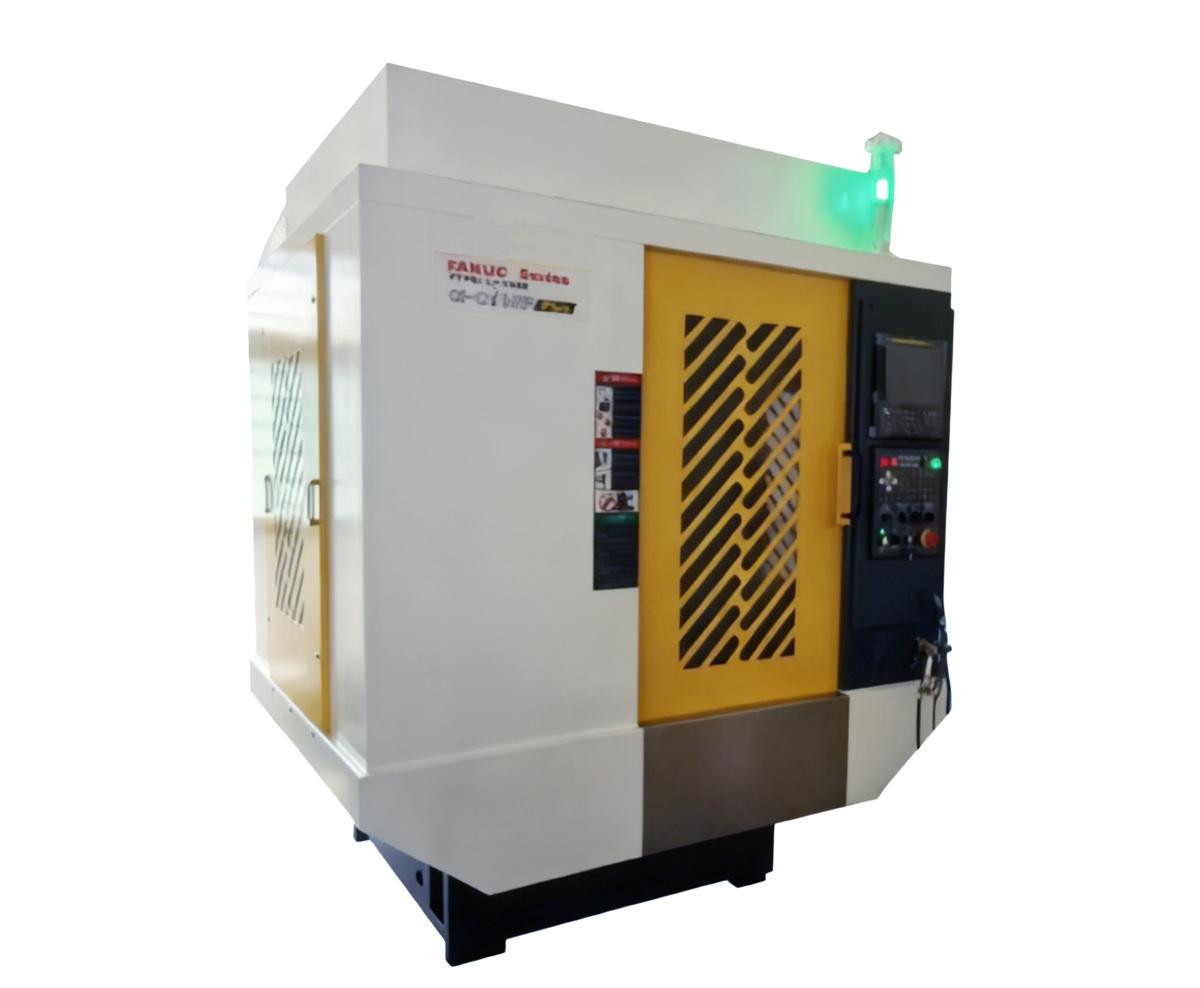

YongXi YX-TP6 Tapping machine

WorkWorkWorktable size: 700 × 420mm

T-slot (number of slots × width) : 3 × 14 × 135mm

Maximum load of workWorktable: 250 kg

X-axis travel (left-right travel) : 600 mm

Y-axis travel (forward and backward travel) : 450 mm

Z-axis travel (travel up and down on spindle head) : 330 mm

Distance from spindle nose to workWorktable surface: 150-480 mm

Distance from spindle center to the front of machine column: 400mm

spindle nose hole slope: BBT30/110

Maximum Spindle speed: 20,000 rpm

Drive structure: Direct-drive

Fast moving rate (X/Y/Z) : 30 m/min

Tool Tool holder type: BT30

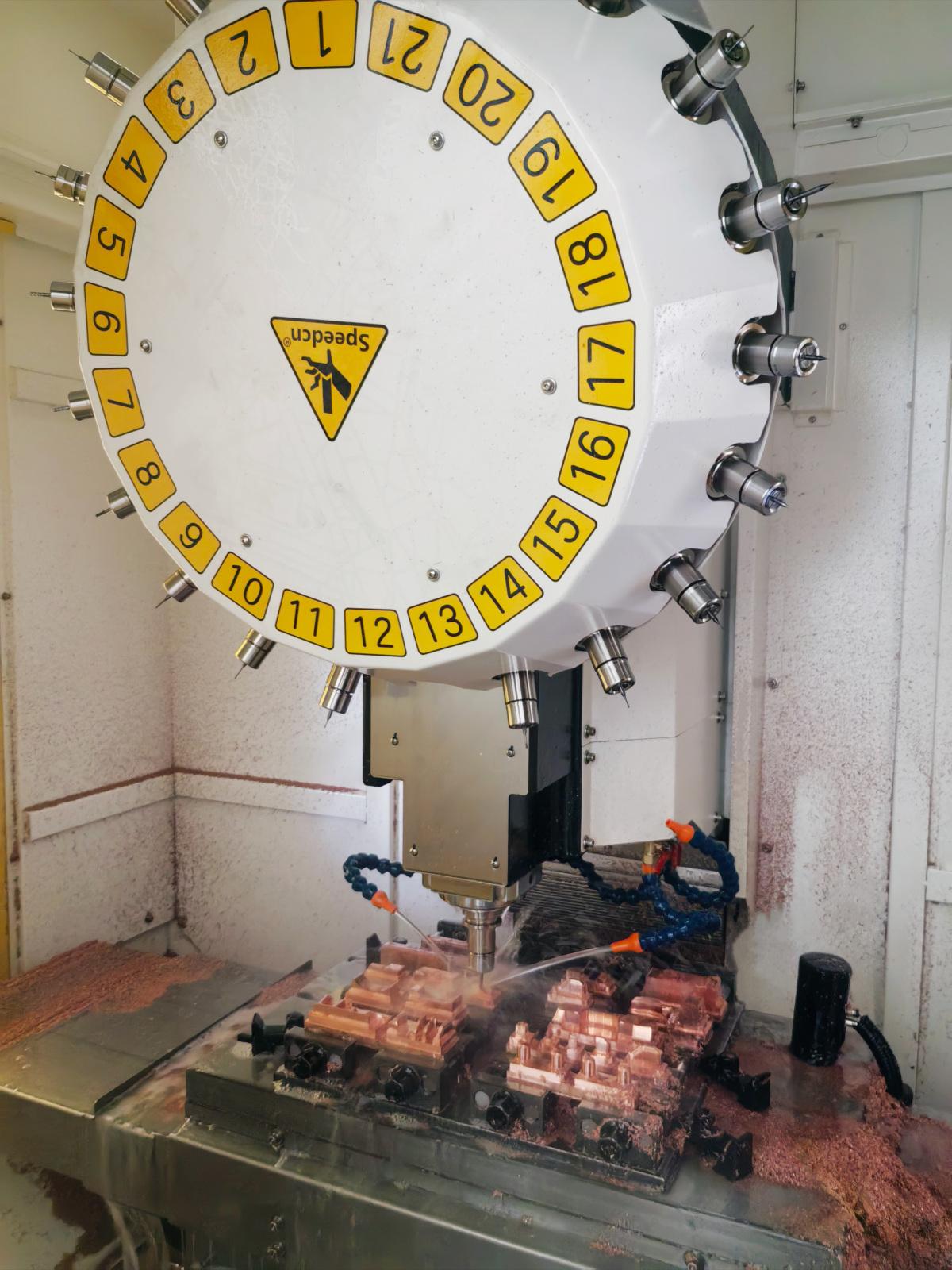

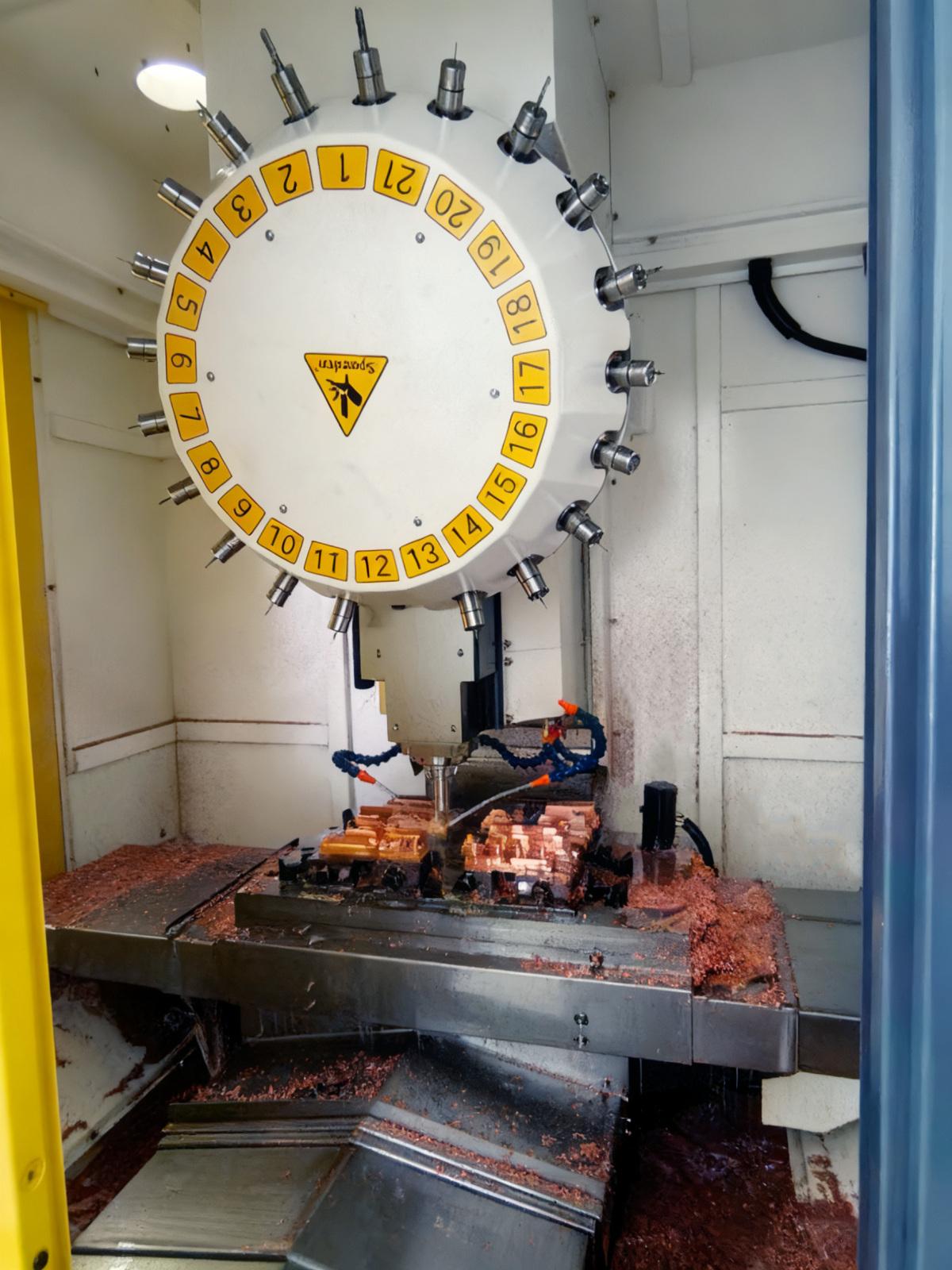

Tool storage capacity: 21 Tools

spindle drive motor: 12 kw / 20000

Drive motor (X/Y/Z axes) : 8 + 8 + 12/3000

X/ Y-axis guideway structure: Roller linear guide

Z-axis guideway structure: Roller linear guide

Floor area (L×W×H) : 1700 × 1968 × 2320 mm

Machine weight (bare machine) : 3000 kg

Positioning precision: ± 0.003mm

Repeatability precision: ± 0.003mm

Power requirement: 15 KVA

Air compression demand: 0.6-0.8 Mpa
