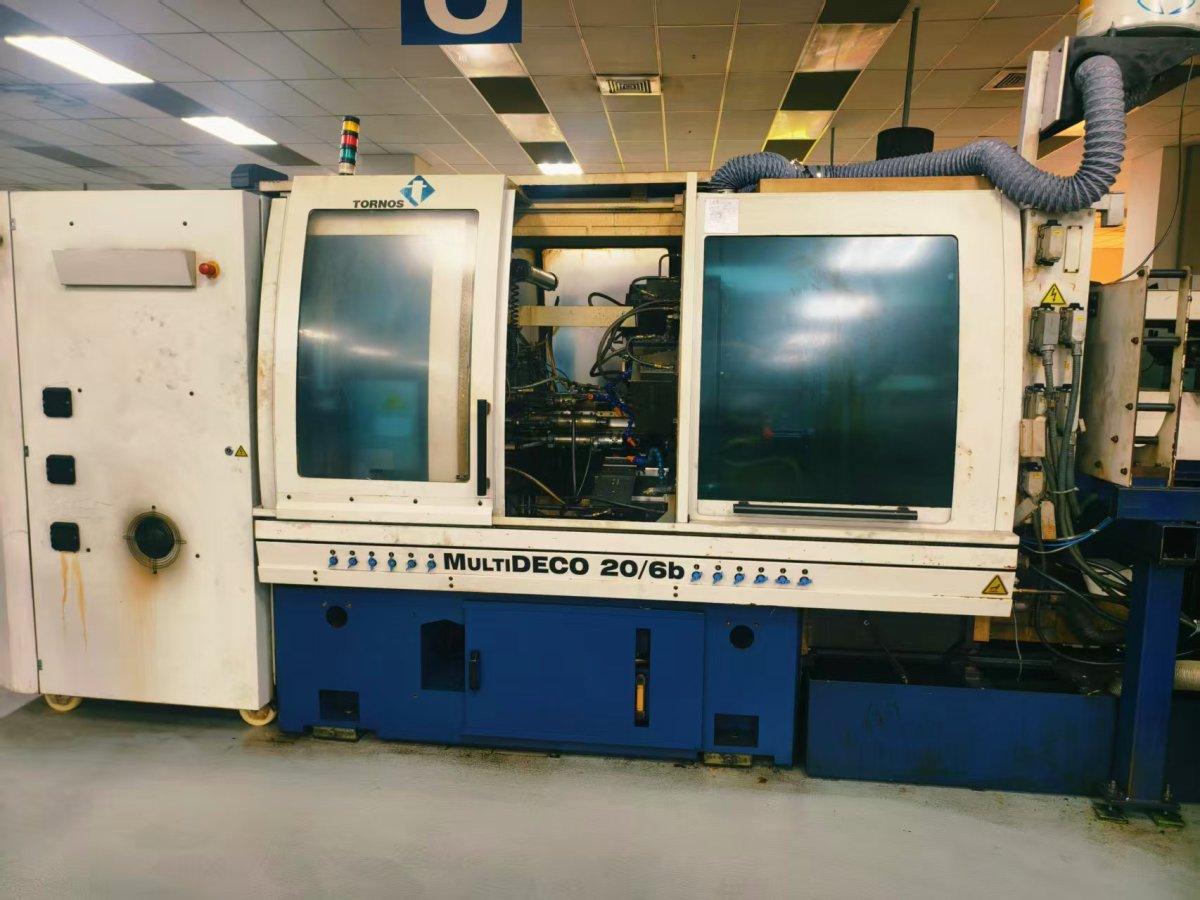

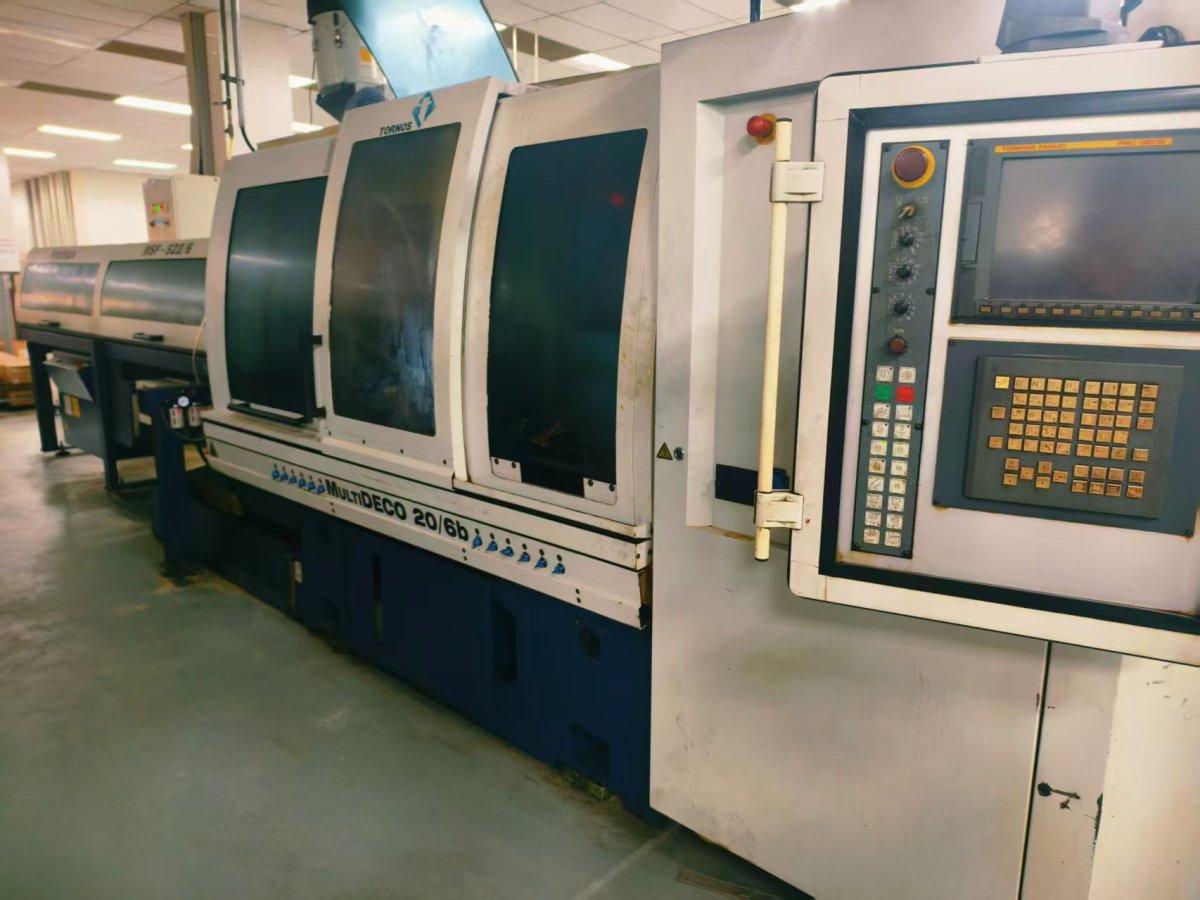

TORNOS MULTIDECO 20/6B CNC turning lathe

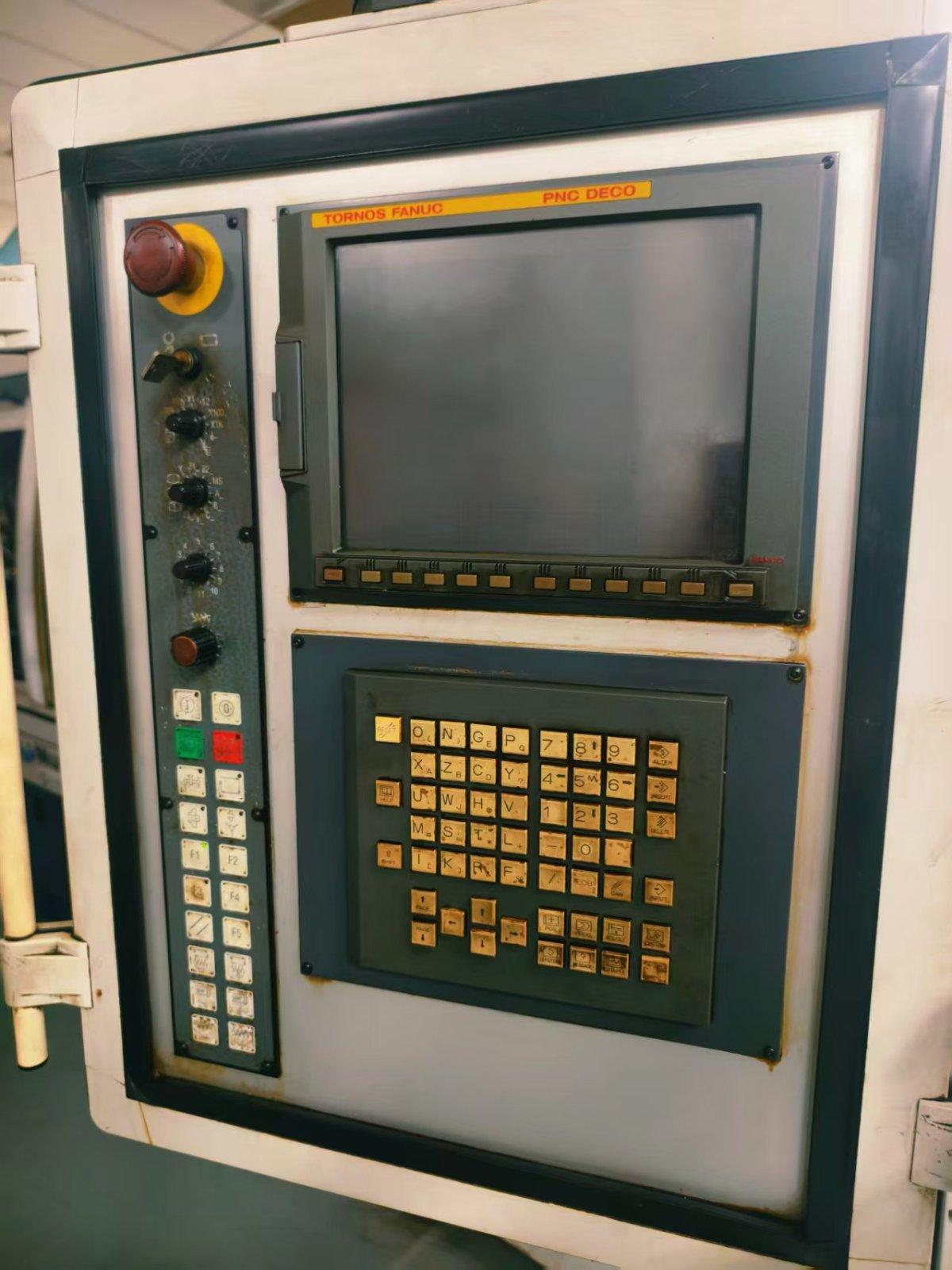

CNC System: TORNOS-PNC-DECO
Bar machining range: Round bar diameter 5-20mm
Maximum workpiece length: 100mm
spindle Accessories: 6 spindle + 1 Subspindle
Maximum spindle speed: 5000-6000rpm, with stepless speed regulation
Number of axes: 17-18 axes
Horizontal slide Worktables: 6
Longitudinal turning slides: 5
Maximum machining efficiency: 45 pieces per minute
spindle motor power: 15kW
Total installed power: 43kVA
Power supply requirements: Three-phase 400V, 50Hz
Overall dimensions: 3500 × 1600 × 1950mm
Machine weight: Approximately 8,500 kg
