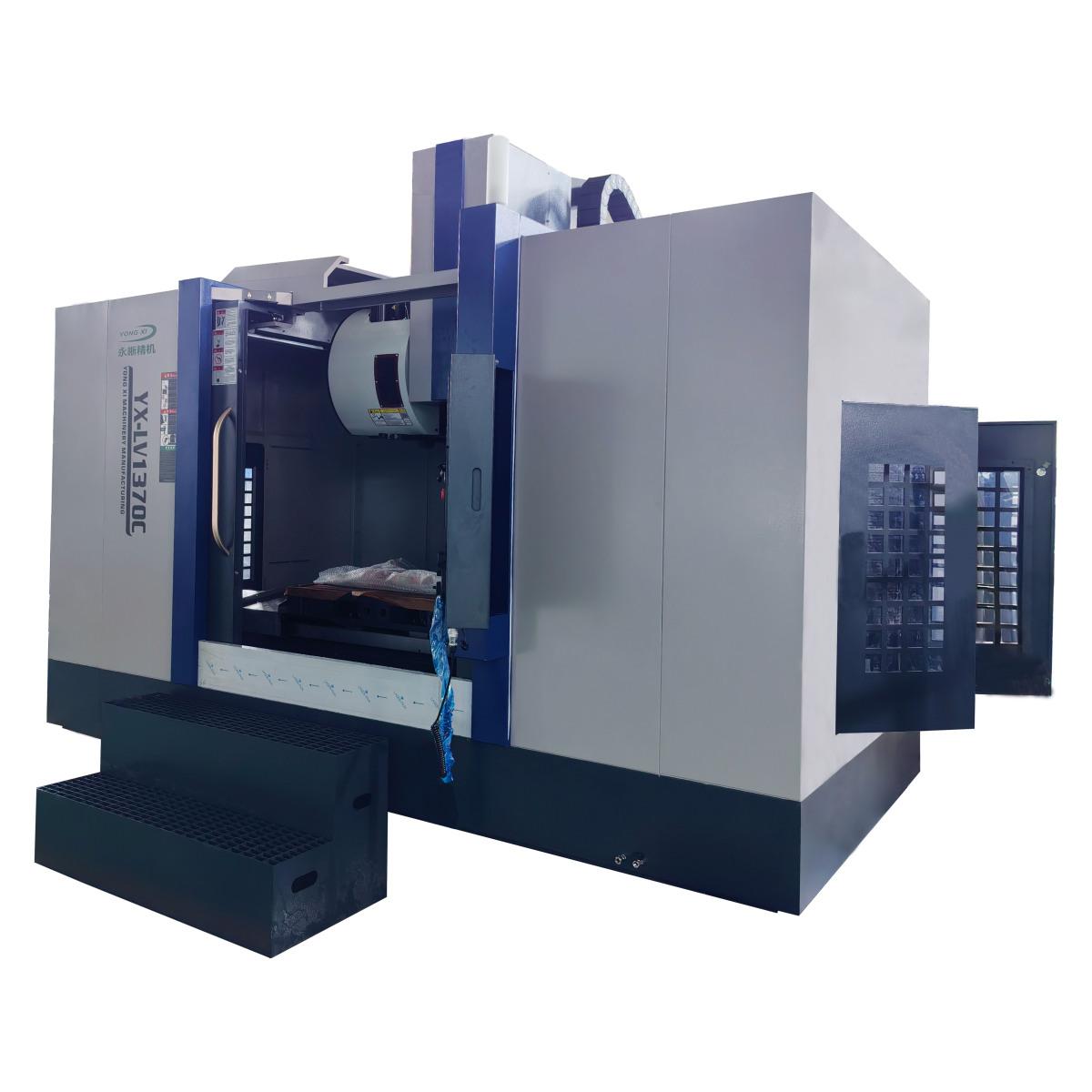

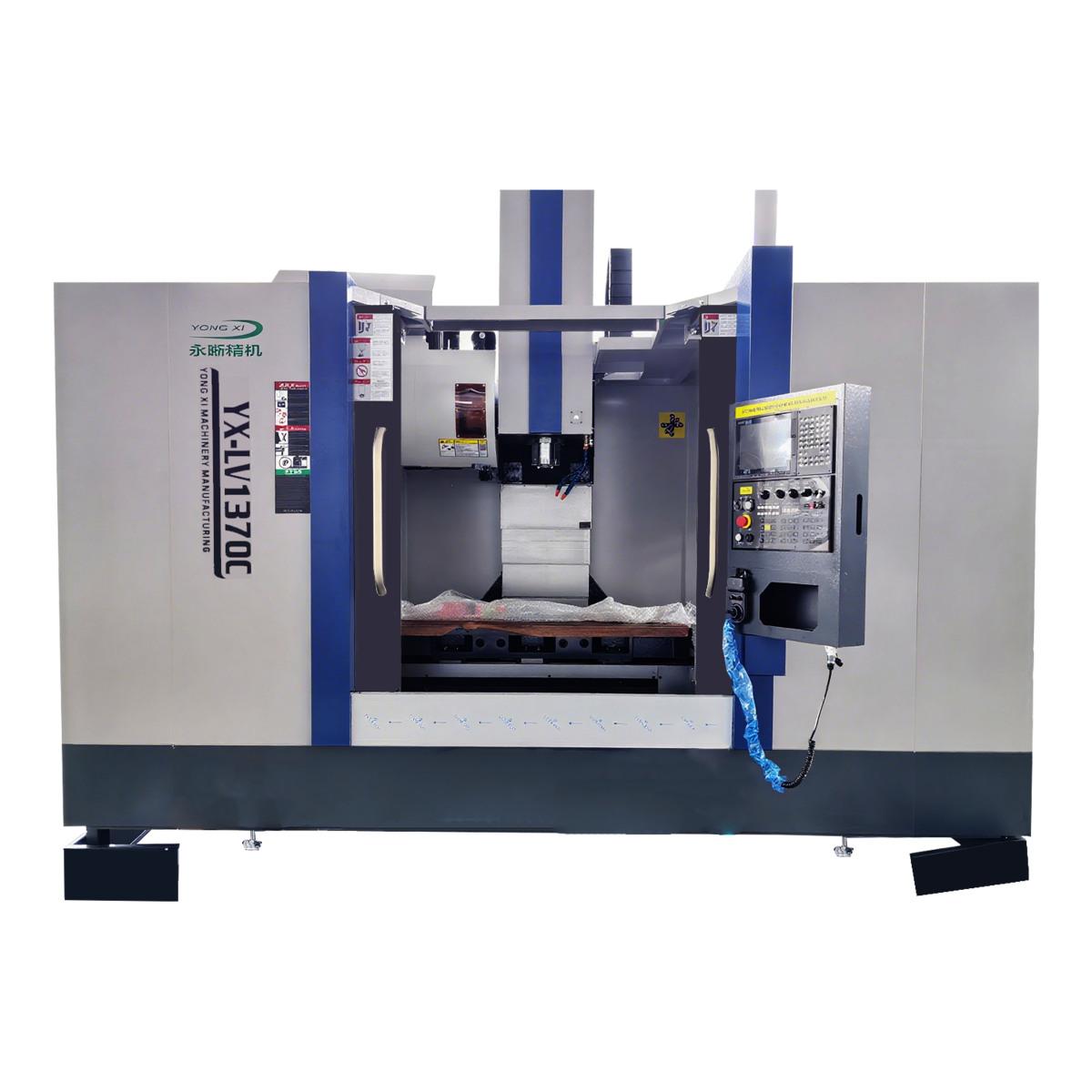

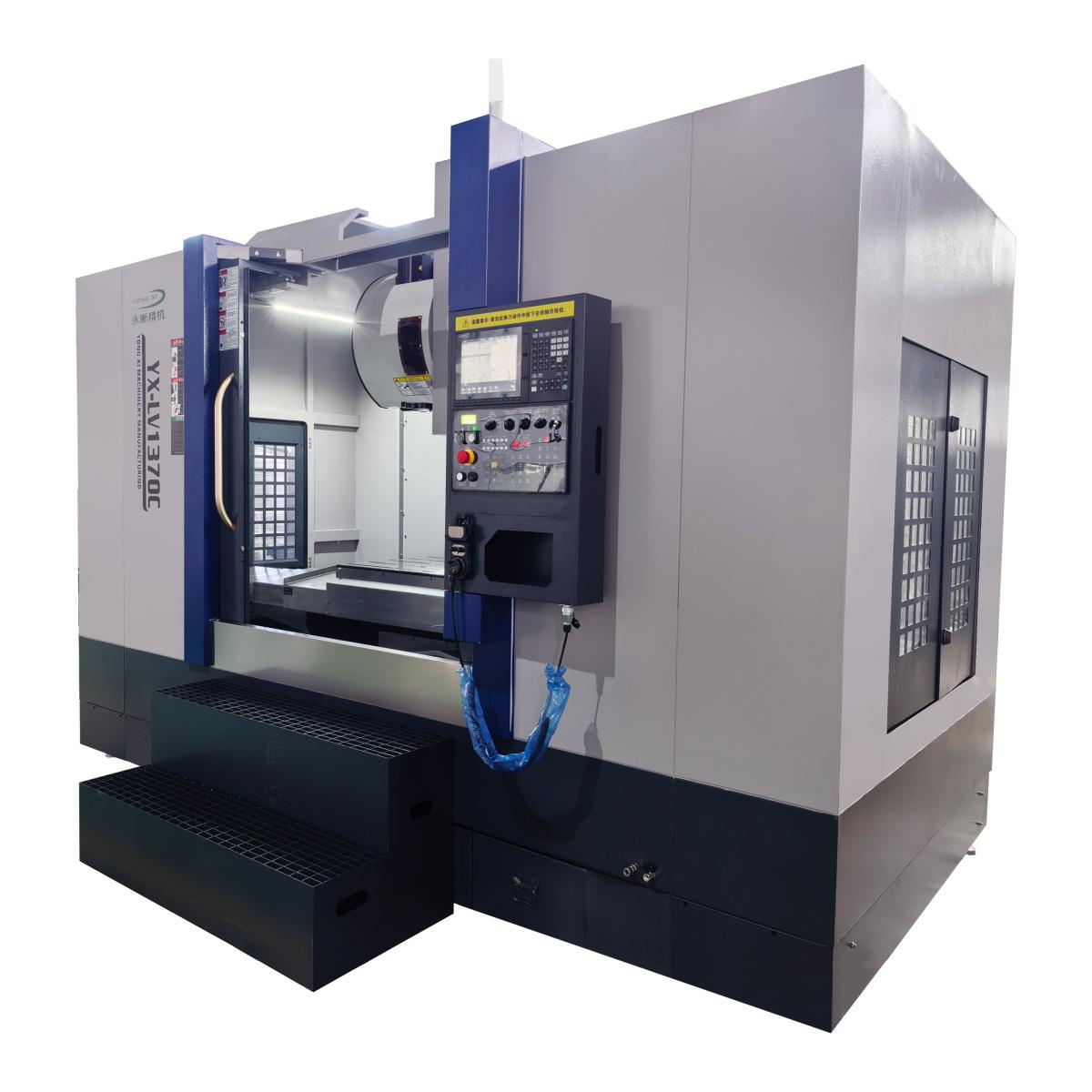

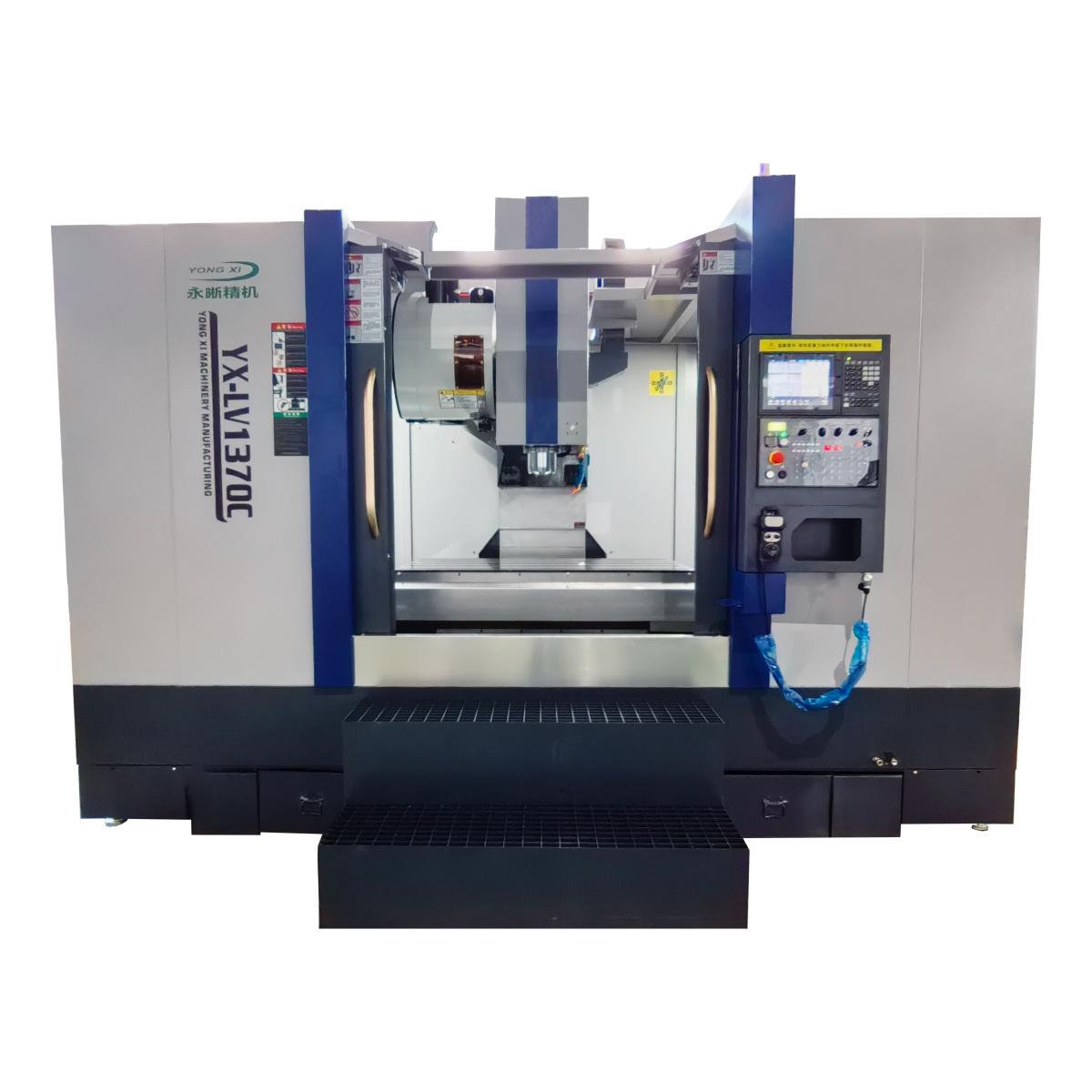

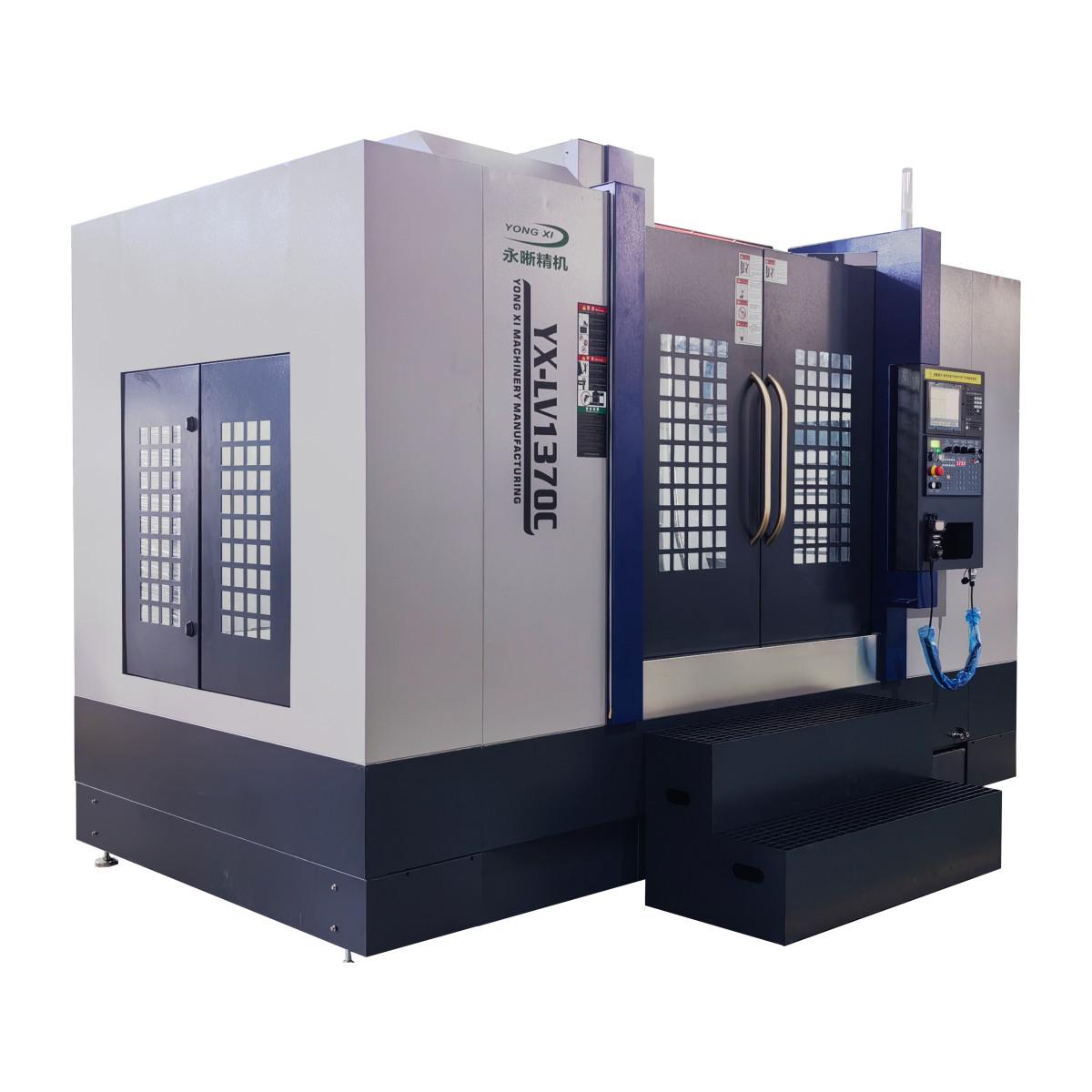

YongXi YX-L1370 Vertical Machining centre

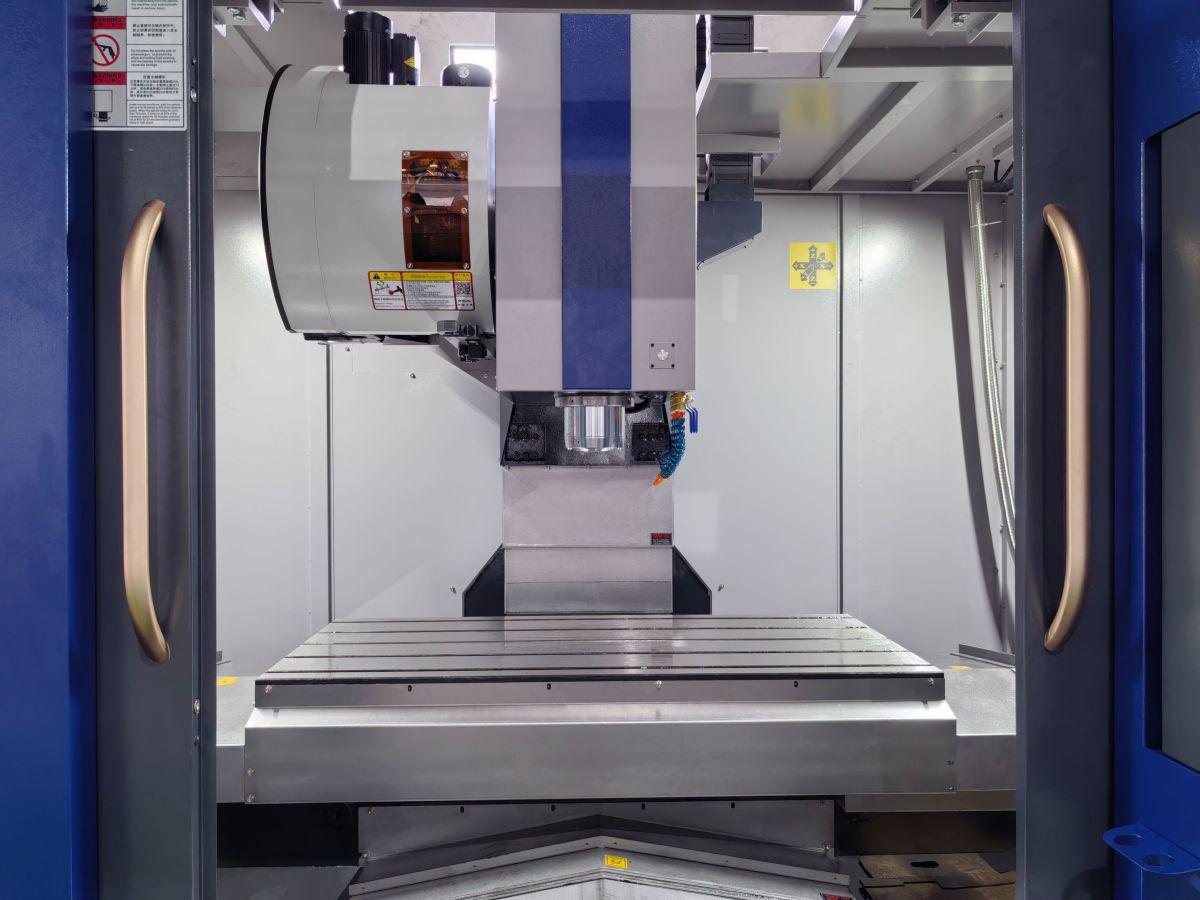

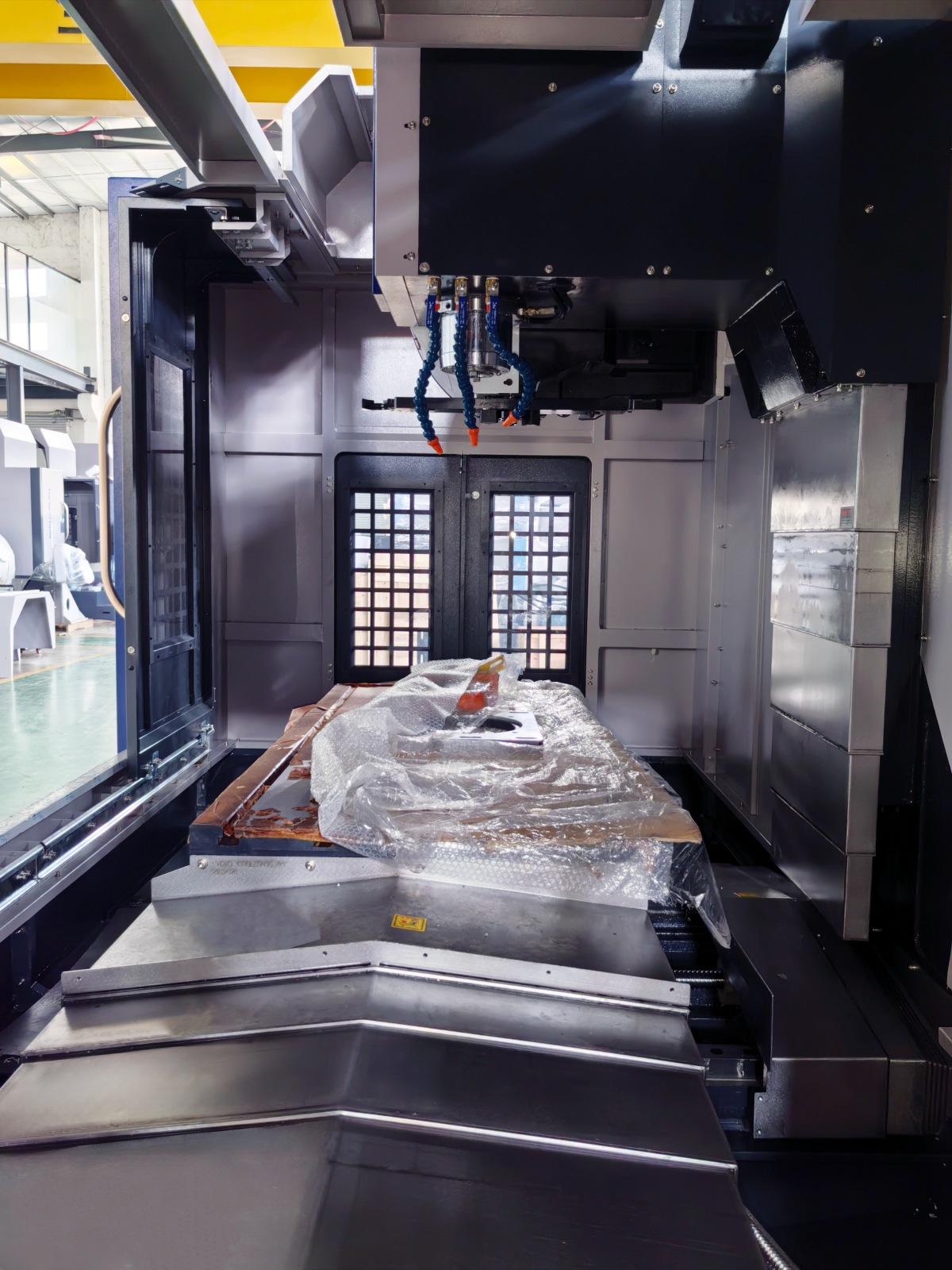

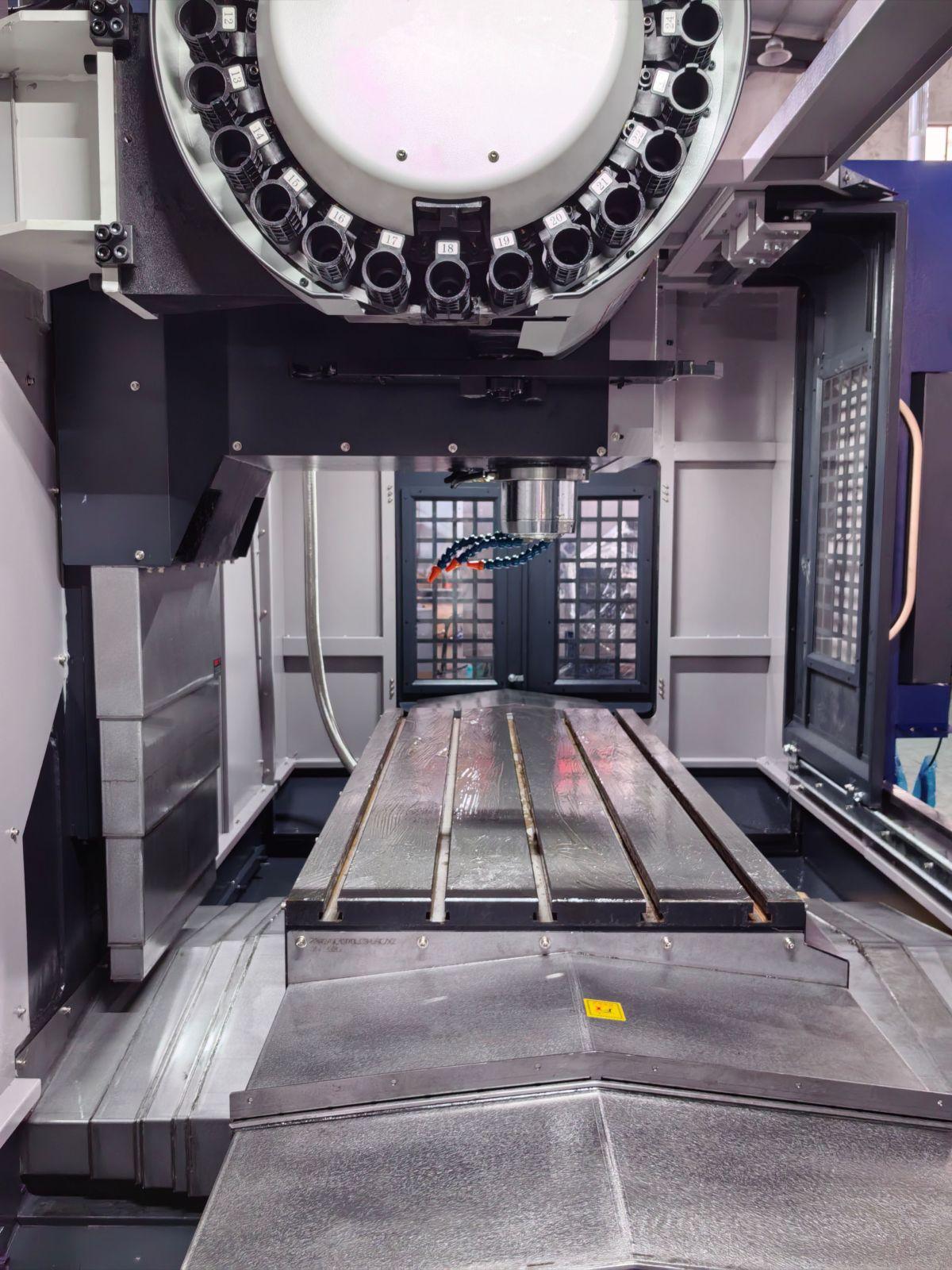

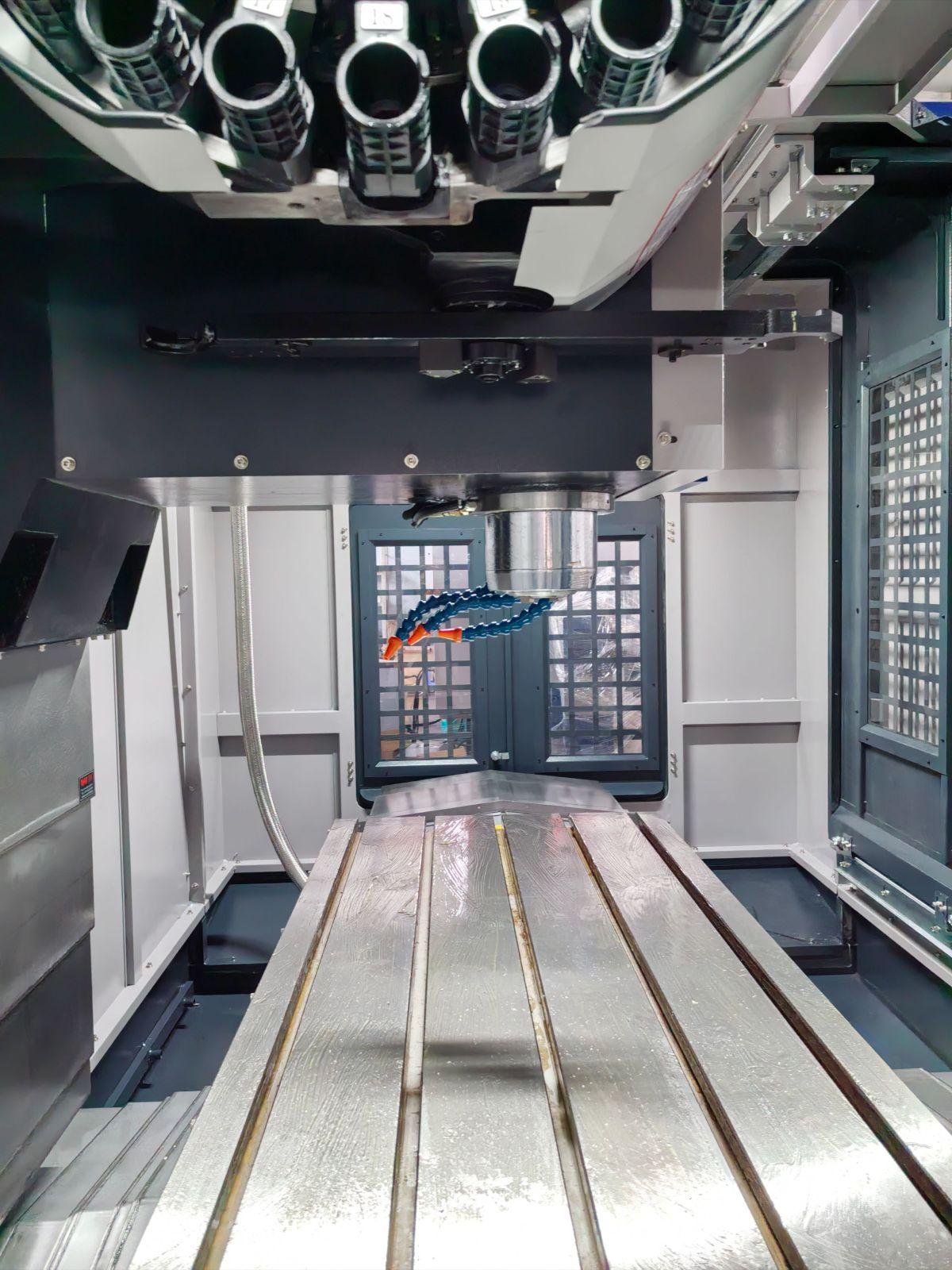

Worktable Worktable
WorkWorktable size: 1400×700mm
T-slot (number of slots × width) : 5×18*120mm
Maximum load of Worktable: 900kg
travel
left-right travel (X): 1300mm
Front and rear travel (Y): 700mm
spindle head up and down travel (Z): 600mm
Distance from spindle nose to Worktable surface: 120-720mm
Distance from spindle center to the front of machine column: 797mm

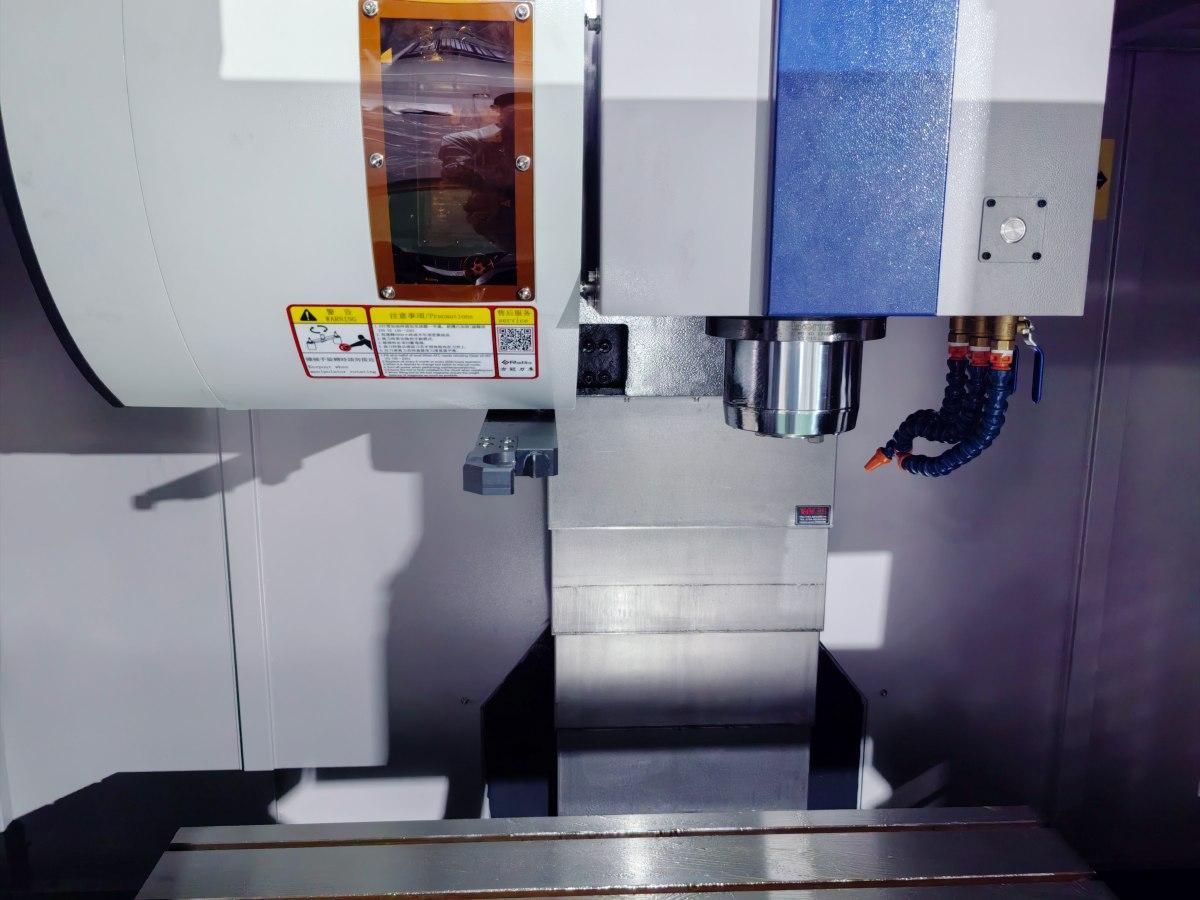

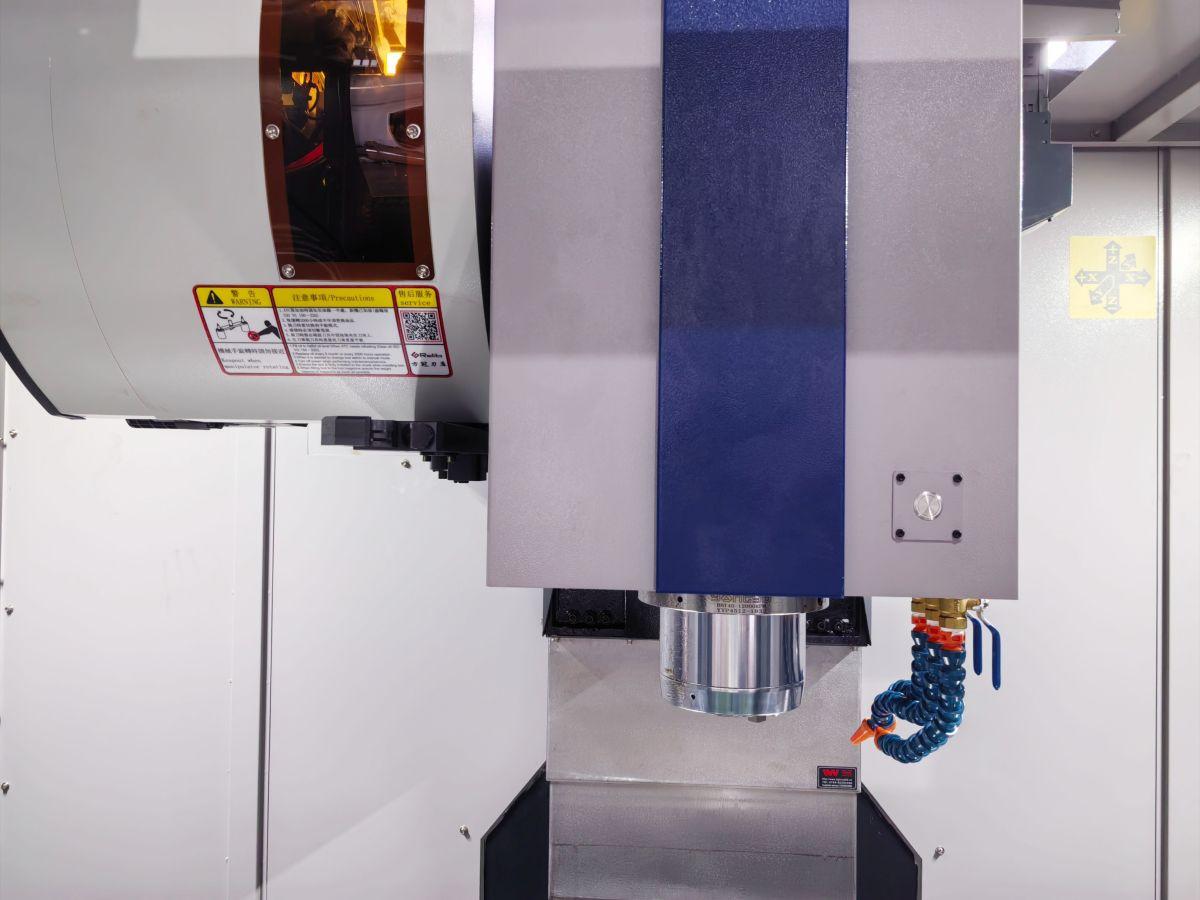

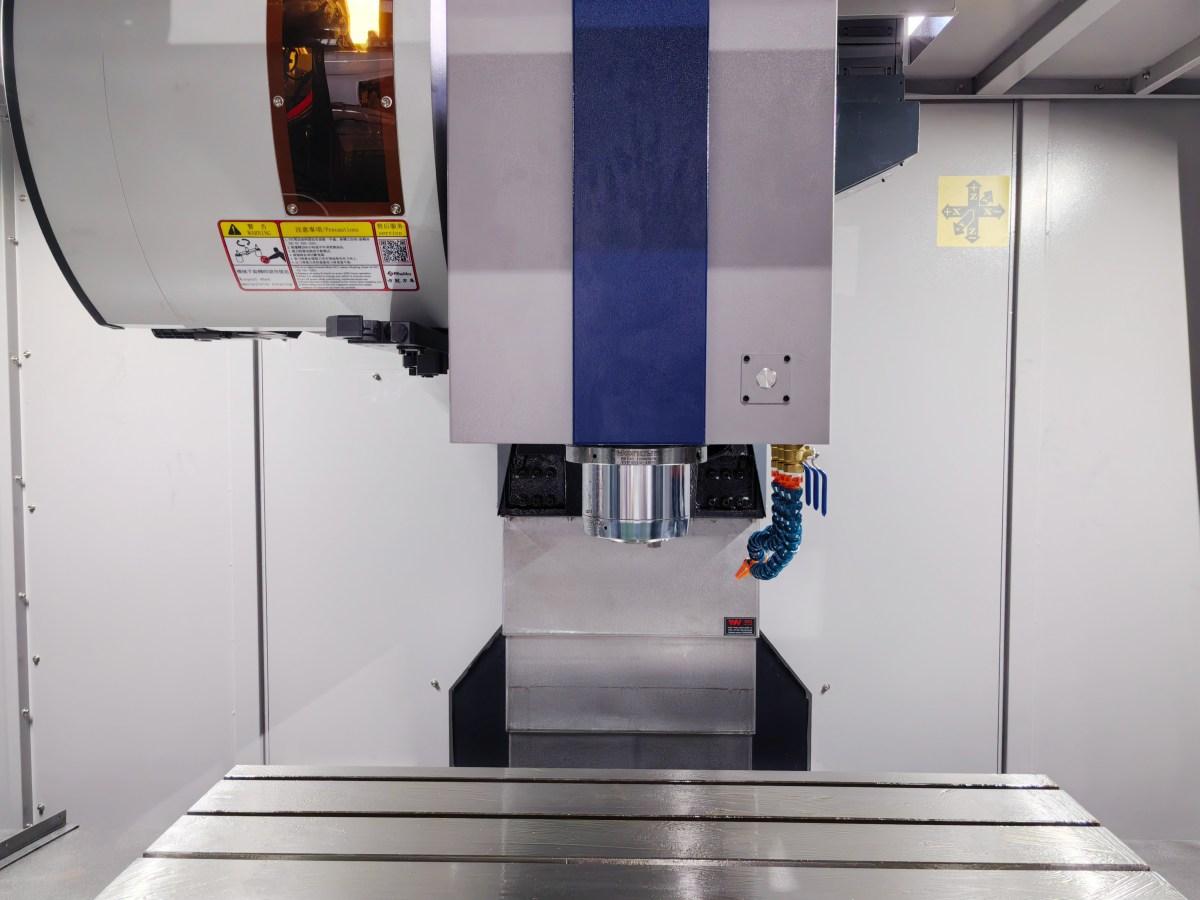

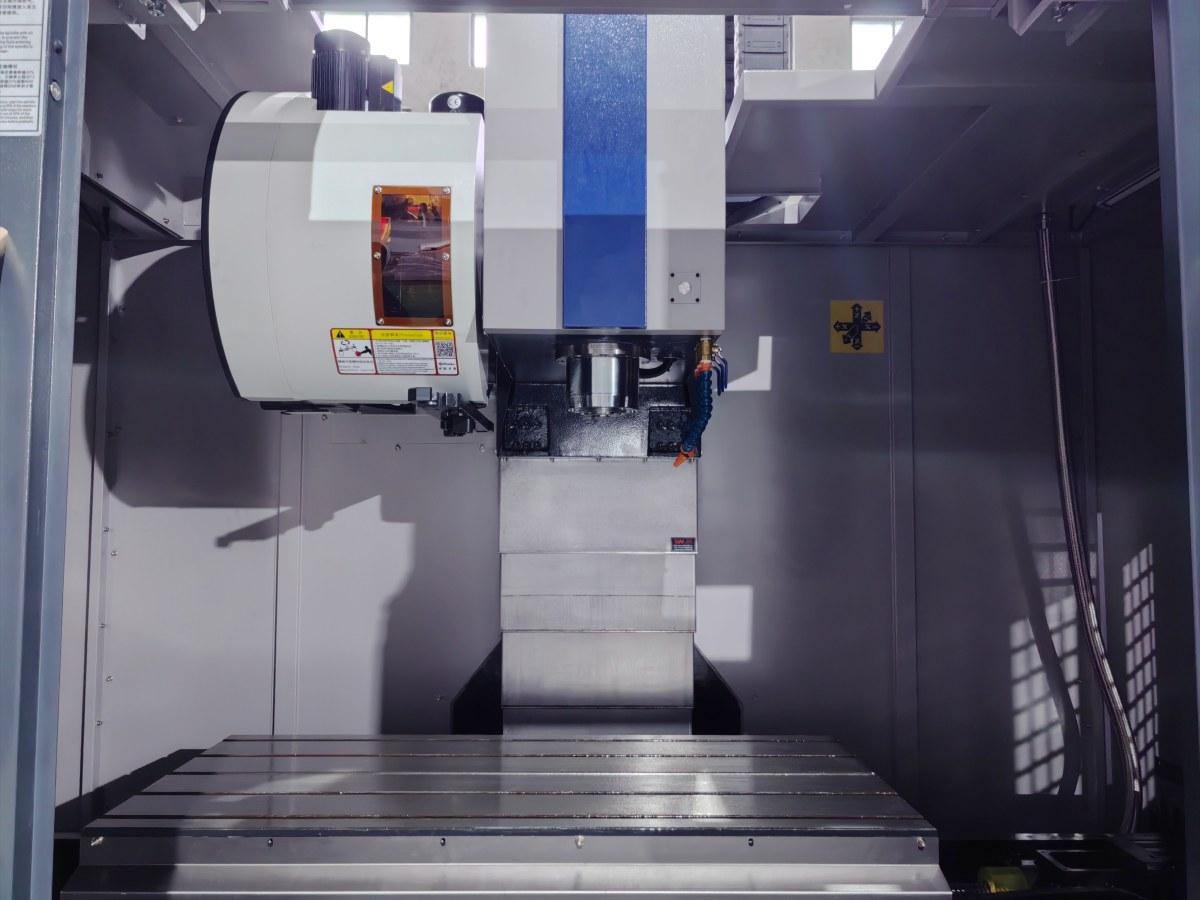

spindle
spindle nose hole taper: BT40/150
Maximum Spindle speed: 12,000 RPM
Drive structure: Direct-driven
Feed
Cutting feed: 1- 10,000 mm/min
Fast moving rate: X/Y/Z:36m/min

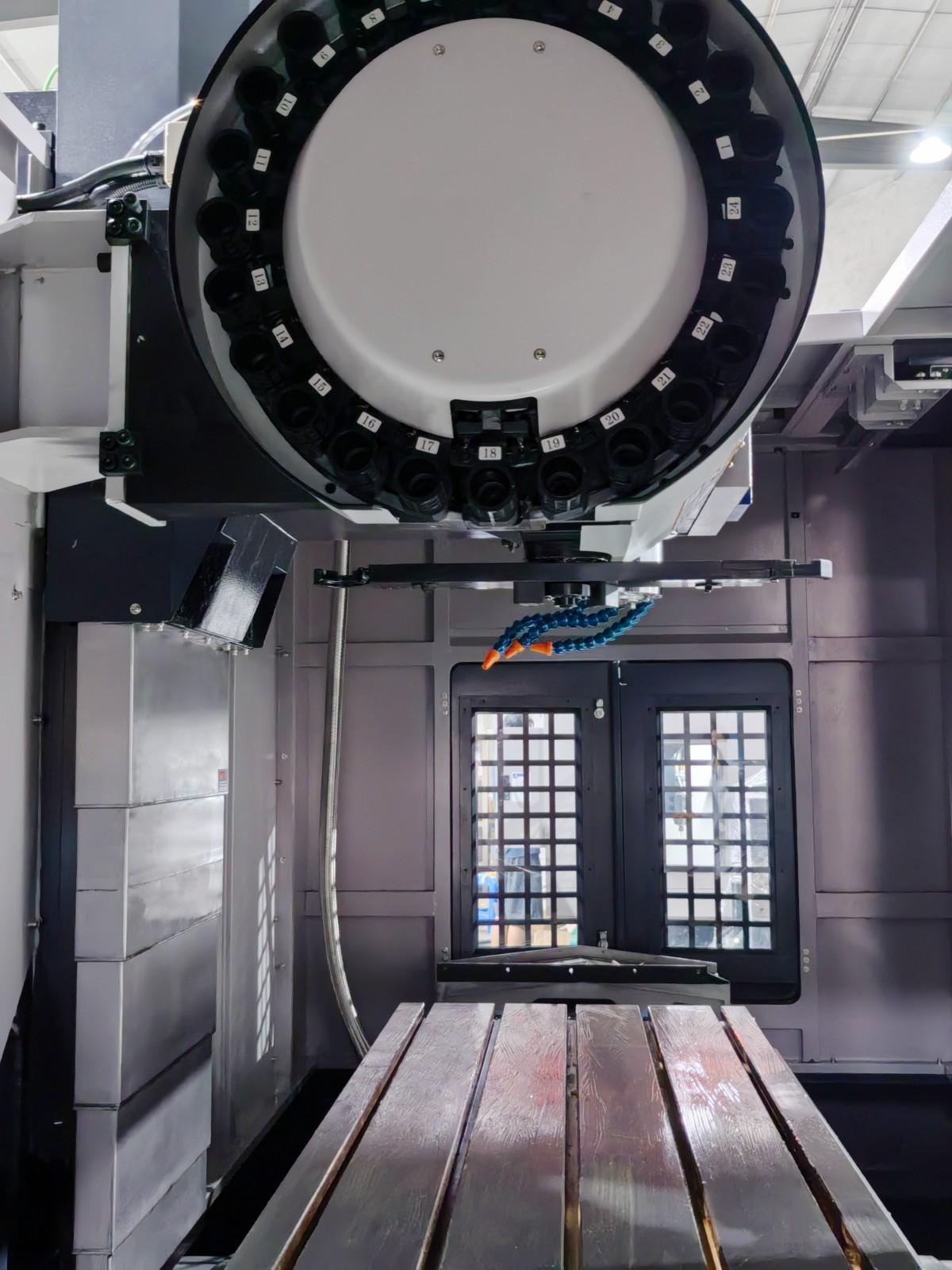

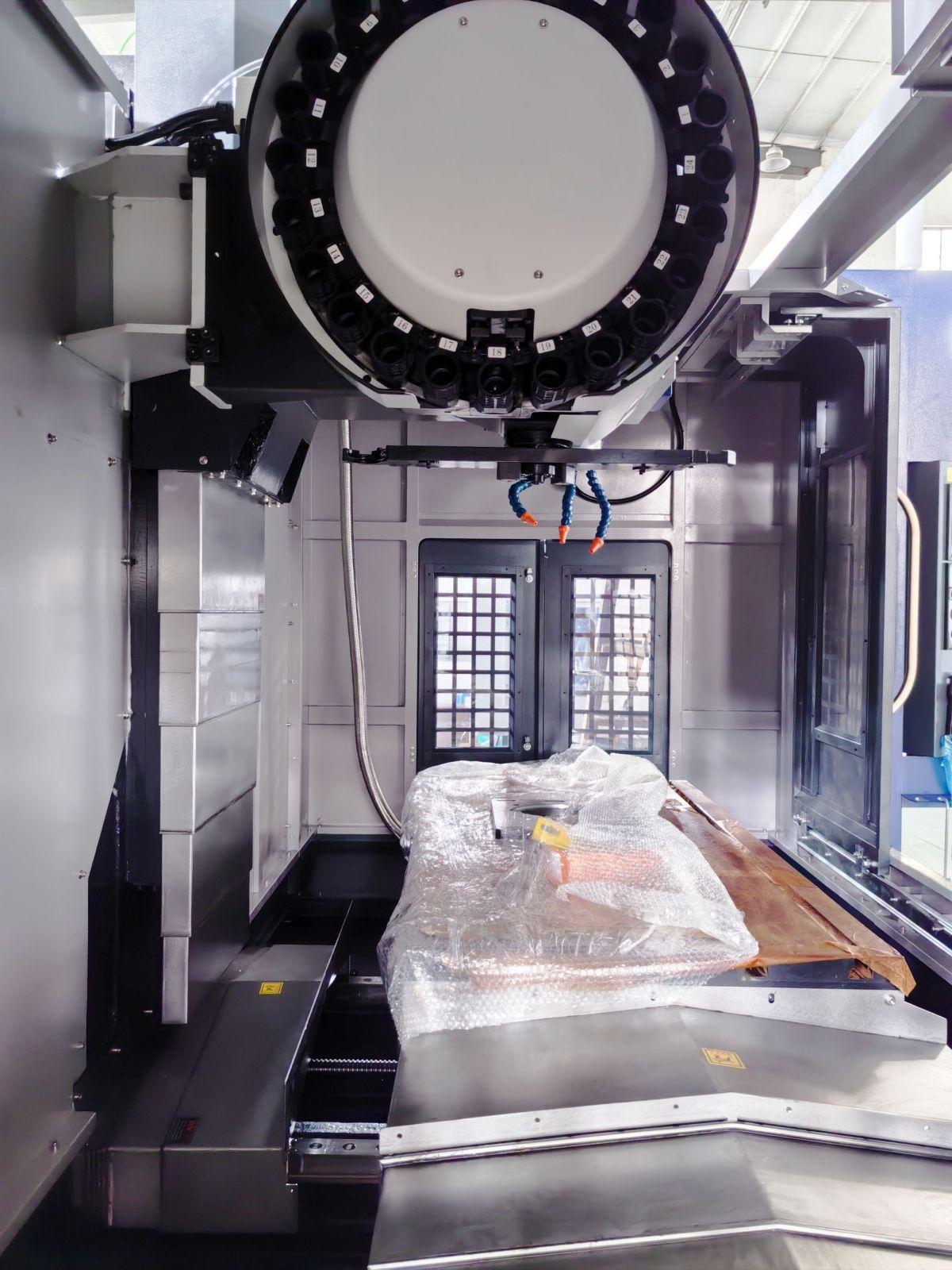

Automatic Tool Changer (ATC)
Tool Tool holder type: BT40
Tool storage capacity: -
"Motor"
spindle drive motor: bipl2/10000
Drive motor X, Y, Z axes: BISH22/3000 *2+ BISH22B /3000
guideway Structure
X, Y axis: Roller linear guide
Z-axis: Roller linear guide
Machine weight, floor space Machine Weight & Footage
Floor area: 3300×2600×2700mm
Machine weight: 8,000 kg
precision
Positioning precision: ±0.005mm
Repeatability precision: ±0.005mm
Power & Air Requirements
Power requirement: 35KVA
Air compression demand: 0.6-0.8Mpa
