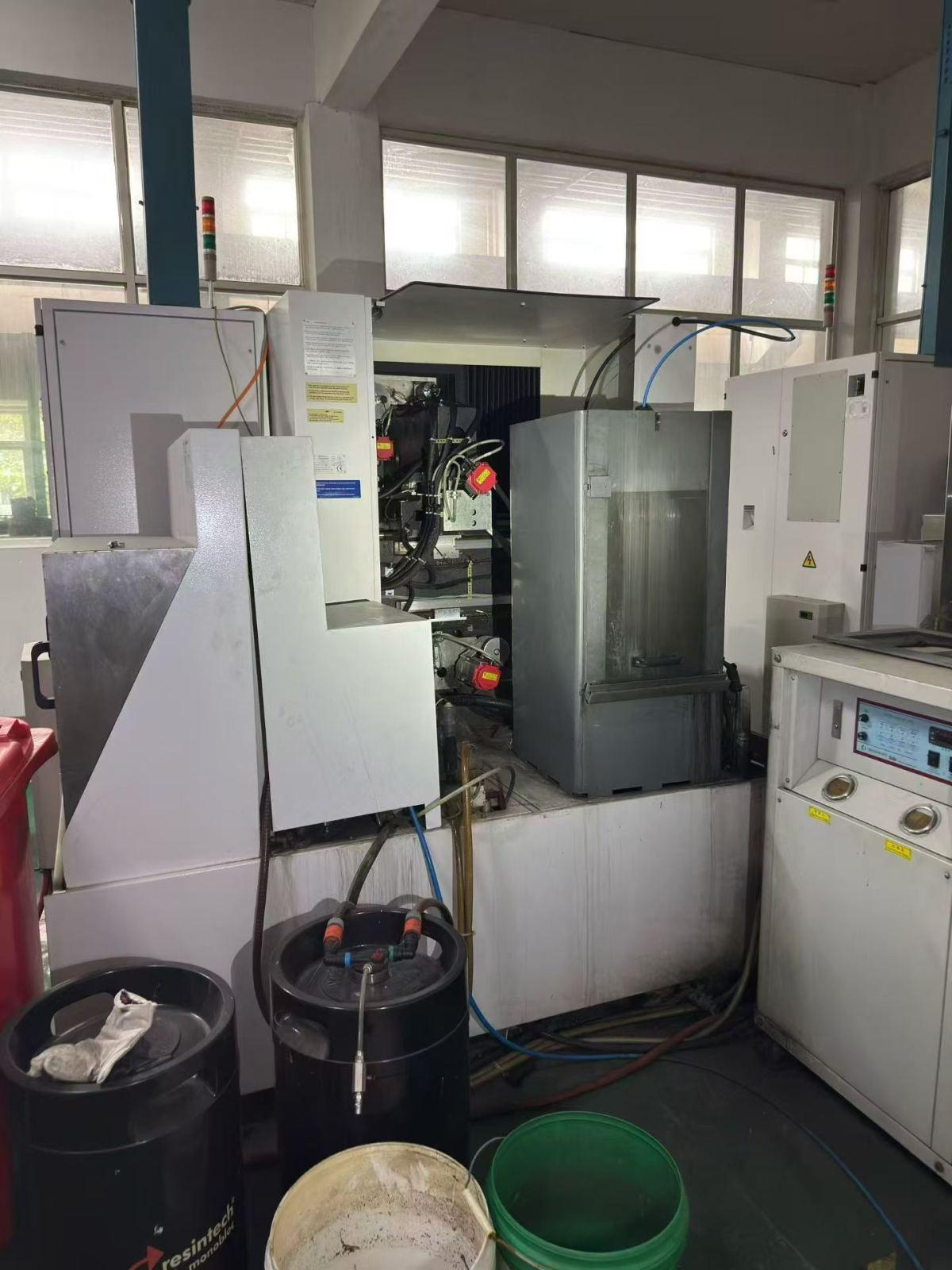

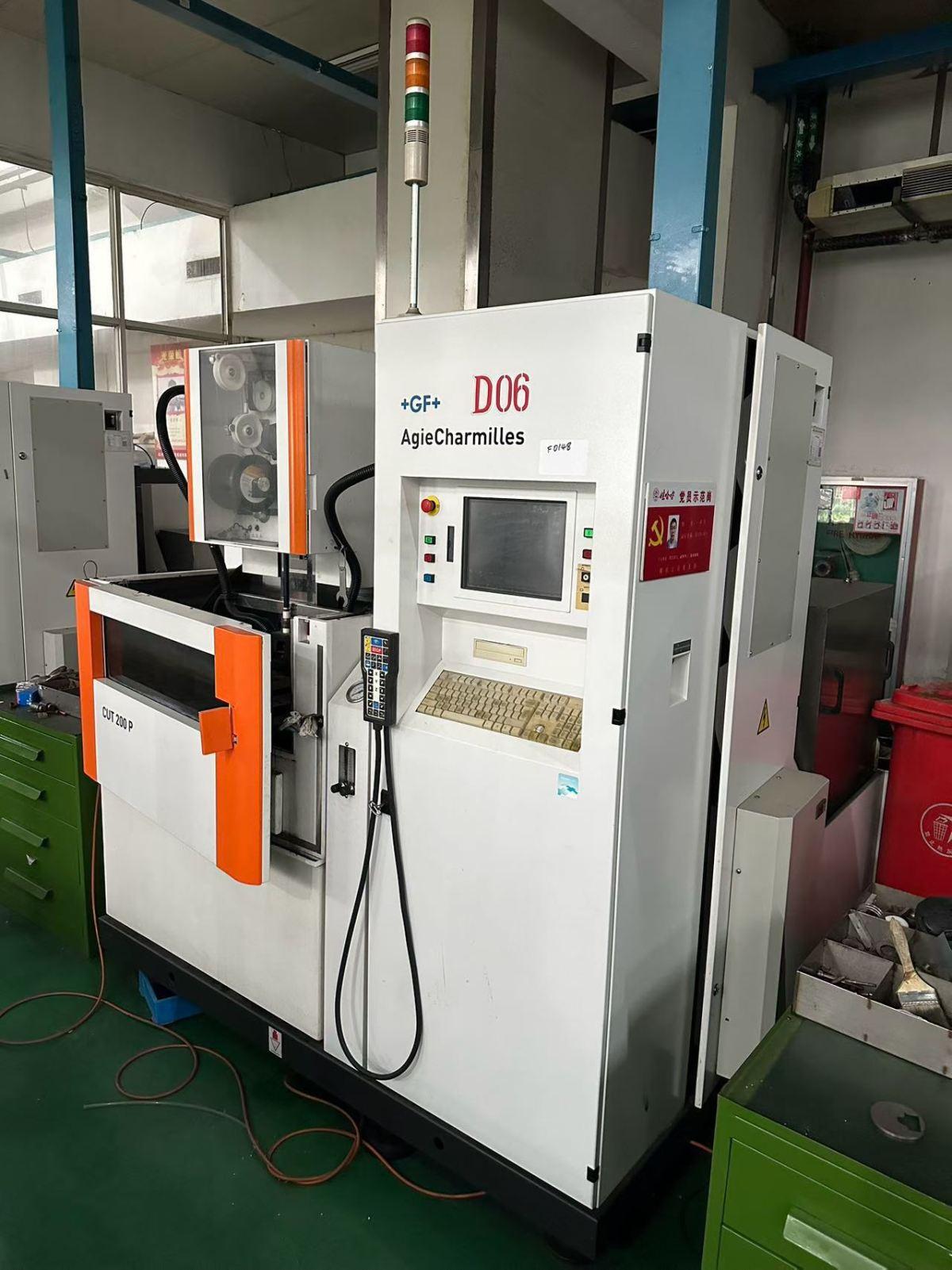

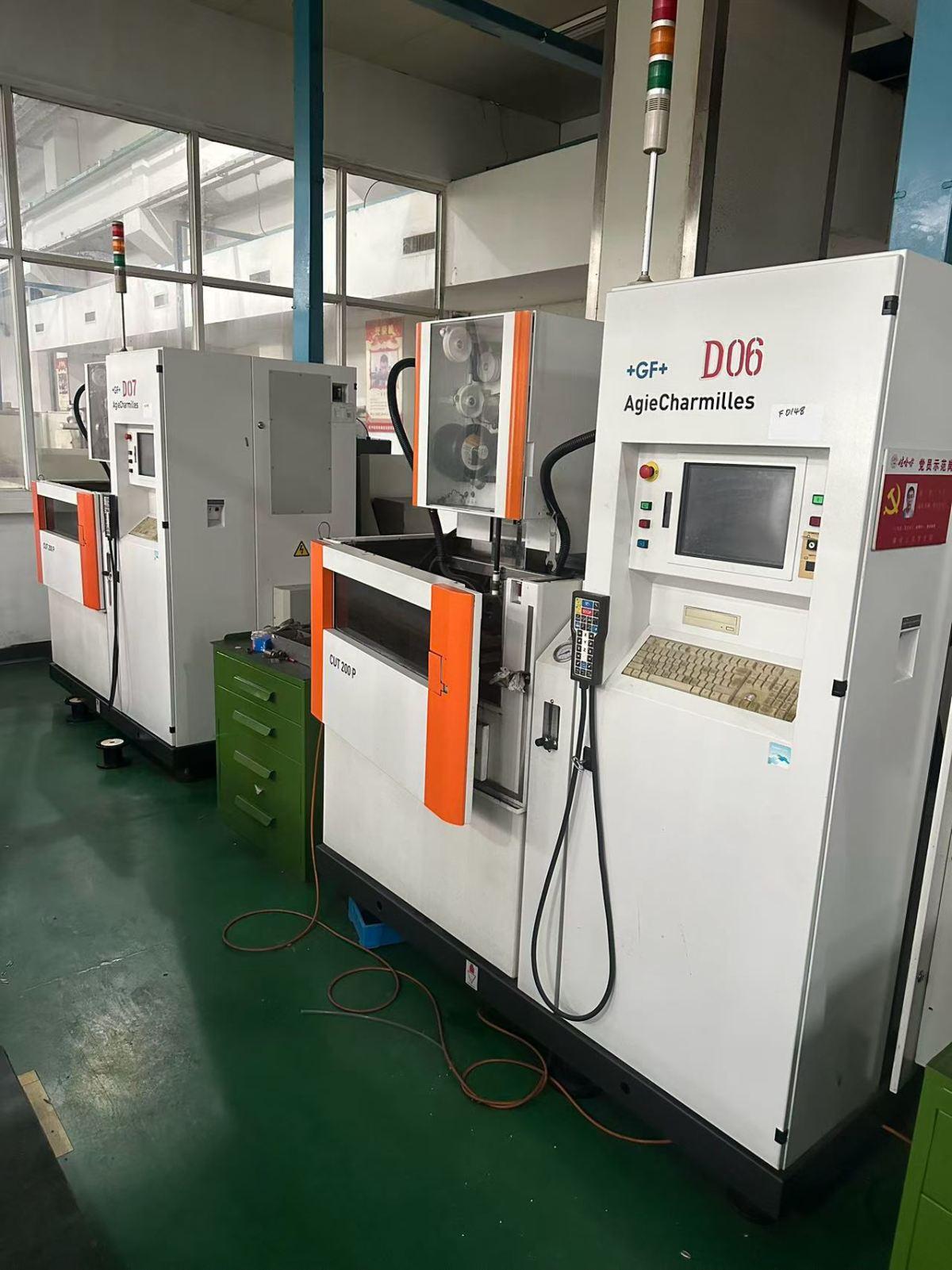

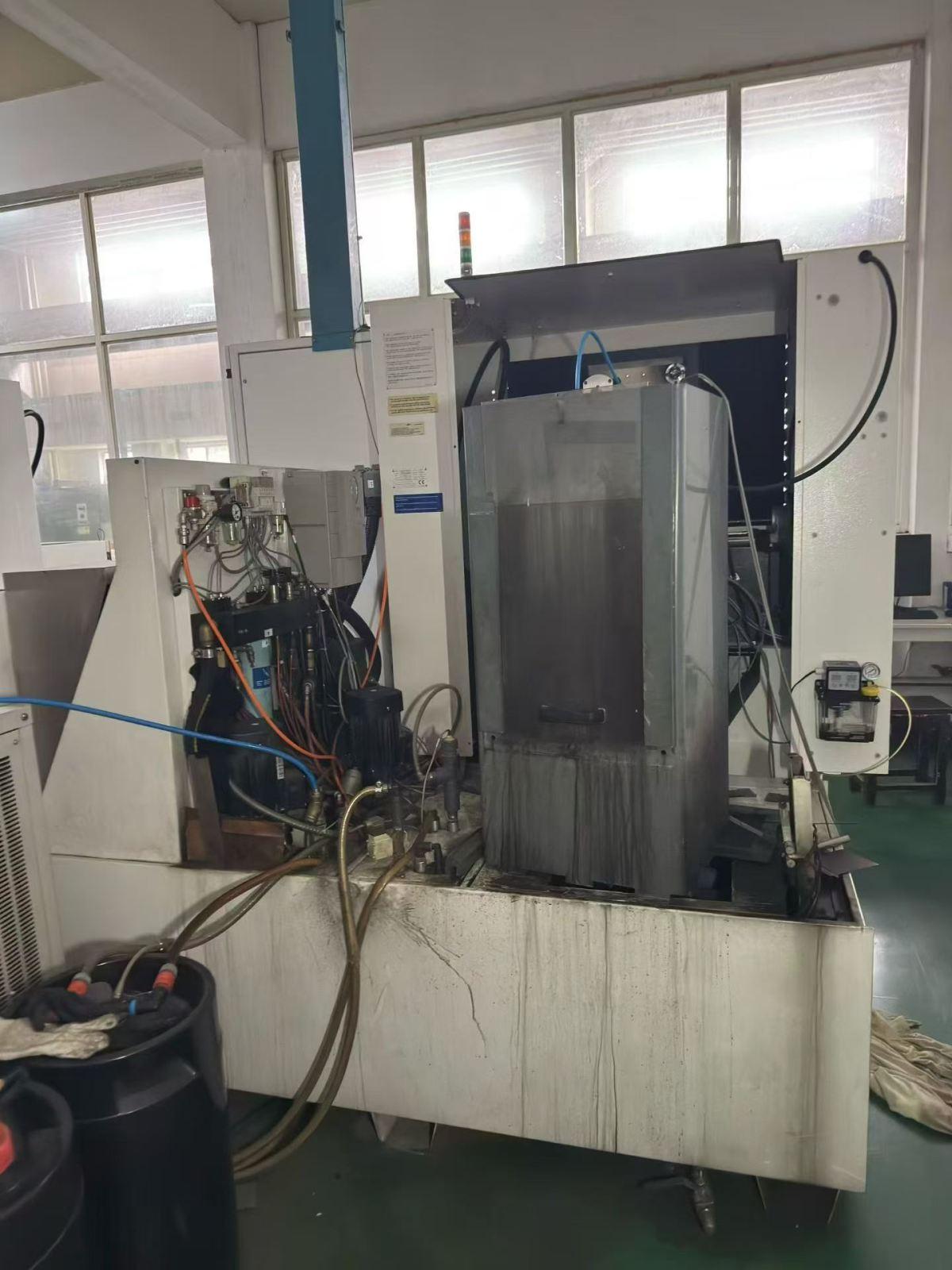

Charmilles CUT 200 P Wire cutting machine

Three-axis travel (X/Y/Z): 350 × 220 × 220 mm
U/V-axis travel: 350 × 220 mm
Worktable size: 680 × 450 mm
Maximum workpiece dimensions: 1000 × 550 × 220 mm
Maximum workpiece weight: 750 kg
Maximum taper angle: ±30°/220 mm (standard)
Electrode wire diameter: 0.15–0.30 mm (standard)
Machining method: Submerged machining

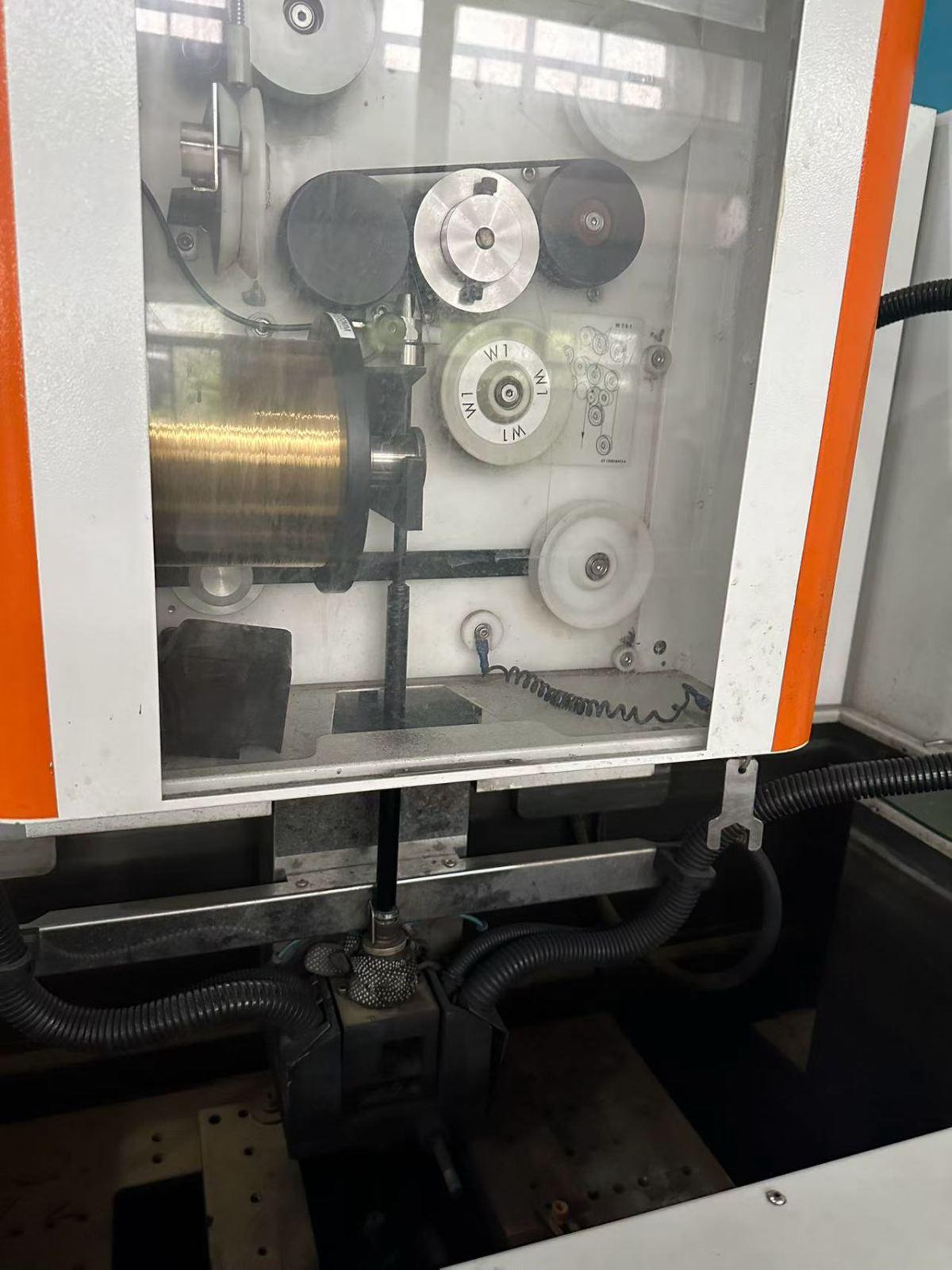

Automatic wire threading: Yes
Machine dimensions (W × D × H): Approximately 2030 × 2850 × 2200 mm
Machine weight (excluding working fluid): Approximately 3500 kg
