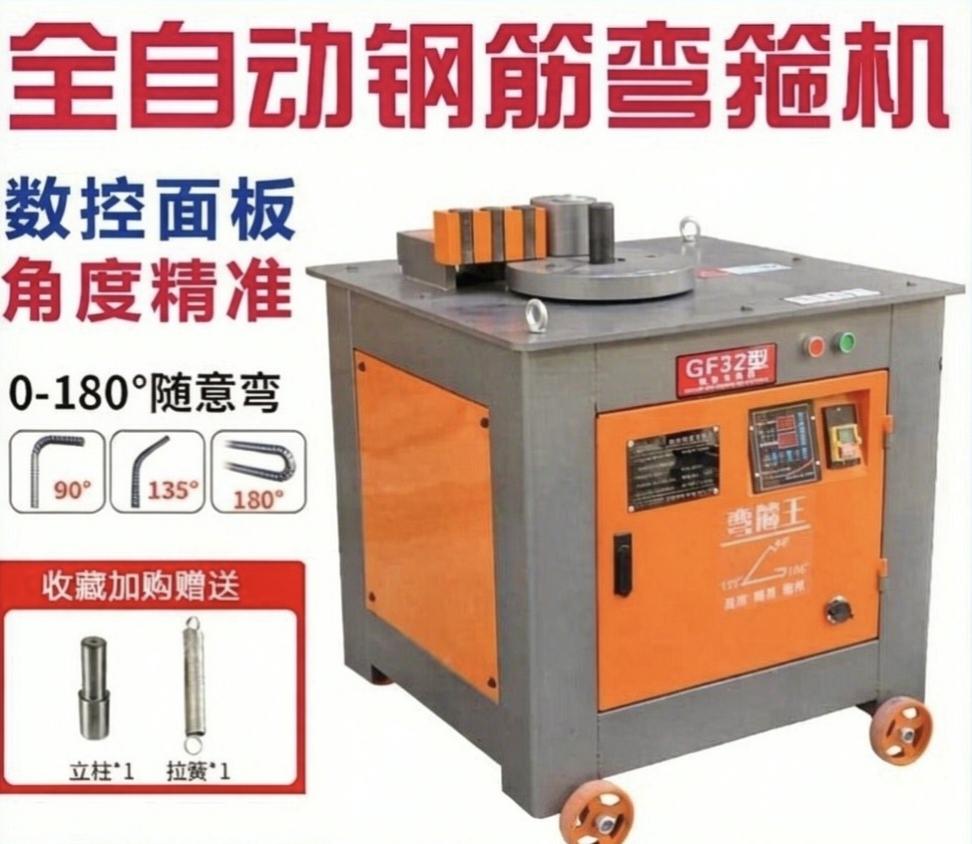

ZhuoYu GF32 other

Core machining capacity
Bending capacity (round steel) : Φ4-32mm
Bending capacity (threaded steel) : Φ4-28mm
Power and drive CNC System
Motor power: 3 KW
Motor speed: 1440 r/min
Working speed: 20-30 times per point
Working voltage: Three-phase 380V
Drive mode: gear drive
gear lubrication: Grease lubrication
Control and Operation
Bending speed: approximately 500 to 600 stirrups per hour
Angle adjustment range: 0-180° (CNC model 0-360°)
Preset Angle: 90° / 135° foot switch
Operation mode: Manual control/foot pedal, automatic return
Control mode: CNC panel/travel switch
Physical specifications of the equipment
Overall weight: approximately 200-320 kg
Overall dimensions: Approximately 830 × 720 × 890 mm
