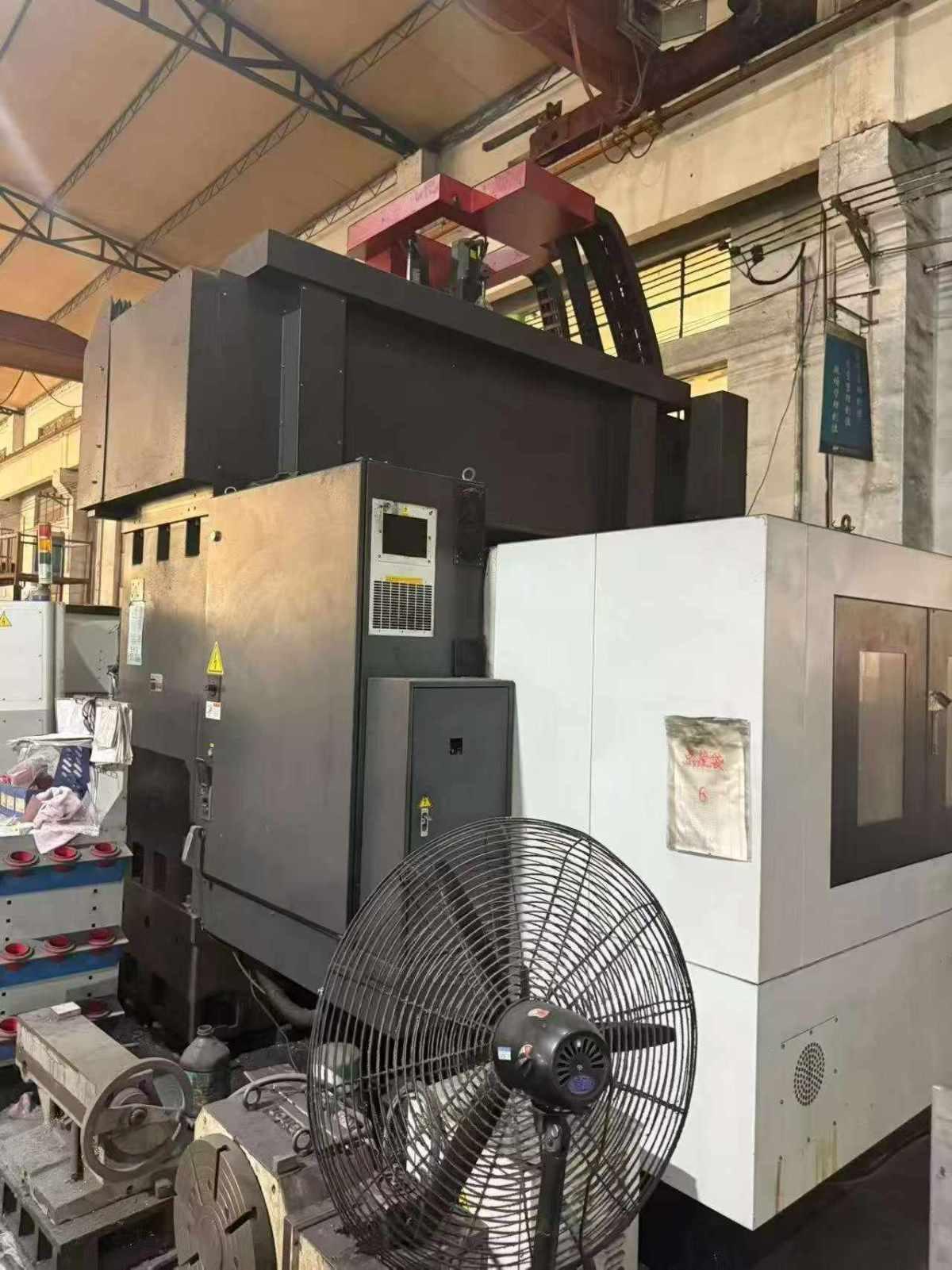

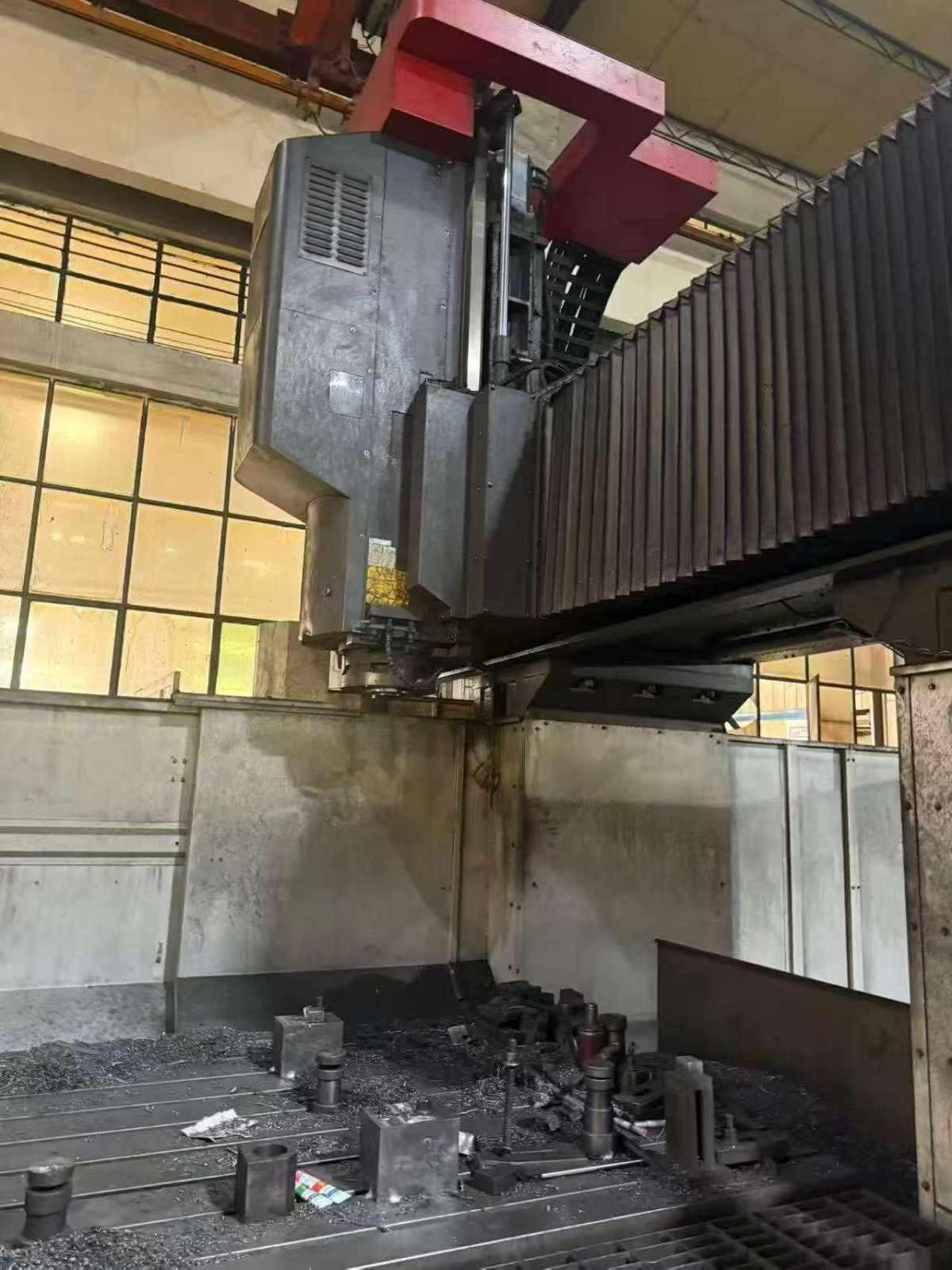

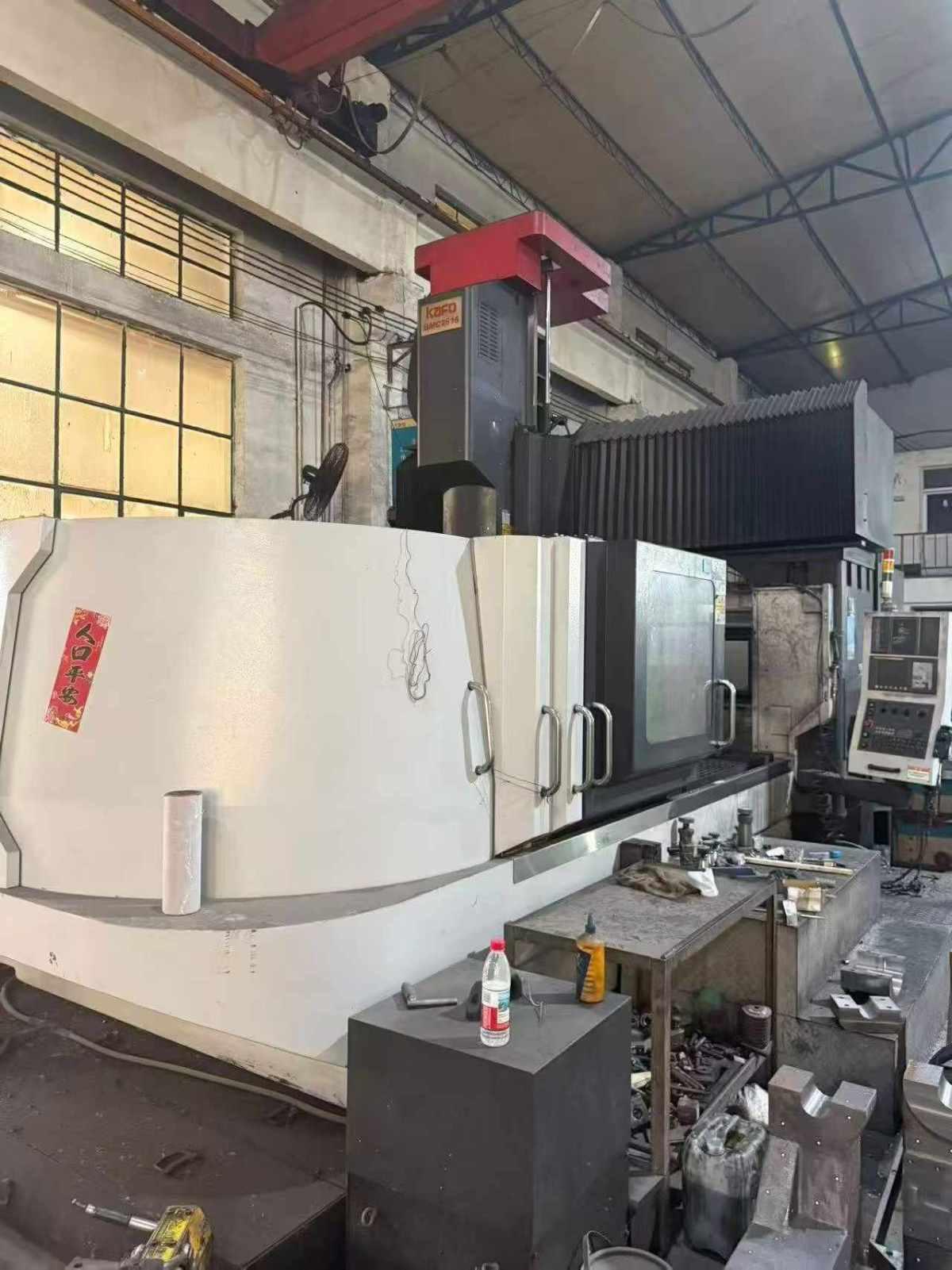

KAFO BMC-2616 Gantry machining centre

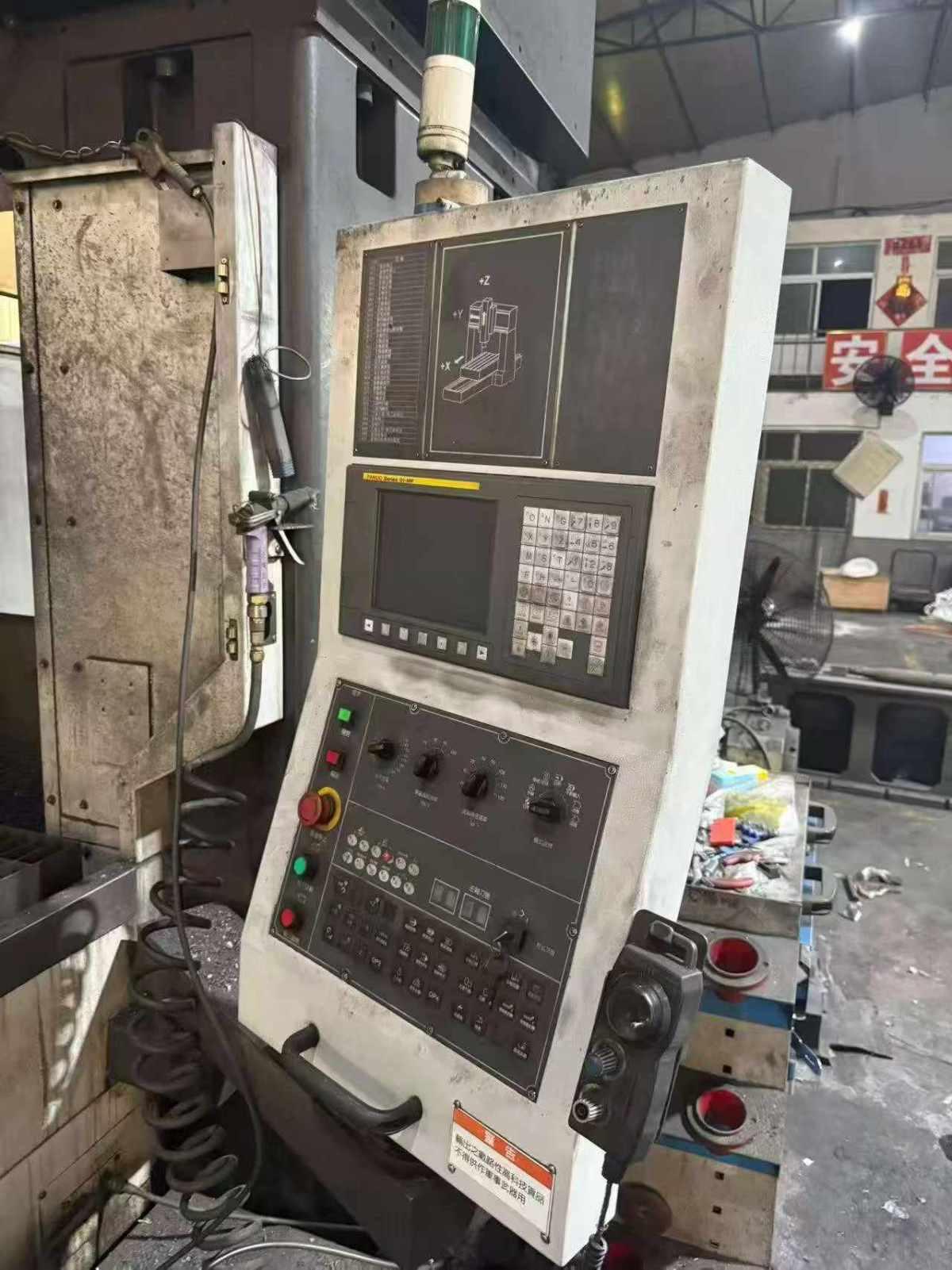

CNC System: FANUC 0i-MF
Three-axis travel (X/Y/Z): 2600 × 1600 × 850 mm
Worktable size: 2500 × 1500 mm
Gantry width: 1740 mm
Gantry height: 1300 mm
Spindle taper: BT50
Spindle speed: 6000 rpm
Distance from spindle nose to worktable: 1050 mm
Overall dimensions (L × W × H): 7800 × 3700 × 4150 mm
Overall weight: Approximately 29 tons
Guideway structure: Two linear guideways and one hard guideway
Configuration: Angle head
