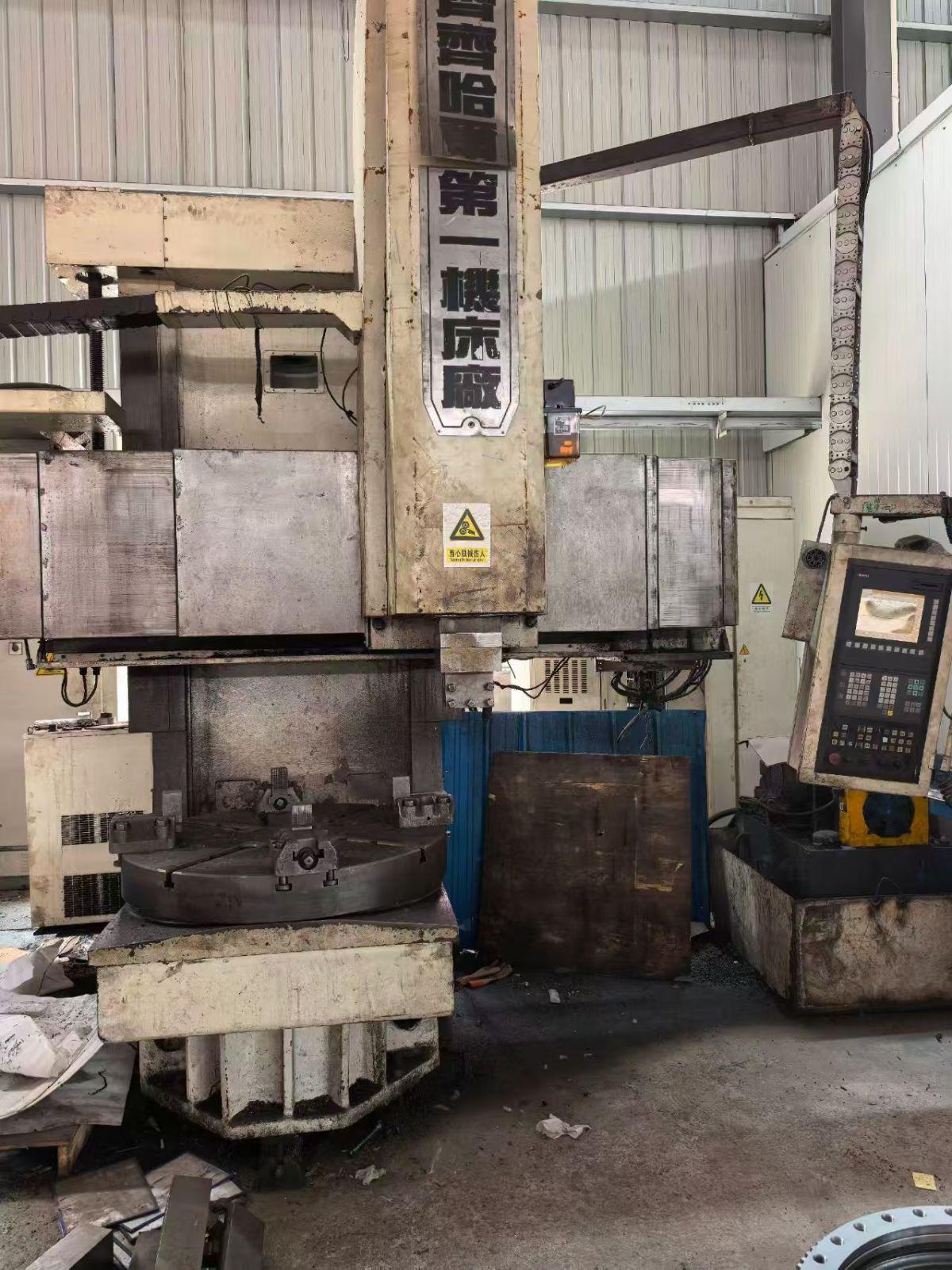

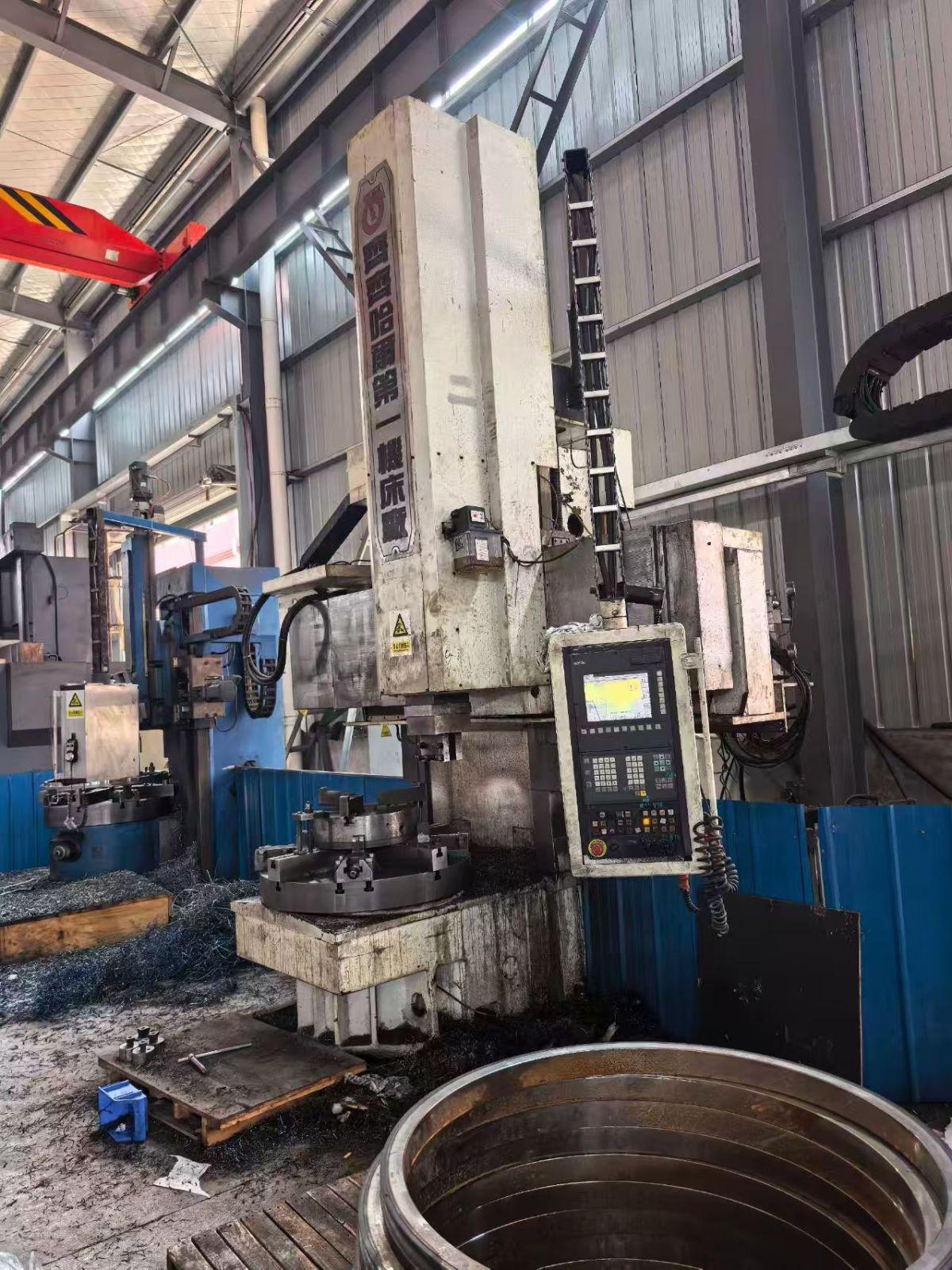

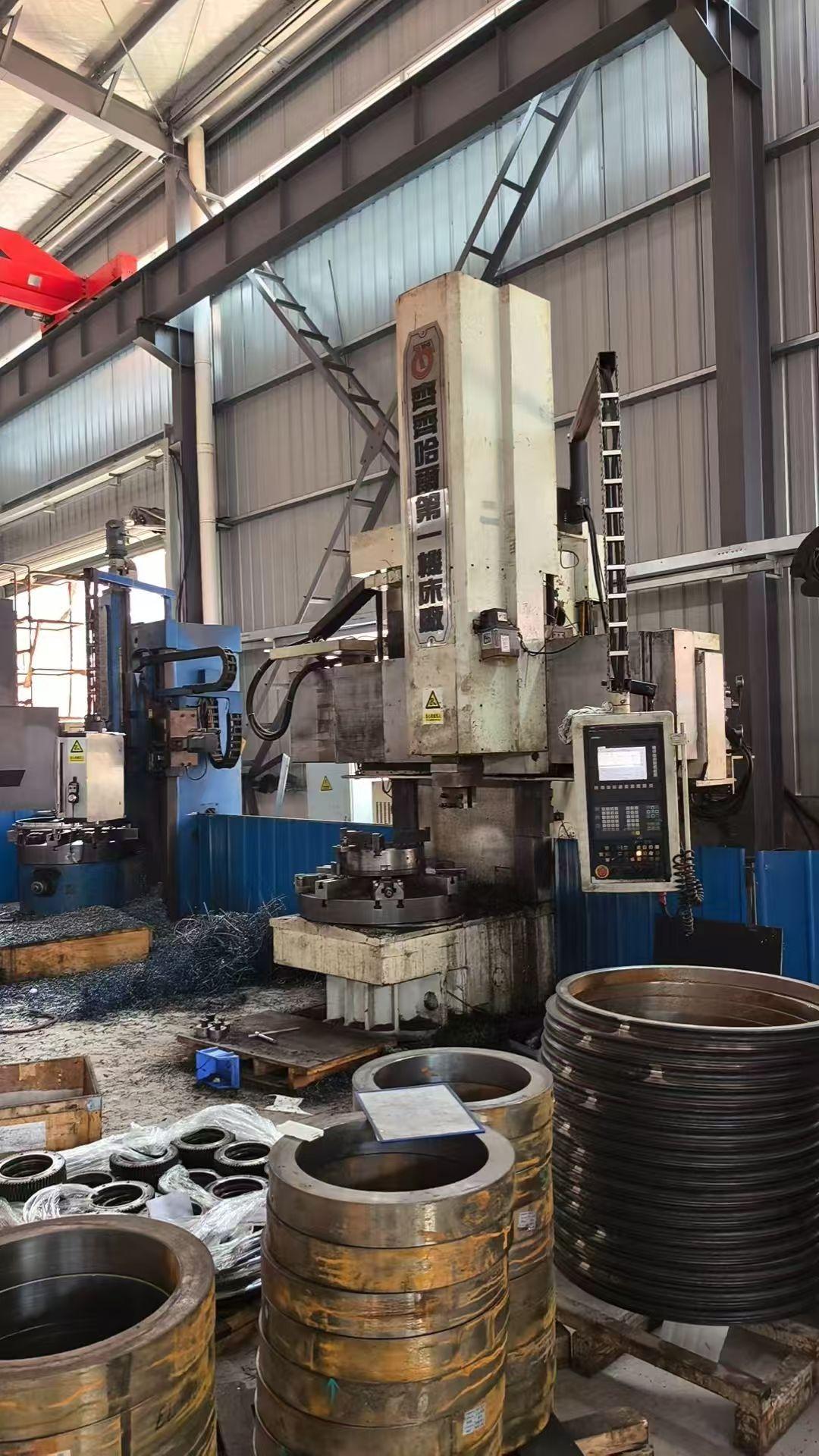

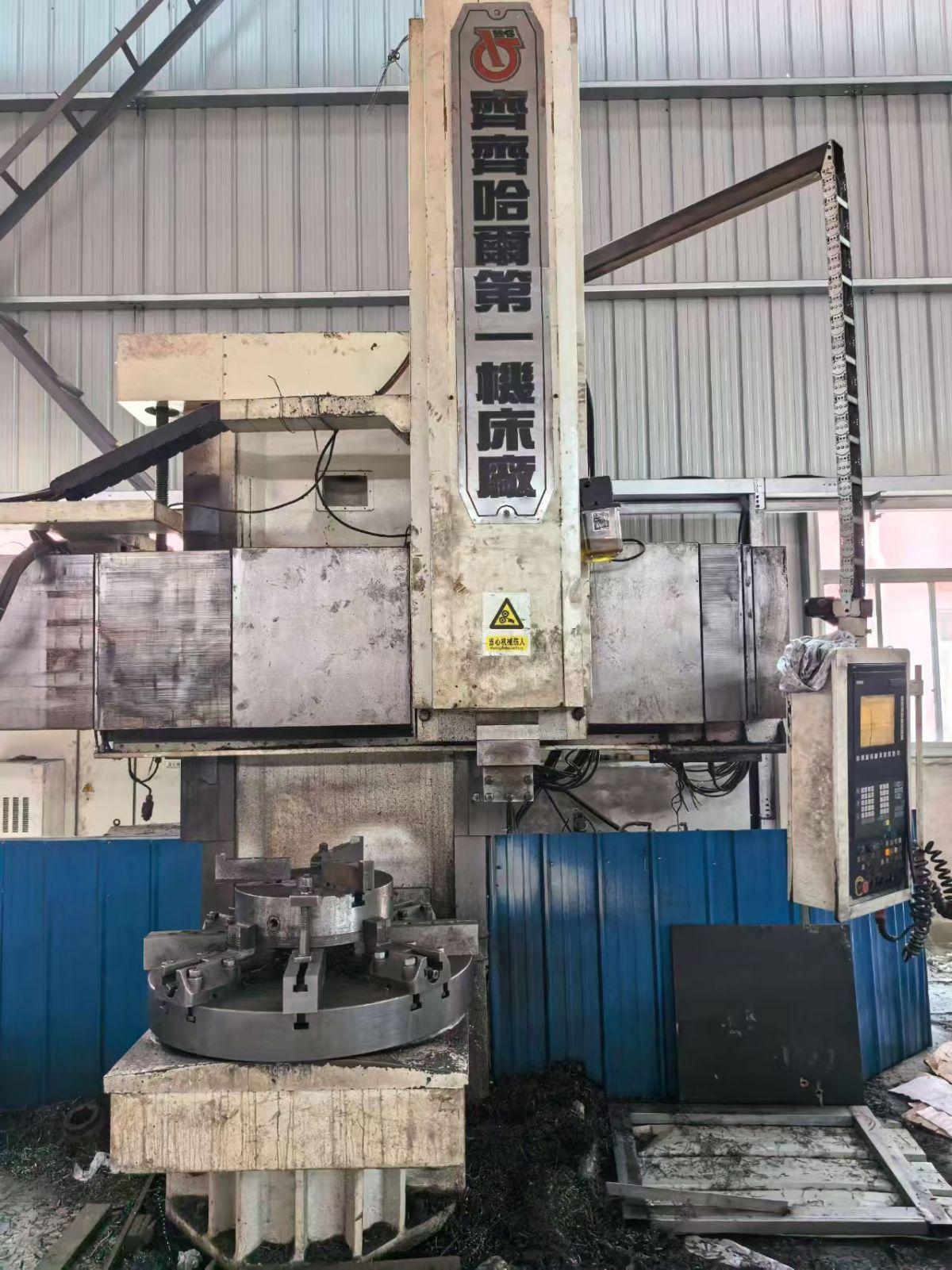

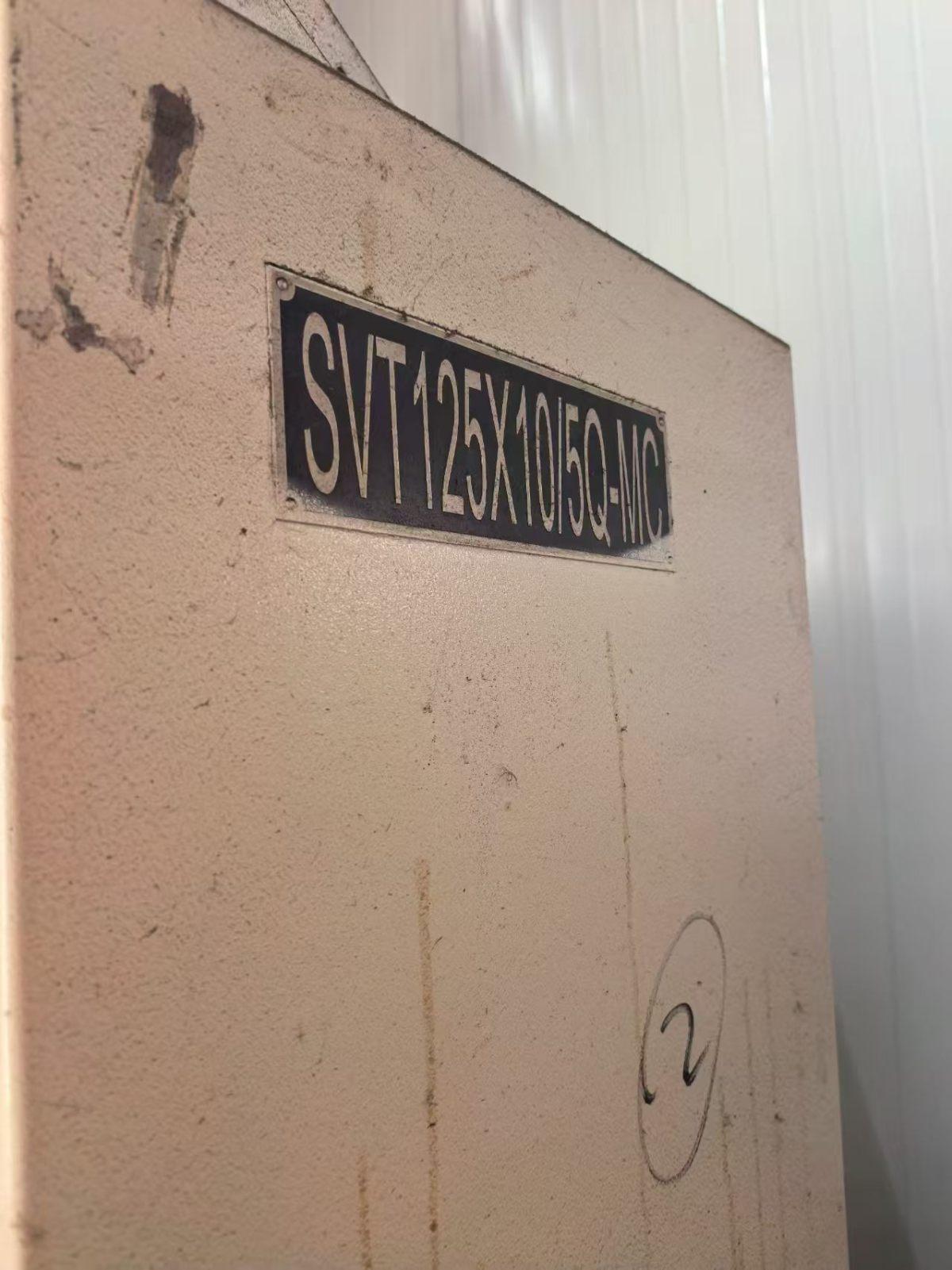

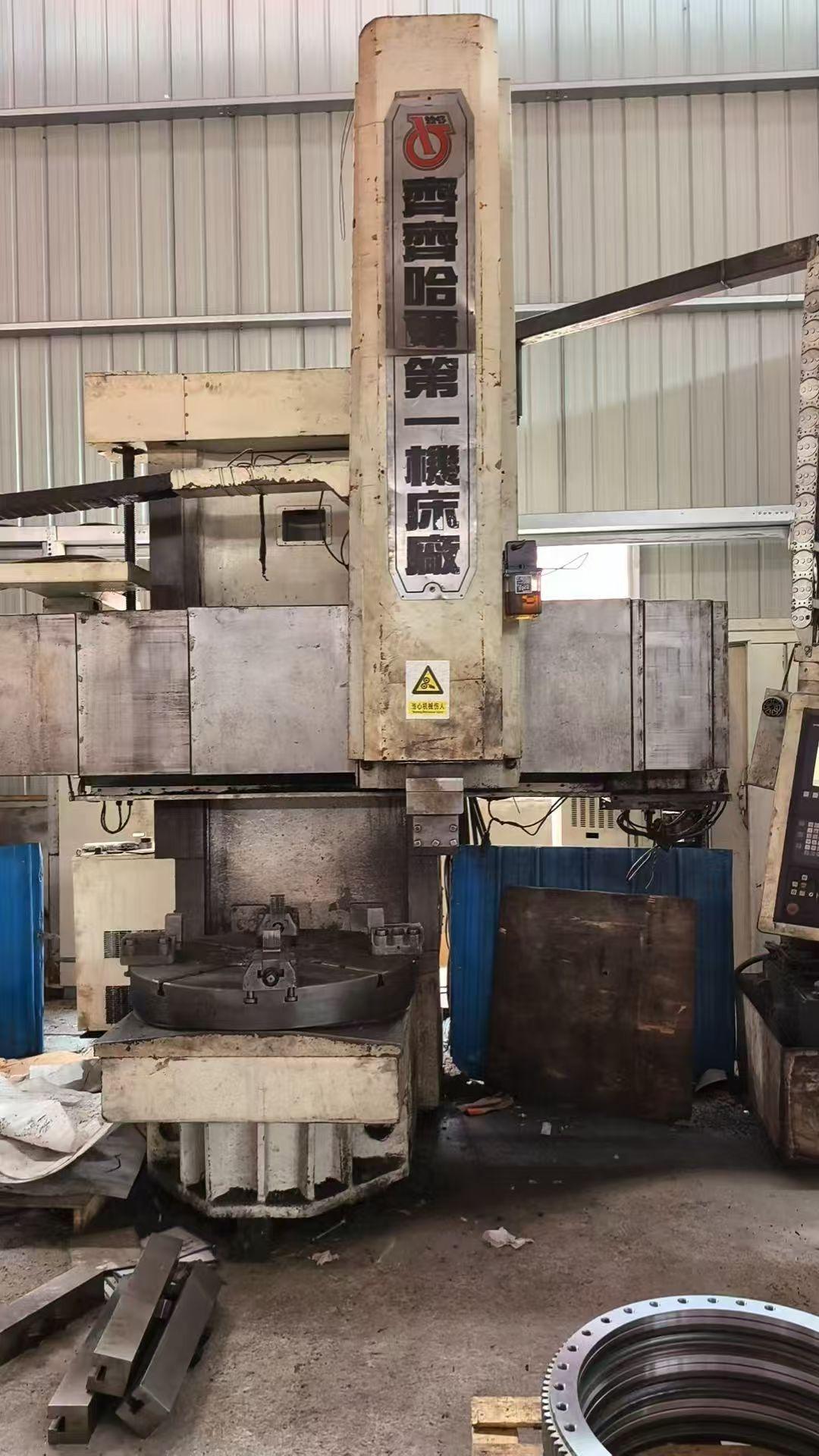

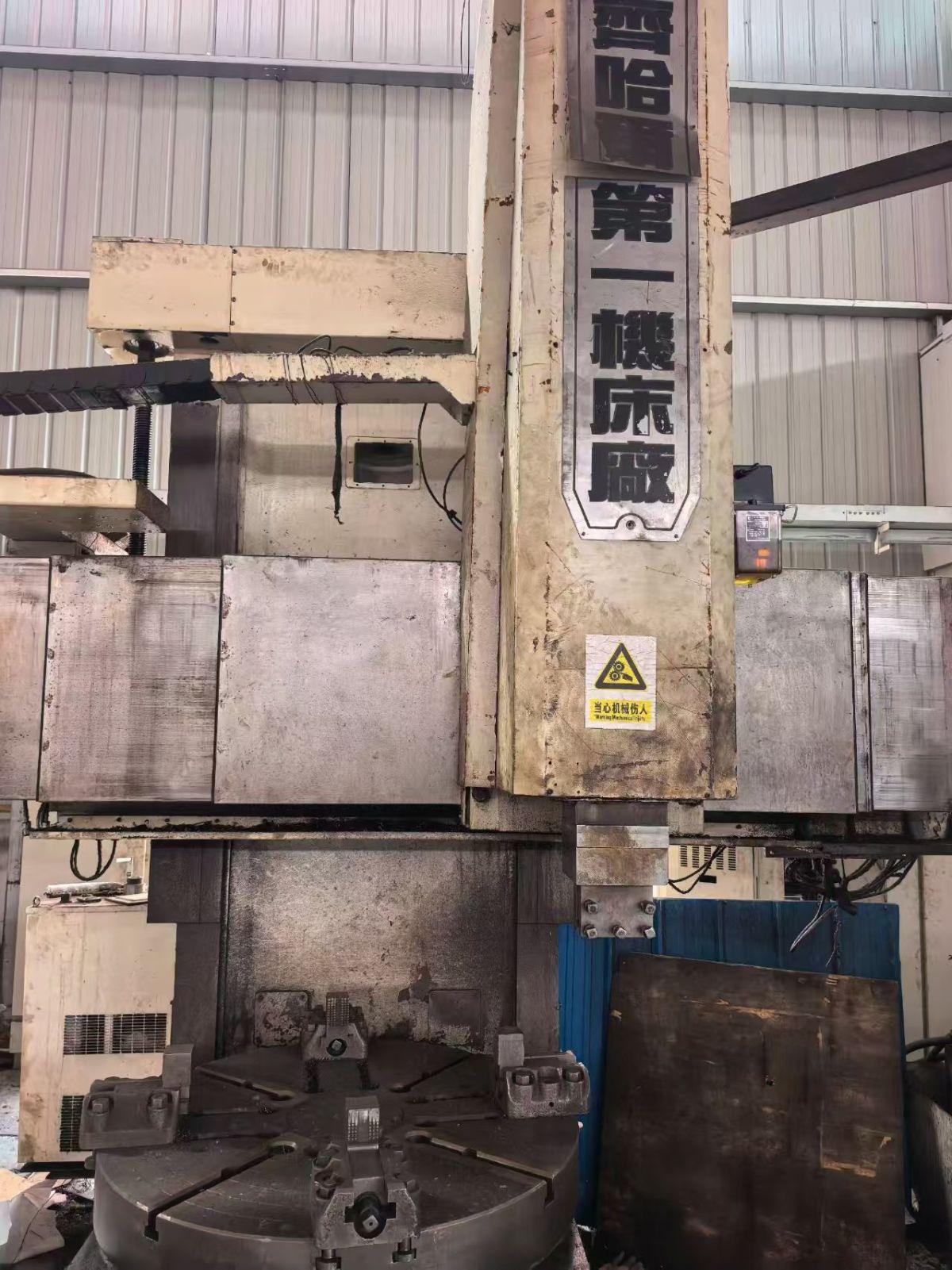

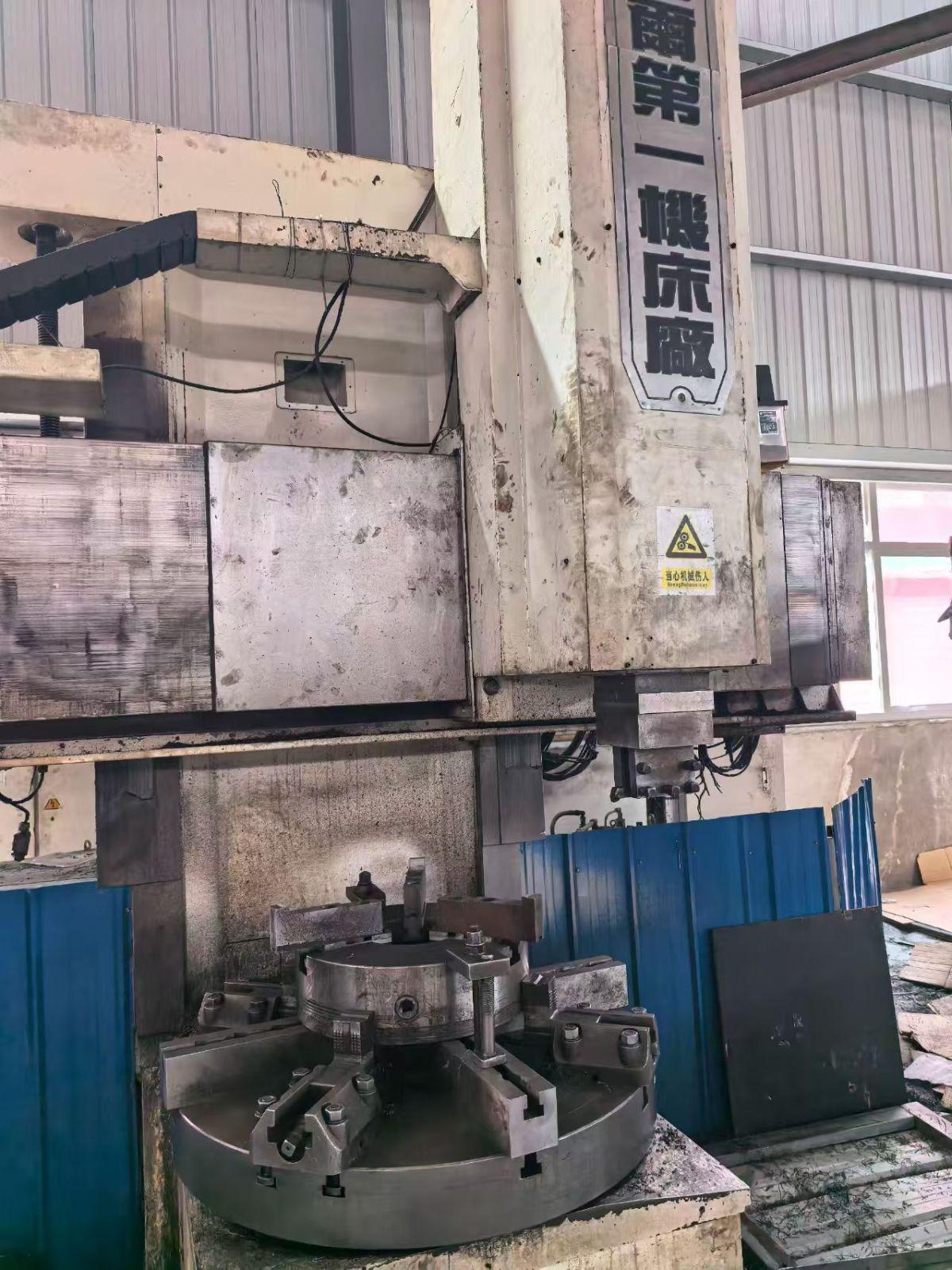

QiChong SVT125 CNC vertical lathe

The maximum turning diameter of the machining range is 1250mm
The maximum machining height is 1000 mm
The maximum load of Worktable: 5000 kg (5 t).
The diameter of Worktable is 1000 mm

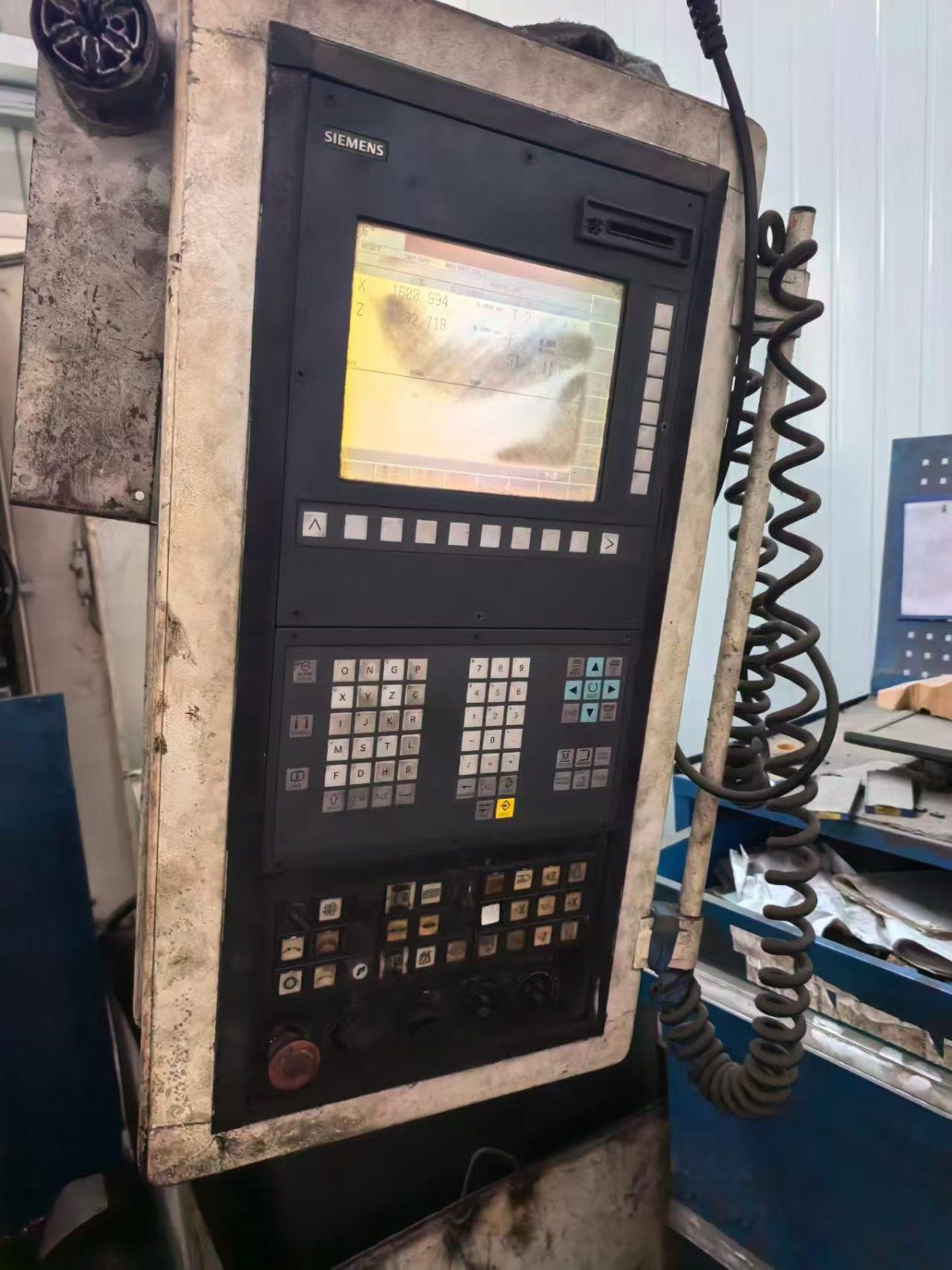

The power of the main motor of spindle CNC System is 15 kW / 22 kW (standard type/heavy-duty type)
spindle speed range is 3 to 2000 r/min (stepless speed regulation).
spindle drive is driven by an AC actuating motor and an imported gearbox
The rapid movement speed of the feed CNC System tool holder is 12 m/min (X/Z axis).
The drive mode is an AC actuating motor directly connected to a ball screw rod
