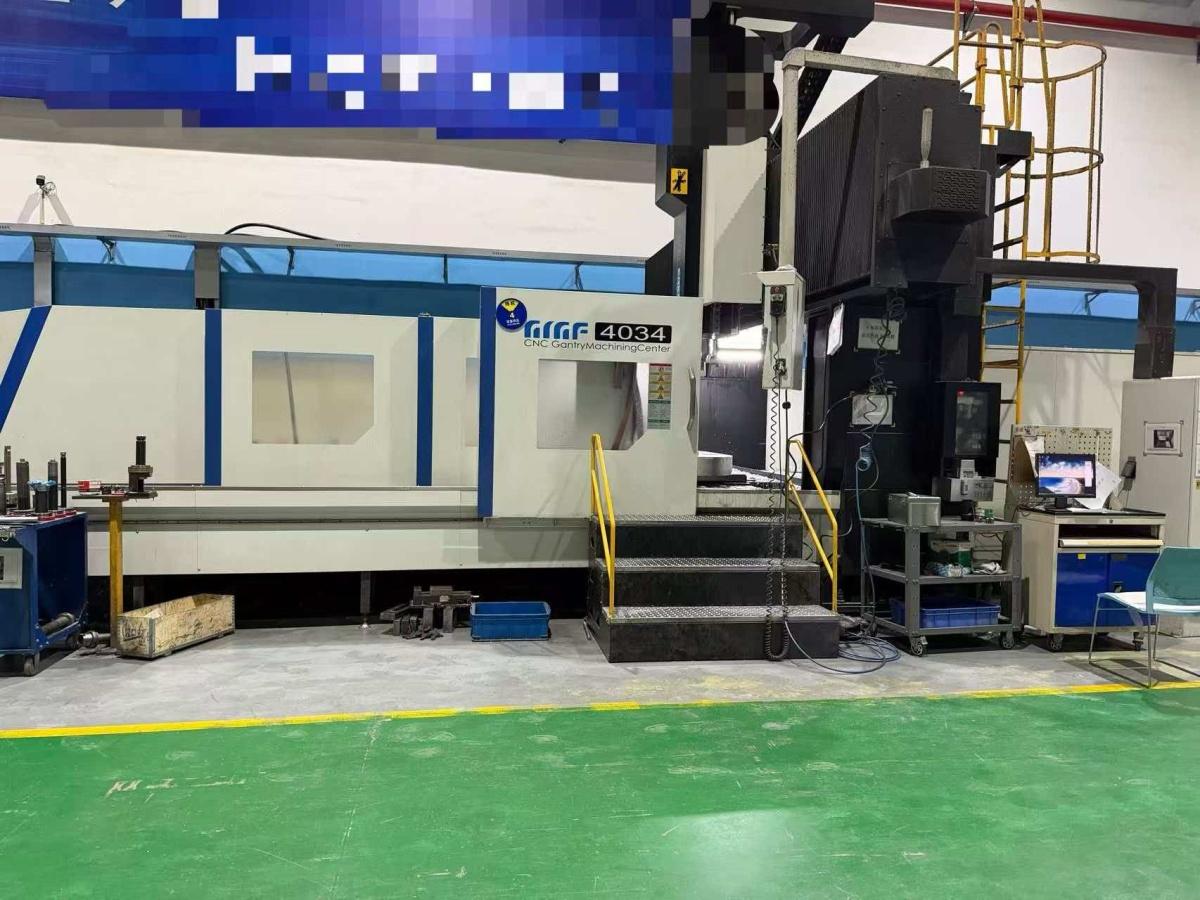

Guosheng GMF4034L Gantry machining centre

Worktable size: 4000 × 3400 mm
three-axis travel (X/Y/Z) :
X-axis: 4000-4200 mm
Y-axis: 3400-3800 mm
Z-axis: 800 to 1000 mm
Worktable load: 15,000
spindle taper: BT50
spindle drive method: Two-speed gear drive
Maximum spindle speed: 6000 rpm
Main motor power: 22/26 kW
X/Y axis: 10,000-15,000 mm/min
Z-axis: 8000-12000 mm/min
Cutting feed rate: 1 to 10,000 mm/min
Positioning/repetitive Positioning precision: ±0.005mm / ±0.003mm
