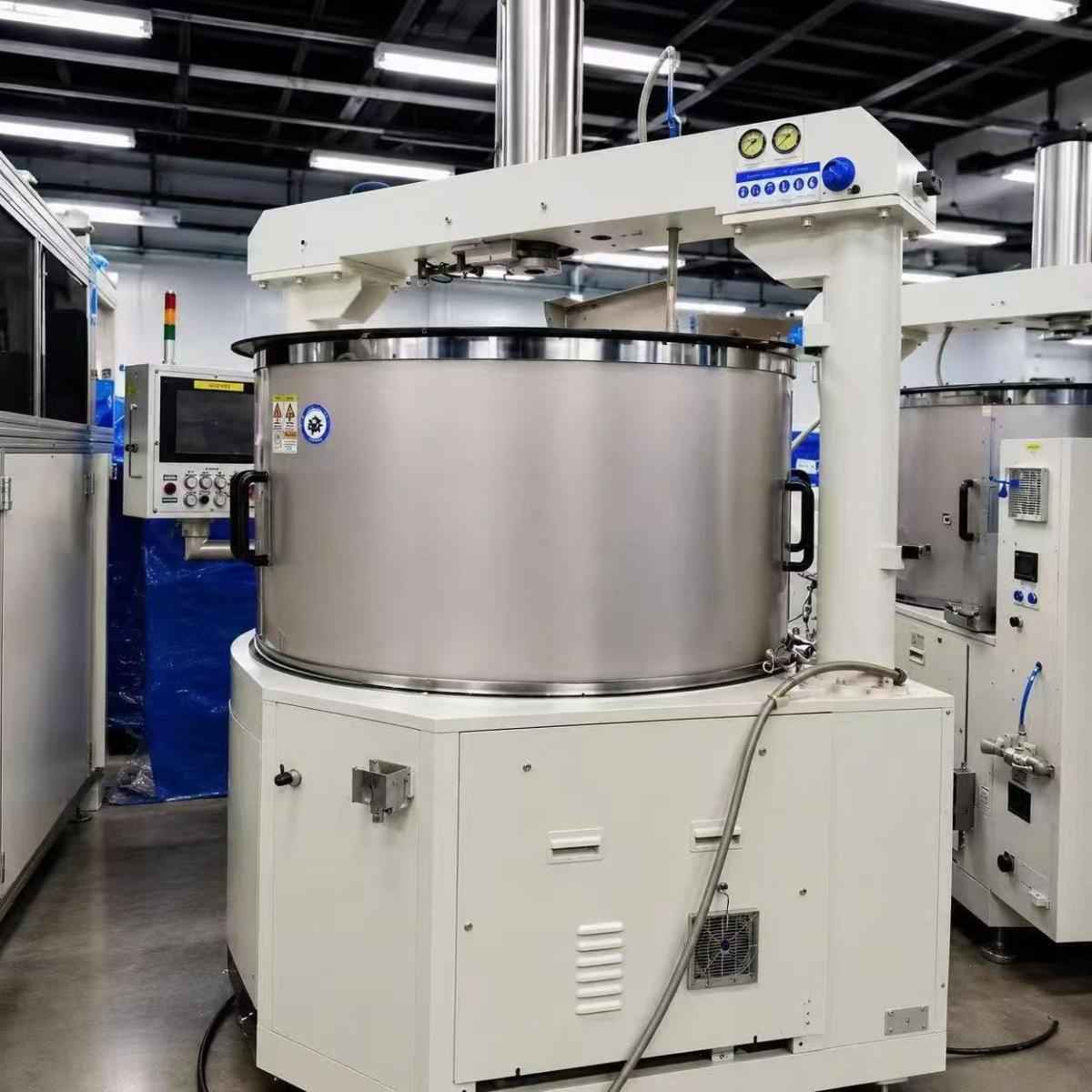

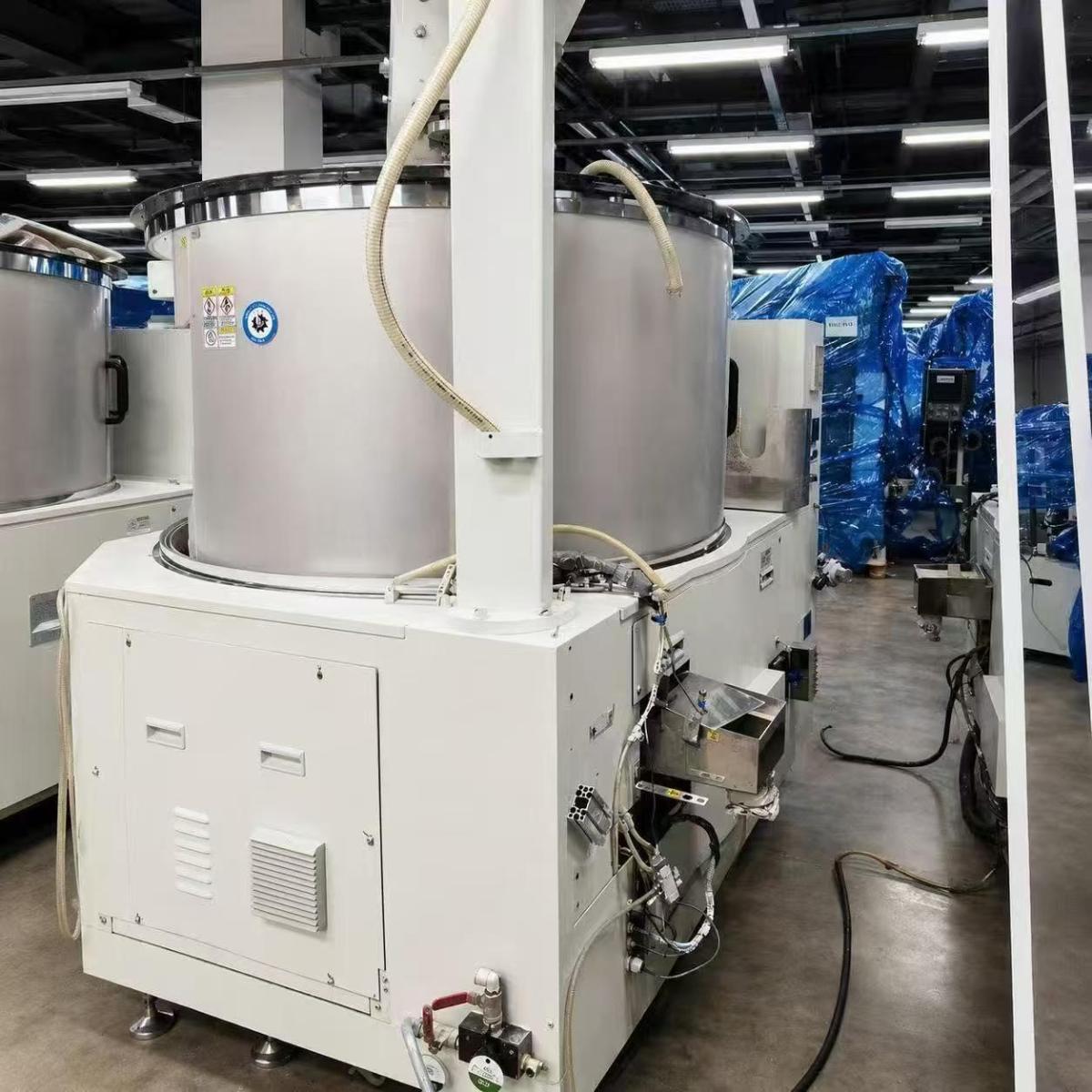

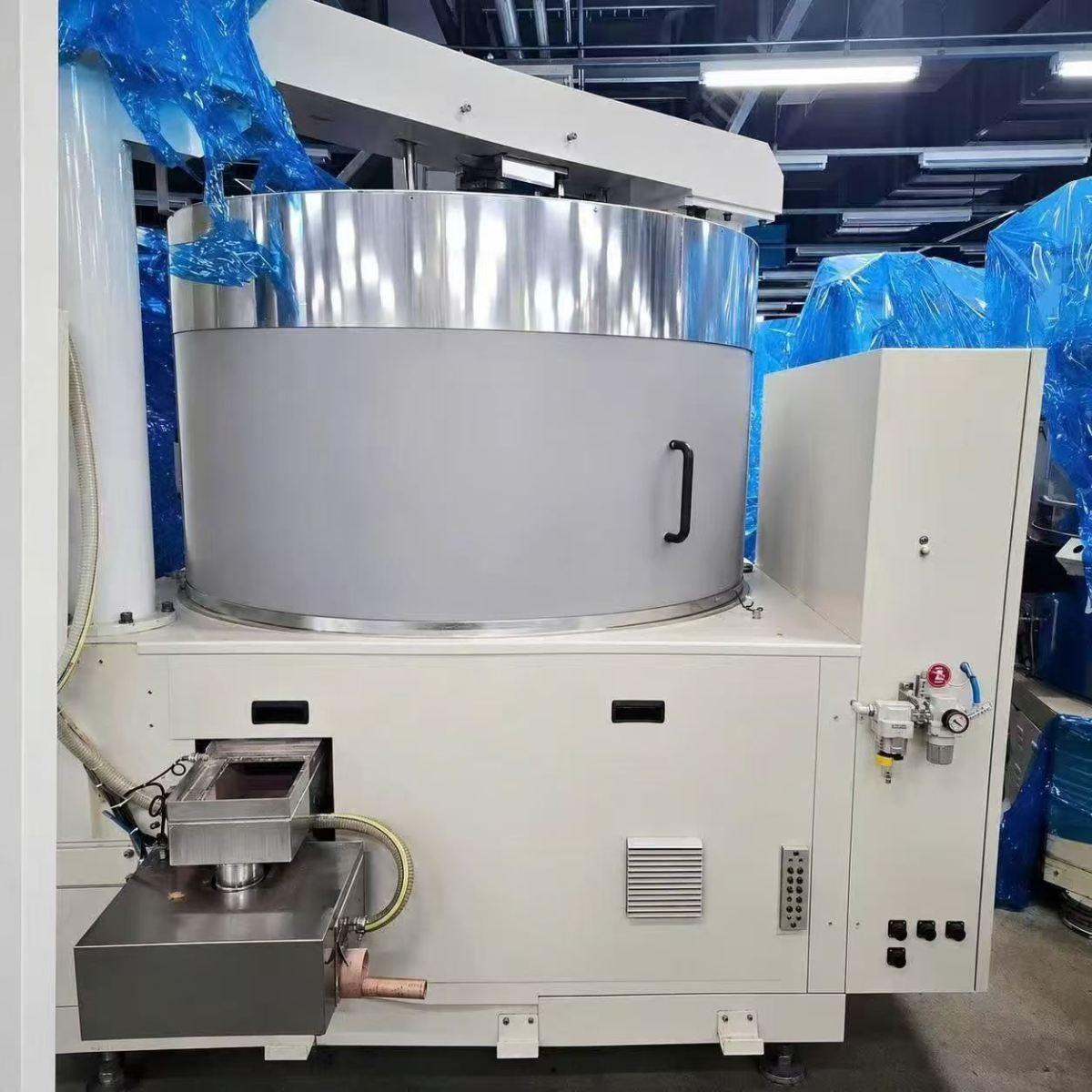

AM-Technology Co., Ltd. ADP-1605 Grinding machines

The diameter of the polishing disc is 300mm to 400mm (corresponding to the large disc surface design of model 1605).

The maximum machining  workpiece size is Φ 200mm (supporting circular or square thin sheets).

The maximum workpiece Load thickness is 3.0 to 15.0 mm (adjusWorktable thickness of the planetary gear for adaptation)

The target machining  precision planar degree is ≤ 0.005mm/total thickness error (TTV) is ≤ 0.6 μm

Surface roughness Ra ≤ 0.125 μm (mirror-like polishing)

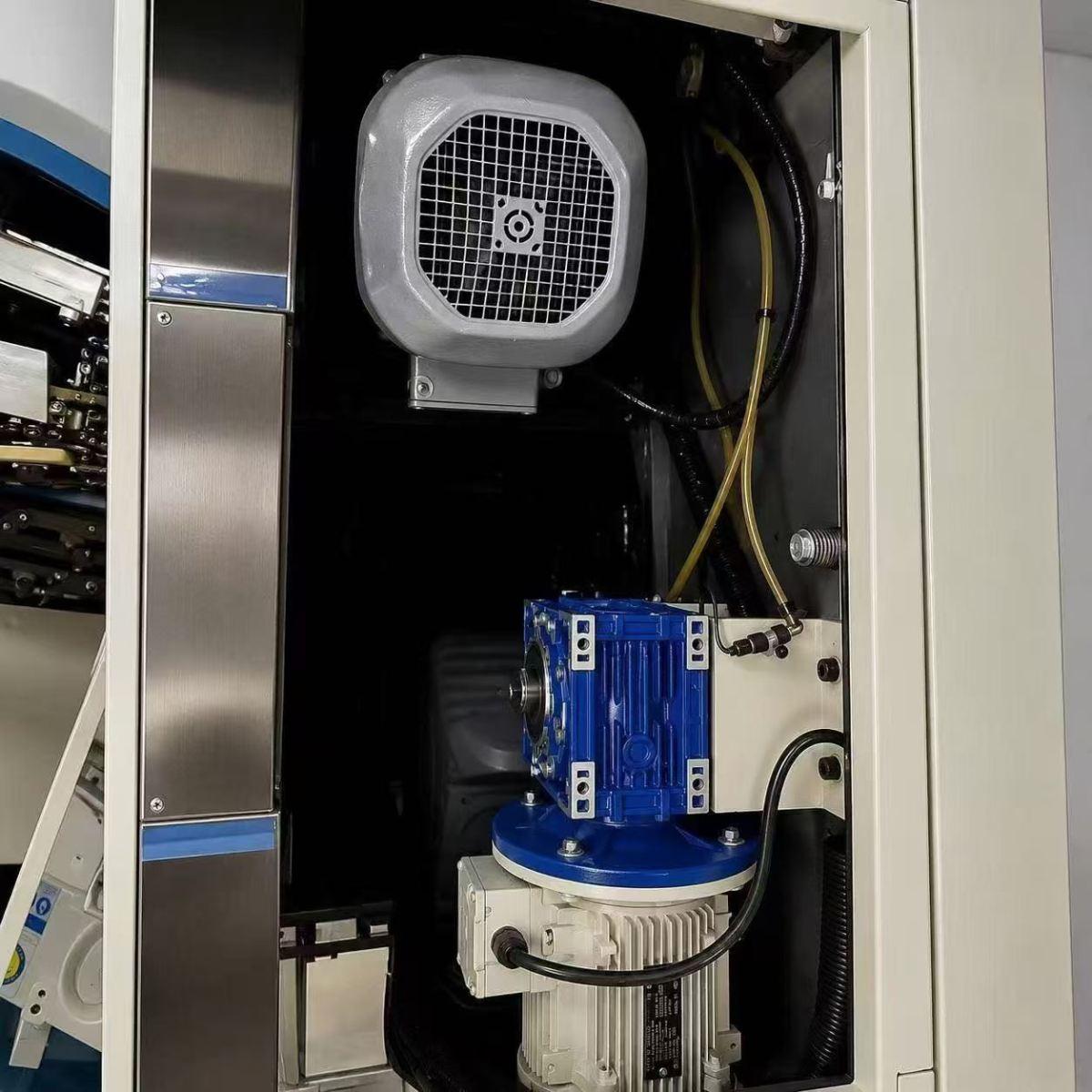

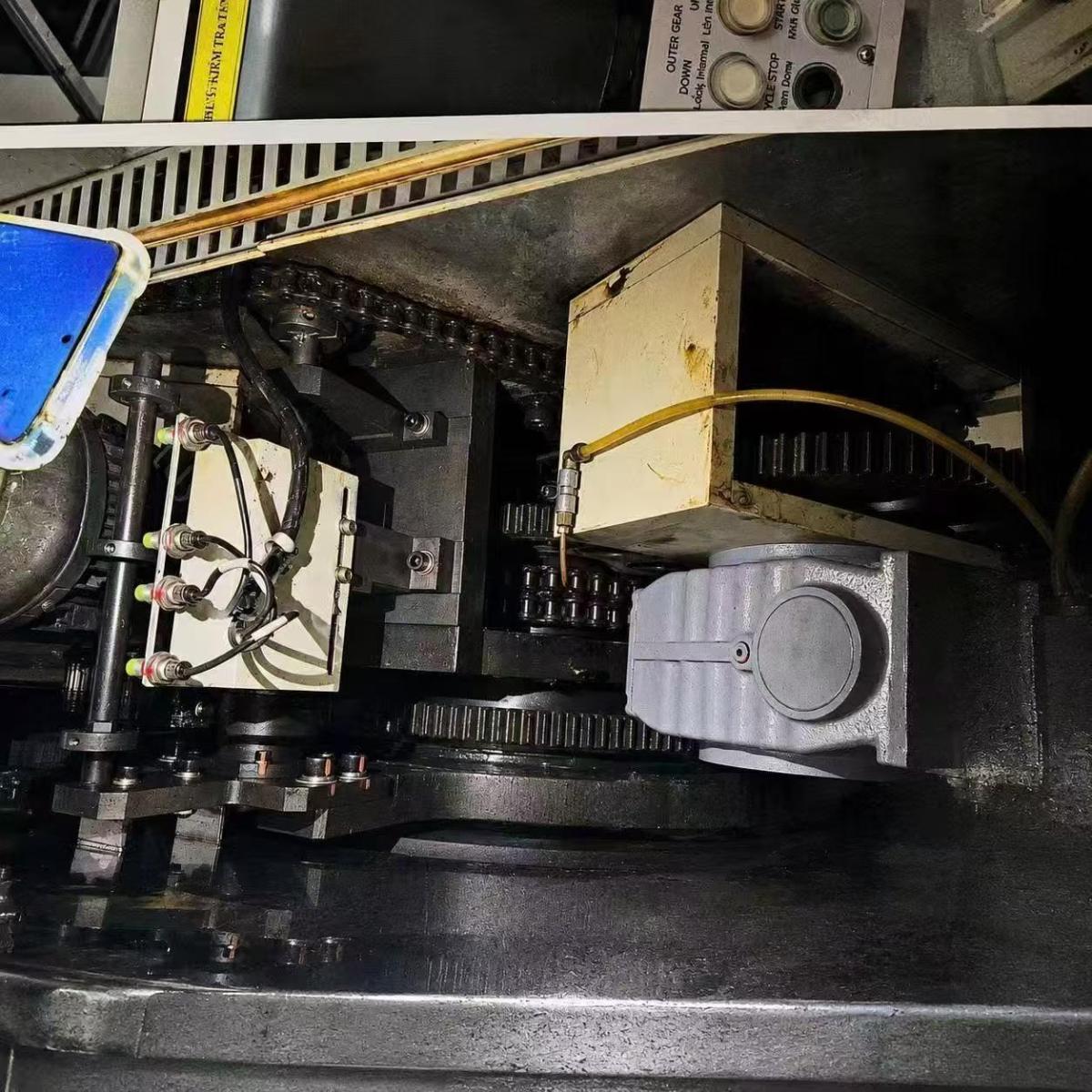

The total power of the motor is 3.7kW to 5.5kW (driving the upper and lower discs, sun gear and planet gear).

Power supply and air pressure requirements: 220V / 50Hz / 3-phase electricity (rated on the nameplate) / 0.4-0.6MPa (pneumatic pressurized)
