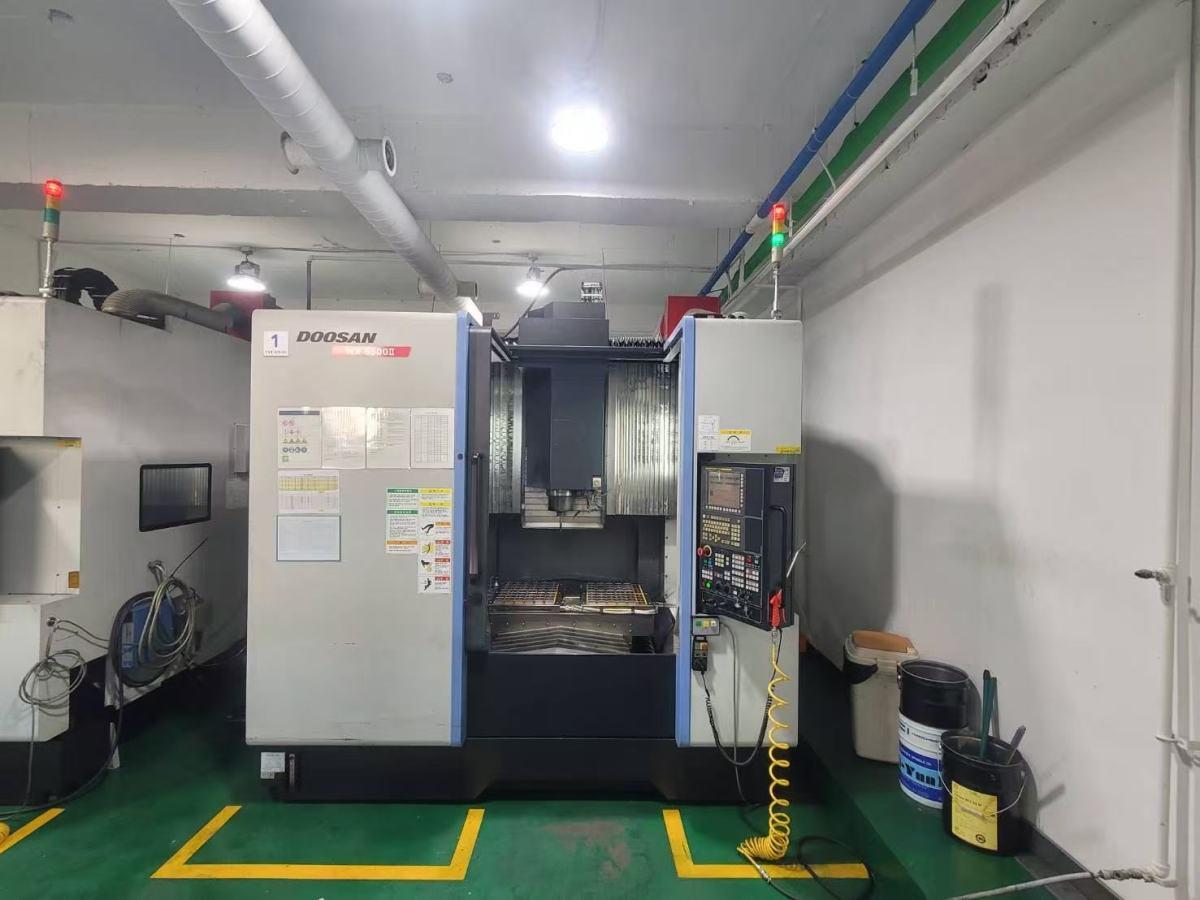

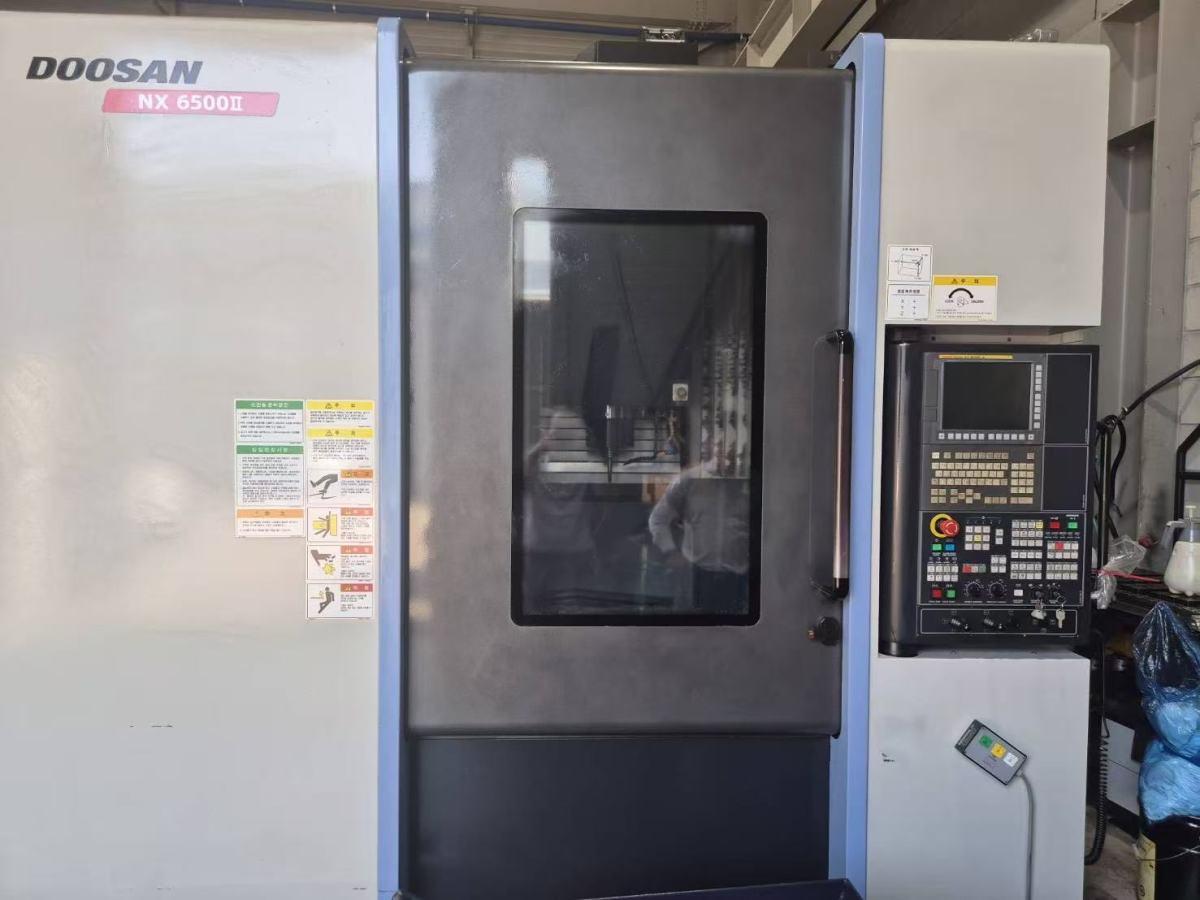

DOOSAN NX6500‑II Vertical Machining centre

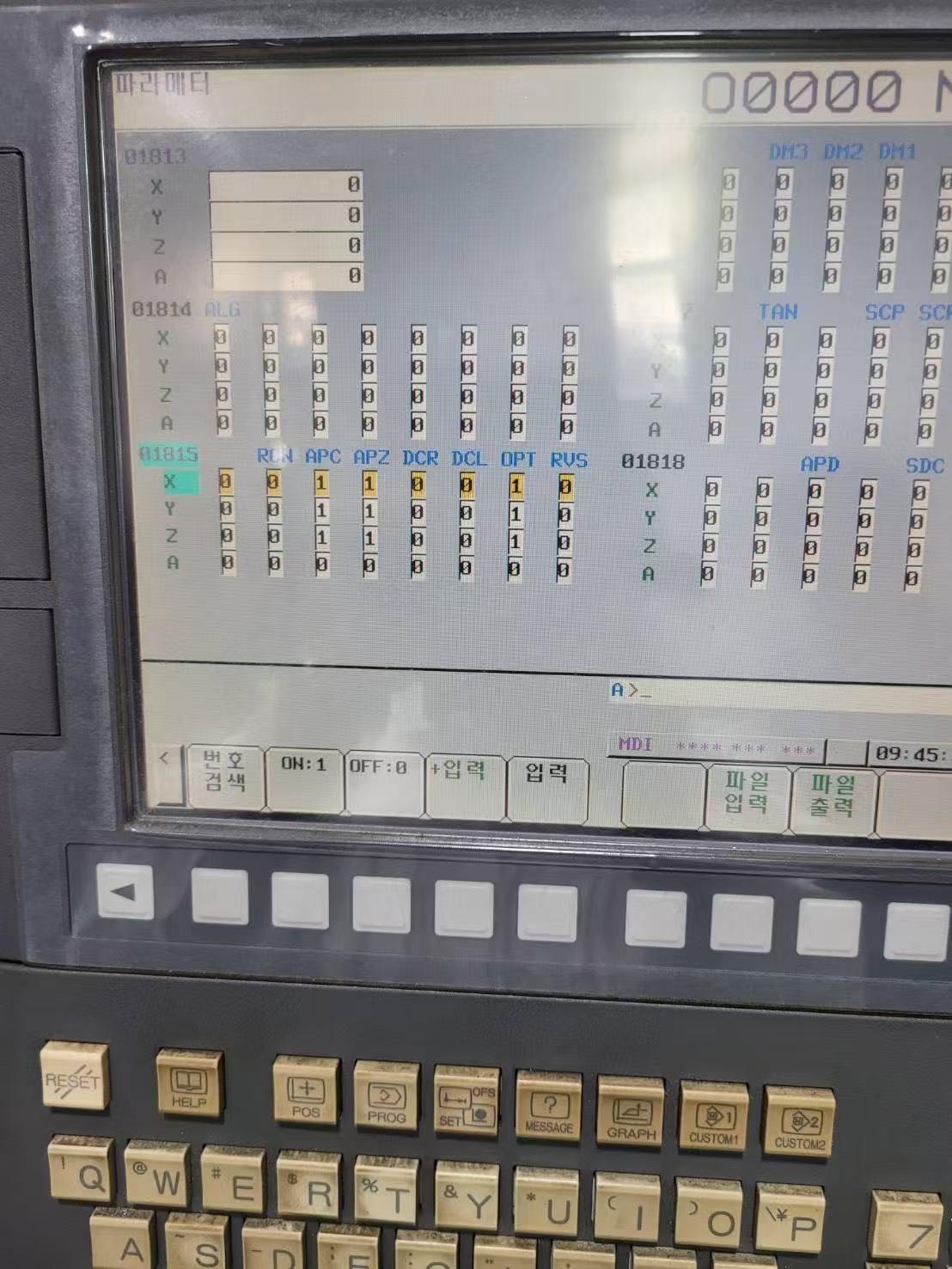

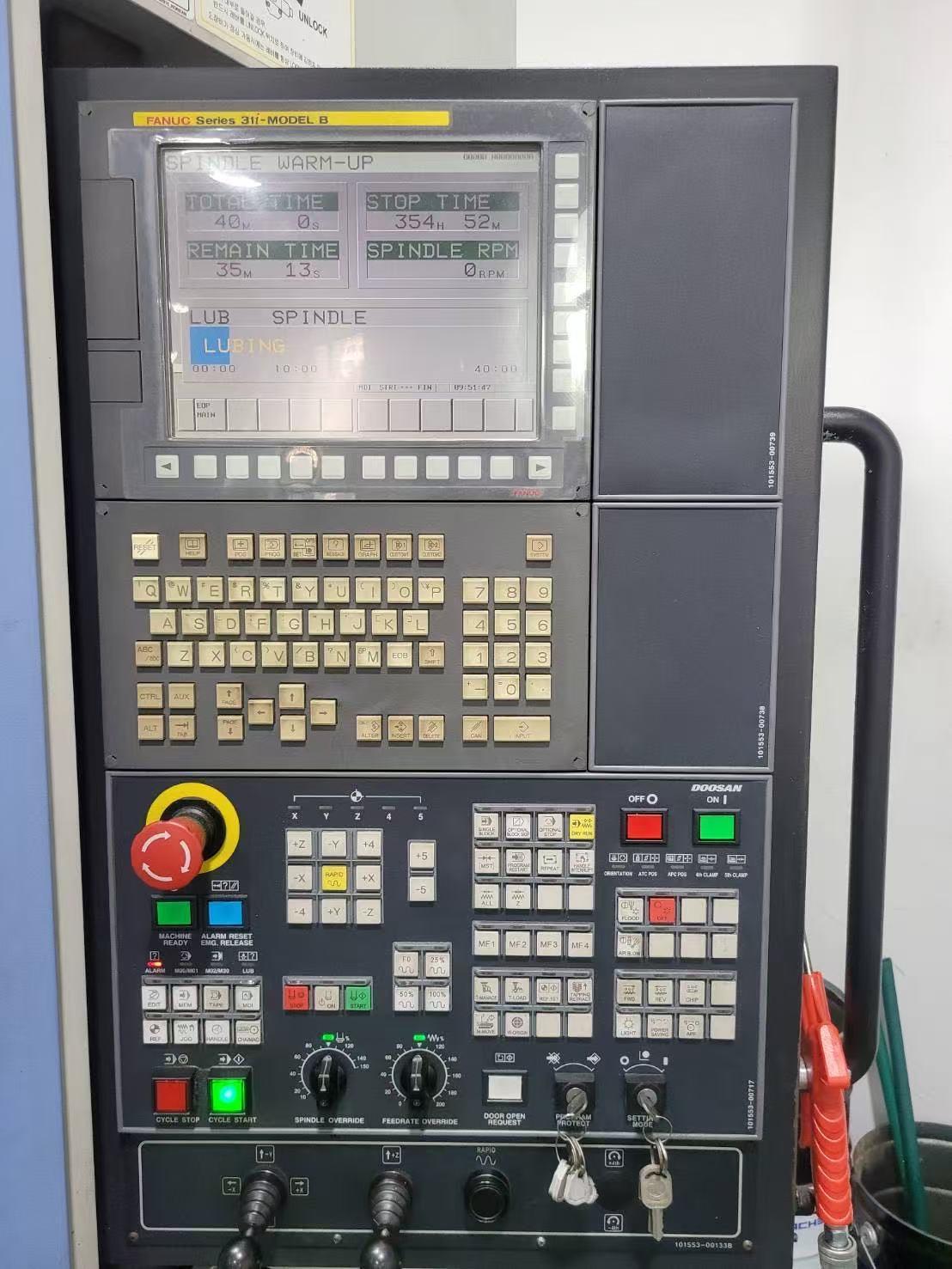

CNC System: FANUC 31i-B
Three-axis travel: 1050 × 650 × 550 mm

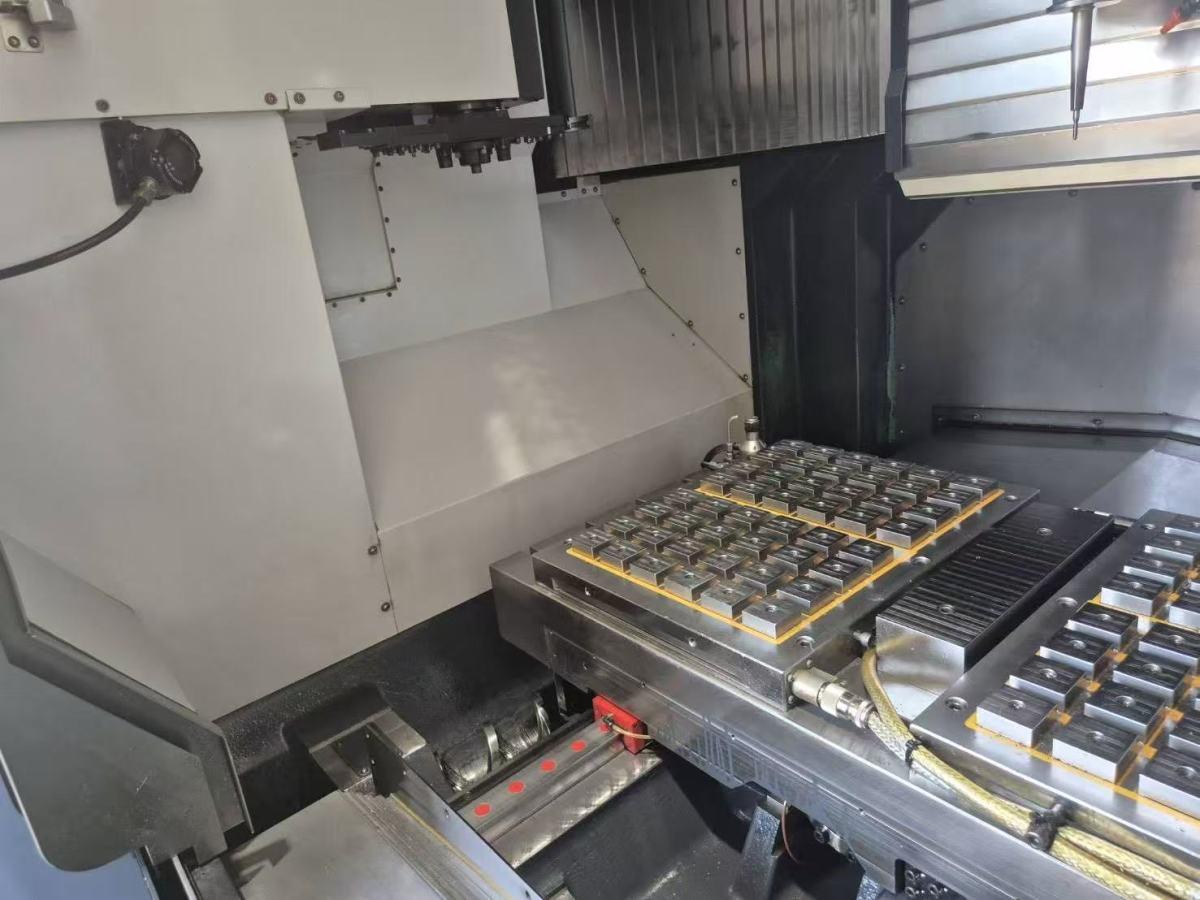

Worktable size: 1200 × 650 mm
Maximum worktable load: 800 kg

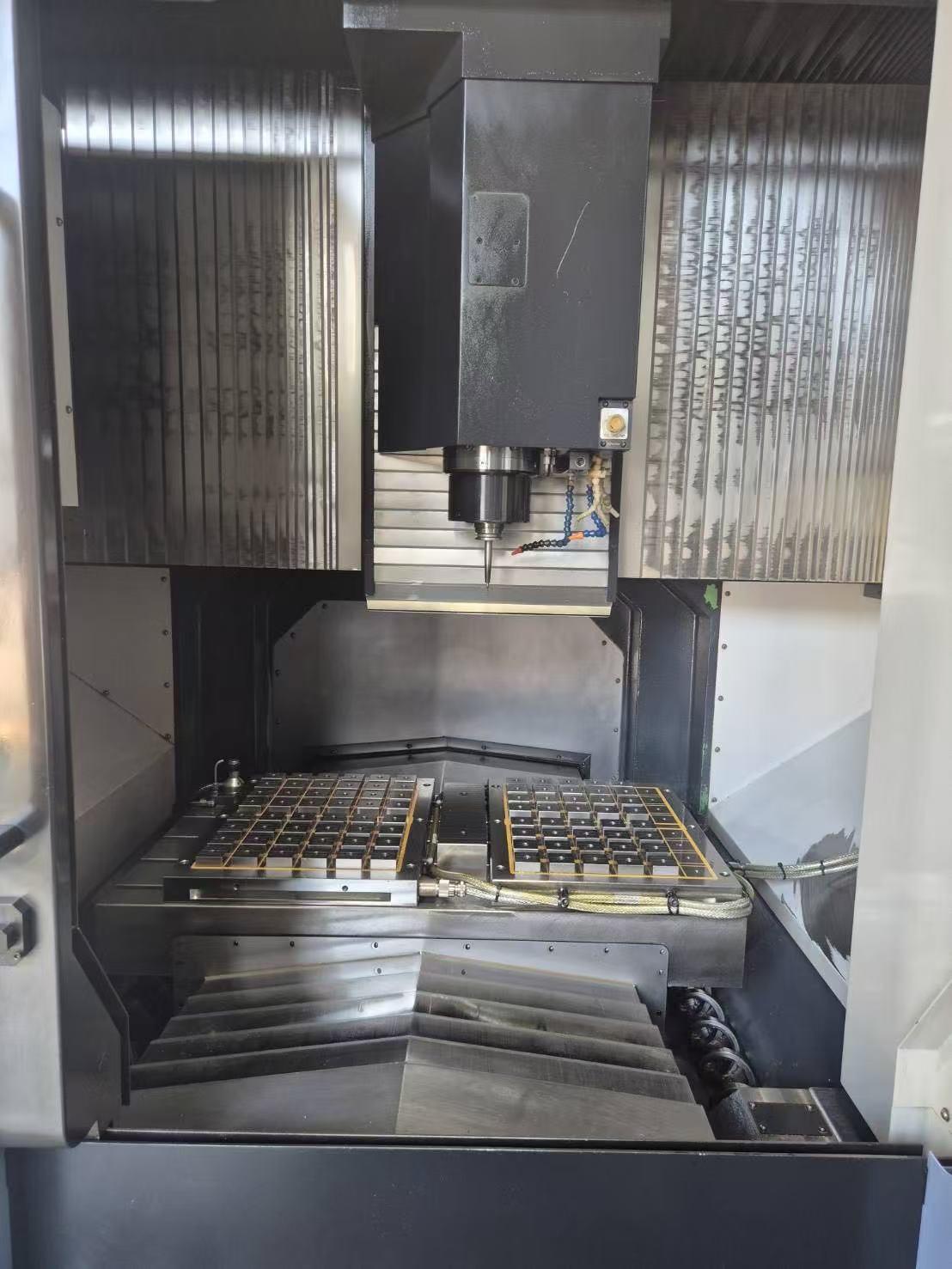

Spindle type: BBT40 built-in motor spindle
Spindle speed: 20,000 rpm
Spindle motor power: 22 kW
Rapid traverse rate: X/Y axes: 30 m/min; Z axis: 24 m/min

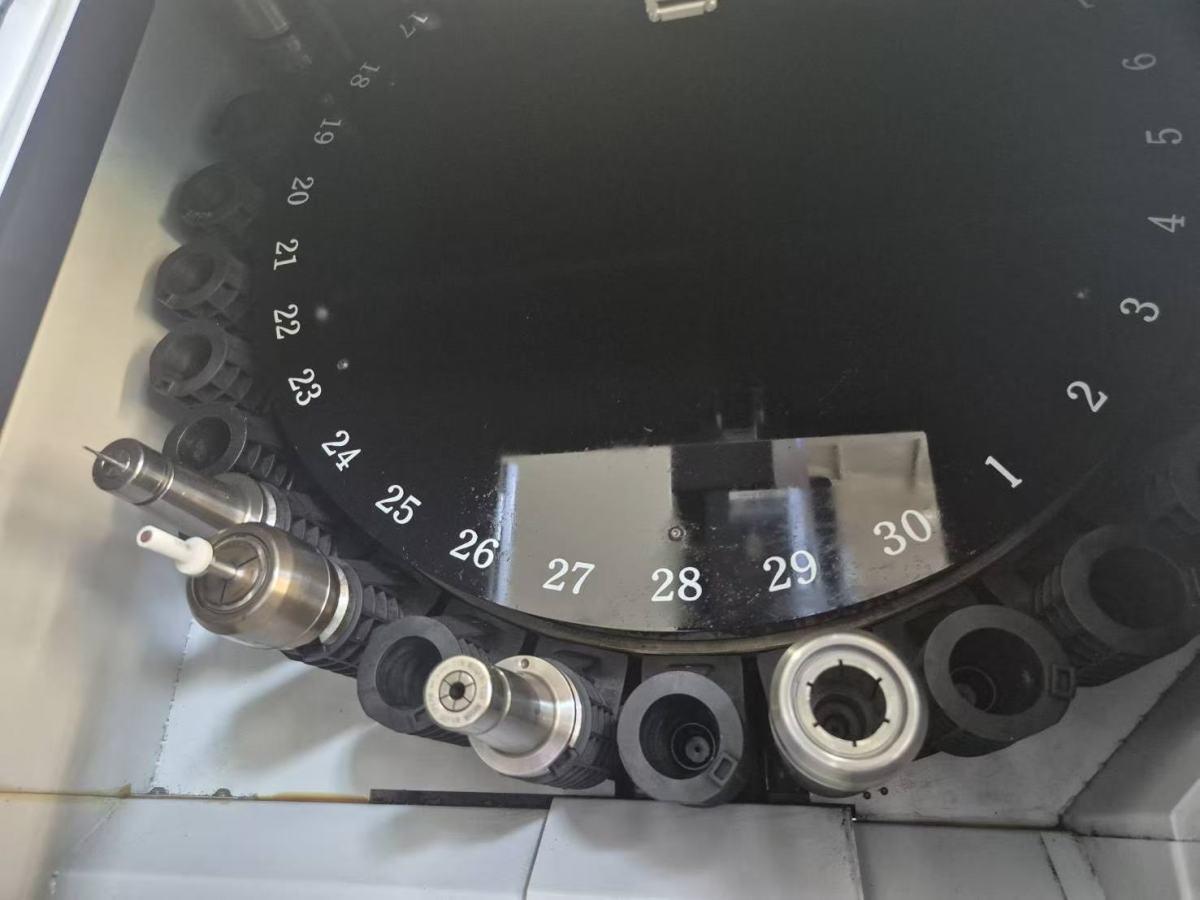

Tool magazine capacity: 30 tools, disc-type tool magazine

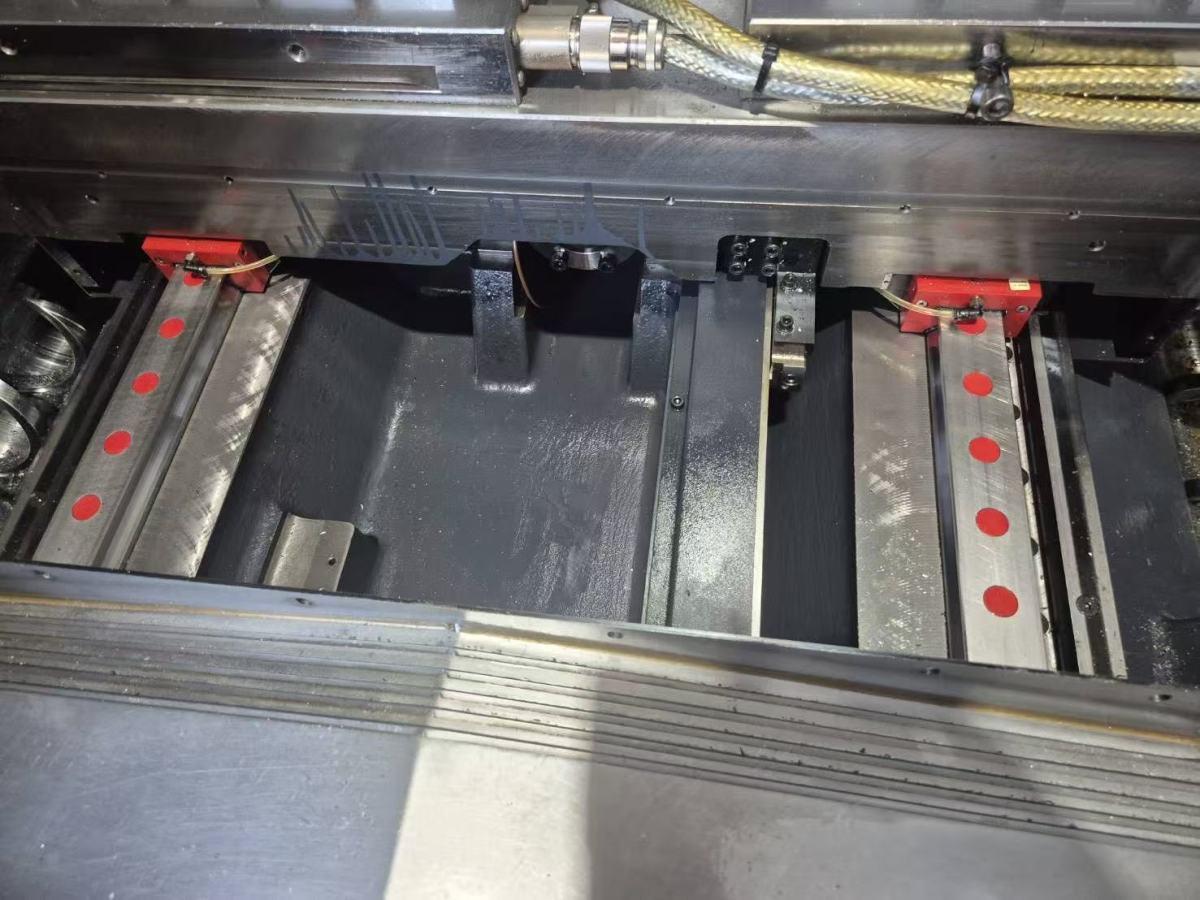

Guideway structure: Roller linear guideways on all three axes
Configuration:
Ball screw cooling system
Spindle oil chiller
Thermal error compensation system
Linear glass scales

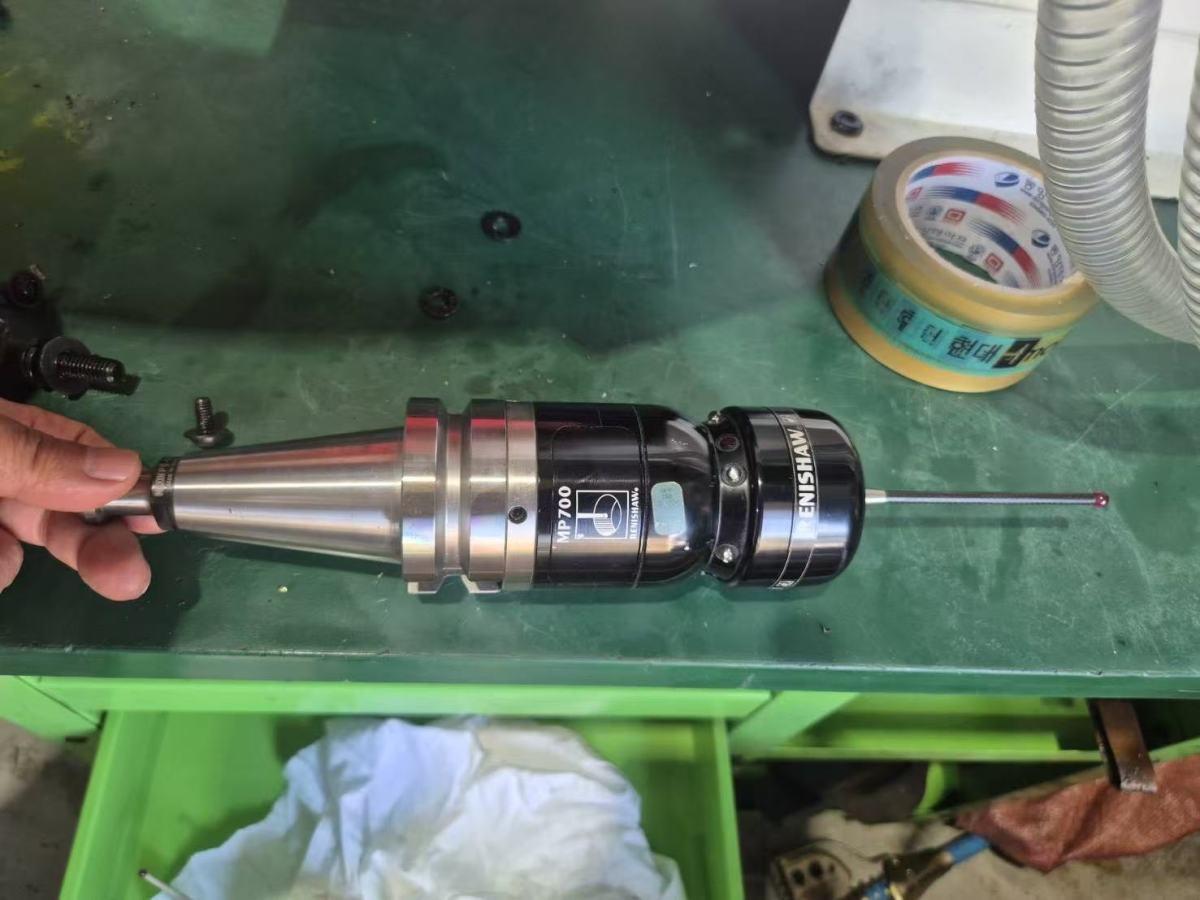

Renishaw probe
Tool setter
DSTC multi-channel thermal error compensation system
Bed structure: Gantry-type bed
Machine weight: 10,000 kg
