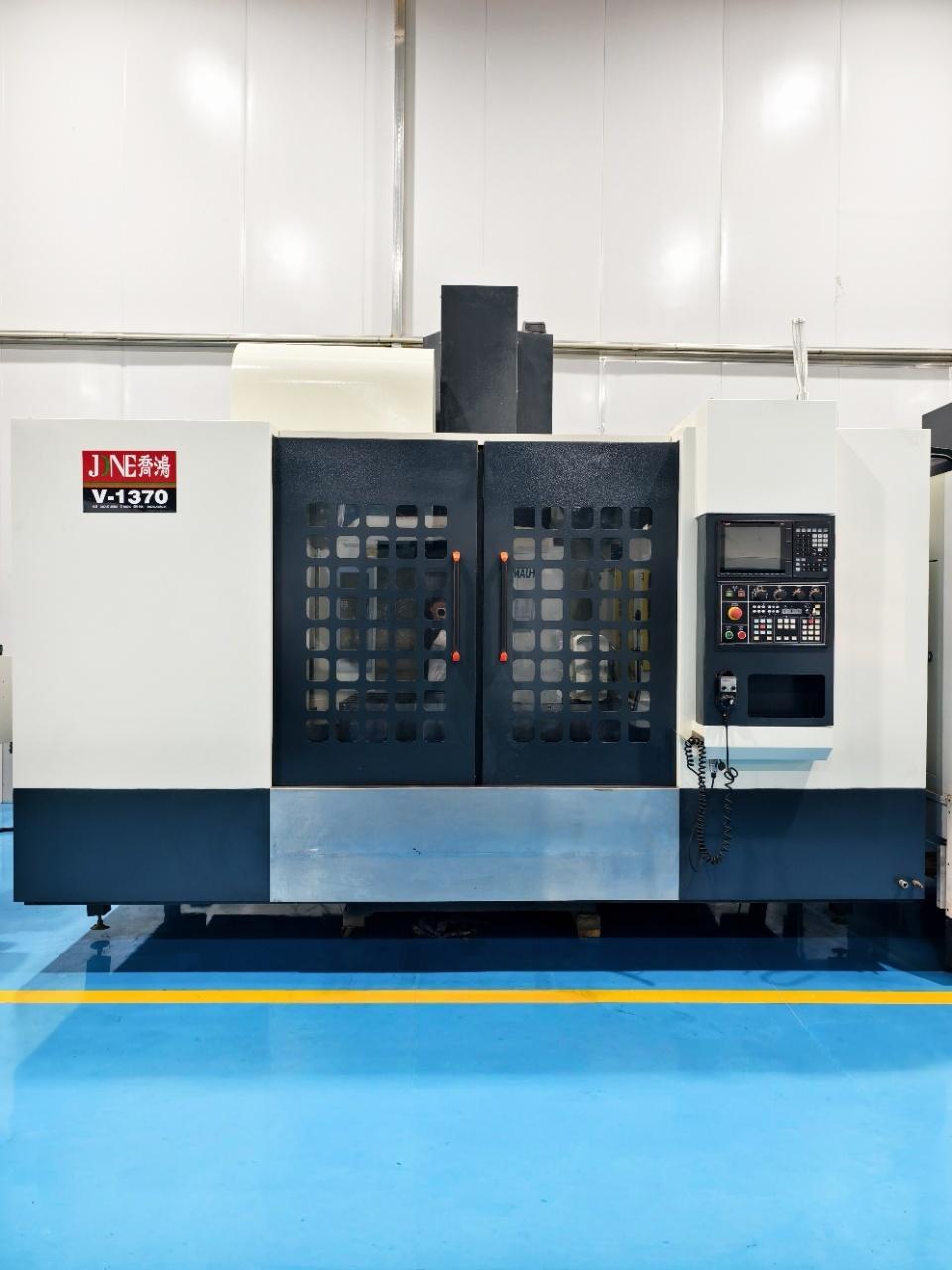

QIAO HONG V-1370 Vertical Machining centre

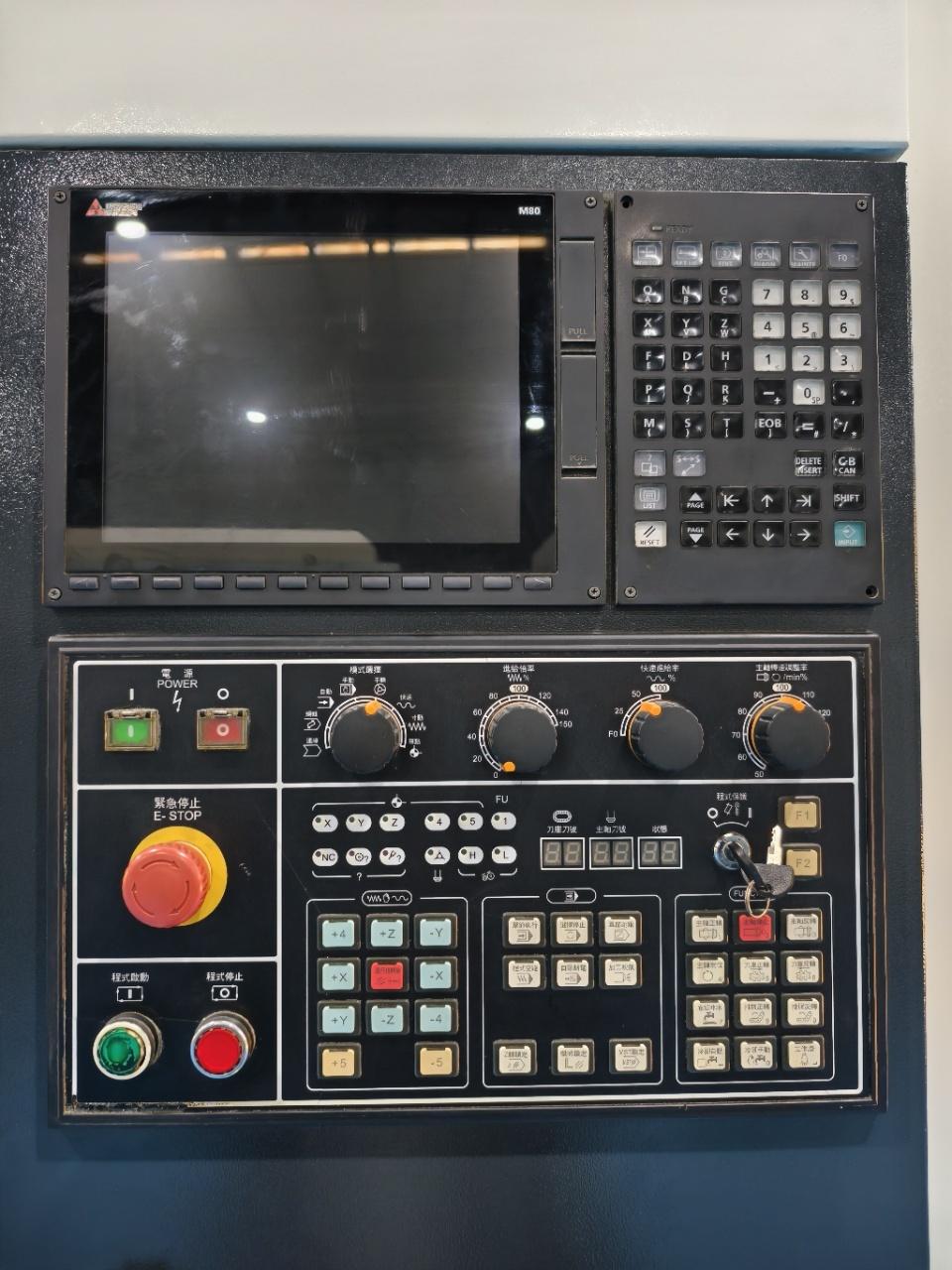

CNC System: Mitsubishi M80
Three-axis travel: 1300 × 700 × 700 mm

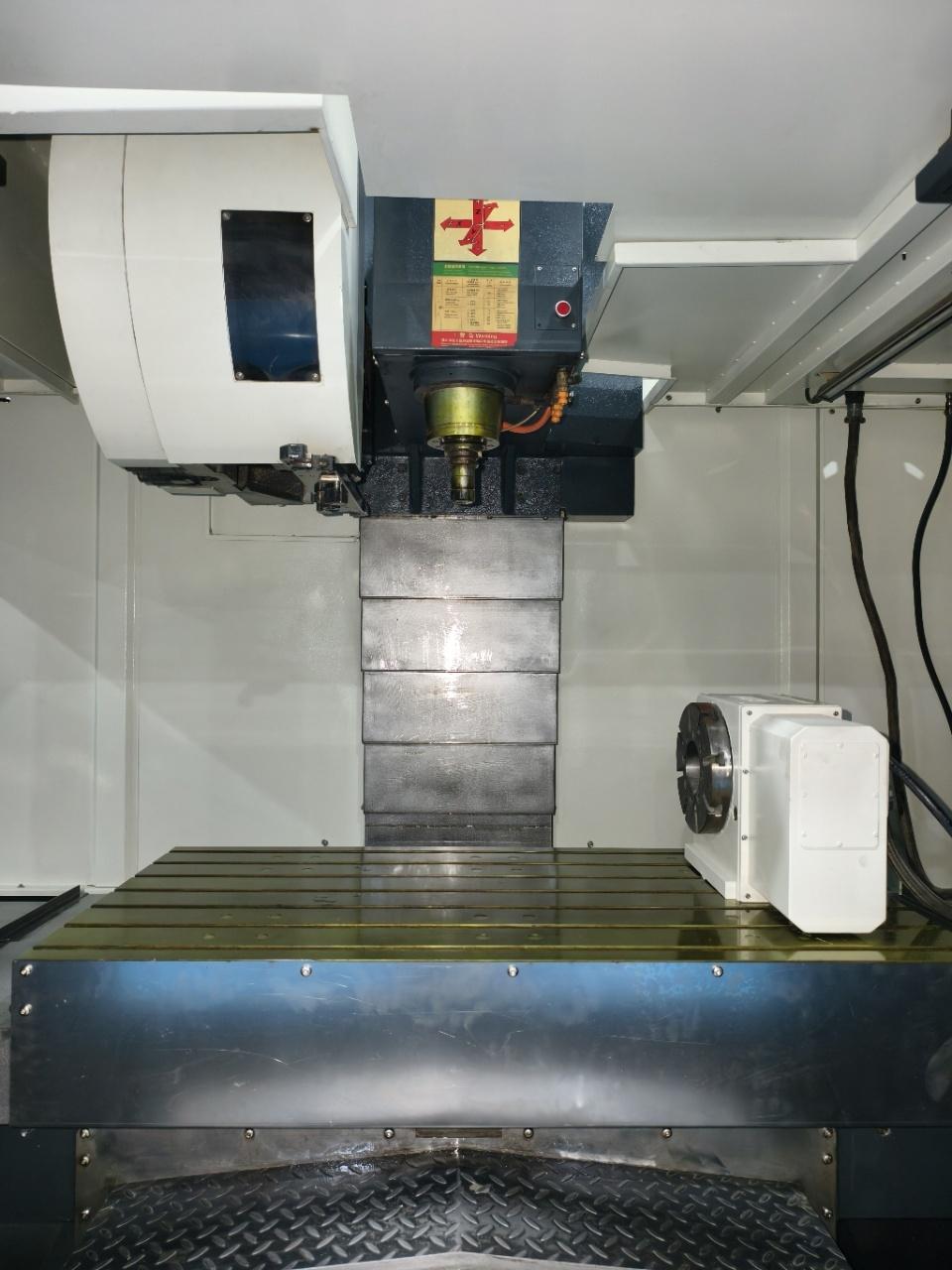

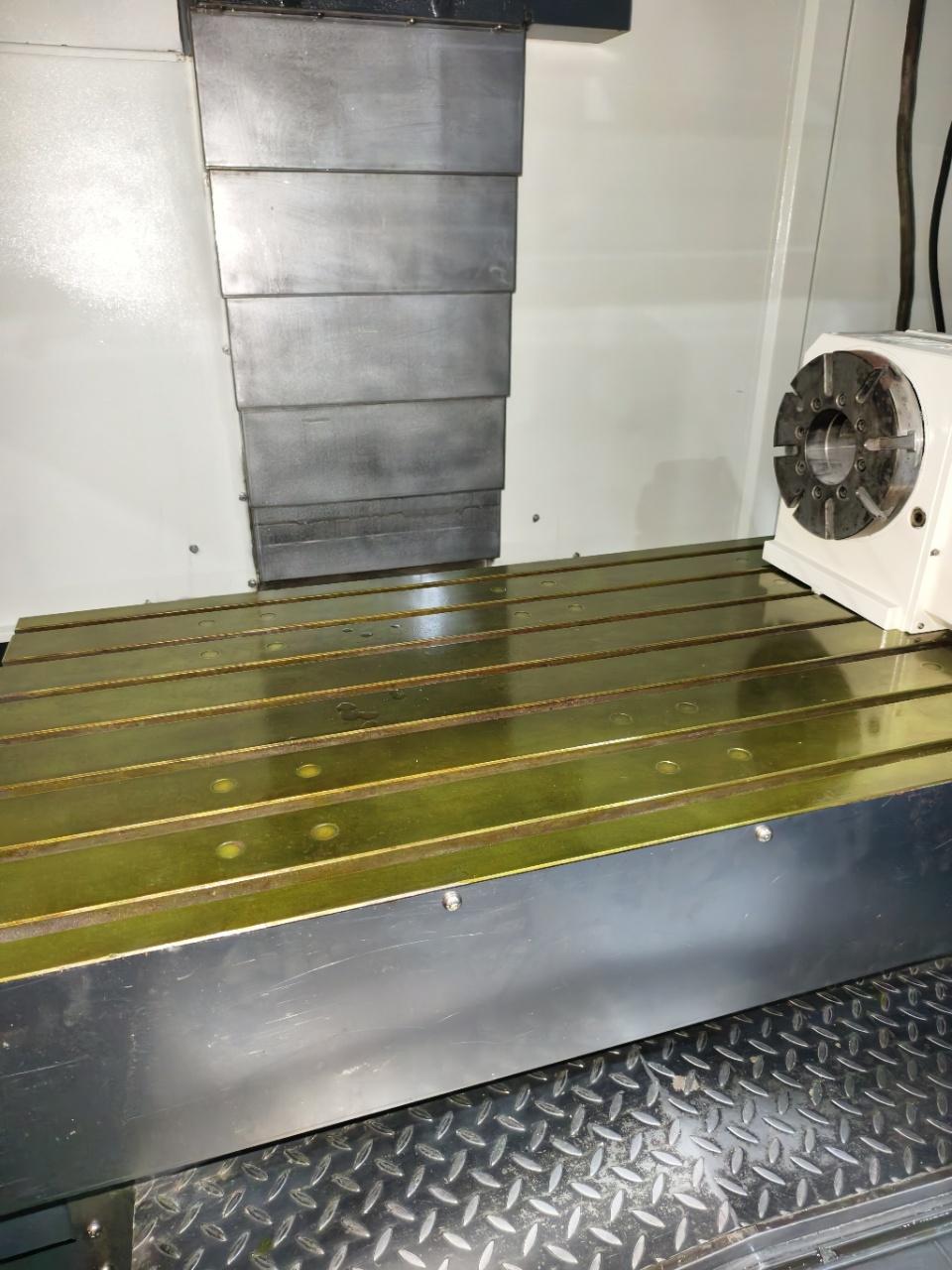

Worktable size: 1400 × 700 mm

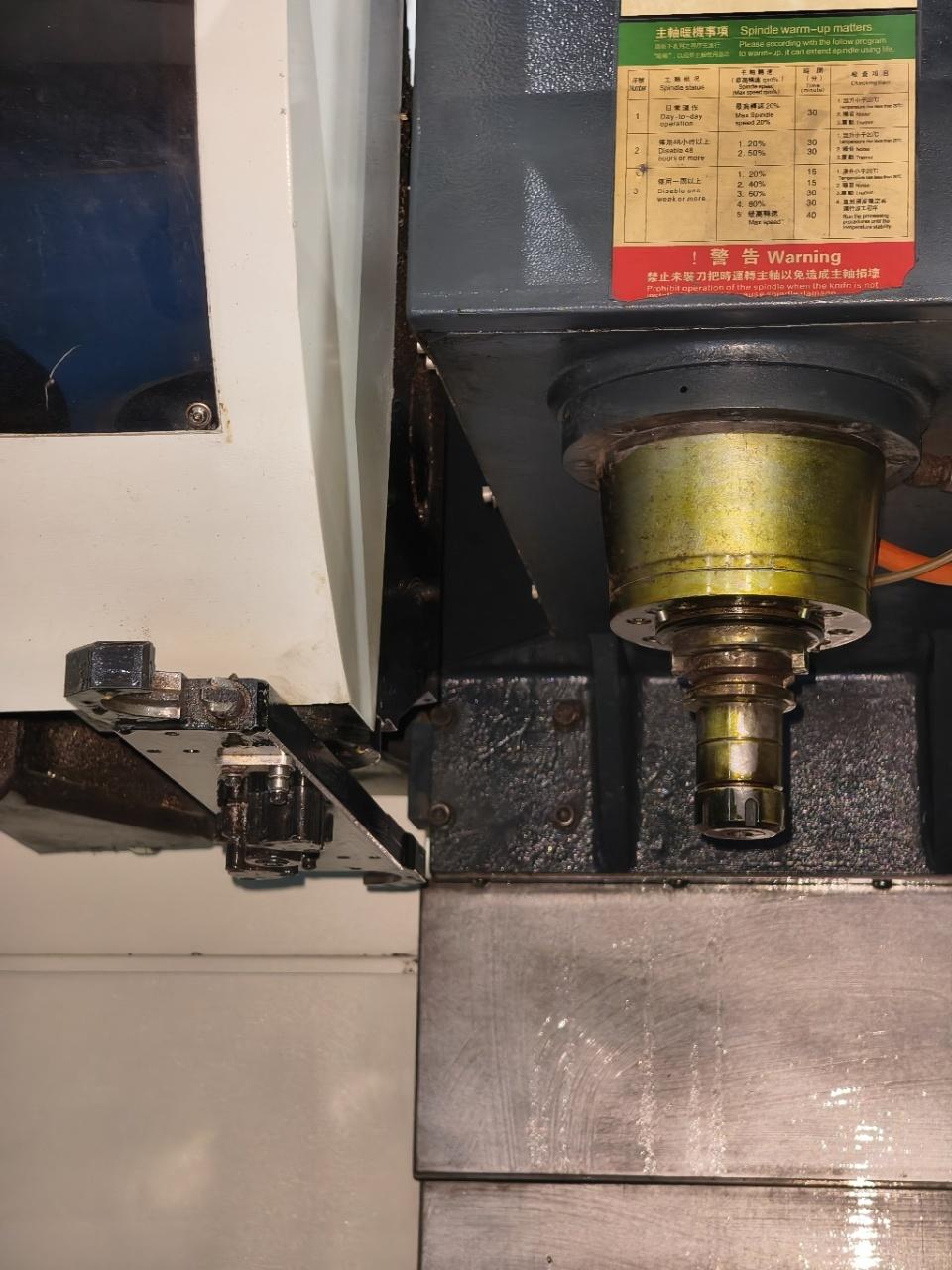

Spindle type: BT40, direct-drive spindle
Spindle speed: 10,000 rpm
Spindle motor power: 11/15 kW

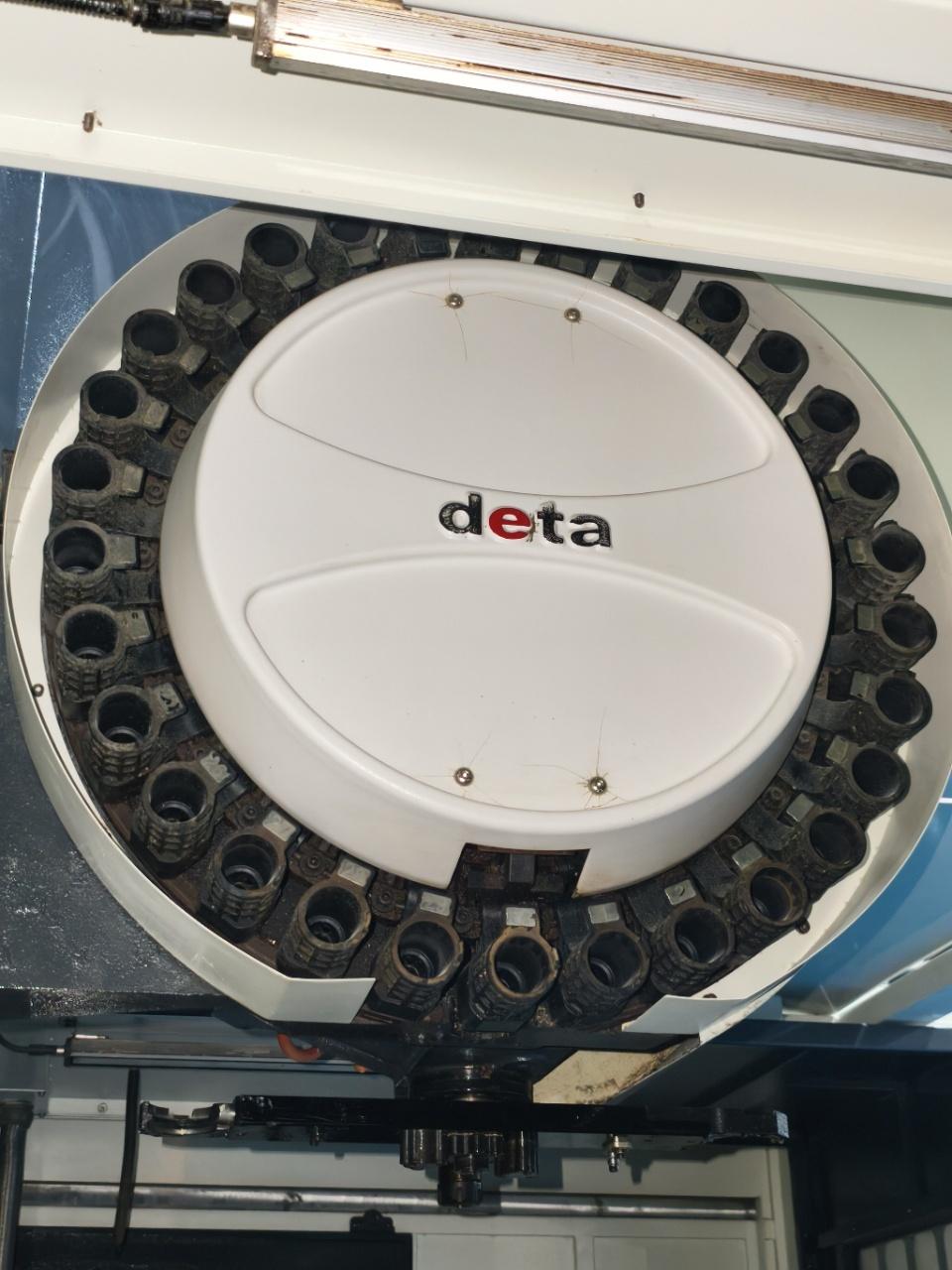

Tool magazine capacity: 30 tools, arm-type tool changer

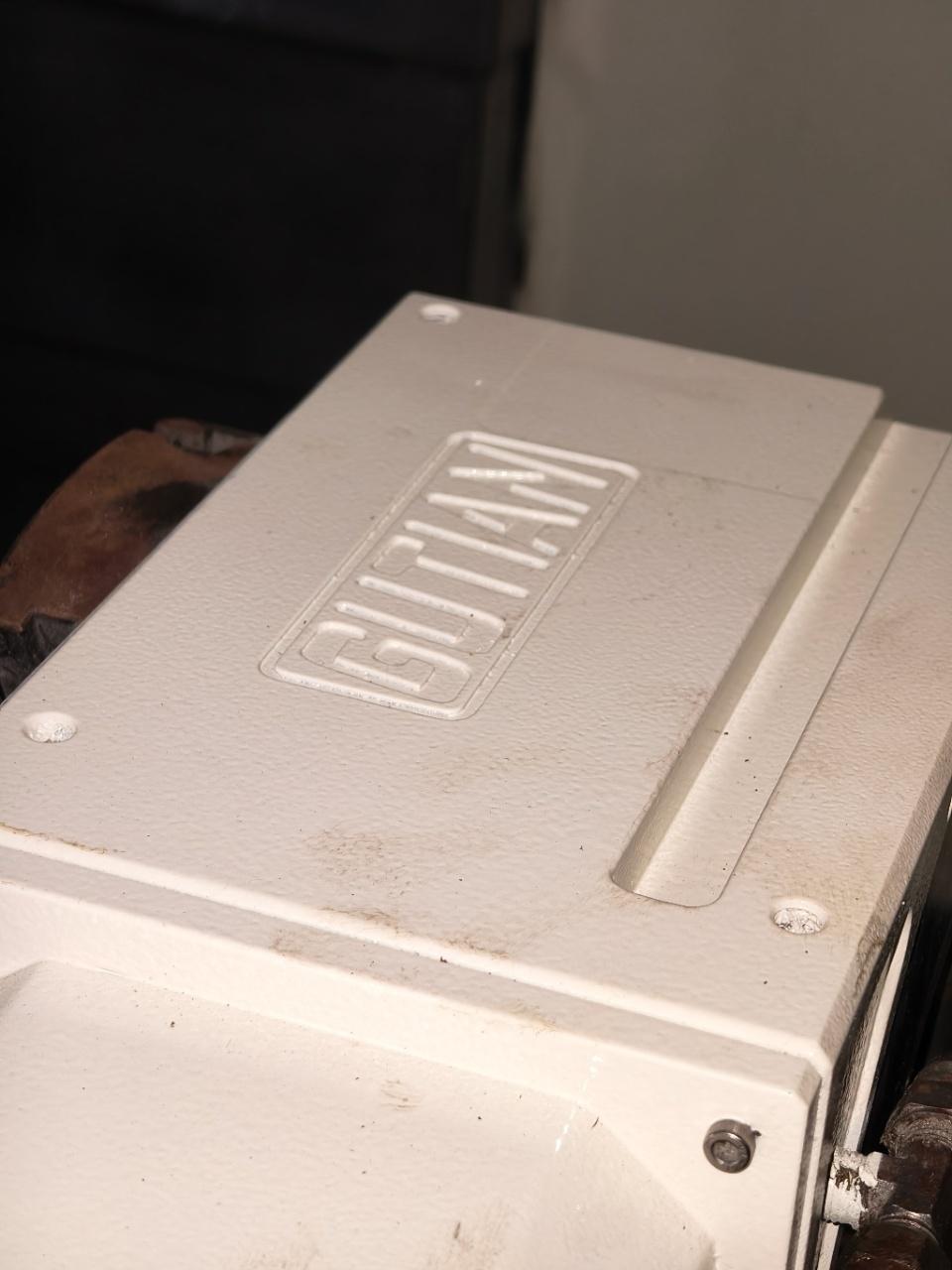

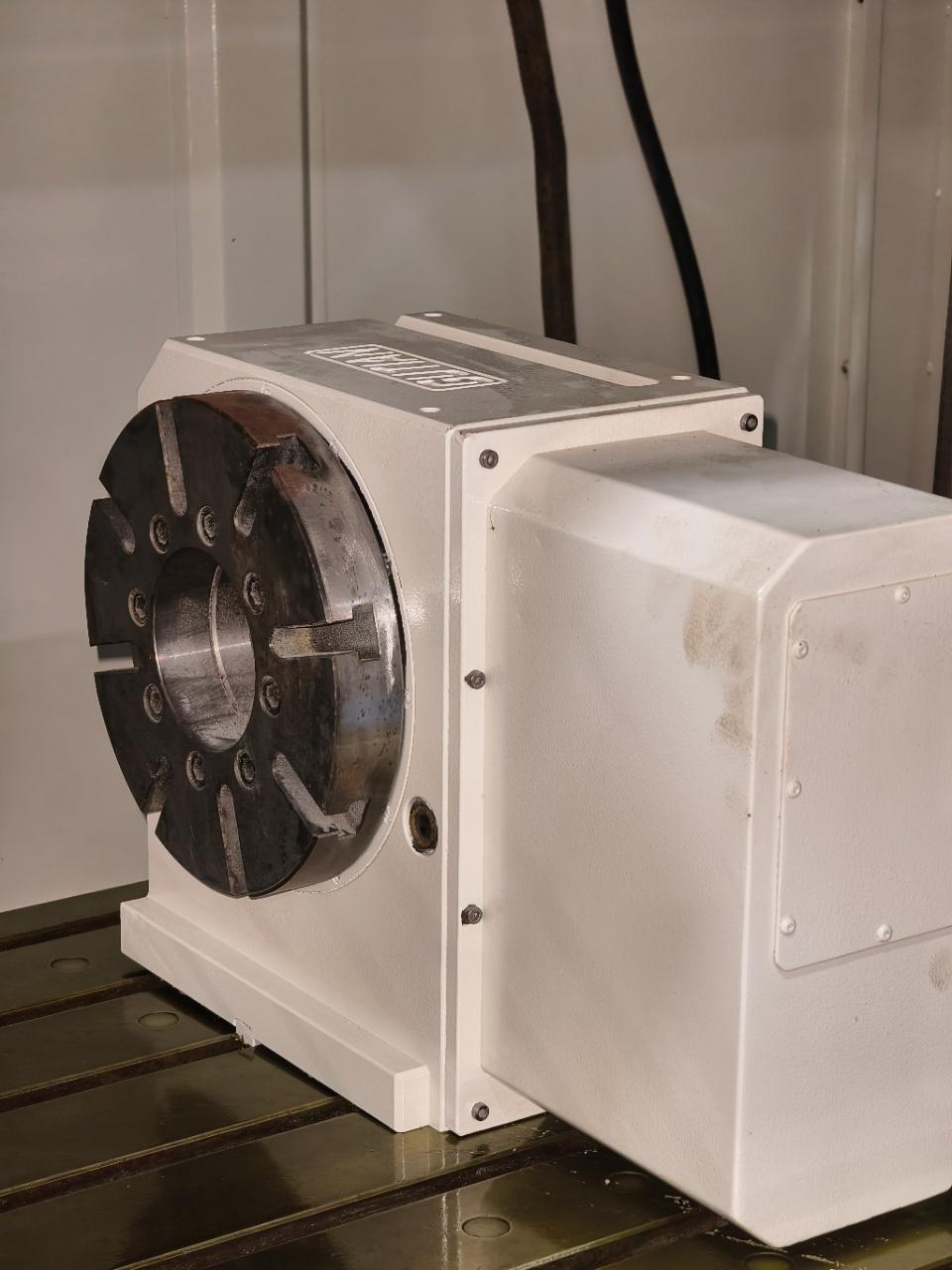

Fourth axis: Gutian 255 rotary table
Guideway structure: Linear guideways on all three axes
Rapid traverse speed: 36 m/min
Distance from worktable to spindle nose: 820 mm
Configuration: Spindle oil chiller
Inspection Accuracy:
Three-axis repeatability: Less than 0.01 mm
Spindle runout (300 mm test bar): Less than 0.012 mm
Spindle face runout: Less than 0.012 mm
Spindle radial runout: Less than 0.012 mm
