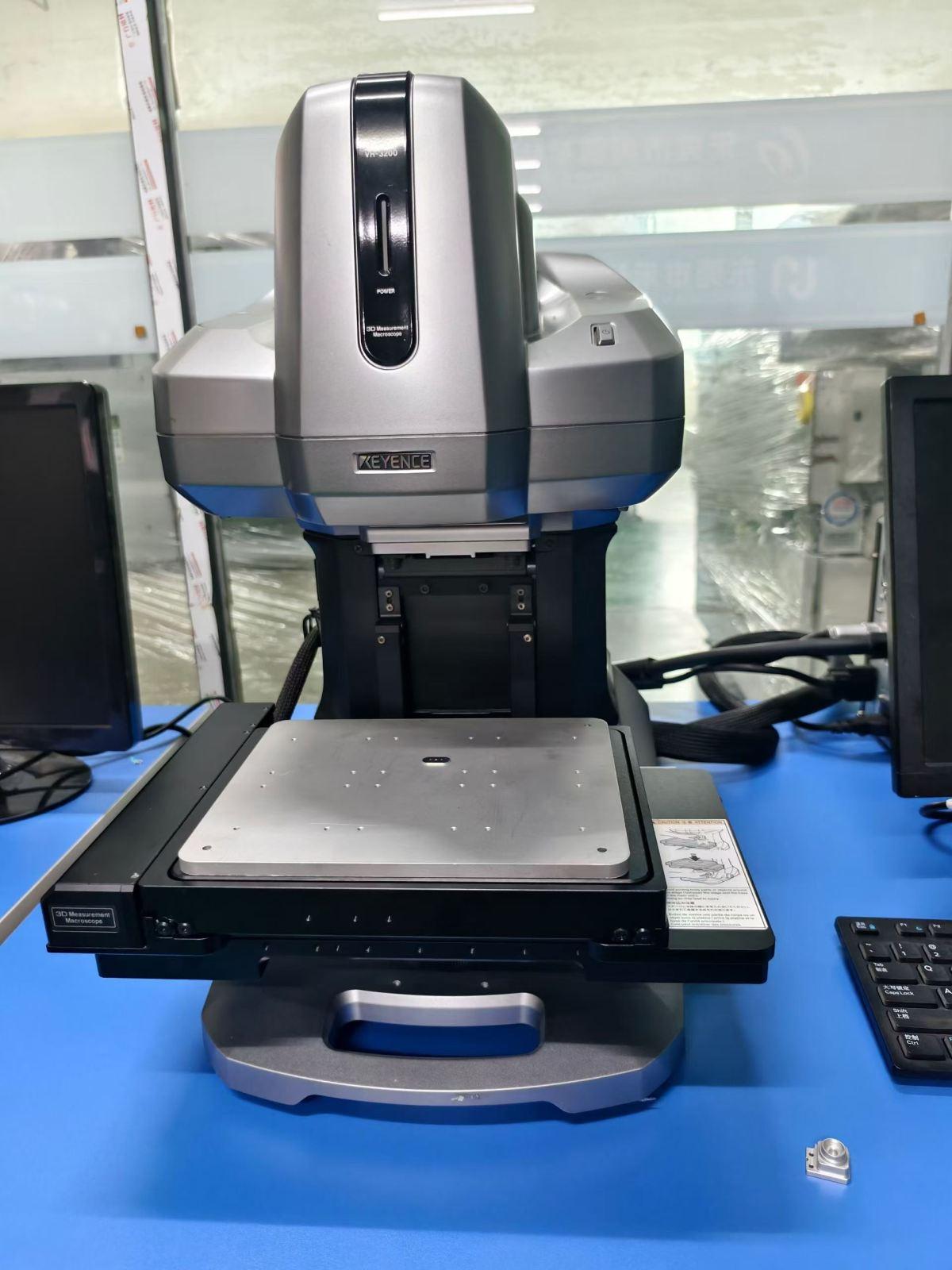

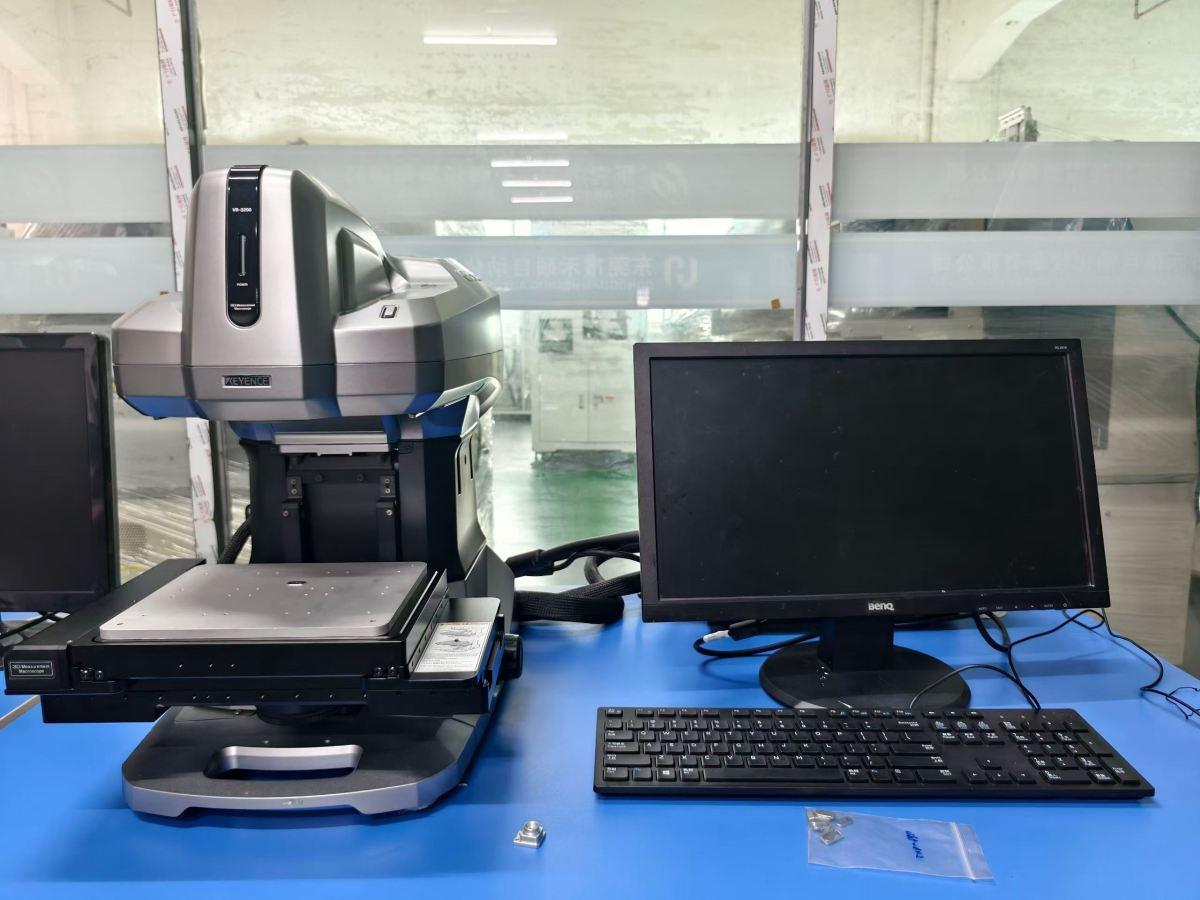

Keyence VR‑3200 other

Measuring Head: VR-3000K
Applicable Controller: VR-3000K
Field of View:
Wide-Field Mode:
15-inch Monitor Magnification 12×: 24.0 × 18.0 mm
15-inch Monitor Magnification 25×: 12.0 × 9.0 mm
15-inch Monitor Magnification 38×: 8.0 × 6.0 mm
15-inch Monitor Magnification 50×: 4.5 × 3.4 mm
High-Magnification Mode:
15-inch Monitor Magnification 40×: 7.6 × 5.7 mm
15-inch Monitor Magnification 80×: 3.8 × 2.9 mm
15-inch Monitor Magnification 120×: 2.5 × 1.9 mm
15-inch Monitor Magnification 160×: 1.4 × 1.1 mm
Zoom Ratio: 1×–4×
Measurable Height: 10 mm (±5 mm) in Wide-Field Mode; 1 mm (±0.5 mm) in High-Magnification Mode
Display Resolution: 0.1 μm
Height Measurement Repeatability (σ): 0.5 μm
Width Measurement Repeatability: 1 μm in Wide-Field Mode; 0.5 μm in High-Magnification Mode
Height Measurement Accuracy: ±3 μm
Width Measurement Accuracy: ±5 μm in Wide-Field Mode; ±2 μm in High-Magnification Mode
Stitching Function: Fully Automatic Measurement (Automatic XY Stage Control + Autofocus), with Automatic Adjustment and Automatic Template Analysis
XY-Axis Travel: 184 × 88 mm
Z-Axis Travel: 90 mm
Rotation Angle: ±180°
Tilt Angle: ±30° or More
Working Distance: 75 mm
Image Sensor: 4-Megapixel Monochrome CMOS
Transmitter Lens: Double Telecentric Lenses ×2
Receiver Lens: Double Telecentric Lens
Observation Light Source: LED Ring Light (Red, Green, Blue)
Measurement Light Source: White LED
Image Size: 1024 × 768 / 2048 × 1536 pixels
Data Processing: KEYENCE-Specified Dedicated Computer (Windows 7)
Power Supply: 100–240 VAC ±10%, 50/60 Hz
Power Consumption: 150 VA
Ambient Temperature: +15–+30 °C
Relative Humidity: 35–80% RH (Non-Condensing)
Equipment Weight: 28.0 kg
