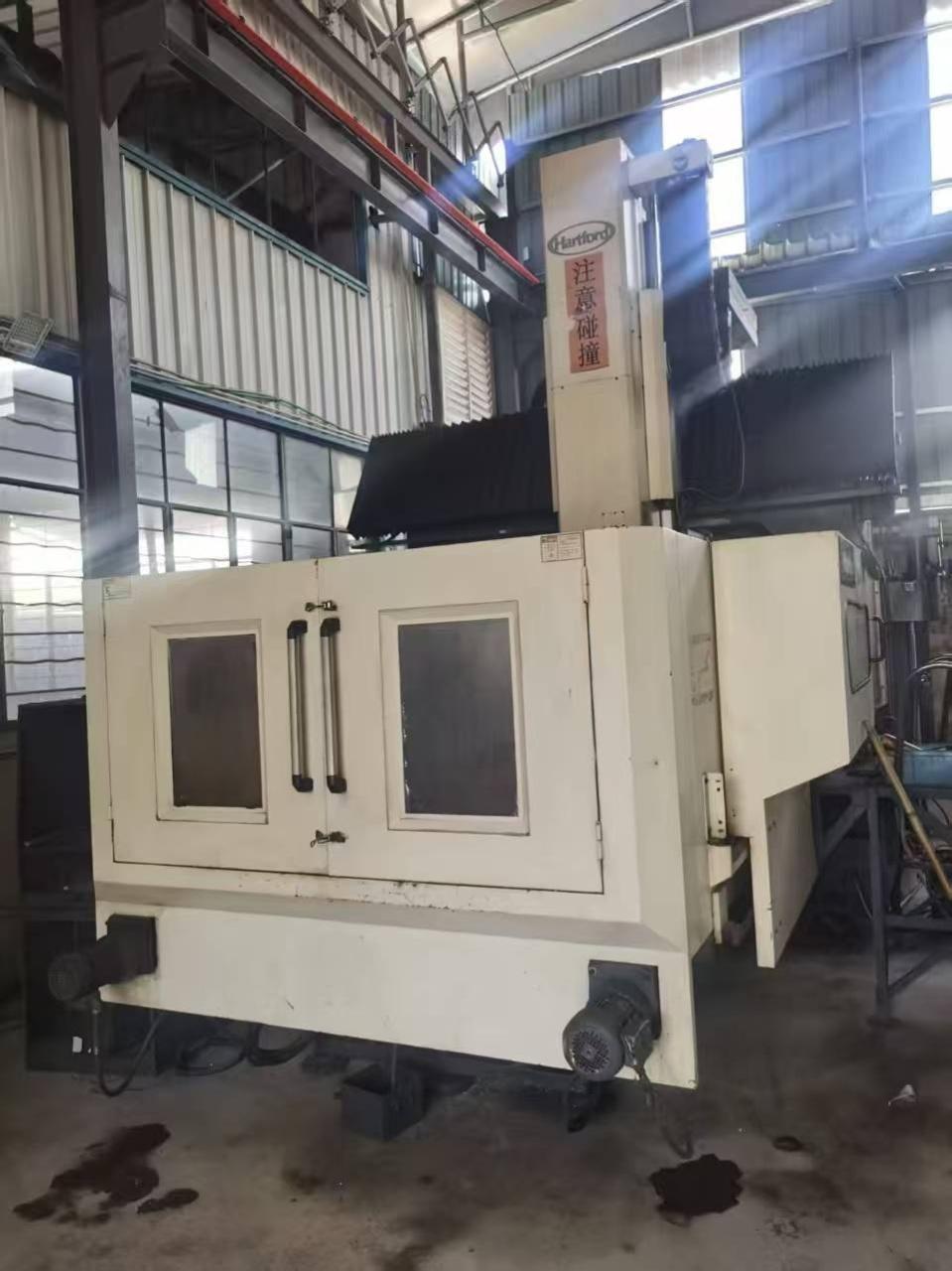

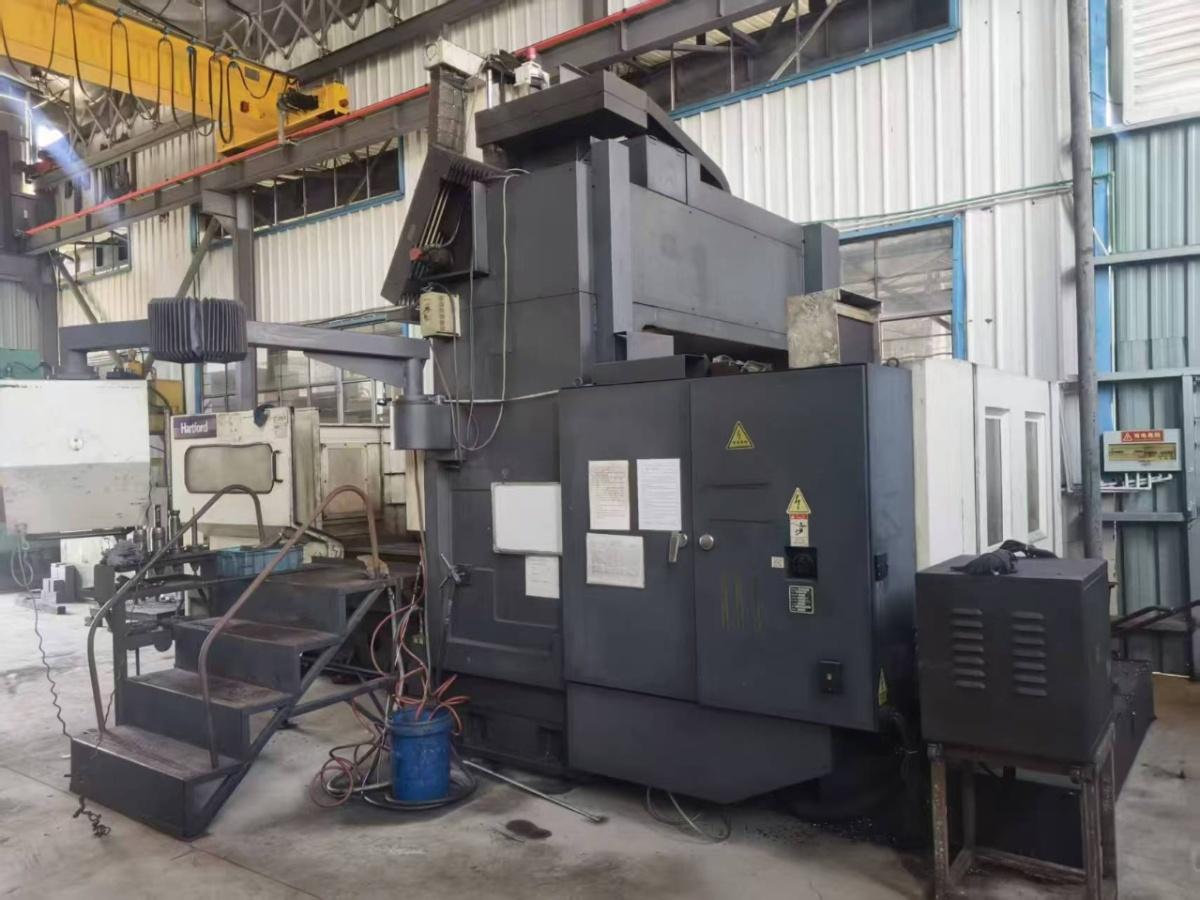

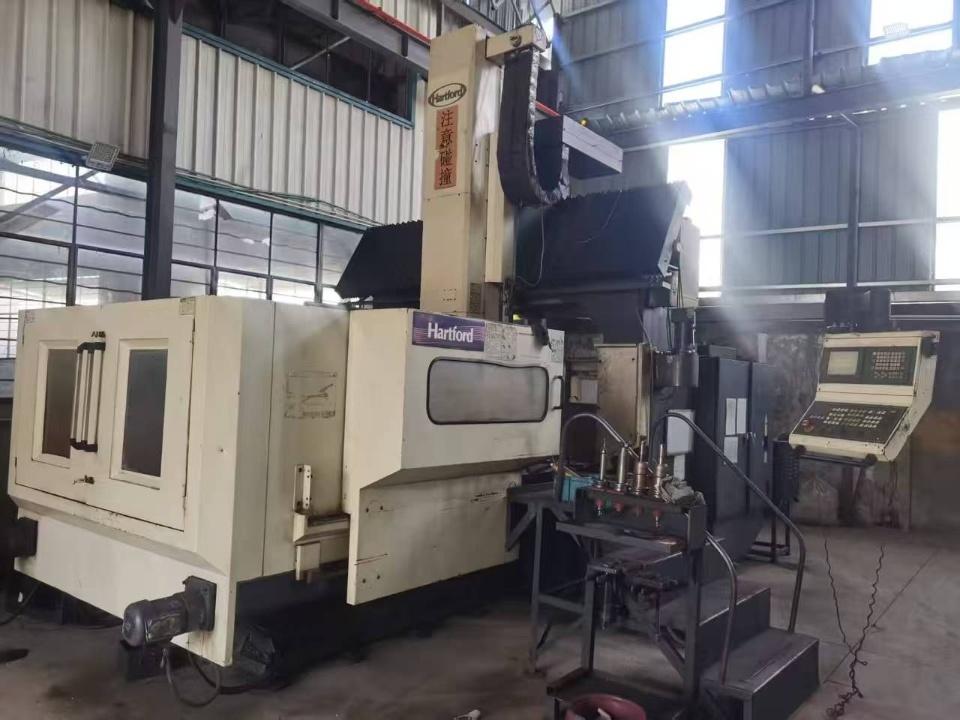

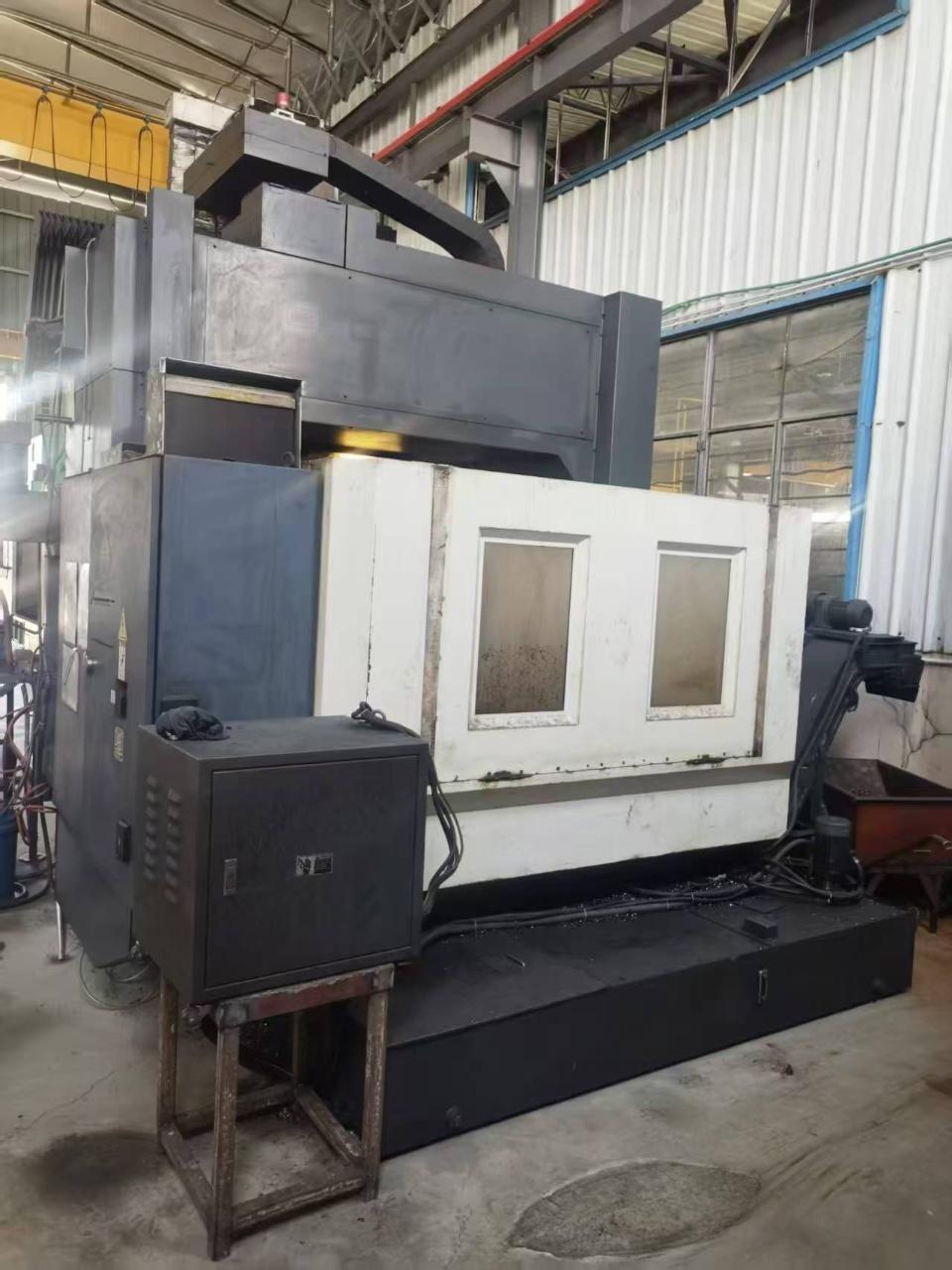

Hartford CNC-2190 Gantry machining centre

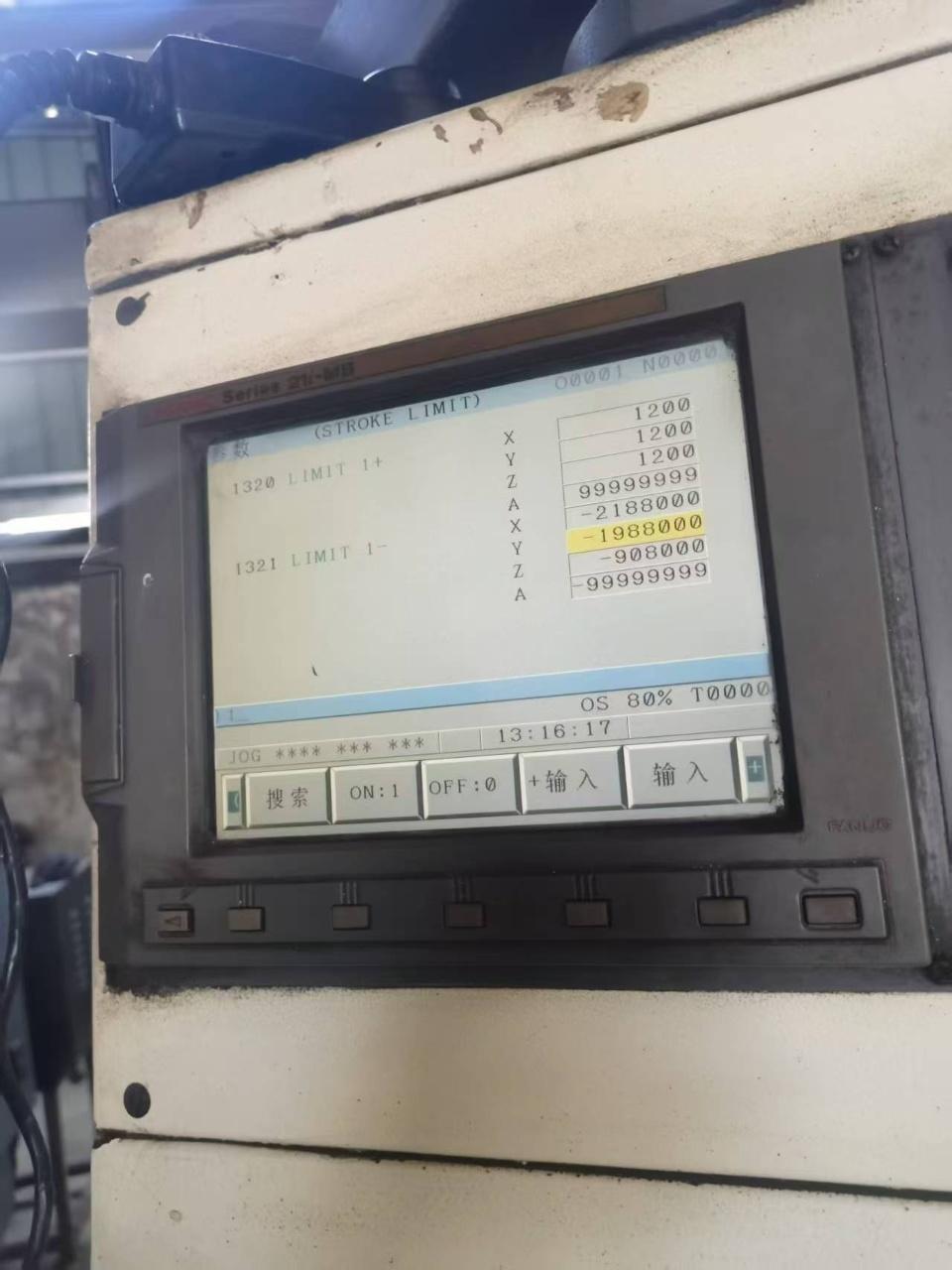

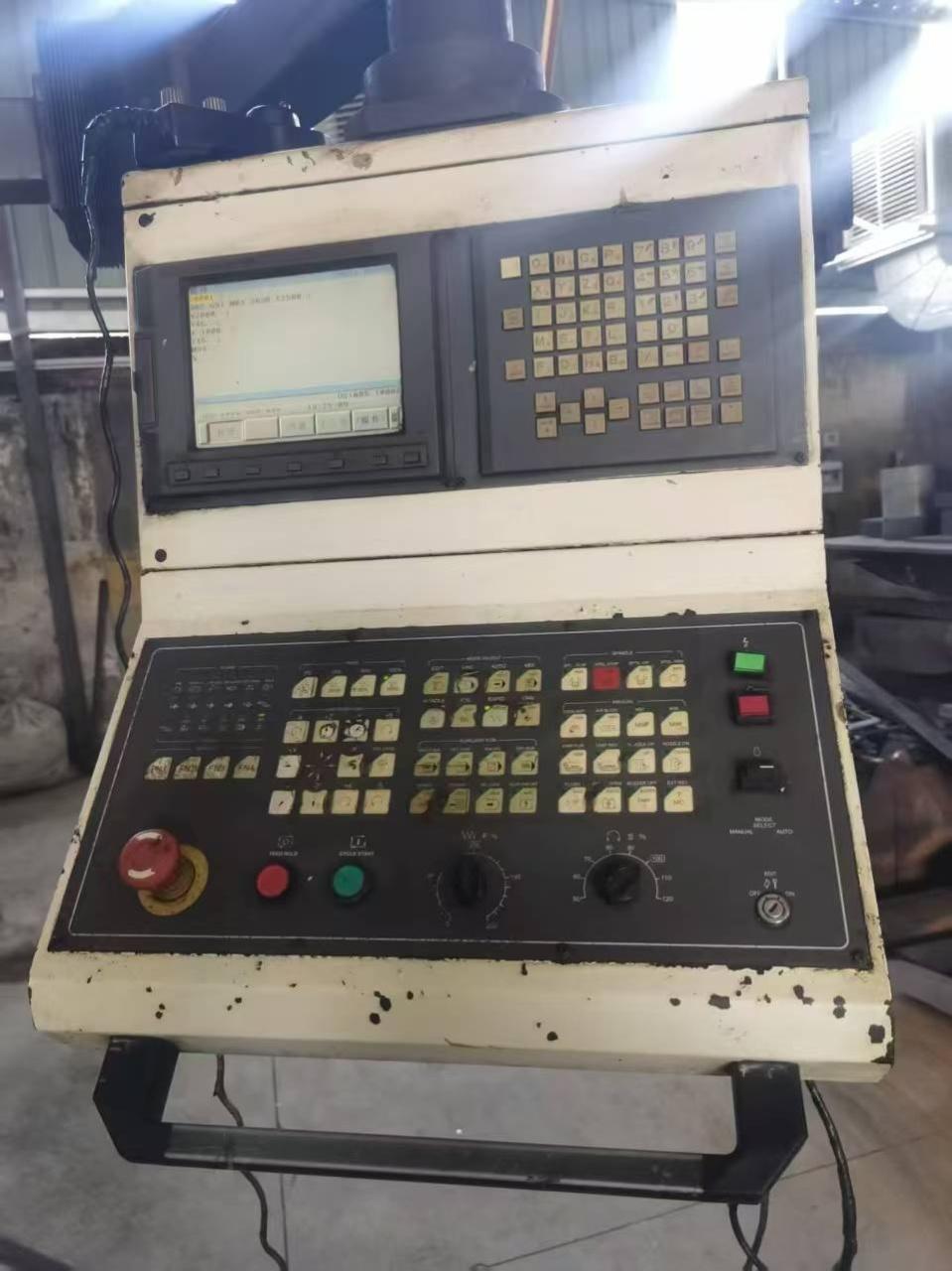

CNC System: FANUC MB
Spindle diameter: 190 mm
Spindle: BT50
Spindle speed: 6000 rpm, geared spindle
Three-axis travel: 2150 × 1950 × 900 mm

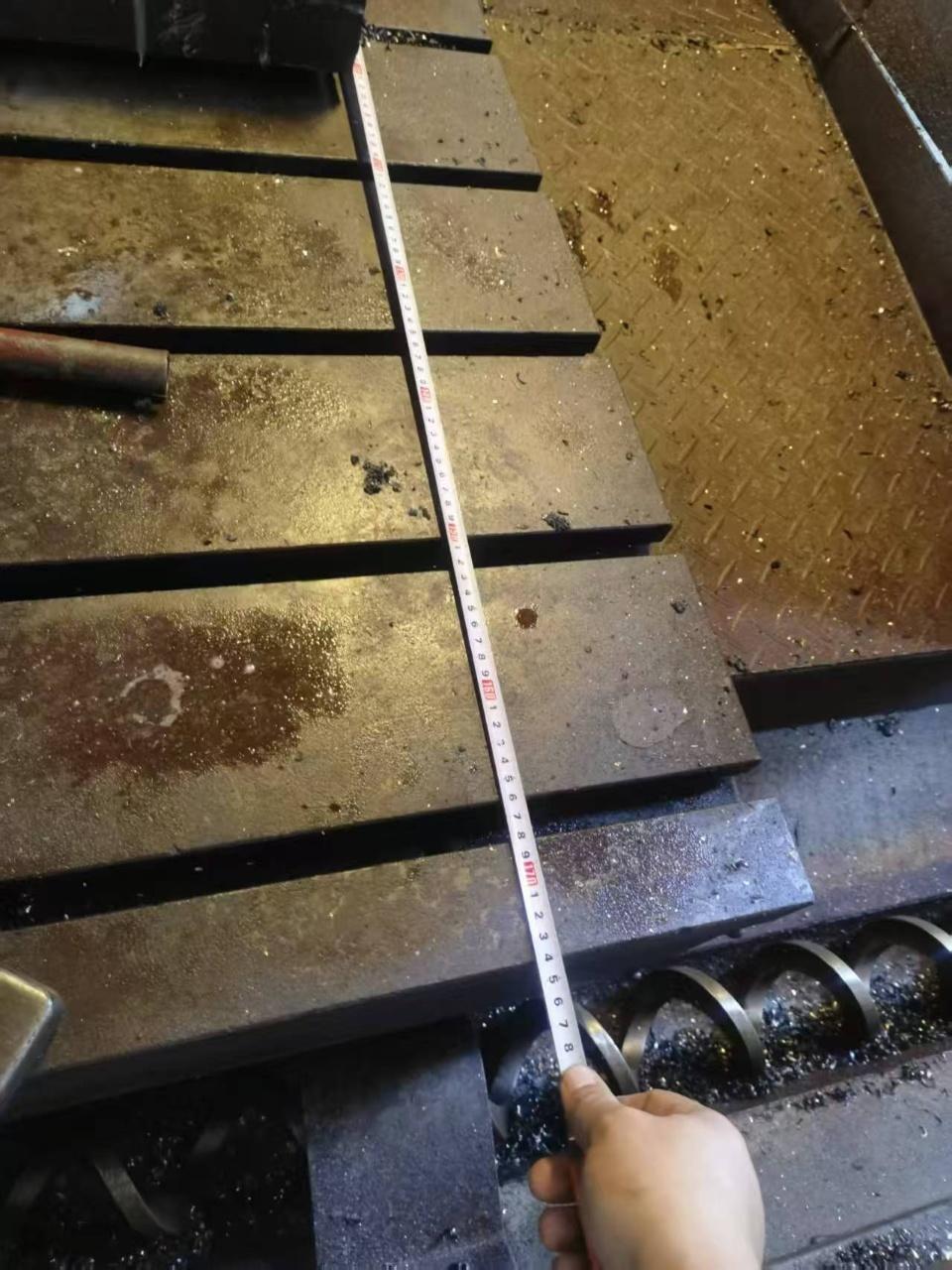

Worktable size: 2100 × 1740 mm

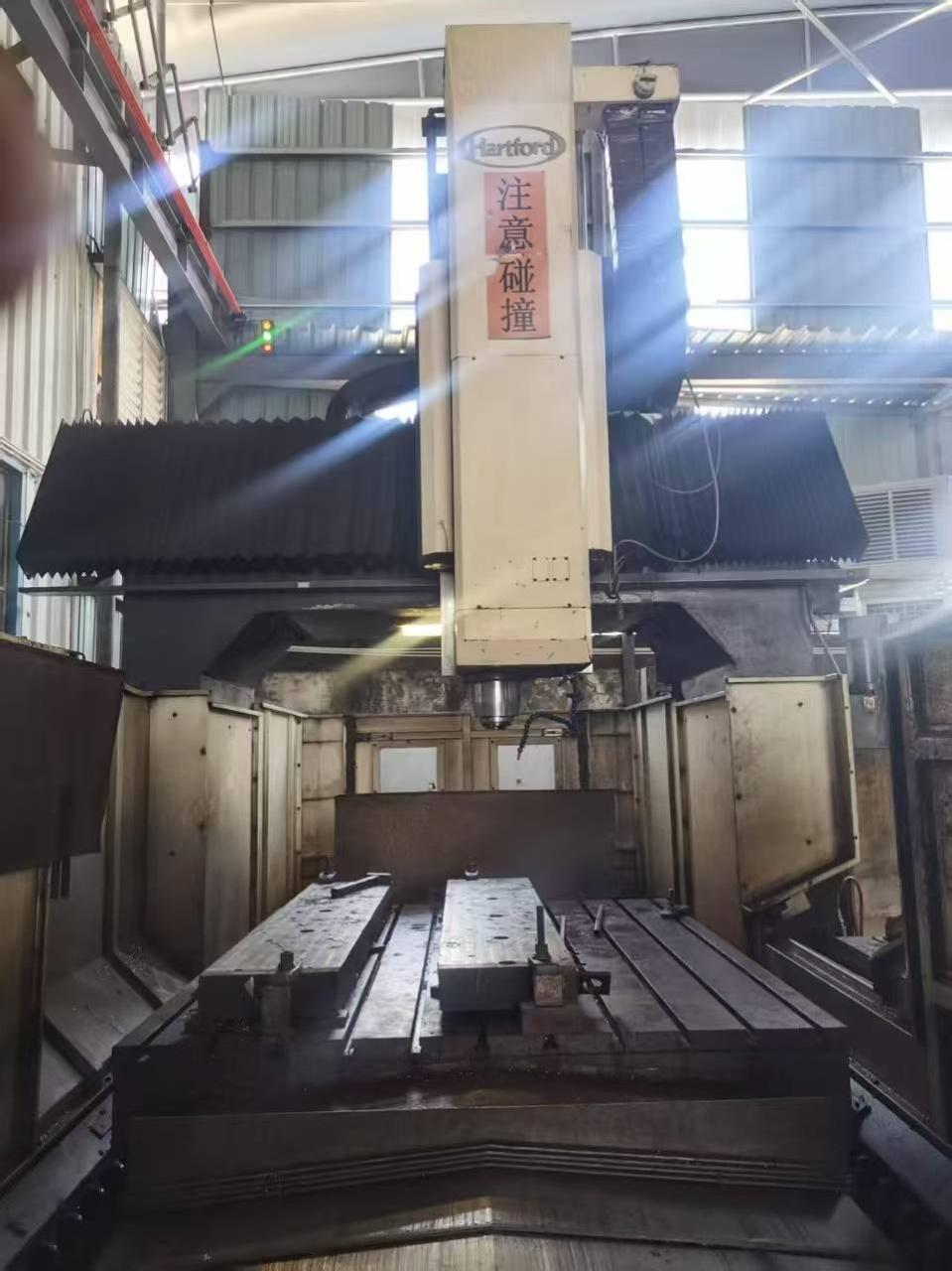

Gantry width: 2140 mm
Gantry height: 1340 mm

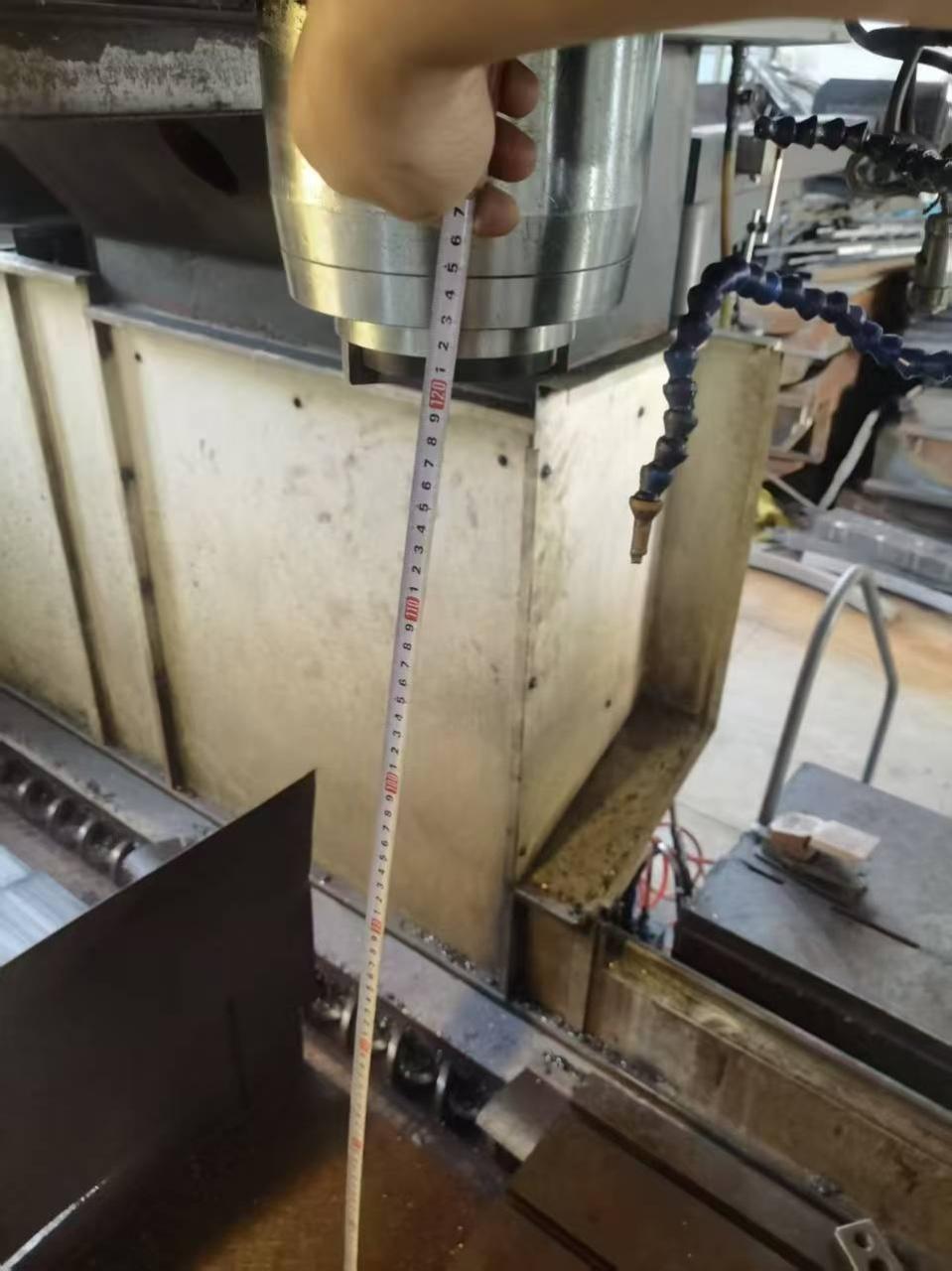

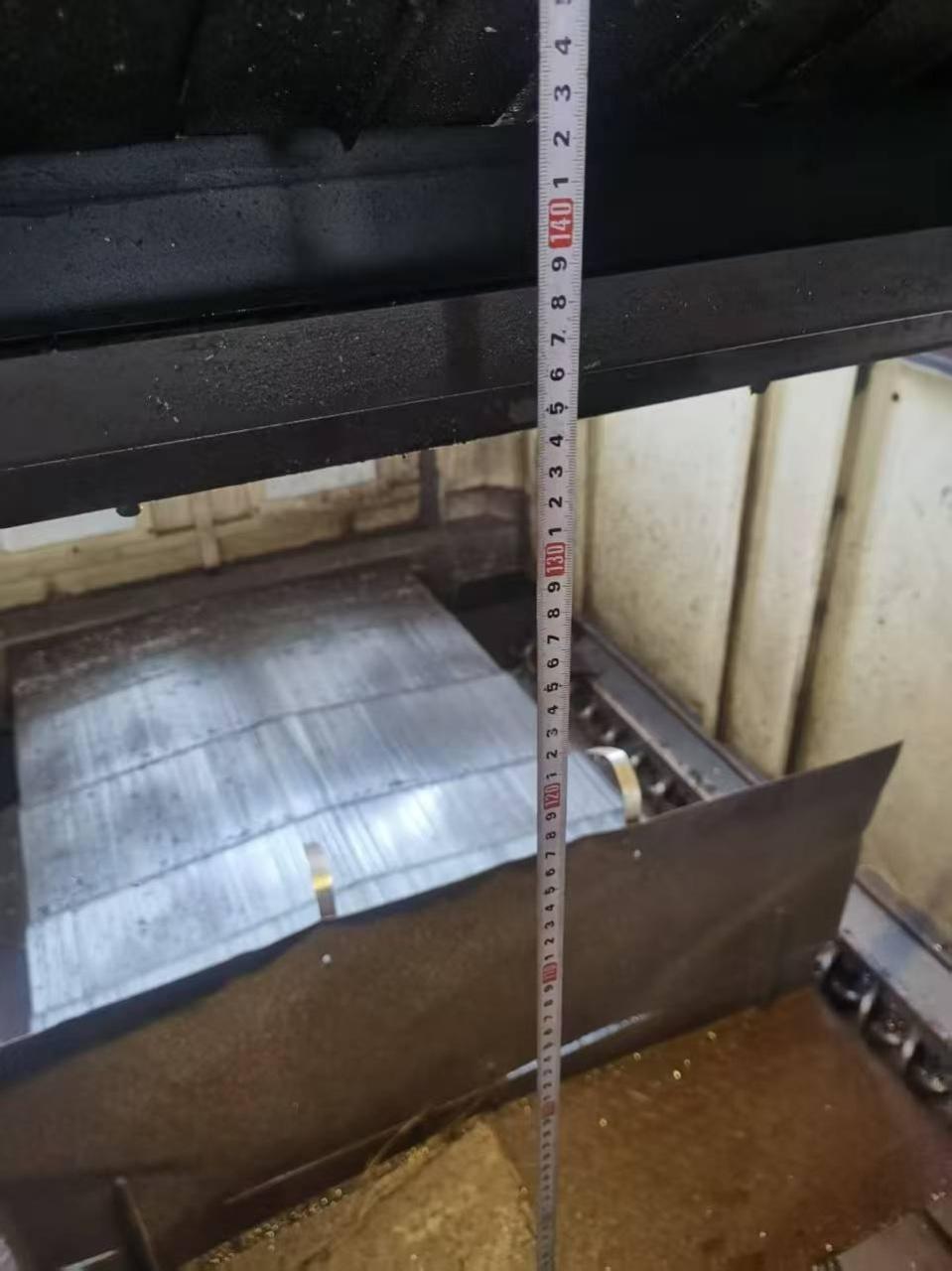

Distance from worktable to spindle nose: 1200 mm
Machining capacity: Capable of heavy cutting
Configuration

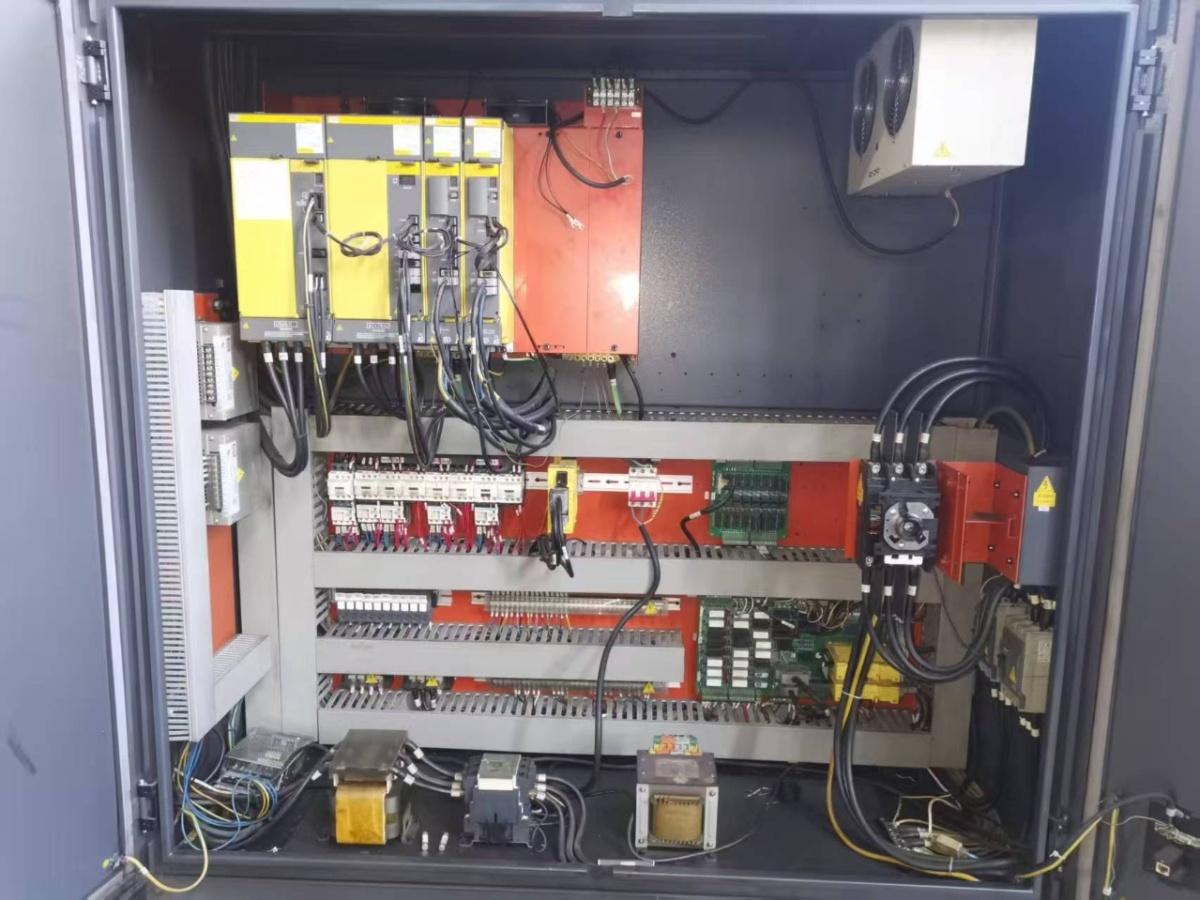

Driver: High-end split driver
Motor: Alpha motor

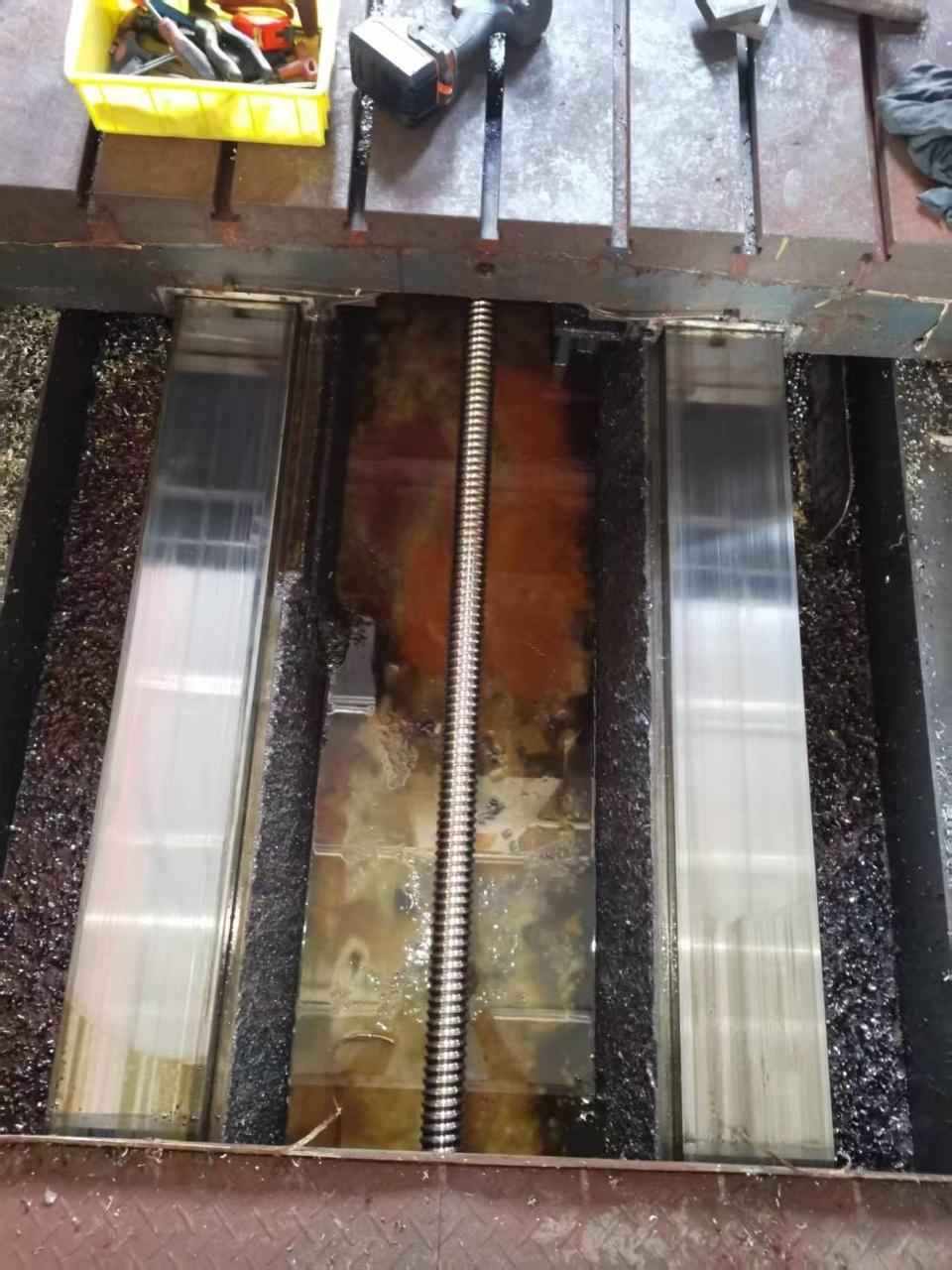

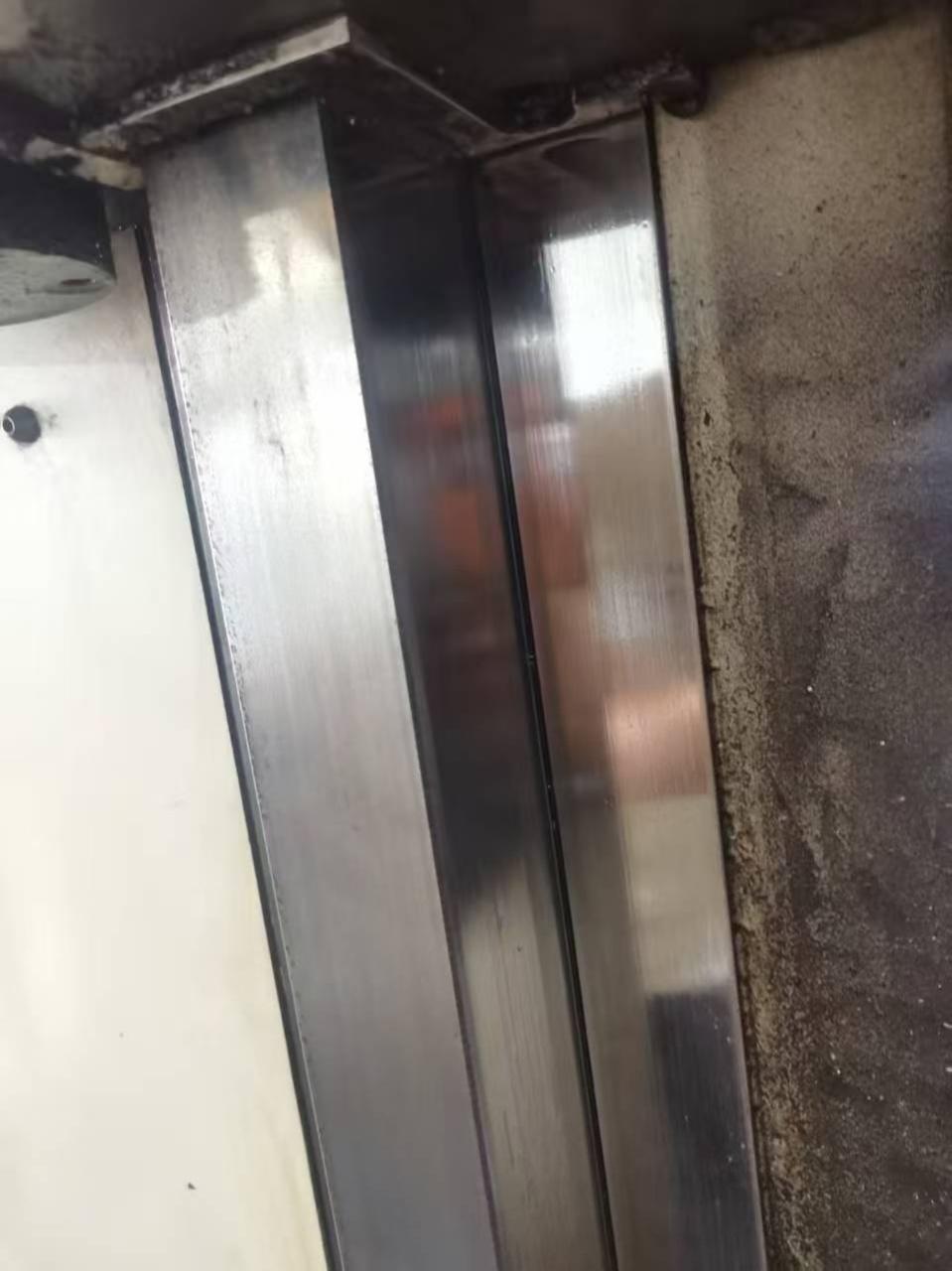

Guideways: Three-axis rigid guideways
Oil cooling

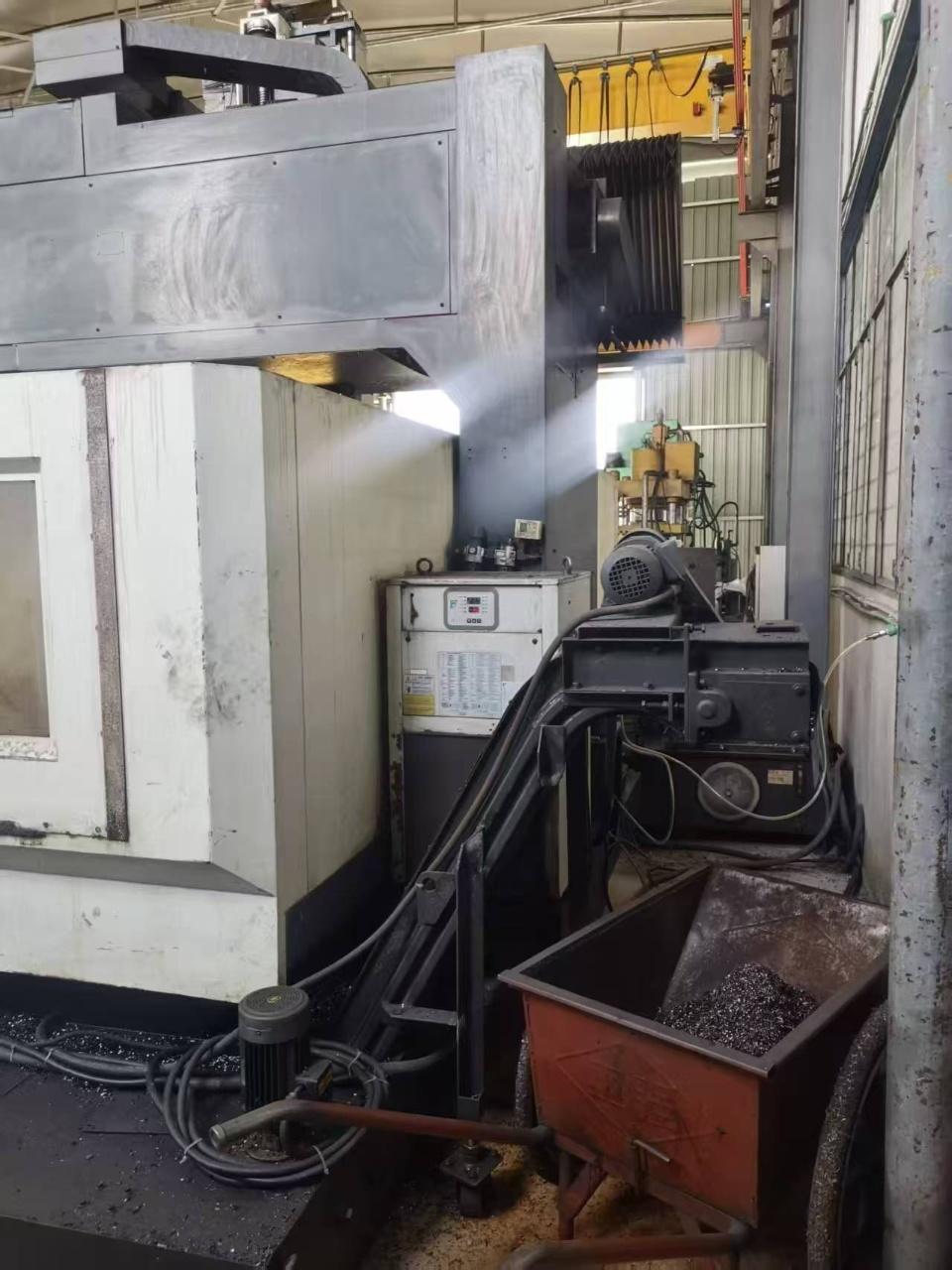

Hydraulic station

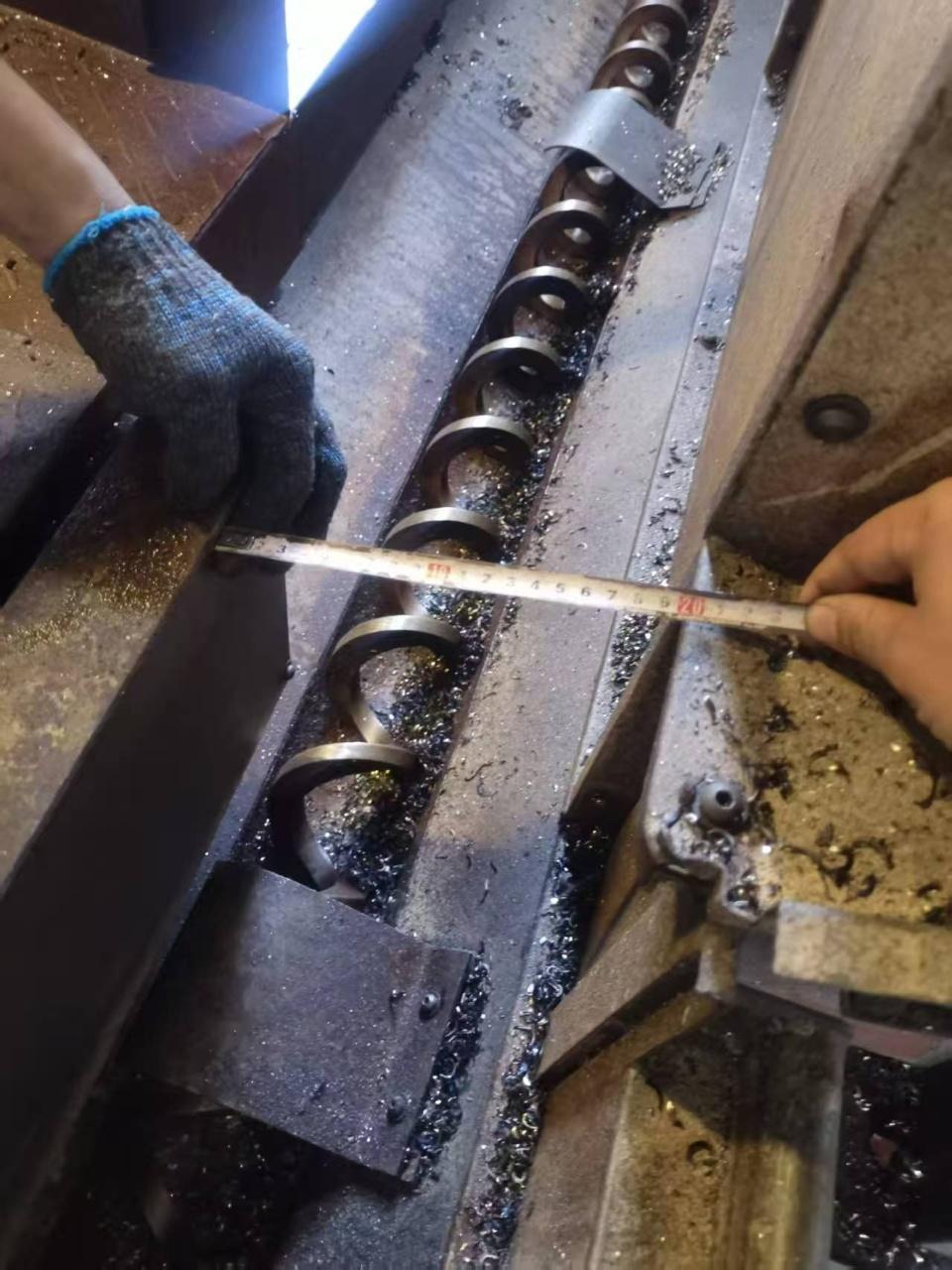

Built-in double-helix and drag-chain chip conveyor
