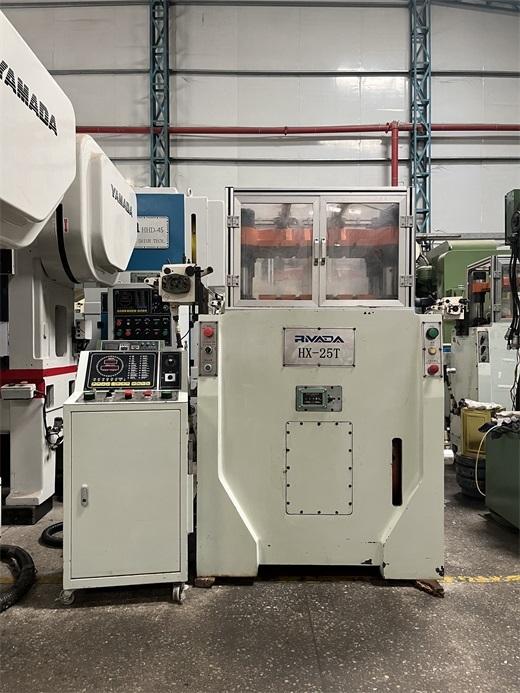

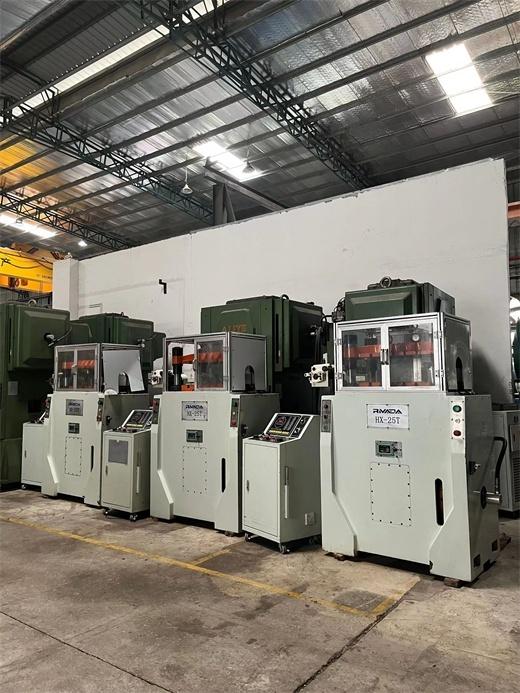

虹瑞 HX-25T High speed punch

Nominal pressure (tonnage) : 25 tons
travel 30 mm
The travel rate (SPM) is 100 to 600 times per minute
The slider travel adjustment range is 30 mm
The closed height range of the mold is 180 to 210 mm
Worktable size (length × width × thickness) are 550 × 400 × 80 mm
The Footage of the lower plane of the slider are 550 × 350 mm
The size of the blanking hole is 300 × 100 mm
The motor power is 5 HP (approximately equivalent to 3.7 kW).
The overall weight of machine is 1800 kilograms
drive and Clutch CNC System Inverter (Variable frequency speed regulation)/Air & Friction (Pneumatic friction clutch)
