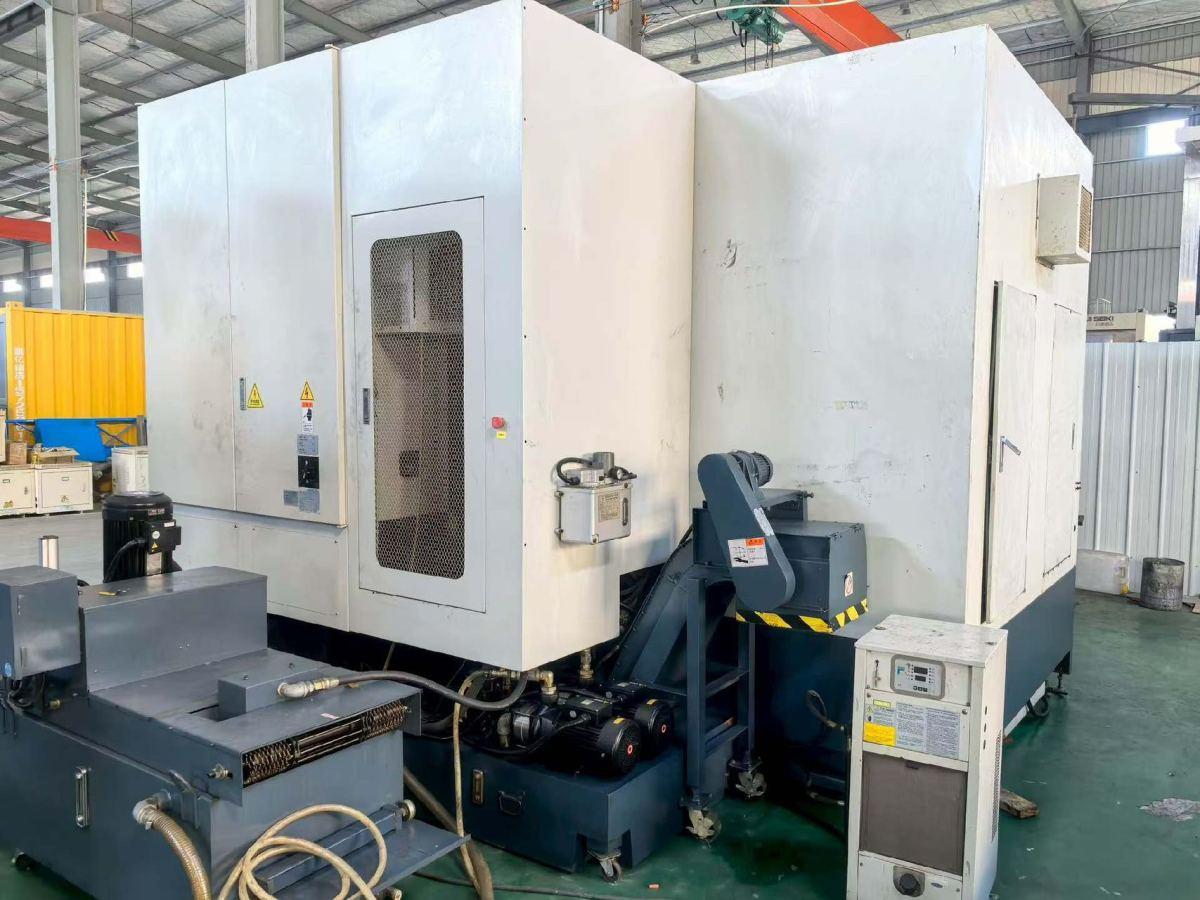

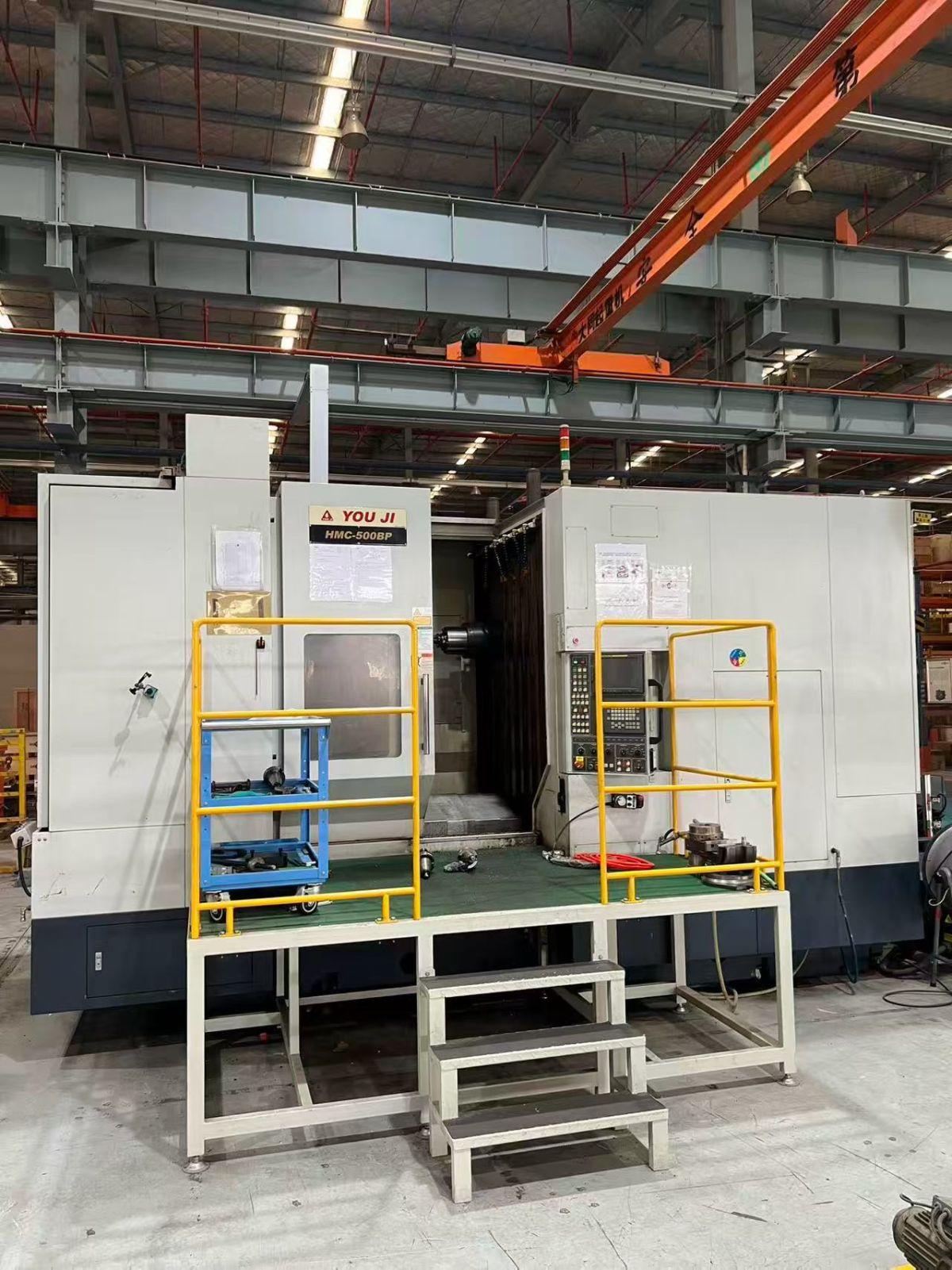

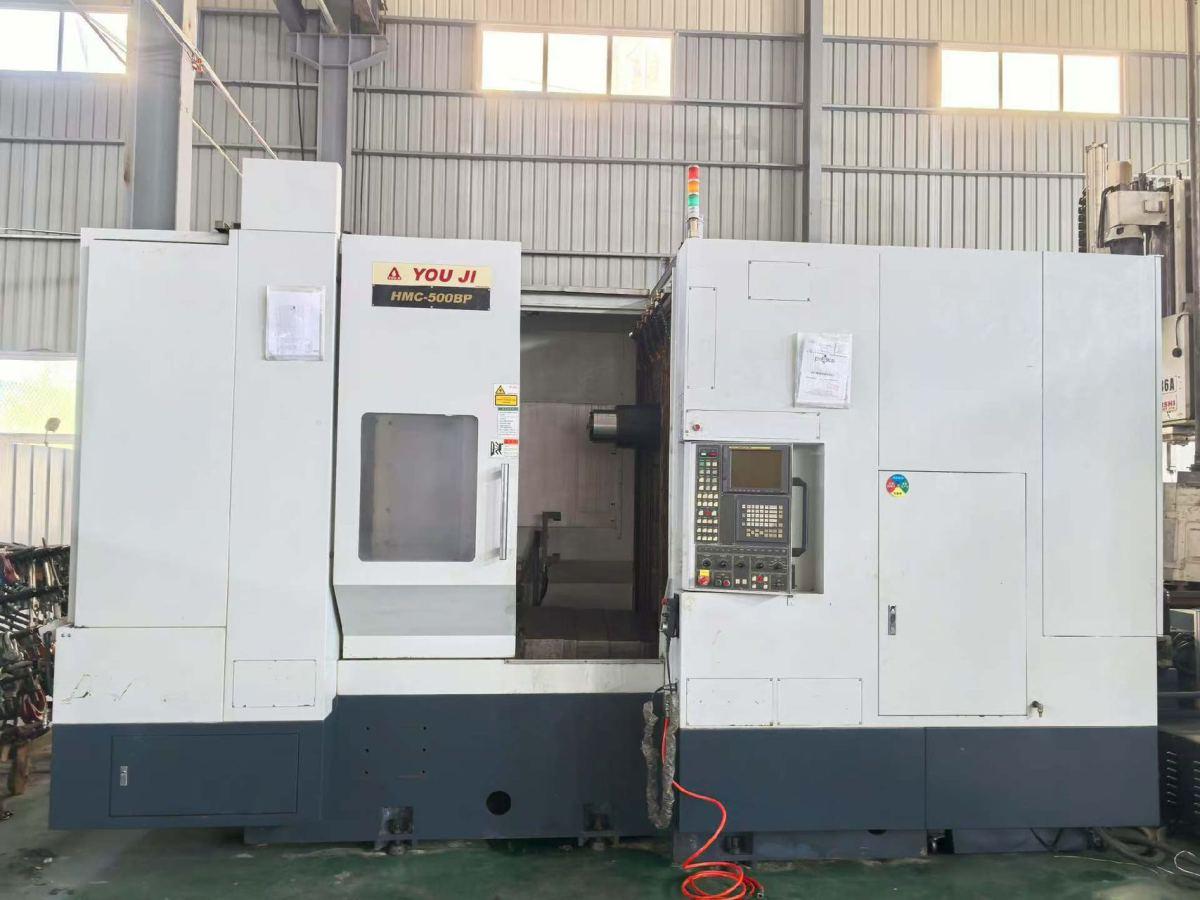

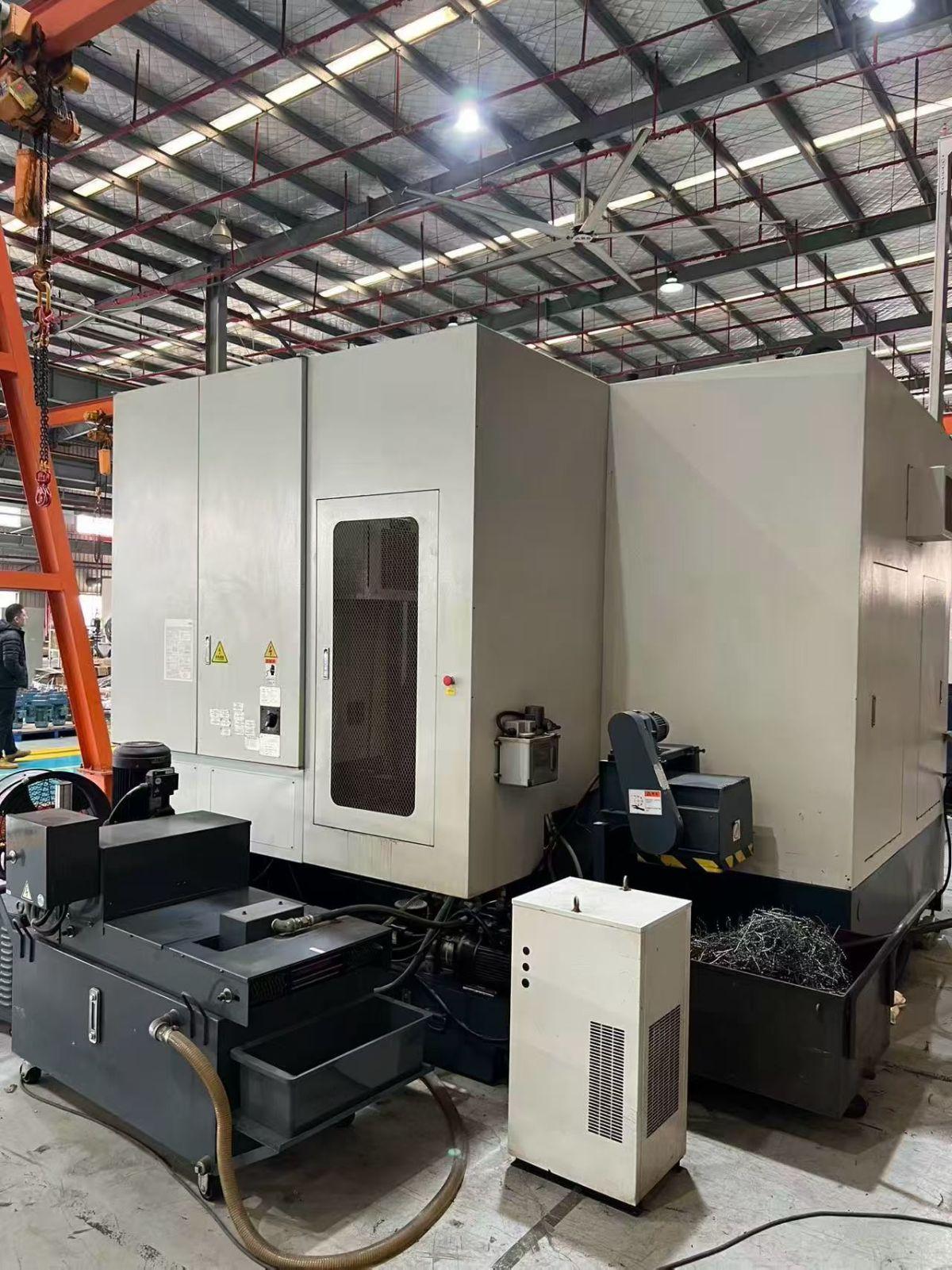

YouJi HMC-500BP Horizontal Machining centre
[Product Information]:
- Inventory number：69185
- Brand：YouJi
- Model：HMC-500BP
- Origin：Taiwan, China
- Location：China
- Year：2011
- Create Time：2026-10-07
Specifications:
three-axis travel (X/Y/Z) 800 × 750 × 800 mm

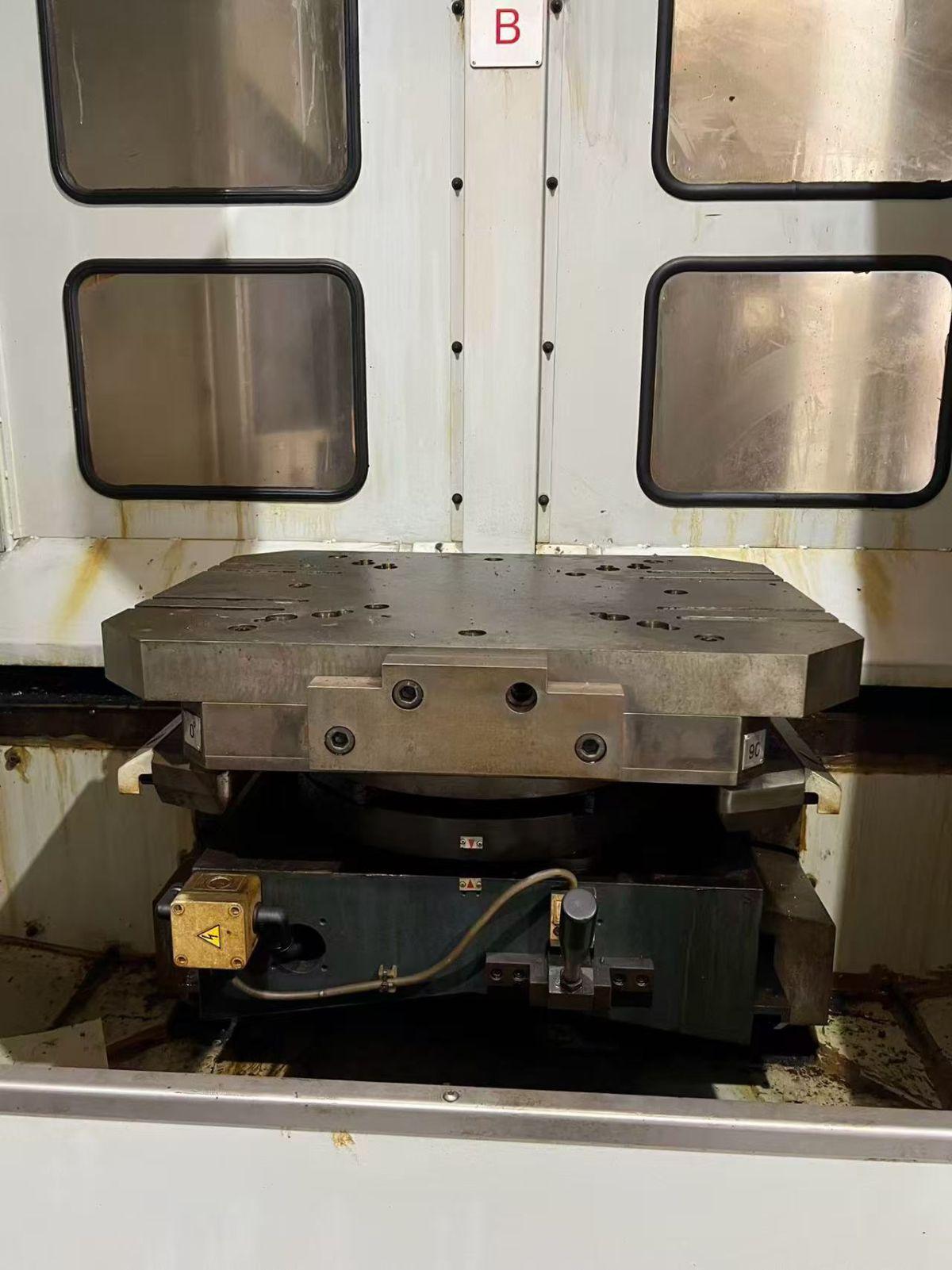

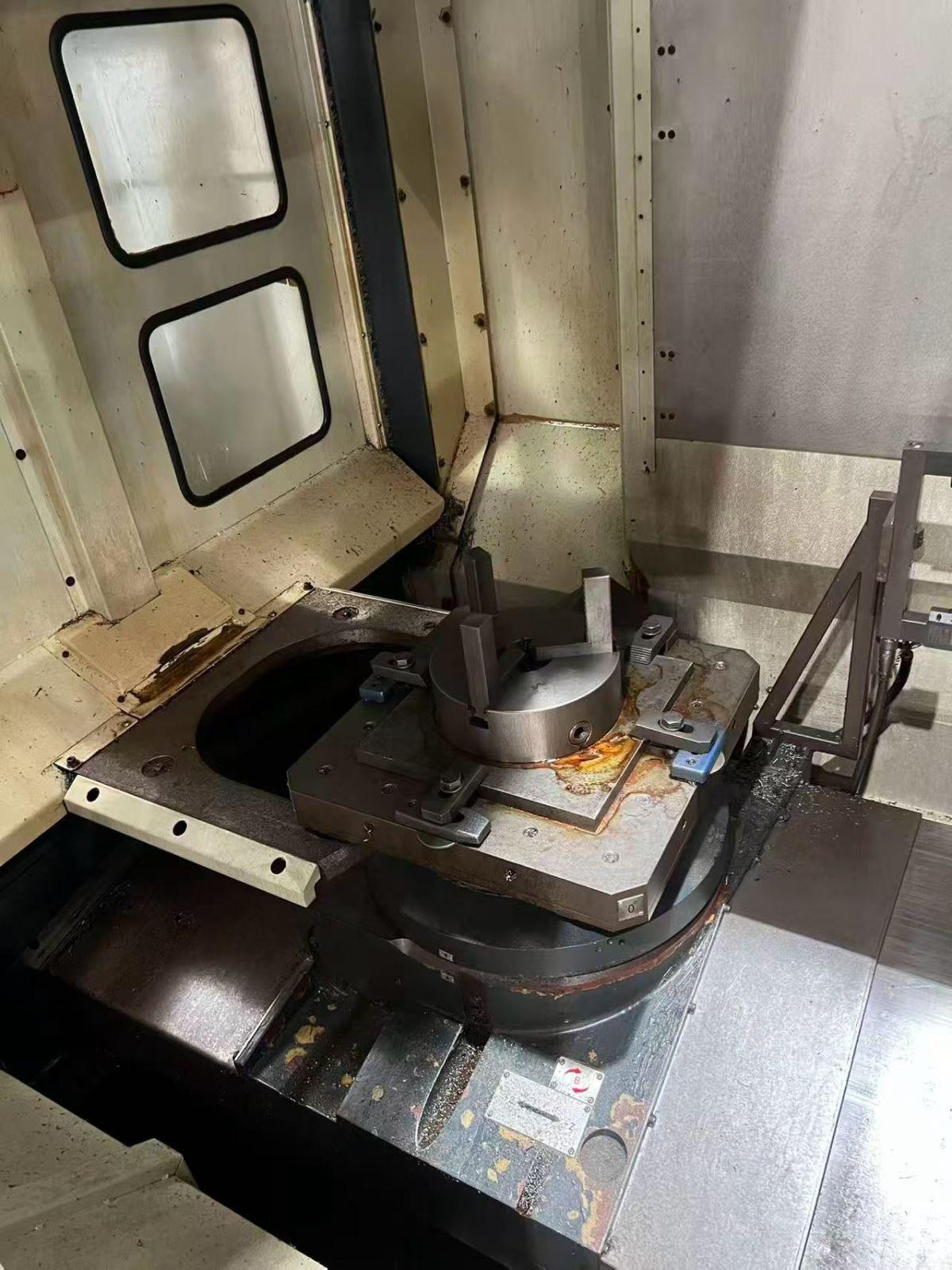

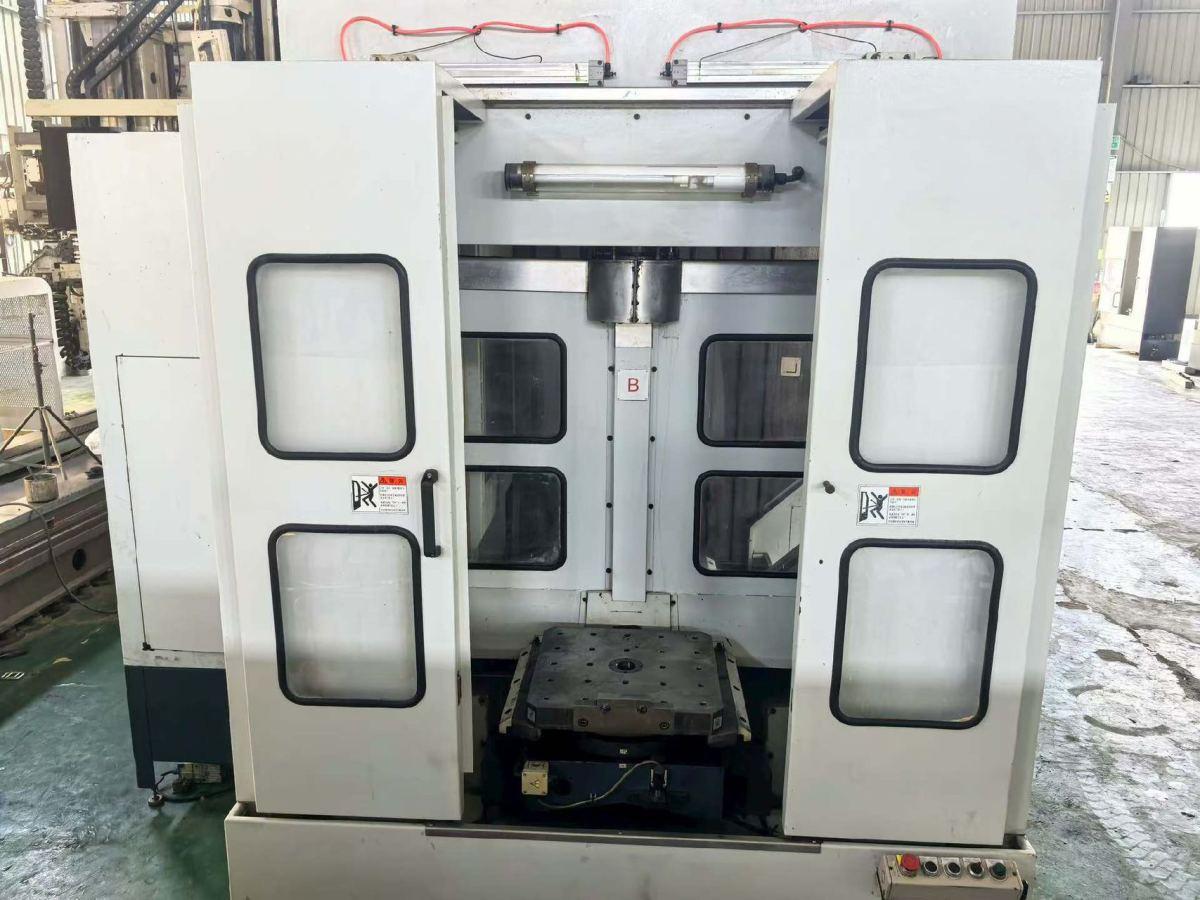

Worktable size (width × length) is 500 × 500 mm
The maximum load of Worktable: 500 kilograms
The maximum workpiece size is approximately Φ800 × 1150 mm

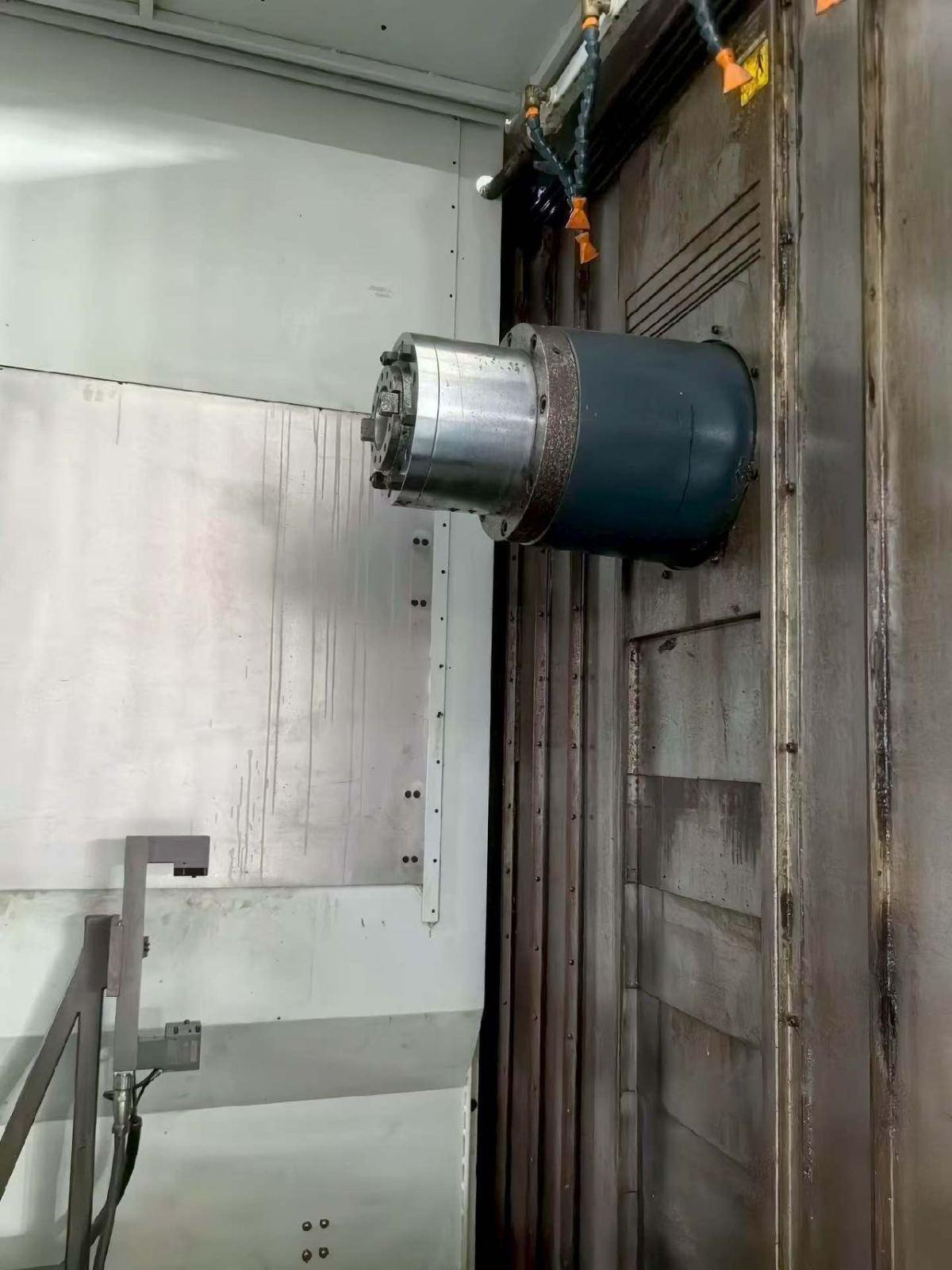

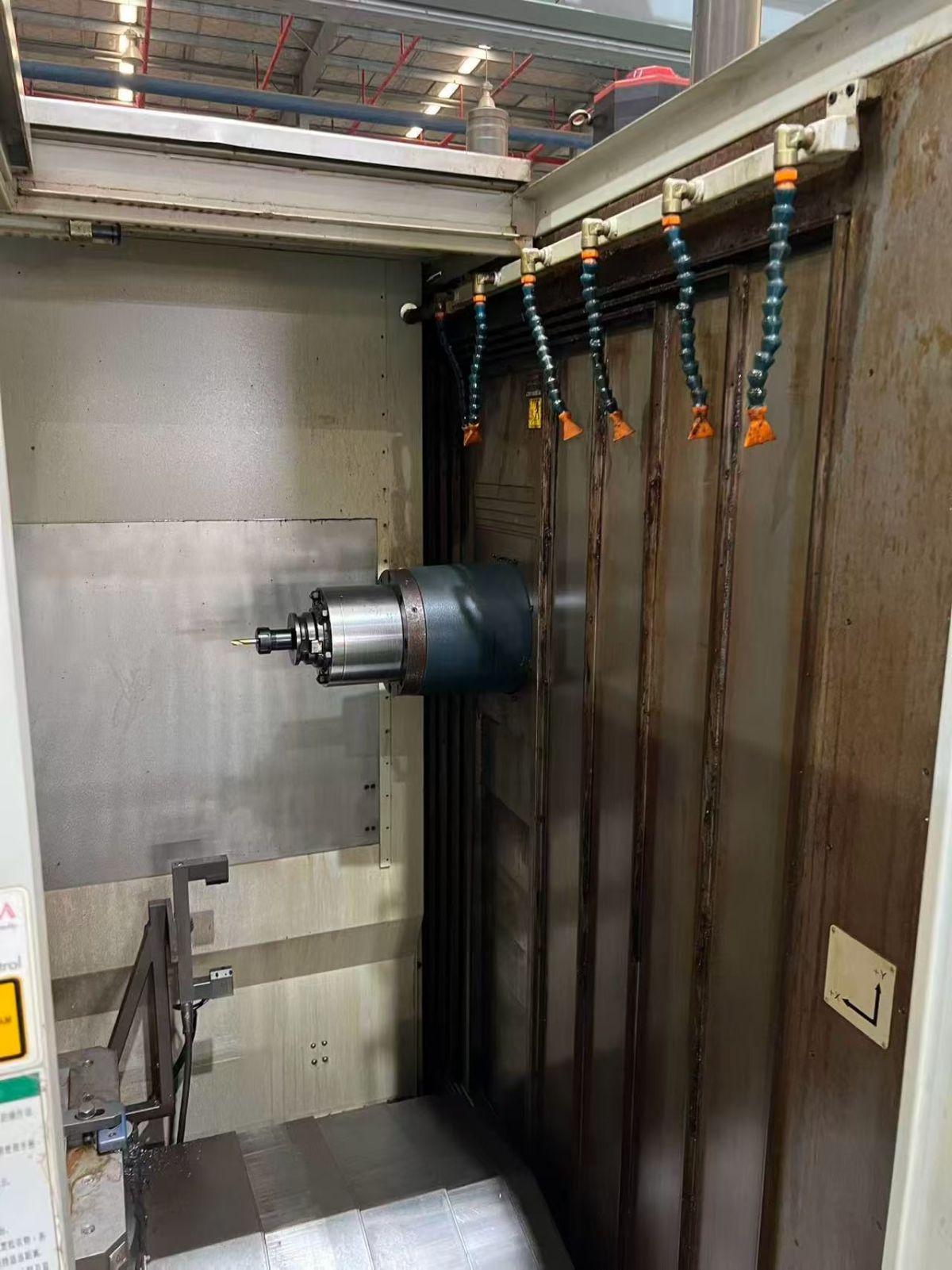

spindle taper : BT50
The maximum speed of spindle is 8000 rpm
The power of spindle motor is 18.5 kW
The maximum torque of spindle is 471 N.m (two-stage gear transmission)
The rapid movement speed of each axis is 48 m/min
The guideway form features heavy-duty roller linear guides for the XY axes and hard guides for the Z axis
B-axis Indexing precision 0.001° (equipped with high-precision mouse tooth discs, 1°1 point is also available as an option)

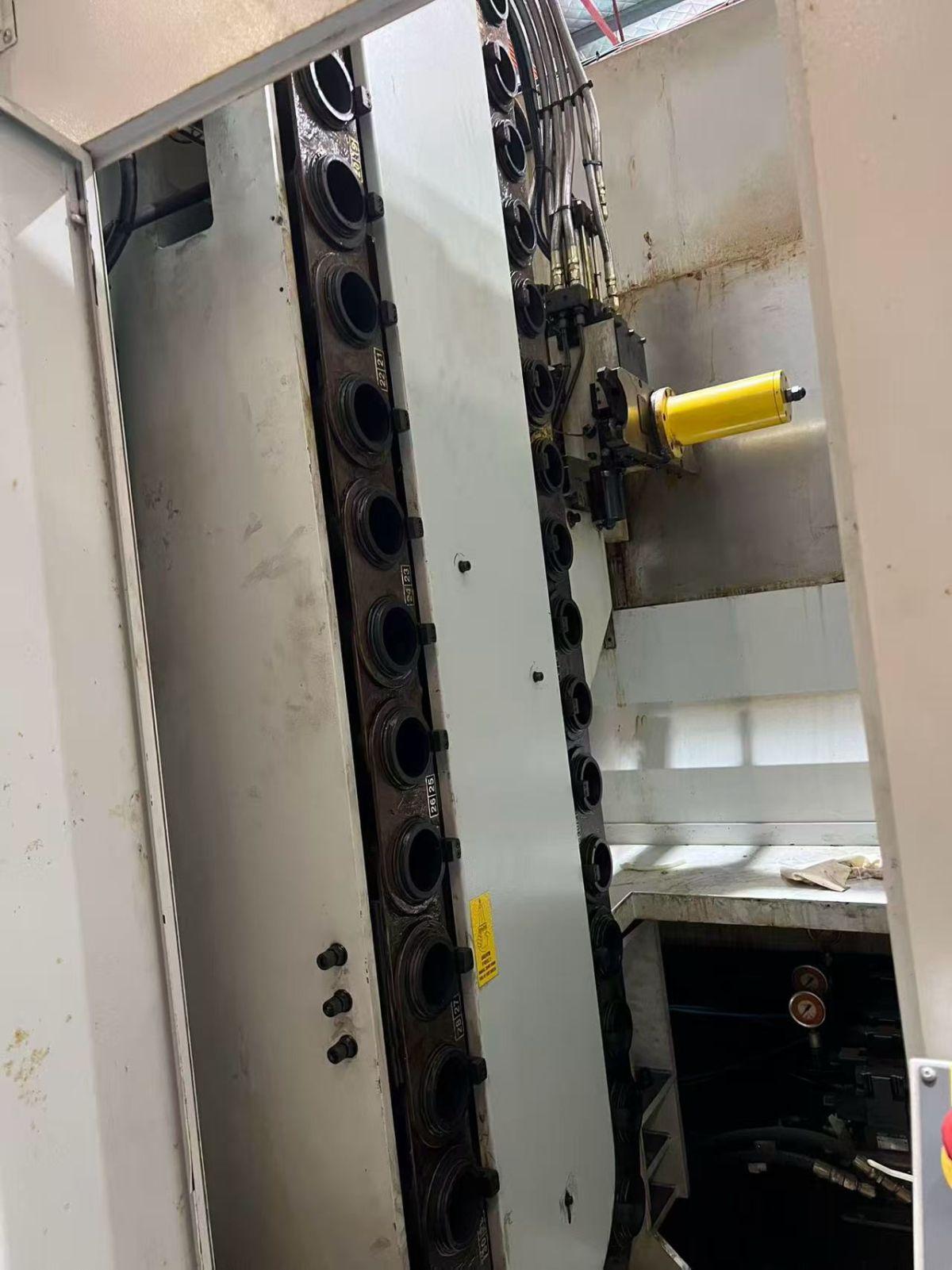

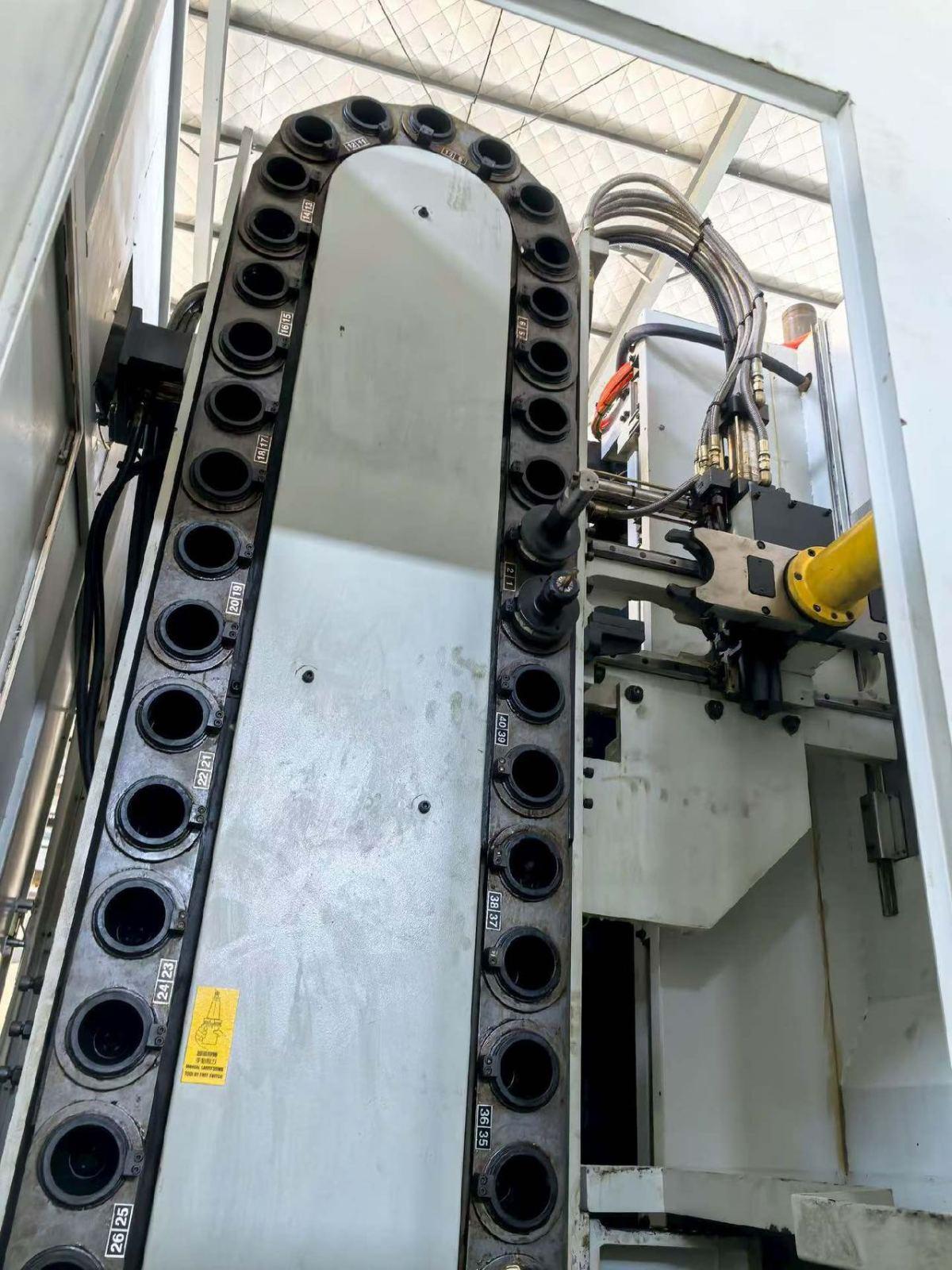

Tool storage capacity: 40 pieces (chain-type tools magazine with nearby tool selection function)
The automatic tool changing time is 2.6 seconds (tool matching)
