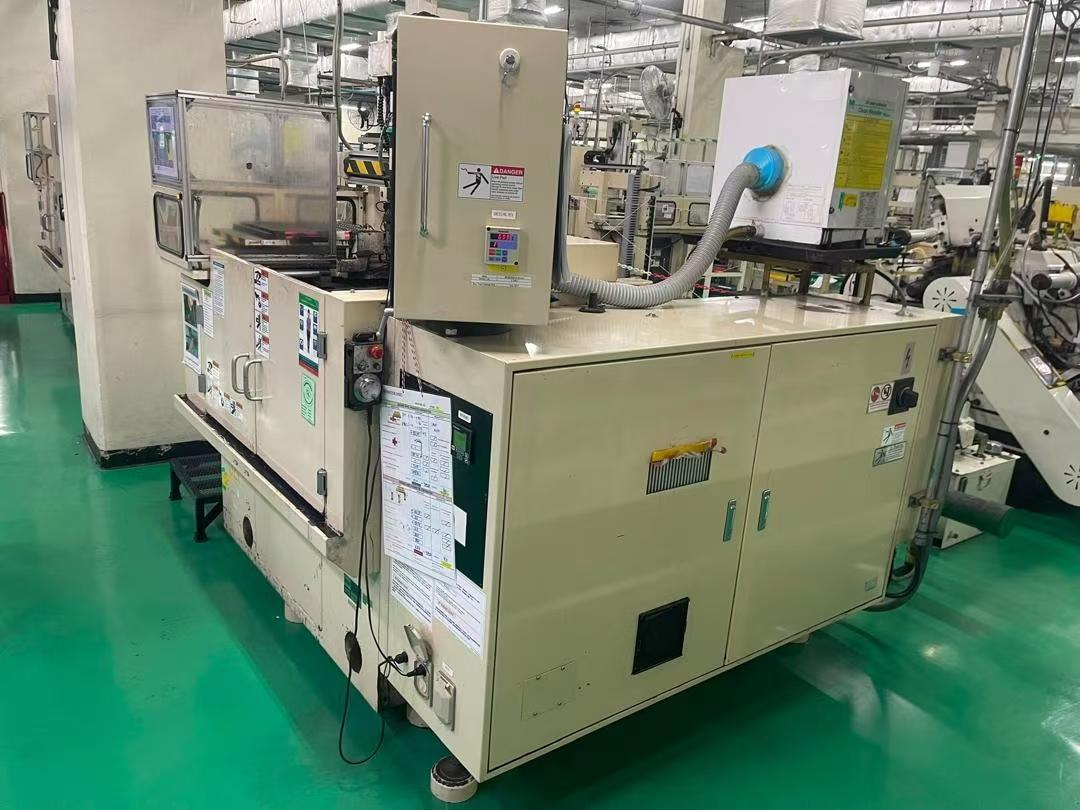

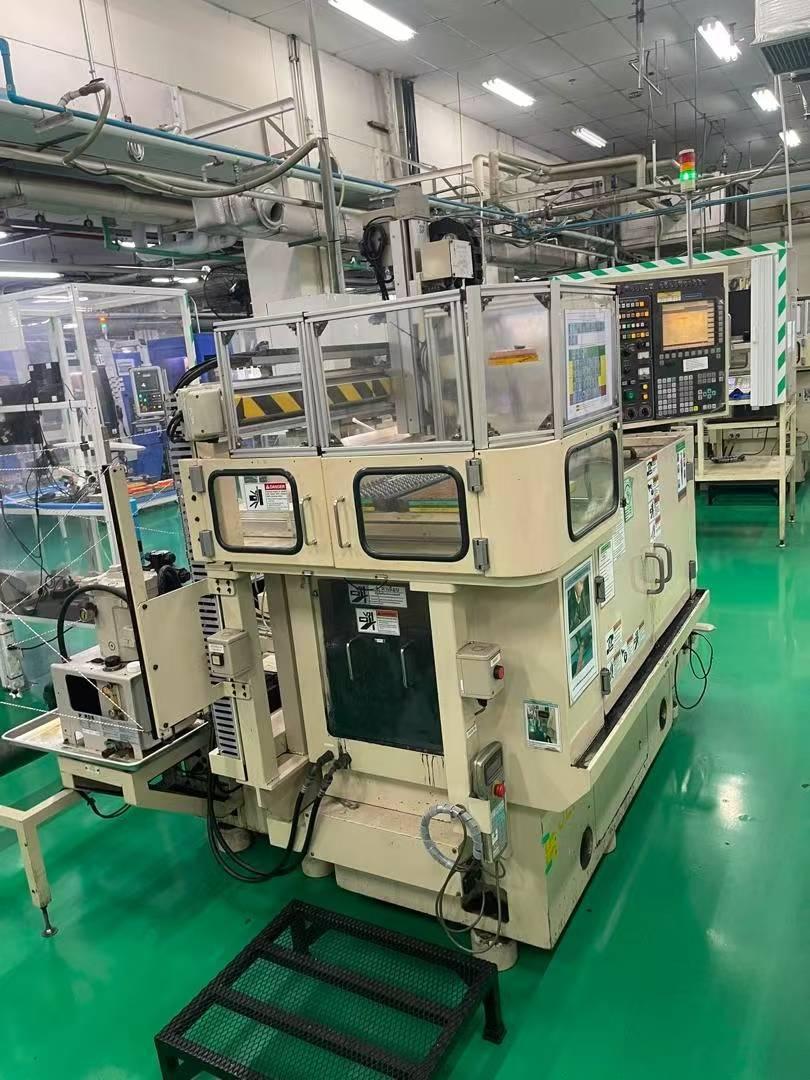

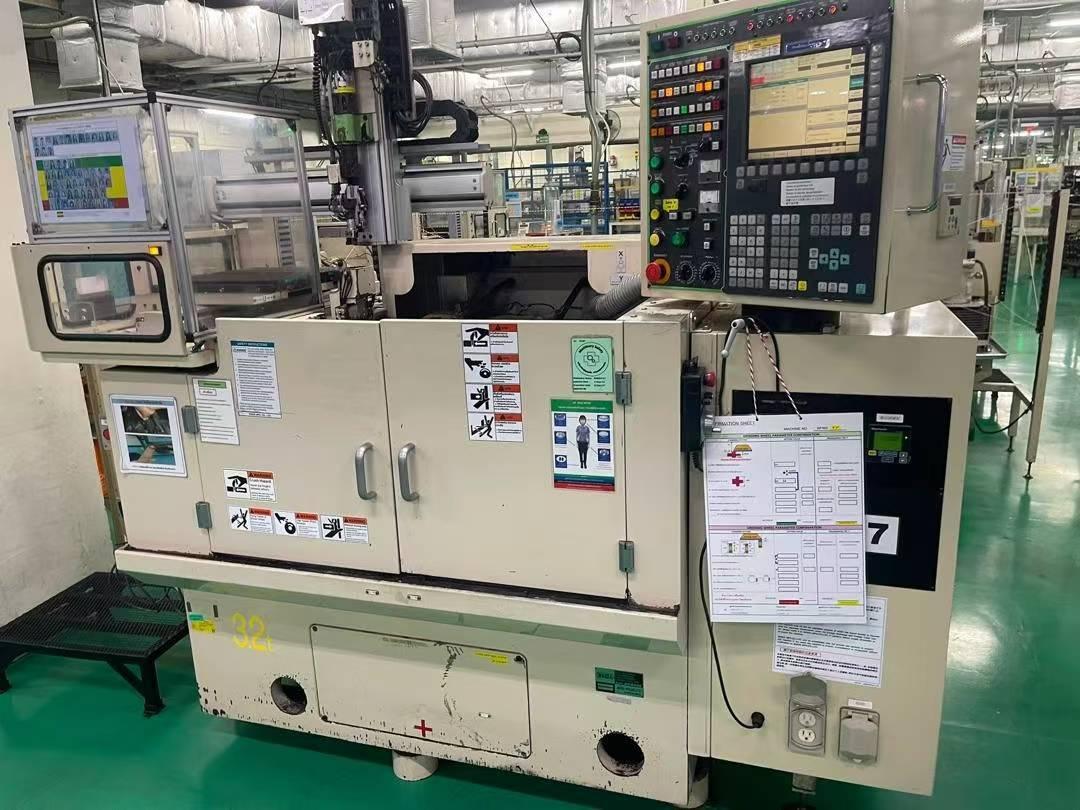

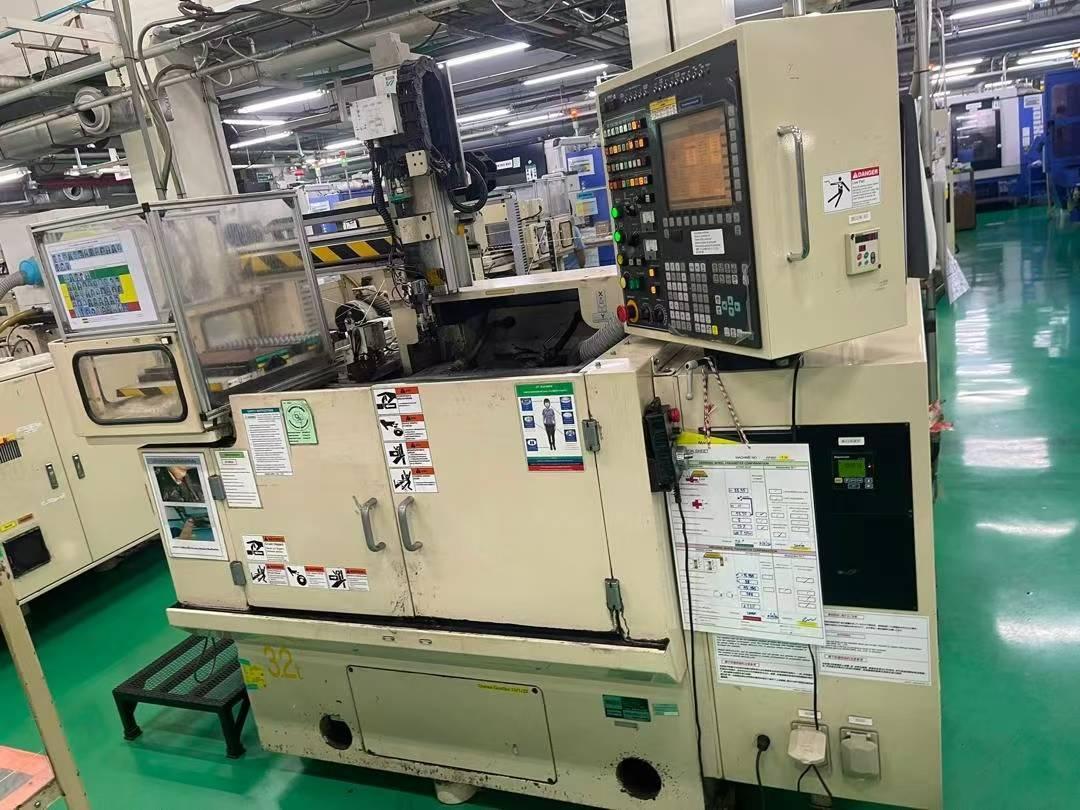

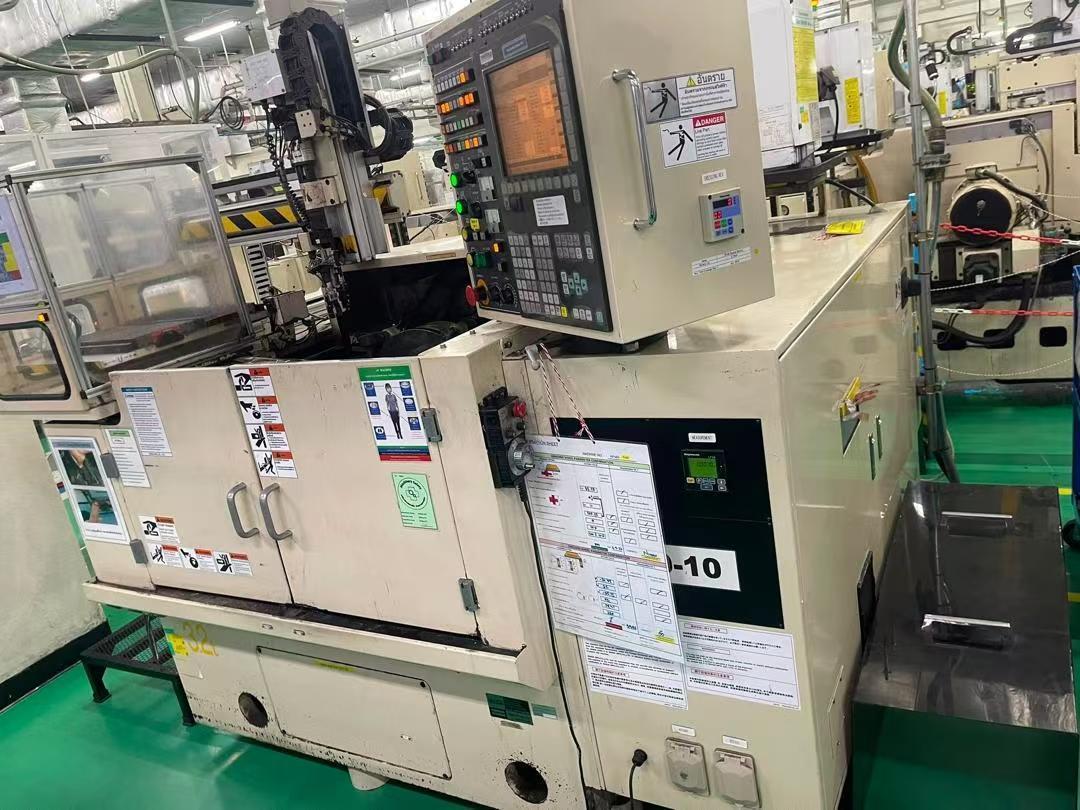

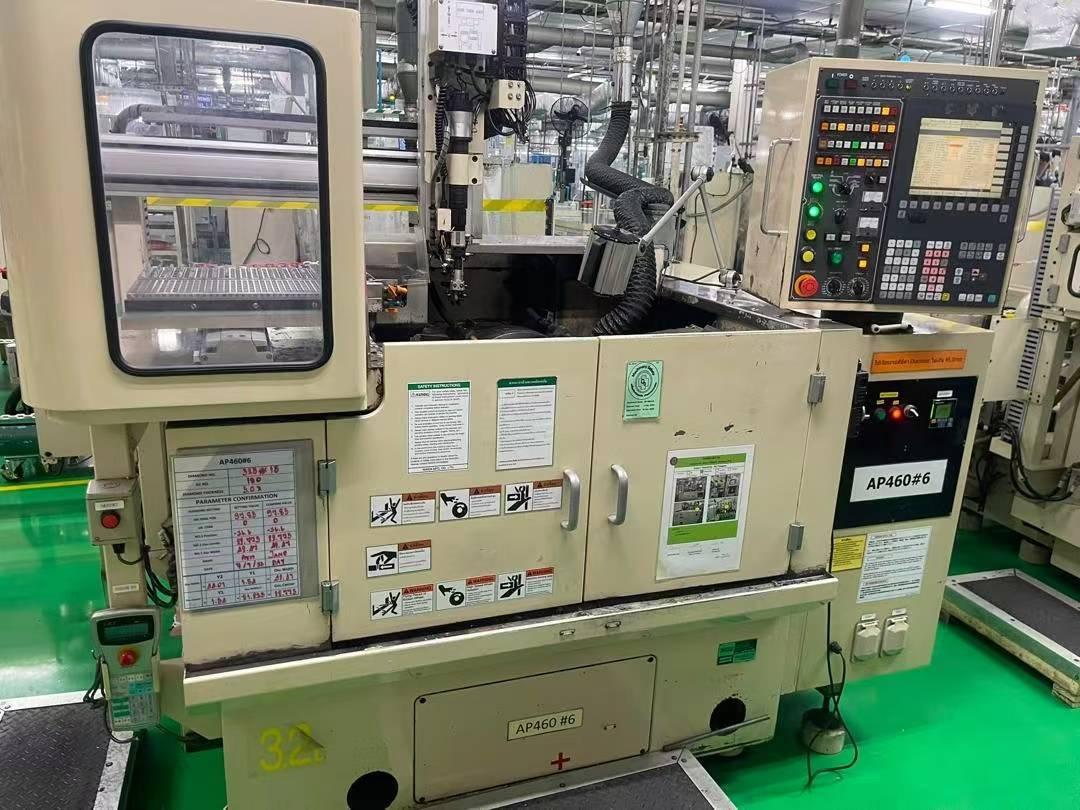

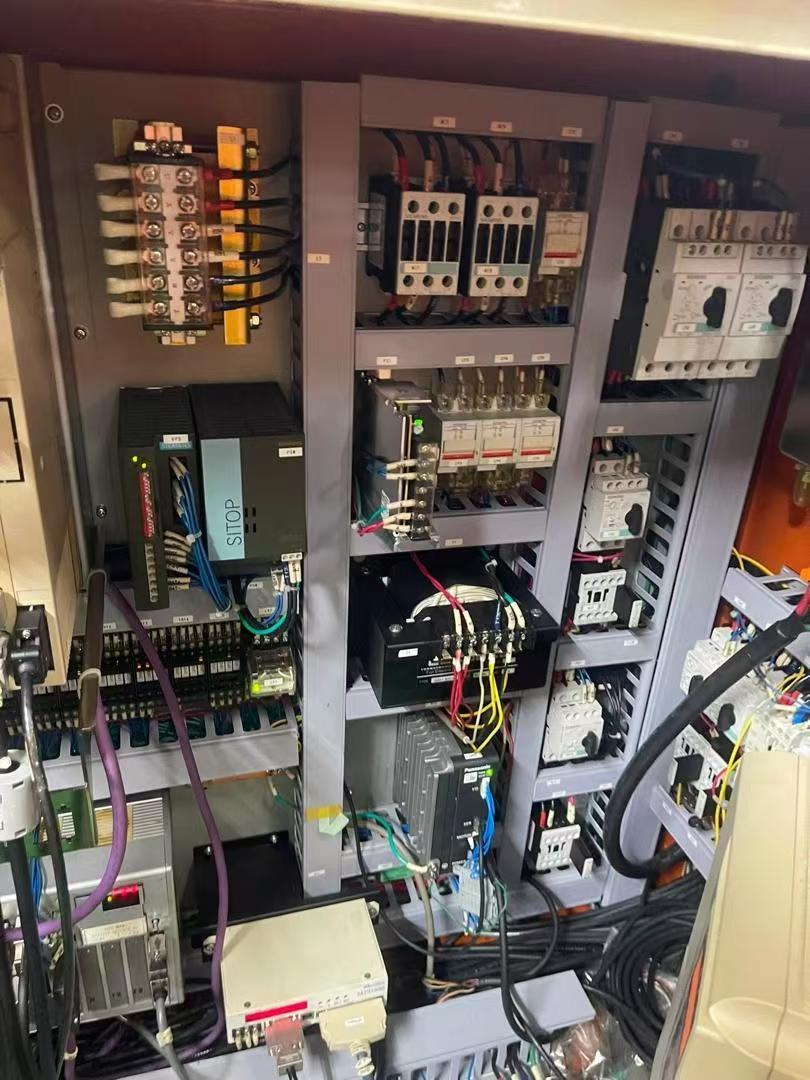

WAIDA AP460E Tool grinder

CNC Axis Configuration: 4-axis simultaneous control X/Y/B/C
X-axis: Radial feed of the grinding wheel
Y-axis: Grinding wheel reciprocating oscillation axis
B-axis: Workpiece rotary indexing axis, used to rotate the insert and sequentially grind each side
C-axis: Workpiece tilting axis, used to set the negative chamfer angle

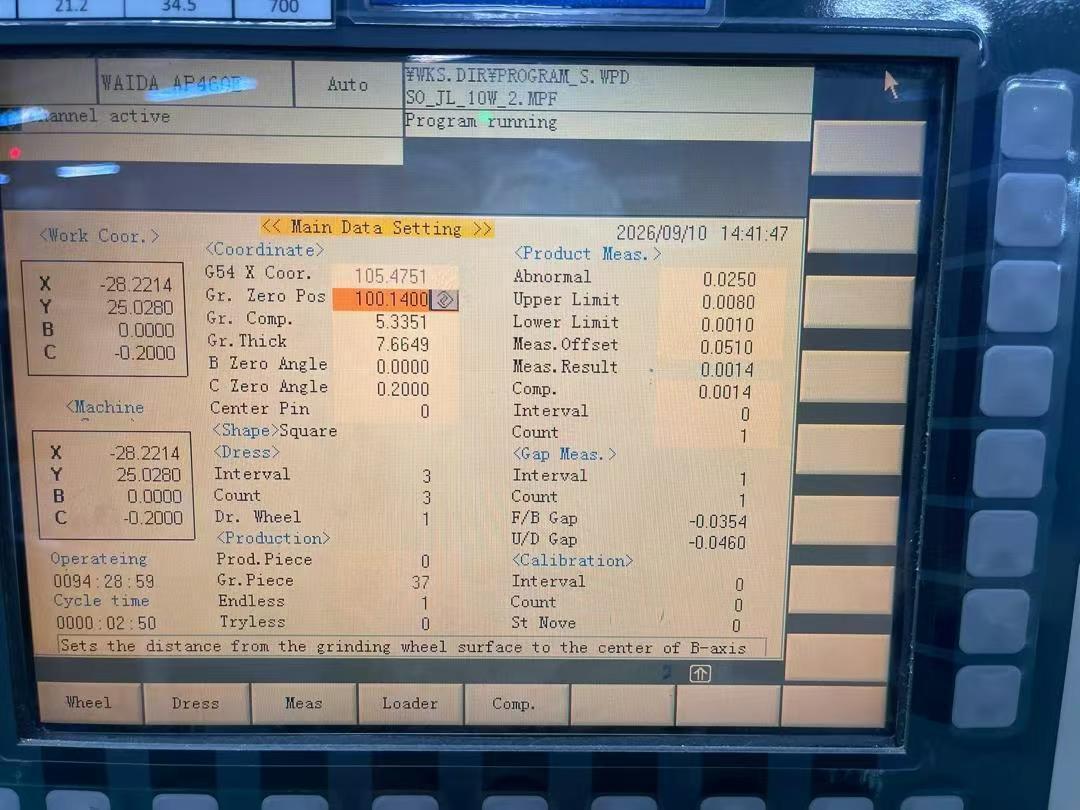

CNC System Interface: Displays X/Y/B/C. The standard configuration has no Z-axis and uses 4-axis simultaneous control, not 5-axis control
Workpiece Range:
Insert Shapes: Square, triangular, rhombic, circular, and other types of indexable inserts
Insert Inscribed Circle Diameter: φ3.97–φ76mm
Maximum Insert Thickness: 90mm
Machining Materials: Cemented carbide, cermet, ceramic, PCD/CBN inserts
Grinding Wheel and Grinding Parameters:
Grinding Wheel: Diamond/CBN grinding wheel, original factory specification ASD270-1/25D30
Grinding Wheel Spindle: High-rigidity structure with hydrostatic bearings and micron-level rotational accuracy
Grinding Wheel Dressing: Built-in automatic dressing function with adjustable dressing intervals and dressing counts
In-process Inspection: Equipped with a measuring probe for automatic dimensional inspection after grinding and automatic compensation for grinding wheel wear
Dimensional Accuracy: Peripheral grinding tolerance of ±0.002mm in batch production, with good edge consistency

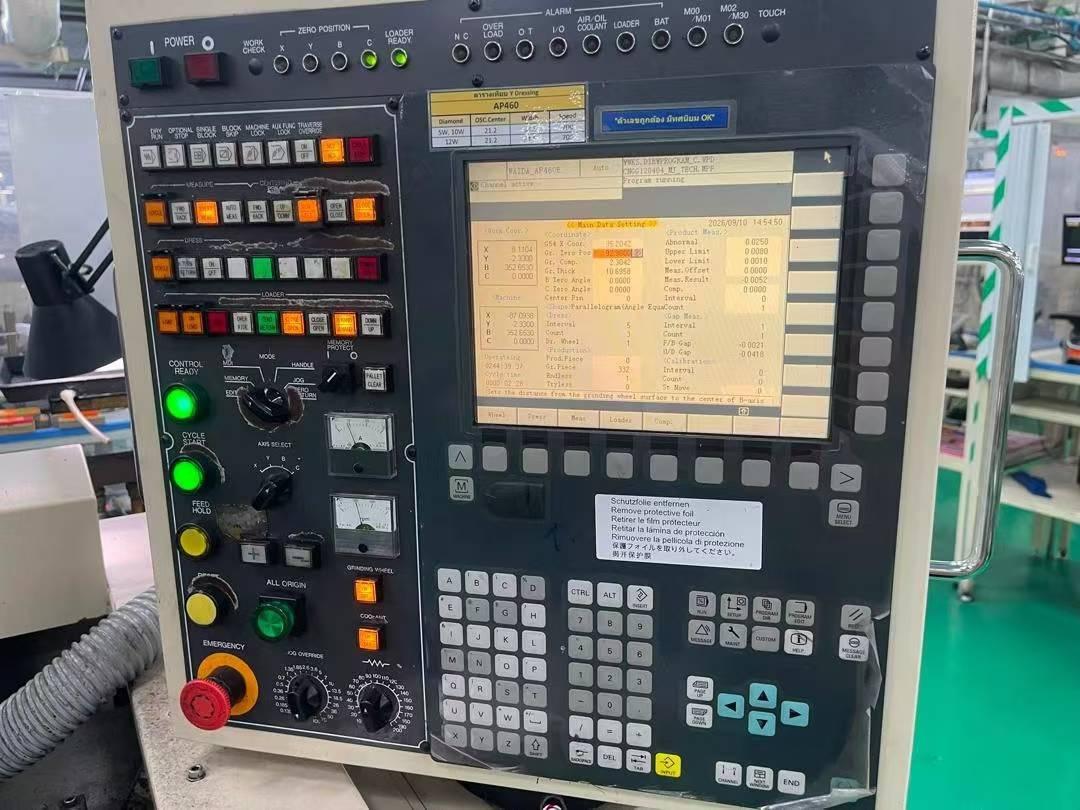

CNC System:
CNC System: WAIDA proprietary CNC system
Insert Graphic Programming: Generates machining programs based on the input insert geometry parameters
Dimensional Control: Real-time dimensional measurement and automatic compensation
Production Management: Production counting and cycle time monitoring
Automation Configuration:
Automatic Loading/Unloading: Robotic loading and unloading system
Material Feeding: Pallet feeding system
Automation Capability: Supports long-term unmanned continuous production
Robot: Auxiliary automation mechanism, not included in the machine tool's four CNC servo axes
Overall Dimensions: Approximately 2300 × 1960 × 1950mm
Overall Weight: Approximately 6.5 tons
