JIRFINE V11 Machining centre

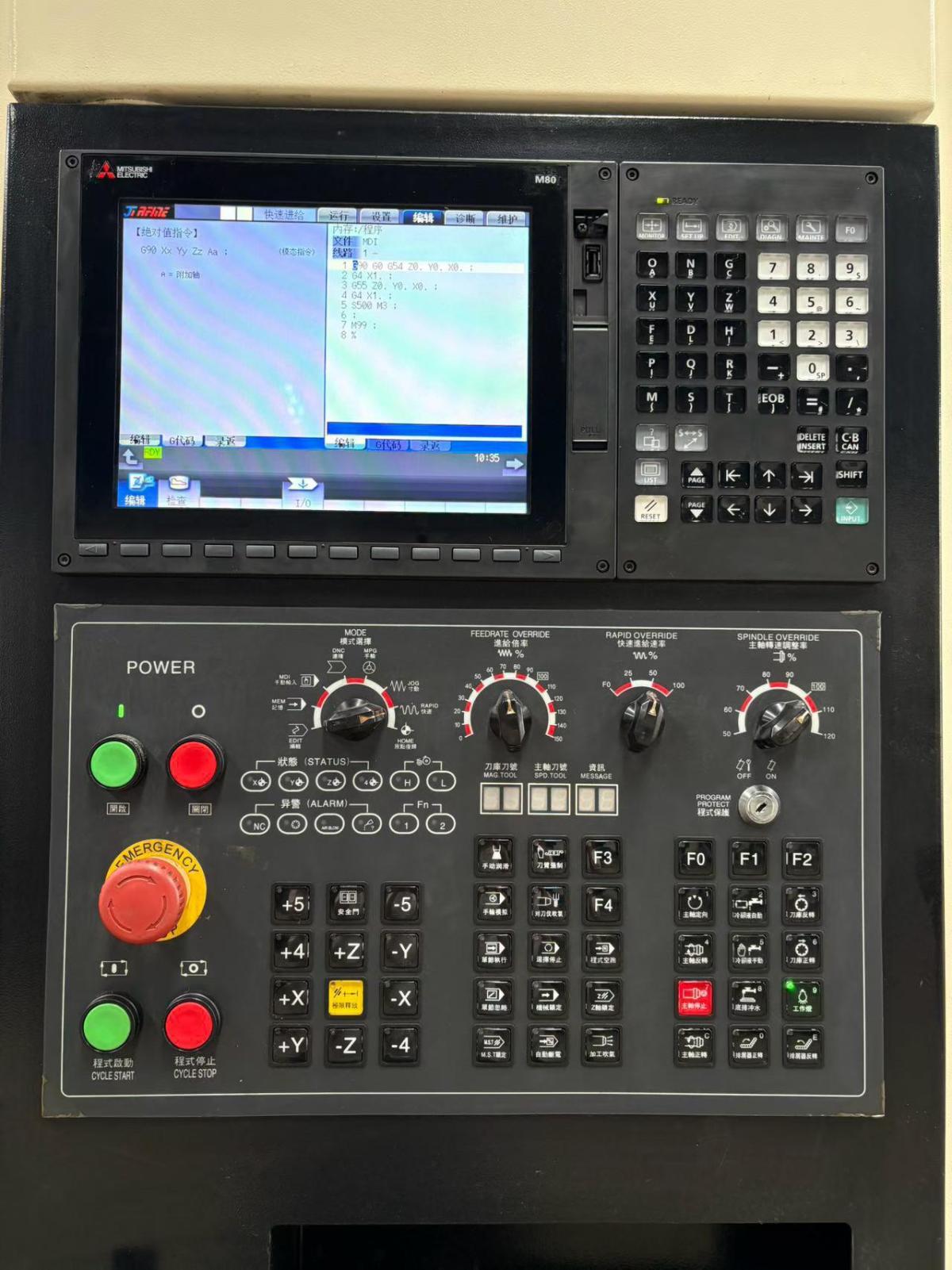

CNC System: Mitsubishi M80
Worktable Size: 1200 × 600 mm
Three-Axis Travel: X 1100 × Y 600 × Z 600 mm
Maximum Spindle Speed: 8,000 rpm
Distance from Spindle Nose to Worktable: 130–730 mm
Maximum Worktable Load: 800 kg
T-Slot Size × Number of Slots × Slot Spacing: 18 × 5 × 100 mm
Spindle Taper: BT40
Tool Magazine Capacity: 30 tools
Guideways: German Rexroth No. 45 linear guideways on all 3 axes
Z-Axis Counterweight: Cylinder counterweight
Ballscrew Pitch: 12 mm
Spindle Motor Power: 11 kW
