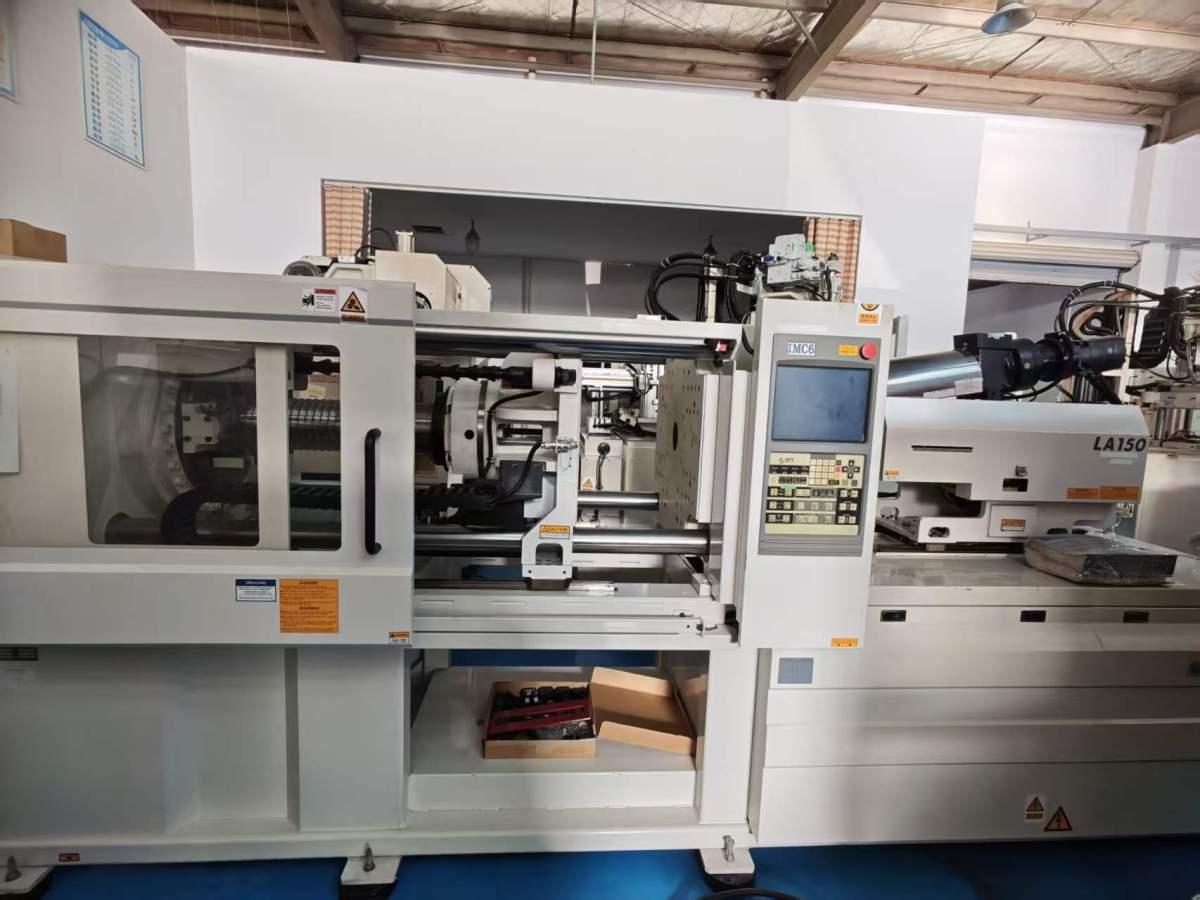

Sodick LA150 injection molding machine

Maximum Clamping Force: 150 tons (1,472 kN)
Tie-Bar Spacing: 560 × 520 mm
Platen Size: 720 × 680 mm
Mold Thickness Range: 250–600 mm
Maximum Mold Opening Stroke: 900 mm
Injection System: V-LINE (Screw Pre-Plasticizing + Plunger Injection)
Plunger Diameter: Ø28 / Ø32 / Ø40 mm (Optional)
Maximum Injection Pressure: 210–240 MPa
Theoretical Injection Capacity: 83–251 cm³
Maximum Injection Speed: 500 mm/s
Injection Method: High-Speed Injection Using an Accumulator
Drive System: Oil-Electric Hybrid Direct-Pressure Clamping
Machine Weight: Approximately 5,100 kg
