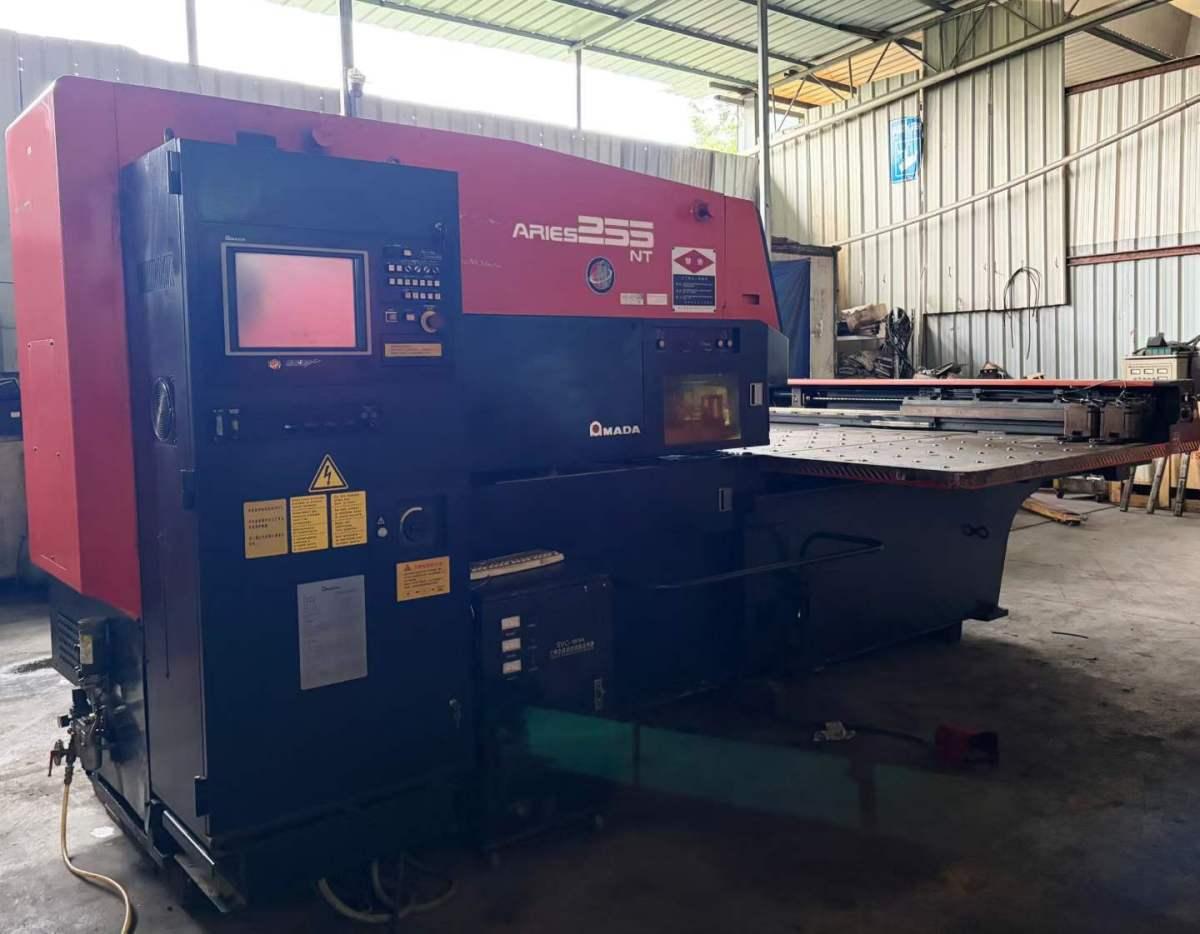

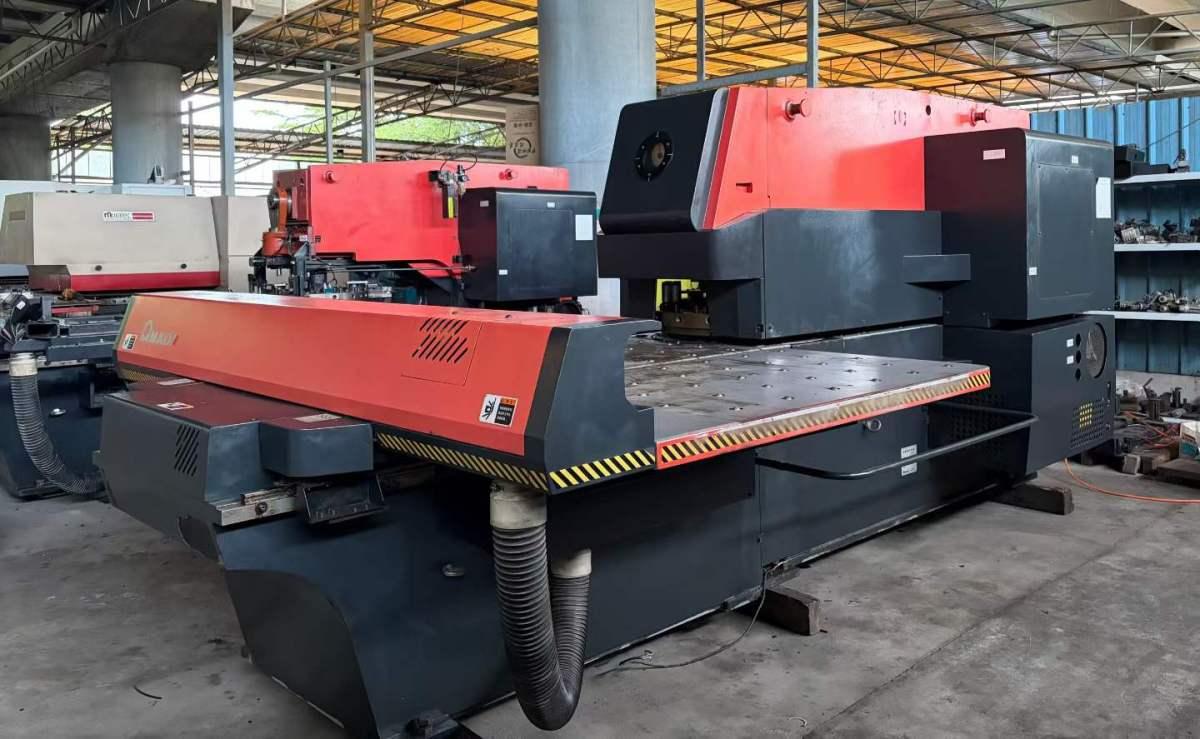

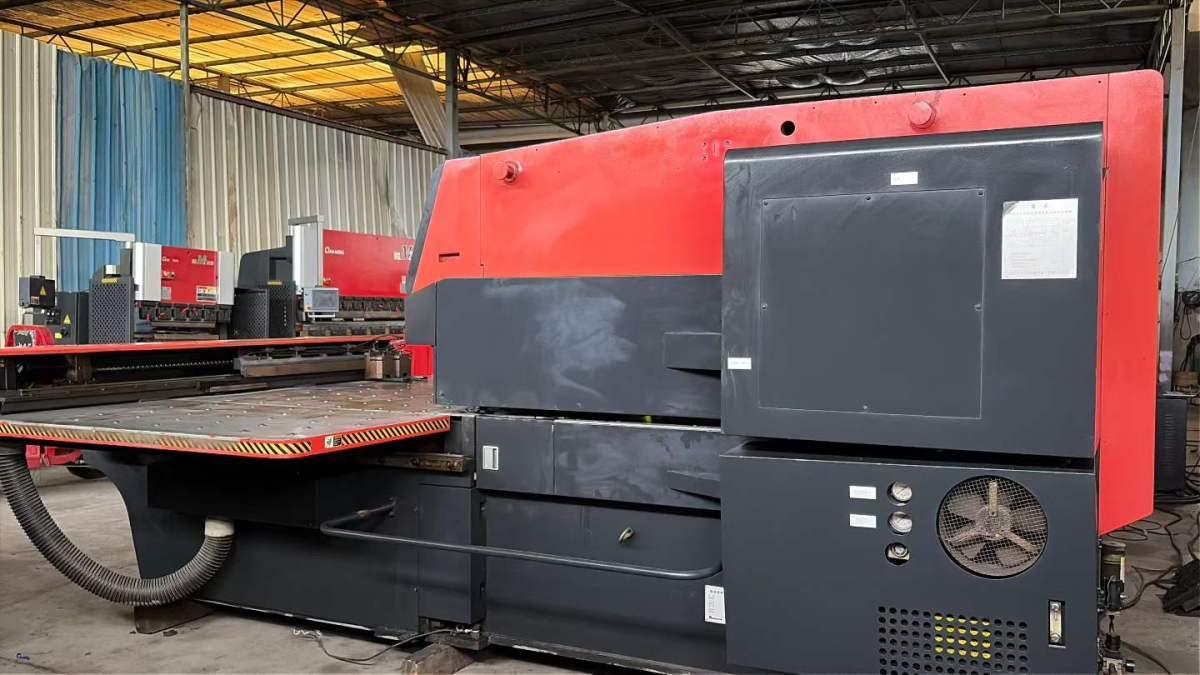

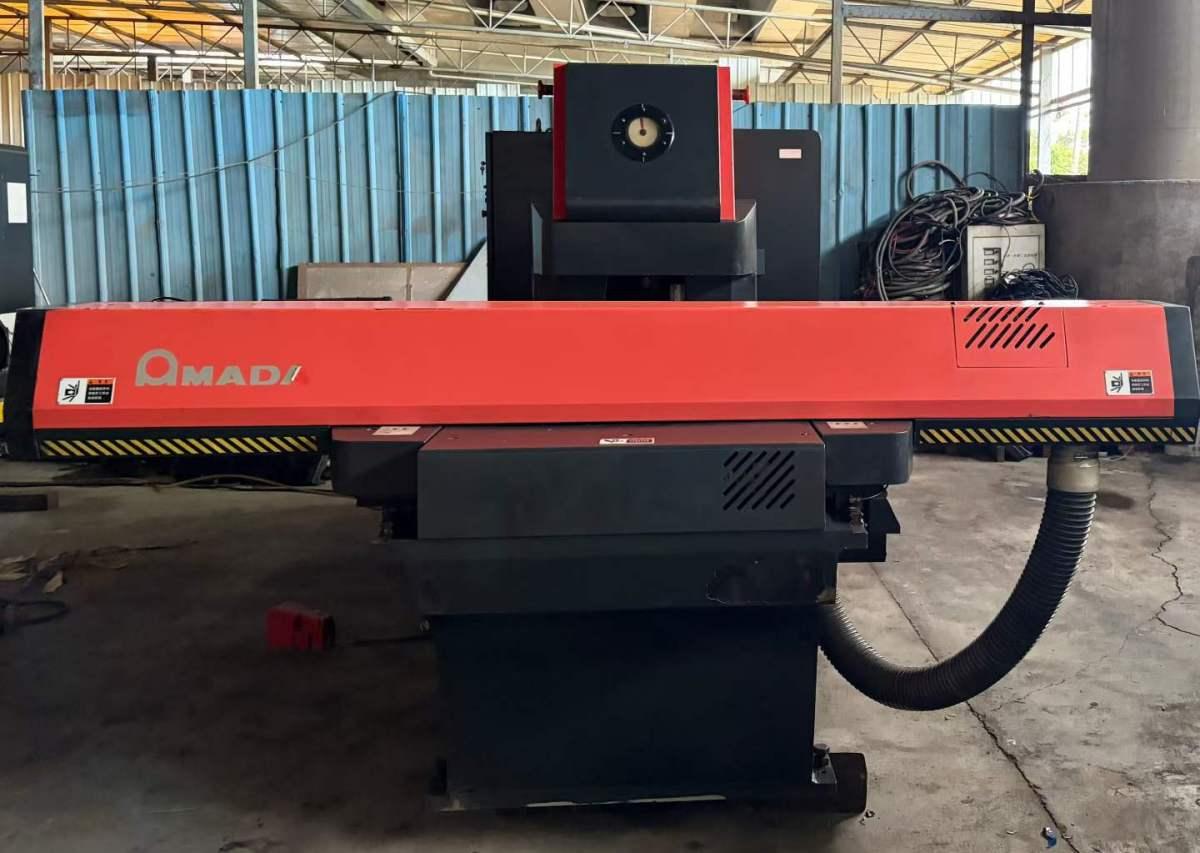

AMADA ARIES-255NT Punch / press

Punching Capacity: 20 tons
Maximum Machining Size (Single Clamping): 2,540 × 1,250 mm
Machining Accuracy: ±0.1 mm
Maximum Material Weight: 750 kg
Worktable Travel Speed: 42 m/min
Maximum Punching Rate: 350 S.P.M.
Punching Frequency: 180 HPM
Maximum Material Thickness: 4.35 mm
Tool Stations: 30 ST (Two-Track Type)
Tool Change Time: 0.5–2 sec
Maximum Tool Diameter: Ø88.9 mm
Power Supply Capacity: 14 kVA
Machine Structure: Double-C-Frame
Controller: AMADA
Motor Type: DC Servo Motor
